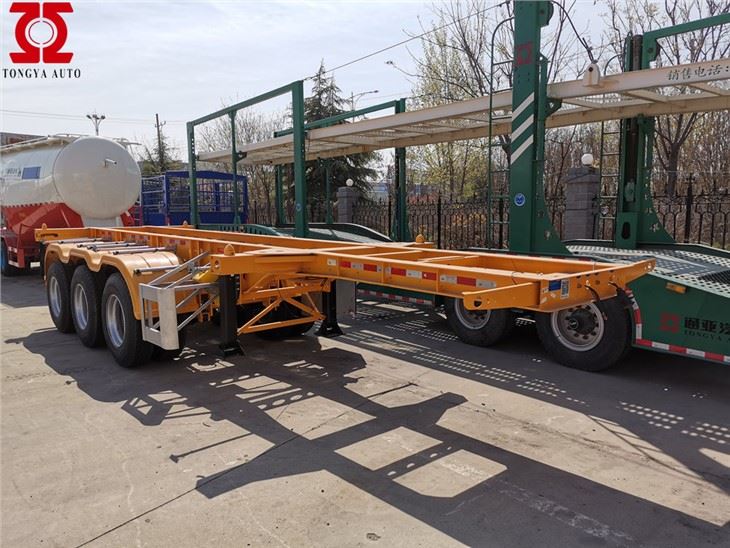

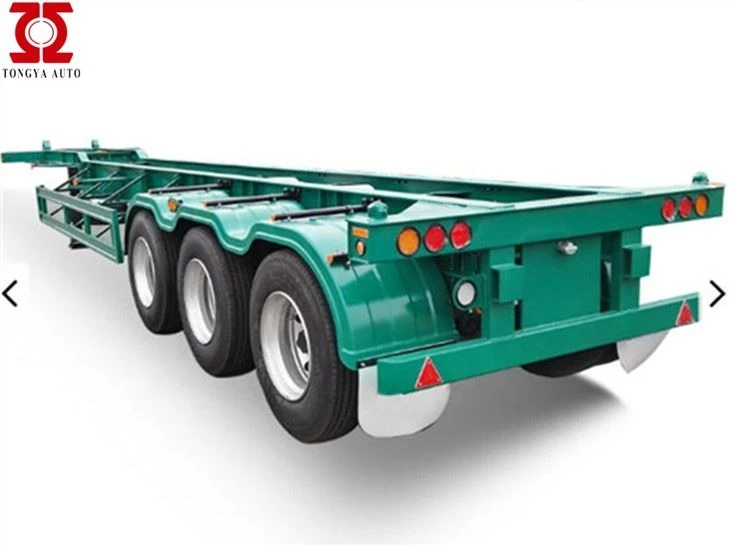

Thawv Thauj Trailer
2022 cov khoom tshiab thawv thauj trailer rau muag.
Kev cob qha cov thawv thauj khoom trailer chaw tsim tshuaj paus tshaj 39 xyoo! Peb lub npe yog paub zoo nyob rau hauv Tuam Tshoj thiab lwm lub teb chaws uas peb lub lag luam tau them.
Thawv thauj trailer tuaj yeem teeb tsa tus kheej rau: 20h, 30', 40', 45', 2x20' lossis ib qho kev sib xyaw ntawm tag nrho cov ntim no.
Khoom Taw qhia
Tare luj | Txog 6.5 tons |
Sab nraud dimension (mm) | 12450*2490*1400 |
Loading peev (Ton) | Tsawg dua los yog sib npaug rau 45T (40FT) |
Axles | 3 axles square qag nrog 13 tons peev, FUHUA hom (Tuam Tshoj hom zoo tshaj) |
Lub log | 12.00R22.5 los yog 315/80R22.5 |
Rim | 9.00-22.5 Tuam Tshoj Hom |

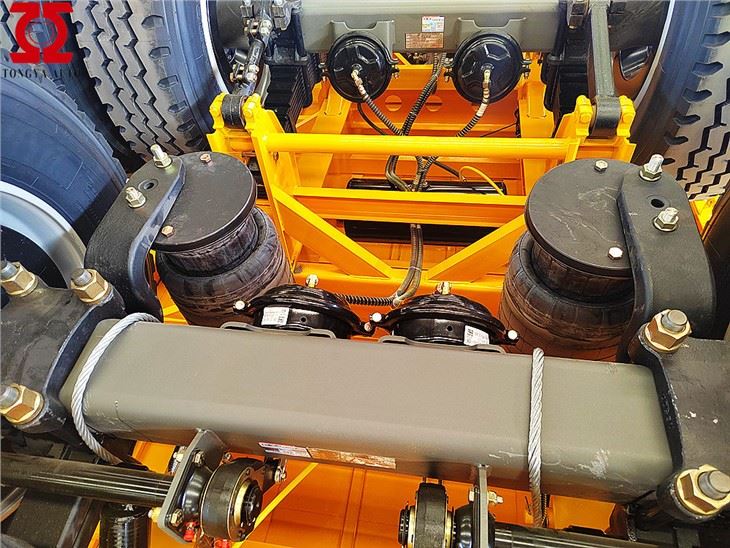

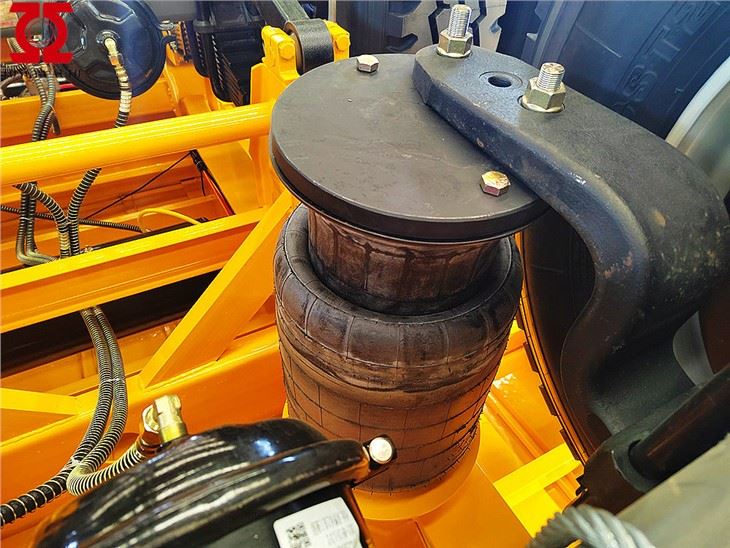

Kev ncua | Mechanical suspension |
Nplooj nplooj | 90 (W) hli * 13 (Thickness) hli 10 pcs nplooj hlav |
King pin | JOST hom 2.0 lossis 3.5 |
tsaws ob txhais ceg | JOST hom E100 lossis Tuam Tshoj hom 28 Tuj (ob zaug ceev) |
Main Beam | Qhov siab: 500mm, sab phaj yog 14 hli, nruab nrab phaj yog 8 hli, nqes phaj yog 16 hli; Khoom siv yog Q345B Steel. |
Nres chamber | WABCO relay valve |
Twist Locks | 12 units ISO twist xauv |
ABS | Xaiv tau |
Teeb | LED teeb |
Qhov hluav taws xob | 24V |
Hluav taws xob | Ib chav ntawm 27V 7-pin ISO 1185 socket |
Tool lub thawv | Ib thooj, 1m * 0.5m * 0.5m (Qhov loj tuaj yeem xaiv tau dawb) |
Kev pleev xim | Xuab zeb blasting ua ntej painting; ib tug cam khwb cia ntawm primer, anti-corrosion; ob lub tsho ntawm tiav painting; xim qhia los ntawm cov neeg siv khoom. |
2022 cov khoom tshiab thawv thauj khoom trailer ua los ntawm neeg hlau.Dab tsi yog qhov zoo ntawm qhov tsis siv neeg vuam tshuab tag nrho rau lub thawv thauj khoom trailer? 1) Ua kom ruaj khov thiab txhim kho qhov zoo ntawm vuam, tuaj yeem cuam tshuam qhov zoo ntawm vuam nyob rau hauv daim ntawv ntawm cov lej muaj nuj nqis, 2) txhim kho kev ua haujlwm ntawm cov neeg ua haujlwm, 3) txhim kho kev siv zog ntawm cov neeg ua haujlwm, ua haujlwm nyob rau hauv qhov chaw tsis zoo, 4) thiab txo cov kev xav tau rau cov neeg ua haujlwm kev ua haujlwm technology. 5) Txo lub sij hawm npaj rau kev hloov kho cov khoom thiab txo cov khoom siv peev txheej.
Thawv thauj trailer siv rau kev thauj khoom 20ft 40ft thiab 45ft thawv, yog li thawv chassis trailers muaj cov duab sib txawv thiab ntau thiab tsawg.
Peb yog Tuam Tshoj ua cov chaw tsim khoom txij li xyoo 1982! Kev tshaj lij lub thawv thauj khoom trailer chaw tsim khoom tshaj 39 xyoo! Peb lub npe yog paub zoo nyob rau hauv Tuam Tshoj thiab lwm lub teb chaws uas peb lub lag luam tau them.
Siv 100 feem pua ntau yam khoom lag luam nto moo rau lub thawv thauj khoom trailer, xws li JOST, WABCO, BPW, FUWA, Ob npaug npib, ect! Tag nrho cov thawv thauj khoom thauj khoom ua raws li cov qauv hauv tebchaws GB1589, GB / T6420!
12 lub hlis warranty lub sijhawm, peb lees txais 100 feem pua kev tshuaj xyuas, Zoo siab txais tos rau peb lub Hoobkas txhua lub sijhawm! Peb yuav muab cov khoom zoo tshaj plaws thiab kev pabcuam rau koj!
Cim npe nrov: thawv thauj trailer, Suav teb, neeg muab khoom, manufacturers, customized, nqe
