Thawv Chassis
Hnyav plaub ntug 40FT 3 qag Skeletal Deck Thawv Semi Trailer kev muag khoom
12 units ISO twist locks rau 2 * 20ft, 1 * 40ft, 1 * 20ft thawv, 4 units tsau, 8 units retractable twist locks.
Peb yog cov chaw tsim khoom, lub sijhawm tsim khoom 7 hnub ua haujlwm rau ib chav tsev semi trailer, 300 units hauv ib hlis.
Khoom Taw qhia
Tare luj | Txog 6.5 tons |
Sab nraud dimension (mm) | 11350*2490*1400 |
Loading peev (Ton) | Tsawg dua los yog sib npaug rau 35T (40FT) |
Axles | 2 axles square qag nrog 13 tons peev, FUHUA hom (Tuam Tshoj hom zoo tshaj) |
Lub log | 12.00R22.5 los yog 315/80R22.5 |
Rim | 9.00-22.5 Tuam Tshoj Hom |
Kev ncua | Mechanical suspension |
Nplooj nplooj | 90 (W) hli * 13 (Thickness) hli 10 pcs nplooj hlav |
King pin | JOST hom 2.0 lossis 3.5 |

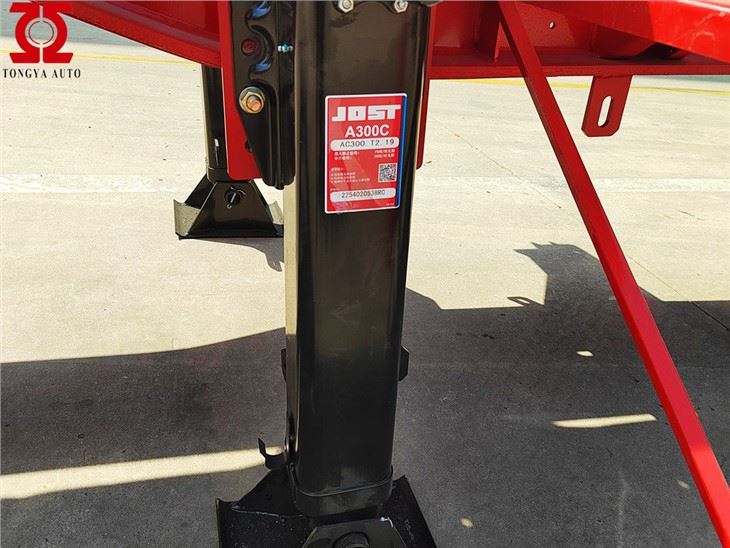

tsaws ob txhais ceg | JOST hom E100 lossis Tuam Tshoj hom 28 Tuj (ob zaug ceev) |
Main Beam | Qhov siab: 500mm, sab phaj yog 14 hli, nruab nrab phaj yog 8 hli, nqes phaj yog 16 hli; Khoom siv yog Q345B Steel. |
Nres chamber | WABCO relay valve |
Twist Locks | 12 units ISO twist xauv |
ABS | xaiv tau |
Teeb | LED teeb |
Qhov hluav taws xob | 24V |
Hluav taws xob | Ib chav ntawm 27V 7-pin ISO 1185 socket |
Tool lub thawv | Ib thooj, 1m * 0.5m * 0.5m (Qhov loj tuaj yeem xaiv tau dawb) |
Kev pleev xim | Xuab zeb blasting ua ntej painting; ib tug cam khwb cia ntawm primer, anti-corrosion; ob lub tsho ntawm tiav painting; xim qhia los ntawm cov neeg siv khoom. |
Hnyav plaub ntug nrog 2 qag thawv chassis semi trailer kev muag khoom. 2 axles thawv chassis semi trailer siv rau kev thauj khoom 2 * 20ft, 1 * 40ft thawv, thiab lub peev xwm thauj khoom txog 30T.2 axles square qag nrog 13tons peev, FUHUA hom (Tuam Tshoj hom zoo tshaj plaws).King Pin yog 2.{{10 }}'' (50 # bolting huab tais pin), JOST hom, German hom, ua nyob rau hauv Tuam Tshoj.Twist Locks rau lub thawv chassis semi trailer yog 12 units ISO twist locks rau 2 * 20ft, 1 * 40tf, 1 * 20ft thawv, 4 units tsau 8 units retractable twist locks.Thiab lwm cov ncauj lus kom ntxaws specification koj yuav nrhiav tau nyob rau hauv cov parameter daim ntawv teev.
Hom thawv chassis no peb muag tau zoo heev xyoo tas los no, Hais txog kev muag khoom, peb yog cov saum 10 los ntawm Tuam Tshoj.Peb tau ntseeg los ntawm cov neeg siv khoom los ntawm Africa, Australia, South America, Indonesia South American, South East Asia, nruab nrab sab hnub tuaj thiab lwm yam.
Peb lub thawv chassis semi trailer tsim raws li thoob ntiaj teb sawv ntsug thiab cov qauv.Peb siv txhua qhov kev thov raws li lub sijhawm los tshuaj xyuas txhua ntu uas yuav cuam tshuam rau peb qhov zoo, xws li kev tsim khoom, tsim, ntim, tshuaj xyuas, thiab xa khoom.Peb ua haujlwm tas li zoo dua. tsim, cov txheej txheem zoo dua, thiab ib txwm sim ua tib zoo mloog cov ntsiab lus.
Peb tsom mus ntev kev koom tes nrog koj.Peb tsis yog hais txog ib zaug xwb deal.Qhov tseeb, ntau ntawm peb cov neeg tau nrog peb rau xyoo, ua tsaug rau peb ruaj khov zoo tswj thiab them nyiaj txoj cai.
Txais tos rau peb lub Hoobkas txhua lub sijhawm!
