Thawv Carrier

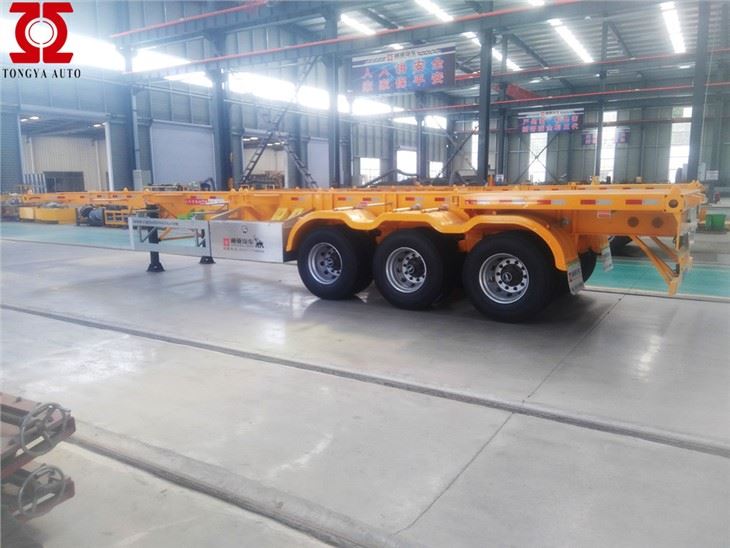

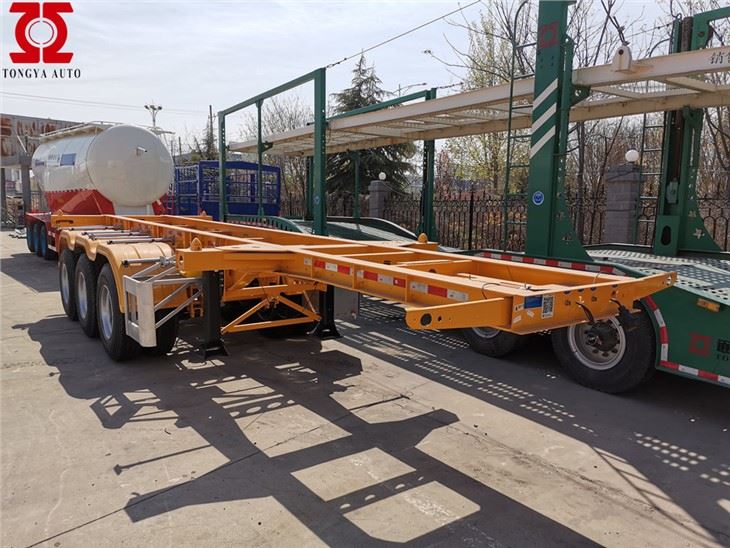

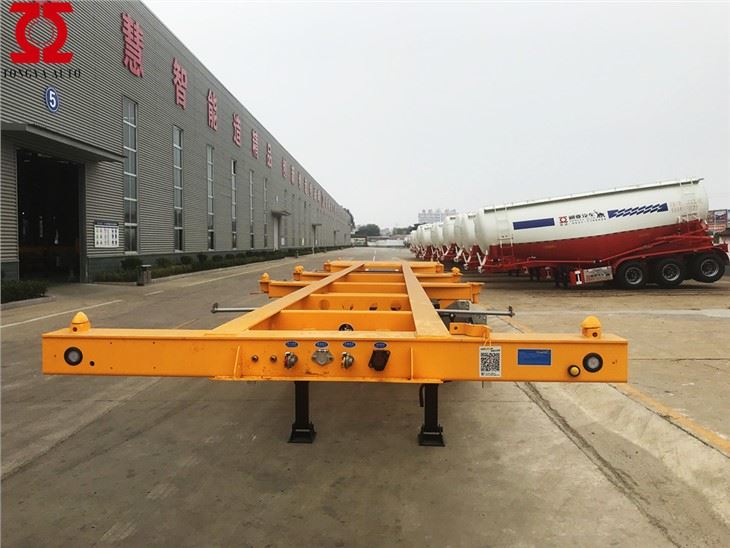

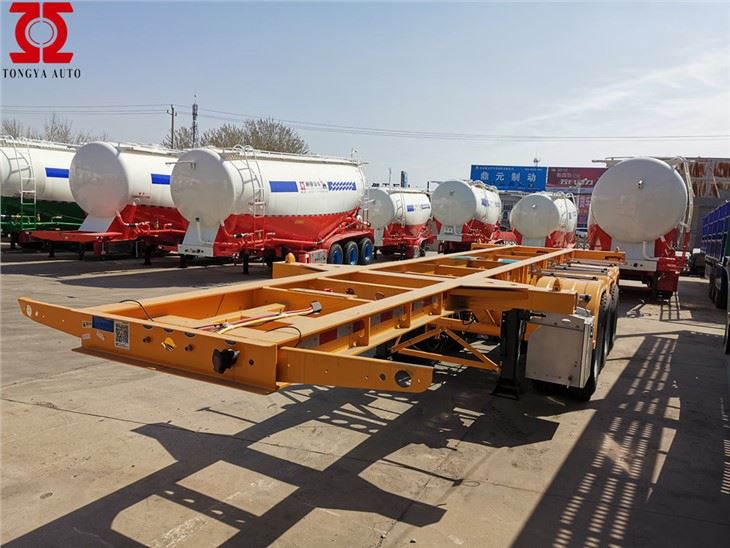

3 Axles Skeleton Semi-Trailer nrog Strong Structure Chassis muag!
Siv rau kev thauj khoom thiab thauj cov thawv, tso cai rau kev thauj mus los ntawm txhua lub thawv ntim khoom thiab qhov ntau thiab tsawg.
Yog tias koj muaj kev xav tau tshwj xeeb rau lub cev pob txha semi-trailer, peb tuaj yeem tsim nws rau koj raws li koj xav tau.
Khoom Taw qhia
Tare luj | Txog 6.5 tons |
Sab nraud dimension (mm) | 12450*2490*1400 |
Loading peev (Ton) | Tsawg dua lossis sib npaug rau 45T (40FT) |
Axles | 3 axles square qag nrog 13 tons peev, FUHUA hom (Tuam Tshoj hom zoo tshaj) |
Lub log | 12.00R22.5 los yog 315/80R22.5 |
Rim | 9.00-22.5 Tuam Tshoj Hom |
Kev ncua | Heavy luag hauj lwm tri-axle ncua kev kawm ntawv nrog equalizers, American tsim |
Nplooj nplooj | 90 (W) hli * 13 (Thickness) hli 10 pcs nplooj hlav |
King pin | JOST hom 2.0 lossis 3.5 |
tsaws ob txhais ceg | JOST hom E100 lossis Tuam Tshoj hom 28 Tuj (ob zaug ceev) |
Main Beam | Qhov siab: 500mm, sab phaj yog 14 hli, nruab nrab phaj yog 8 hli, nqes phaj yog 16 hli; Khoom siv yog Q345B Steel. |
Tus naj npawb ntawm lub log | 9 daim (nrog rau ib lub log spare) |
Nres chamber | WABCO relay valve |

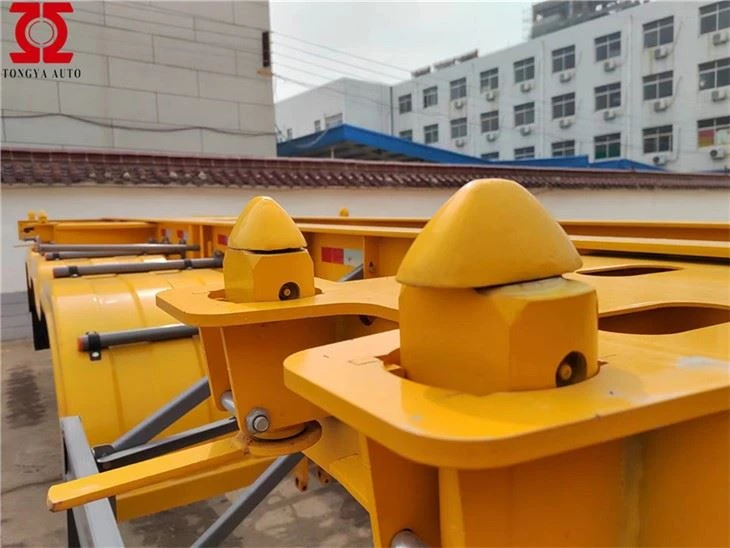

Twist Locks | 12 units ISO twist xauv |
ABS | xaiv tau |
Teeb | LED teeb |
Qhov hluav taws xob | 24V |
Hluav taws xob | Ib chav ntawm 27V 7-pin ISO 1185 socket |
Tool lub thawv | Ib thooj, 1m * 0.5m * 0.5m (Qhov loj tuaj yeem xaiv tau dawb) |
Kev pleev xim | Xuab zeb blasting ua ntej painting; ib tug cam khwb cia ntawm primer, anti-corrosion; ob lub tsho ntawm tiav painting; xim qhia los ntawm cov neeg siv khoom. |
Lub thawv nqa khoom kuj tseem hu ua Skeleton semi trailer thiab lub thawv thauj khoom semi trailer.Sab nraum qhov ntev txog 3 axles lub thawv nqa khoom yog 12450 * 2490 * 1400mm (Qhov kawg qhov ntev yog nyob ntawm qhov kawg tsim kos duab). thiab ntxiv durability tsim; vuam los ntawm tsis siv neeg Submerged-Arc txheej txheem.Our manufacturing rhiav khoom Kev tswj cov qauv ntawm cov ndlwg kab ntau lawm hom, muaj saum toj kawg nkaus tus lej tswj tej tshuab, tsis siv neeg vuam tshuab, loj-loj khi tshuab, advanced ntau lawm kab thiab niaj hnub assembling khoom nyob rau hauv Suav teb.
Lub ntsiab nqaj yog lub luag haujlwm hnyav thiab muaj zog ntxiv tsim, siv Q345B steel.
Vuam los ntawm cov txheej txheem Submerged-Arc tsis siv neeg, pleev xim rau lub thawv ntim khoom semi trailer hauv 21m zoo xim pleev xim thiab pleev xim rau chav tsev, xuab zeb blasting ua ntej pleev xim, ib lub tsho tiv no ntawm primer, tiv thaiv corrosion, ob lub tsho tiv no ntawm cov xim tiav.
Peb lub thawv ntim khoom semi trailer paub zoo rau peb cov khoom zoo hauv kev ua lag luam.Thov nrhiav cov khoom tiav cov duab thiab daim ntawv pov thawj rau koj siv.Peb tau nyiam rov hais dua los ntawm ntau tus neeg siv khoom uas ntseeg peb xyoo, thiab nws yog txhua yam txog kev ruaj ntseg zoo.
Kev tswj hwm kev ntseeg zoo yog peb lub tswv yim, thiab txais tos tuaj xyuas peb lub tuam txhab txhua lub sijhawm!
Cim npe nrov: thawv tus kab mob, Suav teb, neeg muab khoom, manufacturers, customized, nqe
