Gooseneck Thawv Trailer
Gooseneck thawv trailer yog ib qho tshwj xeeb skeleton semi trailer, qhov siab yog qis dua hom ncaj.
Lub gooseneck thawv trailer muaj lub zog siab thiab muaj zog nruj nta.Loading peev xwm rau 3 axles thawv trailer txog 60T.
Yog tias koj muaj qhov tshwj xeeb tshwj xeeb, peb kuj tuaj yeem ua raws li koj cov kev xav tau los ua qhov trailer no.
Khoom Taw qhia
Tare luj | Txog 6.5 tons |
Sab nraud dimension (mm) | 12450*2490*1400 |
Loading peev (Ton) | Tsawg dua los yog sib npaug rau 35T (40FT) |
Axles | 2 axles square qag nrog 13 tons peev, FUHUA hom (Tuam Tshoj hom zoo tshaj) |

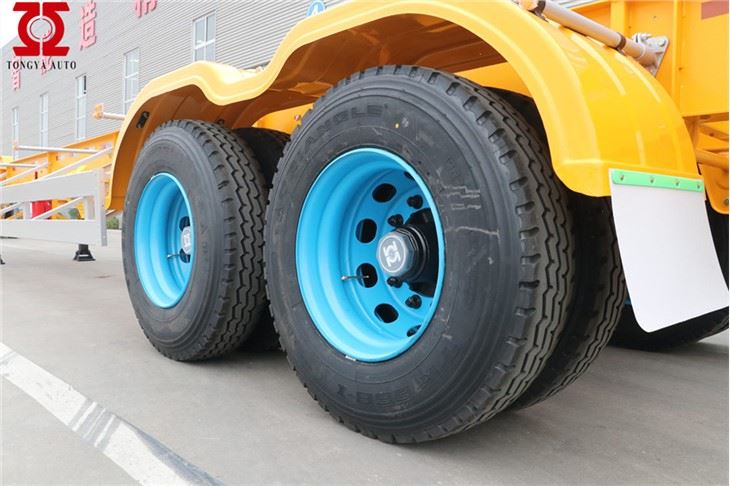

Lub log | 12.00R22.5 los yog 315/80R22.5 |
Rim | 9.00-22.5 Tuam Tshoj Hom |
Kev ncua | Lub luag haujlwm hnyav tri-axle nrog 13 tons peev, FUHUA hom |
Nplooj nplooj | 90 (W) hli * 13 (Thickness) hli 10 pcs nplooj hlav |
King pin | JOST hom 2.0 lossis 3.5 |
tsaws ob txhais ceg | JOST hom E100 lossis Tuam Tshoj hom 28 Tuj (ob zaug ceev) |
Main Beam | Qhov siab: 500mm, sab phaj yog 14 hli, nruab nrab phaj yog 8 hli, nqes phaj yog 16 hli; Khoom siv yog Q345B Steel. |
Nres chamber | WABCO relay valve |
Twist Locks | 12 units ISO twist xauv |
ABS | xaiv tau |
Teeb | LED teeb |
Qhov hluav taws xob | 24V |
Hluav taws xob | Ib chav ntawm 27V 7-pin ISO 1185 socket |
Tool lub thawv | Ib thooj, 1m * 0.5m * 0.5m (Qhov loj tuaj yeem xaiv tau dawb) |
Kev pleev xim | Xuab zeb blasting ua ntej painting; ib tug cam khwb cia ntawm primer, anti-corrosion; ob lub tsho ntawm tiav painting; xim qhia los ntawm cov neeg siv khoom. |
Gooseneck thawv trailer 3 qag 45ft thawv chassis kev muag khoom.
Tongya lub tuam txhab muab cov gooseneck thawv trailer tuaj yeem siv los thauj cov thawv ntim khoom, cov khoom thauj ntau thiab lwm yam khoom, thiab peb kuj tuaj yeem ua raws li koj qhov yuav tsum tau ua kom cov trailer no.Tag nrho cov gooseneck thawv trailer siv 100 feem pua ntau yam khoom seem rau peb cov khoom, xws li JOST, WABCO, BPW, FUWA, Ob chav npib, thiab lwm yam ! Cov khoom ua tau raws li cov qauv hauv lub tebchaws GB1589, GB / T6420 ! Tib lub sijhawm kom tau raws li tus neeg xav tau kev pab ntawm cov neeg siv khoom. Kev pabcuam OEM / ODM. Tsuas yog qhia peb koj lub tswv yim, peb pab pawg R & D sawv ntawm! Peb cov khoom siv tseem ceeb siv Q345 rau lub thawv gooseneck trailer, nws muaj lub zog siab thiab muaj zog khov kho nta.Cross beam siv Hnyav luag haujlwm 10 # channel steel, (Q235 steel).Brake system rau gooseneck thawv trailer yog qhov zoo, WABCO relay valve ; Plaub ob chav thiab ob chav nres tsheb; Ib chav tsev ntawm kev ntseeg siab hauv zos hom 45L cua tank; Ob chav nyob ntawm cov khoom lag luam txhim khu kev qha hauv zos tus qauv coppery air-connector.
Txhaj tshuaj tiv thaiv rau SA 2.5 Standard ua ntej daim ntawv thov ntawm primer, polyurethane sab saum toj txheej. Tag nrho DFT tsis tsawg dua 100μm; Txhua xim yuav muaj.
Peb cov khoom xa tawm mus rau ntau tshaj 30 lub teb chaws, xws li East South Asia, Australia, South America, Africa, Central Asia thiab South Asia.Txhua xyoo peb cov semi trailer ntau tshaj 700 units, tanker semi trailer ntau tshaj 900 units.
Peb ntseeg hais tias lo lus yuav paub ntau tshaj ntawm Tuam Tshoj vim peb Tongyada semi trailer!
Cim npe nrov: nkauj kho siab thawv trailer, Suav teb, neeg muab khoom, manufacturers, customized, nqe
