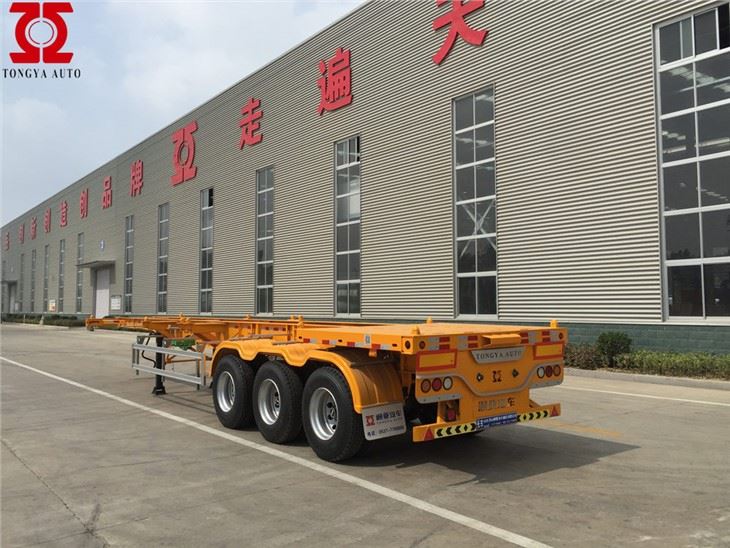

Skeletal Semi Trailer
Skeletal semi trailer yog peb cov khoom hnub qub hauv peb lub Hoobkas, Nws muaj tus nqi pheej yig thiab zoo.
Qhov no skeletal semi trailer tau dhau ntau daim ntawv pov thawj, xws li ISO9001: 2008, CCC, CQC, BV SGS, CNCA, COTENCNA, ECTN, SONCAP ect.
Peb ua kom paub tseeb tias skeletal semi trailer tuaj yeem ua tau raws li qhov xav tau ntawm kev thauj khoom ntawm txoj kev sib txawv thiab muaj lub neej ua haujlwm ntev.
Khoom Taw qhia
Tare luj | Txog 6.5 tons |
Sab nraud dimension (mm) | 12450*2490*1400 |
Loading peev (Ton) | Tsawg dua los yog sib npaug rau 35T (40FT) |
Axles | 2 axles square qag nrog 13 tons peev, FUHUA hom (Tuam Tshoj hom zoo tshaj) |
Lub log | 12.00R22.5 los yog 315/80R22.5 |
Rim | 9.00-22.5 Tuam Tshoj Hom |
Kev ncua | Lub luag haujlwm hnyav tri-axle nrog 13 tons peev, FUHUA hom |
Nplooj nplooj | 90 (W) hli * 13 (Thickness) hli 10 pcs nplooj hlav |

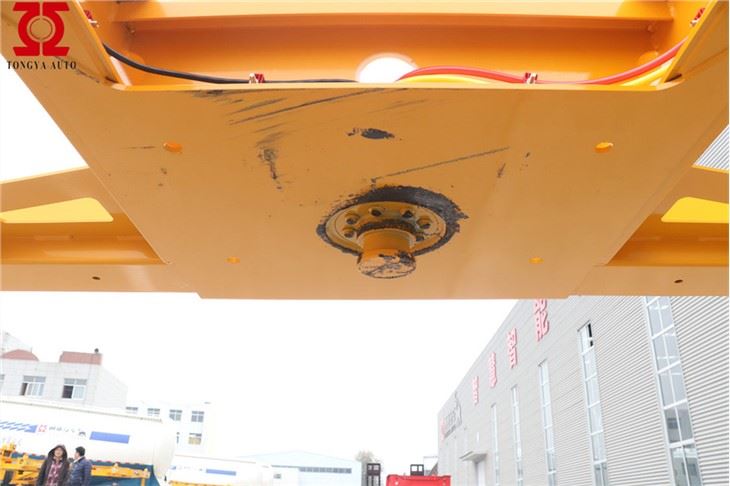

King pin | JOST hom 2.0 lossis 3.5 |
tsaws ob txhais ceg | JOST hom E100 lossis Tuam Tshoj hom 28 Tuj (ob zaug ceev) |
Main Beam | Qhov siab: 500mm, sab phaj yog 14 hli, nruab nrab phaj yog 8 hli, nqes phaj yog 16 hli; Khoom siv yog Q345B Steel. |
Nres chamber | WABCO relay valve |
Twist Locks | 12 units ISO twist xauv |
ABS | xaiv tau |
Teeb | LED teeb |
Qhov hluav taws xob | 24V |

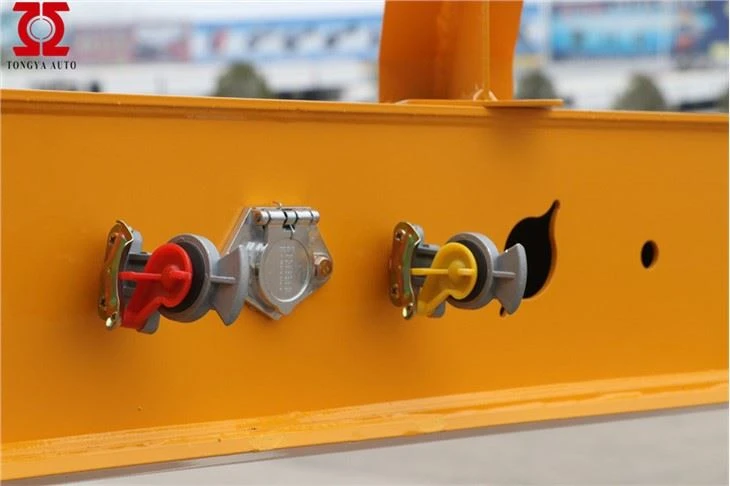

Hluav taws xob | Ib chav ntawm 27V 7-pin ISO 1185 socket |
Tool lub thawv | Ib thooj, 1m * 0.5m * 0.5m (Qhov loj tuaj yeem xaiv tau dawb) |
Kev pleev xim | Xuab zeb blasting ua ntej painting; ib tug cam khwb cia ntawm primer, anti-corrosion; ob lub tsho ntawm tiav painting; xim qhia los ntawm cov neeg siv khoom. |
Tus nqi pheej yig thiab zoo siab tri-axle 20ft 40ft skeletal semi trailer rau muag.Tongya skeletal semi trailer tuaj yeem txaus siab rau lub zog muaj zog, tiv thaiv lub pob thiab qhov cuam tshuam tsis zoo. thiab muaj kev pab lub neej ntev.Customize lub pob txha semi trailer raws li koj xav tau.
Tongya tuam txhab npog thaj tsam ntawm 730, 000 square metres, tag nrho cov cuab tam 460 lab RMB.Muaj 128 tus neeg nrog cov npe kev tshaj lij.Peb muaj thawj chav kawm suav lej tswj txiav tshuab, tsis siv neeg vuam tshuab.100 hom tsheb semi trailers thiab cov tsheb thauj khoom thauj tau dhau los ntawm peb Lub Tebchaws Kev Tshawb Fawb Txog Kev Tshawb Fawb thiab mus txog rau sab saum toj cov chav kawm tawm hauv Suav teb.This skeletal semi trailer tau dhau ntau daim ntawv pov thawj, xws li ISO9001: 2008, CCC, CQC, BV SGS, CNCA, COTENCNA, ECTN, SONCAP ect.
Cov pob kws tshaj lij txuag cov nqi thauj khoom rau koj. Txhawm rau tiv thaiv dej hiav txwv corrosion, peb yuav ua tib zoo qhwv zaj duab xis lossis npog tarpaulin.Thaum cov khoom tuaj txog hauv Africa, Australia thiab txawm South America, lawv tuaj yeem tuav tau zoo.
Kev pleev xim zoo nkauj thiab kev thauj mus los ua haujlwm kom paub meej cov khoom zoo. Peb ntseeg hais tias tsuas yog los ntawm kev xa koj cov kev daws teeb meem thiab daws qhov teeb meem, peb tuaj yeem ua rau peb cov txiaj ntsig! Peb tos ntsoov rau kev sib koom tes kev koom tes yav tom ntej nrog koj !!
Cim npe nrov: cev semi trailer, Suav teb, neeg muab khoom, manufacturers, customized, nqe
