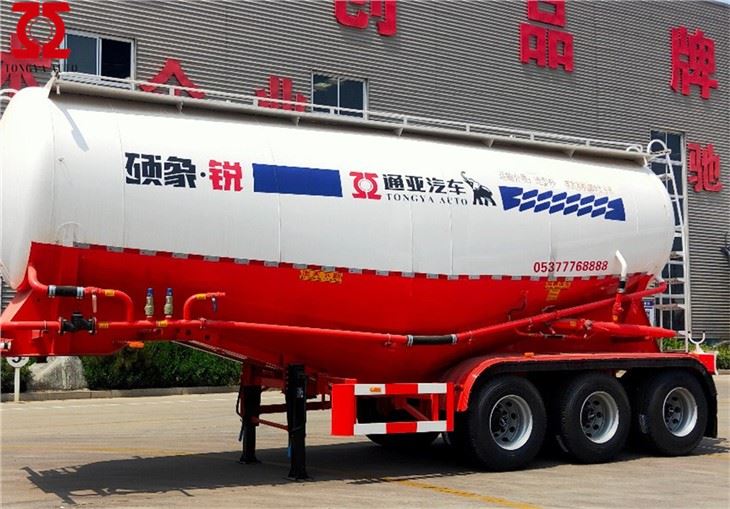

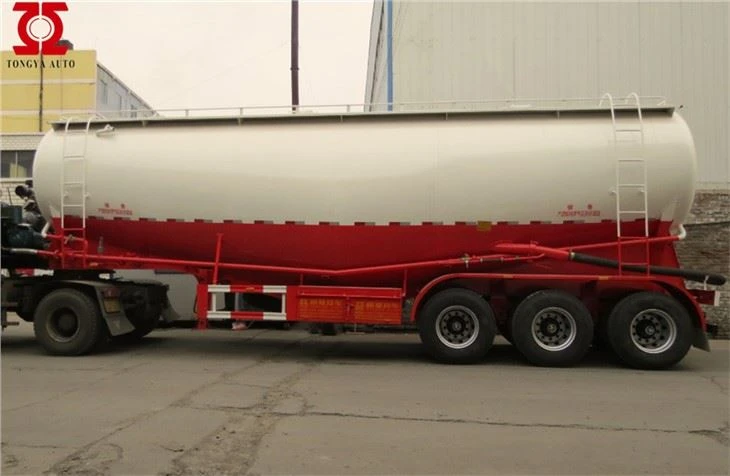

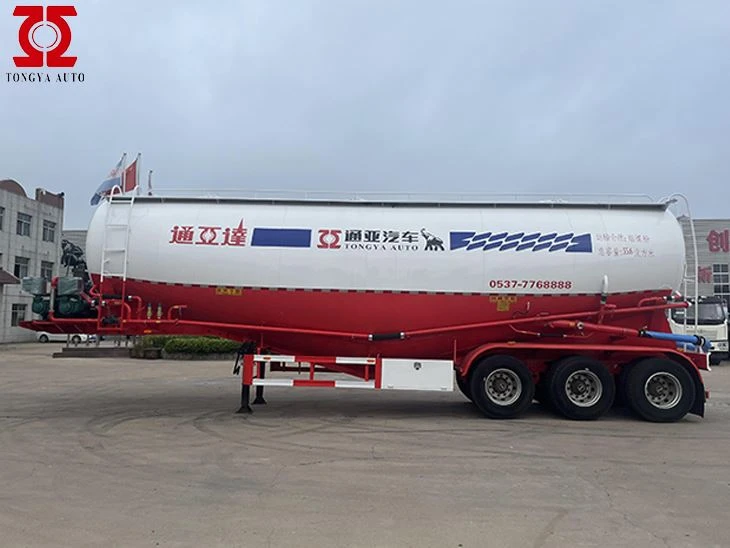

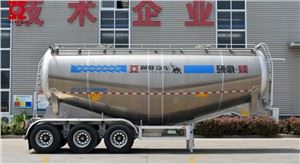

50m3 Cement Tanker Trailer
1.Nws yog dav siv los thauj cov hmoov rau txoj kab uas hla tsawg dua 0.1mm.
2.Can tiv thaiv cov cement los nag thiab lwm yam huab cua phem, lav qhov zoo ntawm cov cement
3.Load thiab unload cement sai sai, tsis xav tau ntau tus neeg ua haujlwm. Txhim kho kev ua haujlwm zoo.
Khoom Taw qhia
Khoom taw qhia
1.Nws yog dav siv los thauj cov hmoov rau txoj kab uas hla tsawg dua 0.1mm.
2.Can tiv thaiv cov cement los nag thiab lwm yam huab cua phem, lav qhov zoo ntawm cov cement
3.Load thiab unload cement sai sai, tsis xav tau ntau tus neeg ua haujlwm. Txhim kho kev ua haujlwm zoo.
4.Nws yuav tsis ua rau muaj kuab paug rau ib puag ncig thaum thauj.
Khoom piav qhia
50m3cement tanker trailer yog qhov loj, nws tuaj yeem thauj khoom li 60tons bulk cement rau ib zaug. Yog li ntawd 50 m3cement tanker trailers nrov heev nrog cov chaw tsim kho thiab cov haujlwm loj, vim nws yooj yim heev, txawm tias 60tons loj, tab sis tsis txhob txhawj, yog tias siv 50m.3cement tanker trailer thiab tuav nws yooj yim, nrog 3 manholes, tuaj yeem thauj cov cement sai thiab tseem heev. Kev thauj khoom tiav, kev thauj mus los kuj yooj yim heev, 50m3cement tanker trailer muaj 3 Suav nto moo hom qag, 12 log tsheb. Nws tuaj yeem ua rau kev khiav mus ntev, txawm tias txoj kev tsis zoo. Tshem tawm cov cement, txawm tias ib tus neeg tuaj yeem daws tau nws, muaj qhov hluav taws xob nyob hauv qab ntawm lub tanker, tig lub cav diesel thiab cua compressor, cov cement yuav tawm ntawm lub tank sai sai, thiab yuav tsis siv sij hawm ntev. Thaum kawg tua lub cav units thiab tag nrho cov li qub.
Yam khoom | 50m3cement tanker trailer |
Tare luj | 9.5t ,ua |
Dimension | 11000mm * 2500mm * 3850mm |
Loading peev (m3) | 50m3,, 60t |
Qag | 3 qag, FUWA brand 13t |
Rim | 9.00-22.5 (tshwj xeeb rau kev lag luam xa tawm) 13pcs |
Lub log | 12R22.5 Daim duab peb sab hom 13pieces (nrog rau 1 seem) |
Kev ncua | Mechanical American Hom |
Nplooj nplooj | 90 (W) mm * 16 (Thick) mm * 10 Layers |
King pin | hom JOST xaiv tau, 90 # |
Txhawb ceg | JOST hom kev xaiv, ob ceev |
Khoom siv ntawm lub tanker | Carbon hlau, Q235B |
Main beam | Q345 |
Tanker lub cev | 5mm ib |
Xaus phaj | 6mm ib |
Diesel cav | TIAB SA 4102 |
Cua compressor | 12m3, ob lub tog raj kheej |
NWP | 0.2MPA |
Manhole | Ob daim |
Cat txoj kev | Anti skid |
qhov hluav taws xob | 1 |
ntaiv | 2, ib tug yog nyob rau hauv lub rear, ib tug yog nyob rau hauv pem hauv ntej |
Xim | Dawb thiab liab |

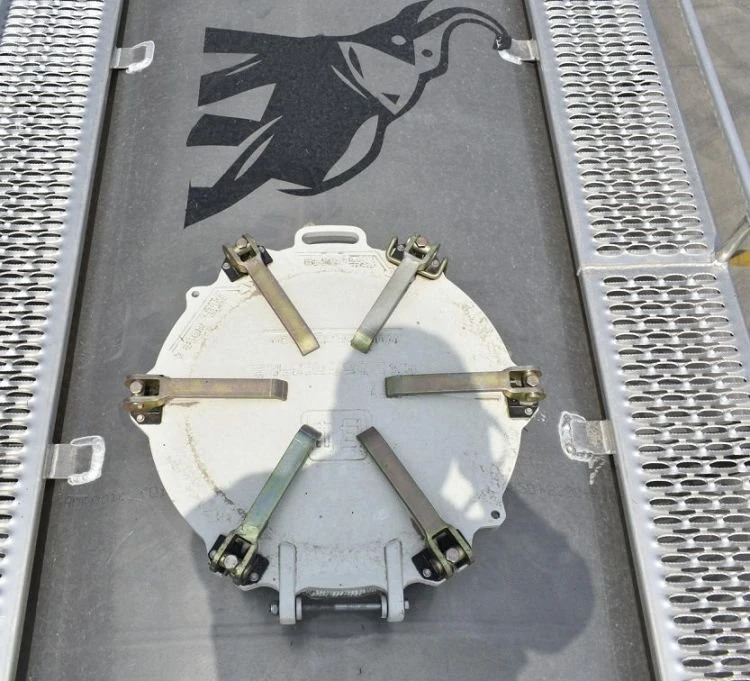

Manhole yog yooj yim los lis, thiab txoj kev miv yog anti-skid

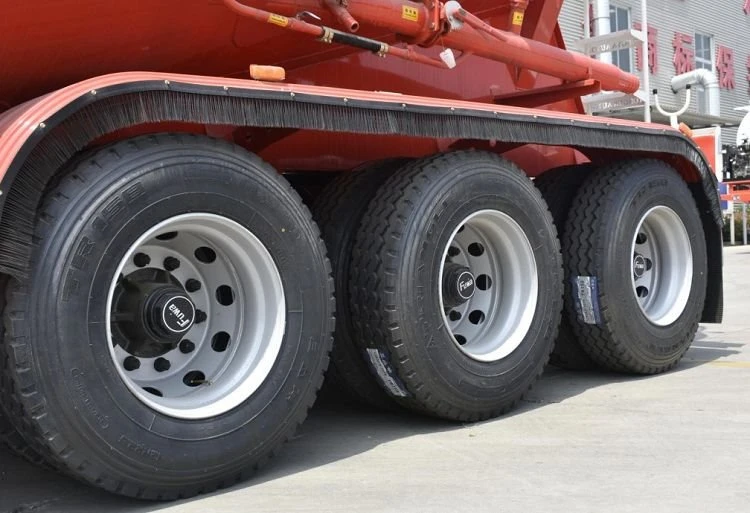

3 axles nrog 12 log tsheb

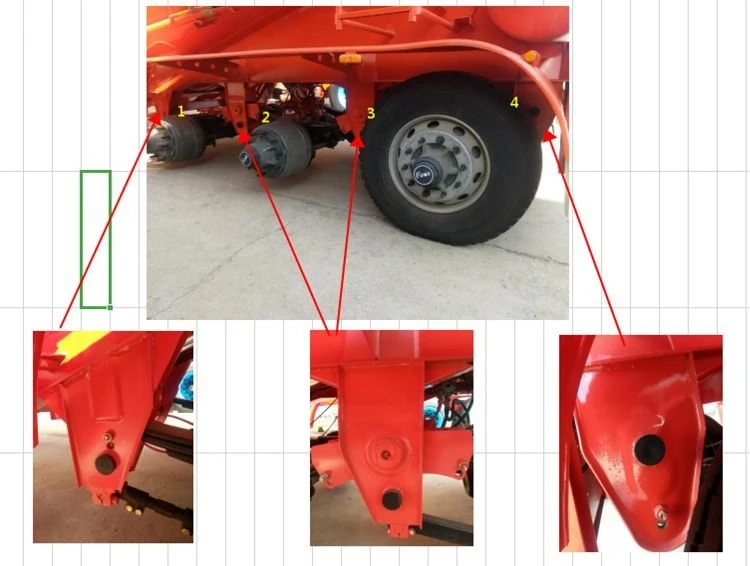

American hom mechanical ncua kev kawm ntawv

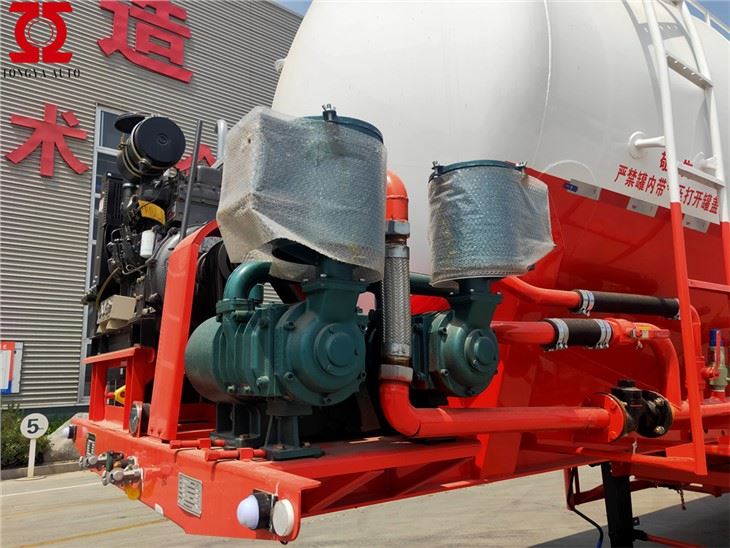

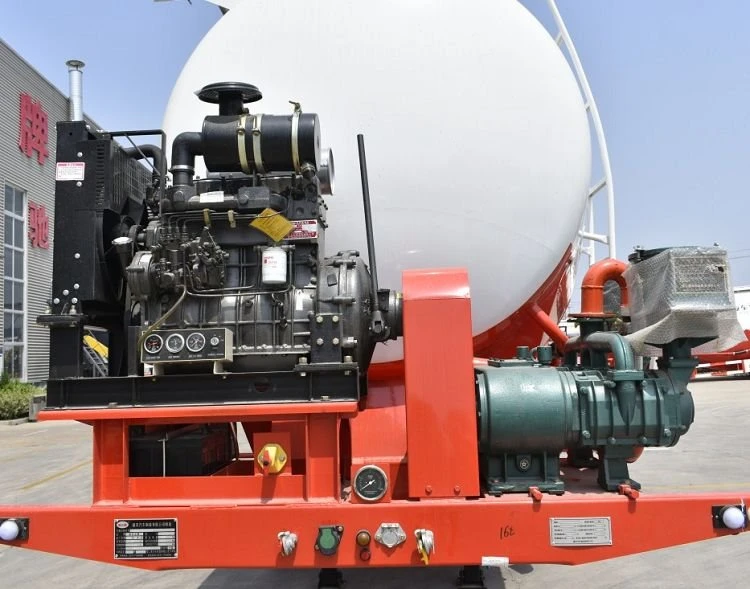

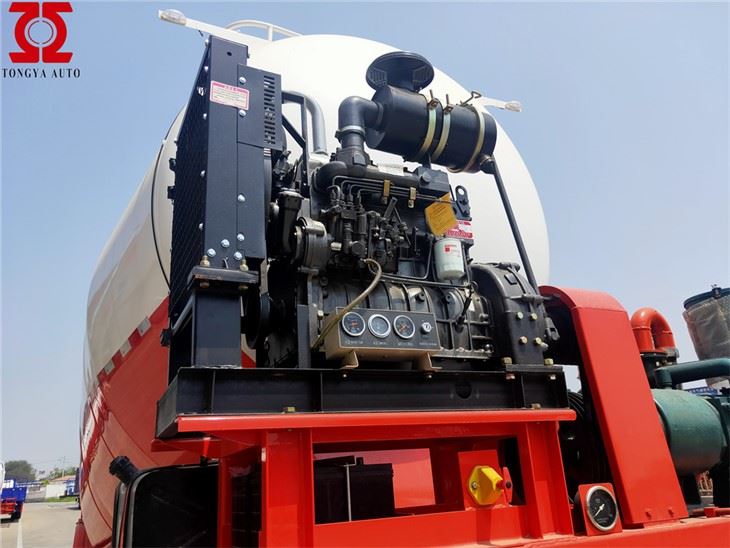

Cav units: nrog diesel cav thiab cua compress, thawb cement tawm ntawm lub tanker
