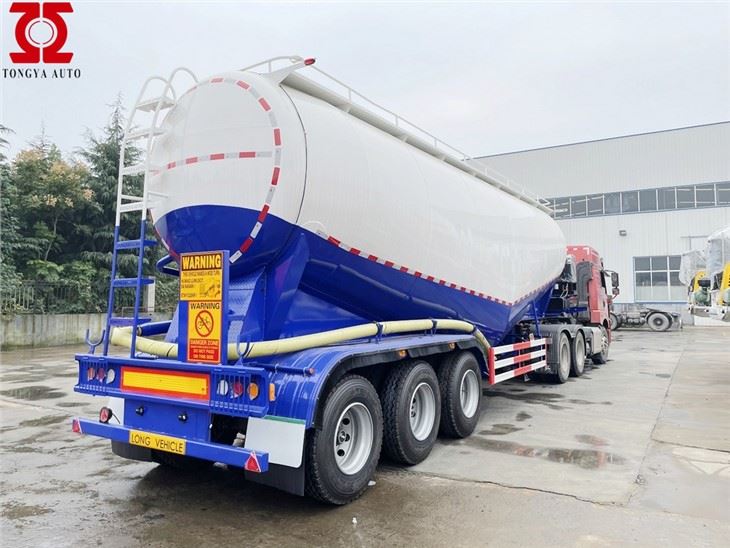

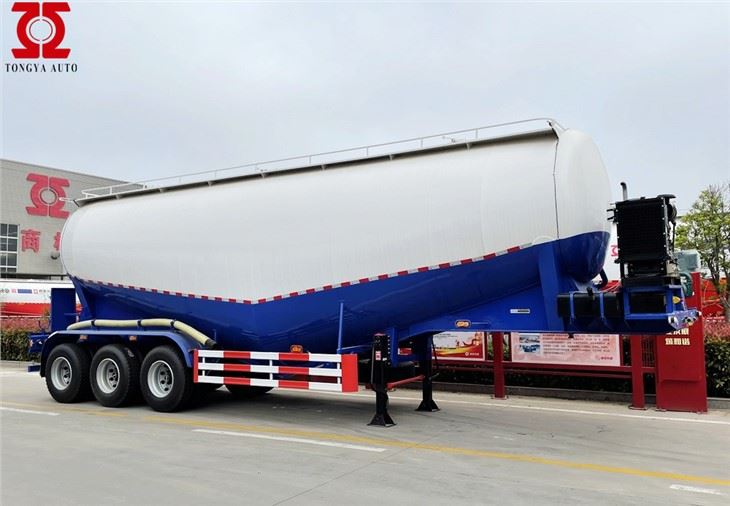

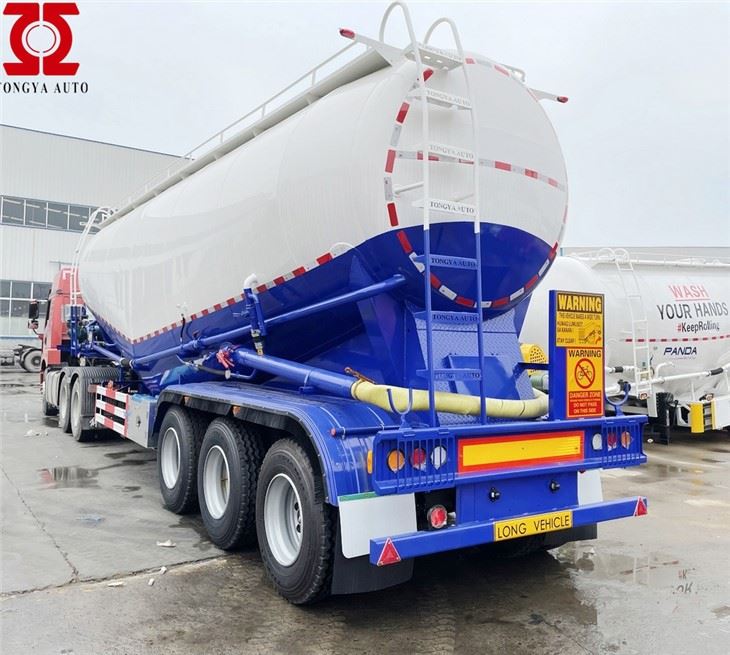

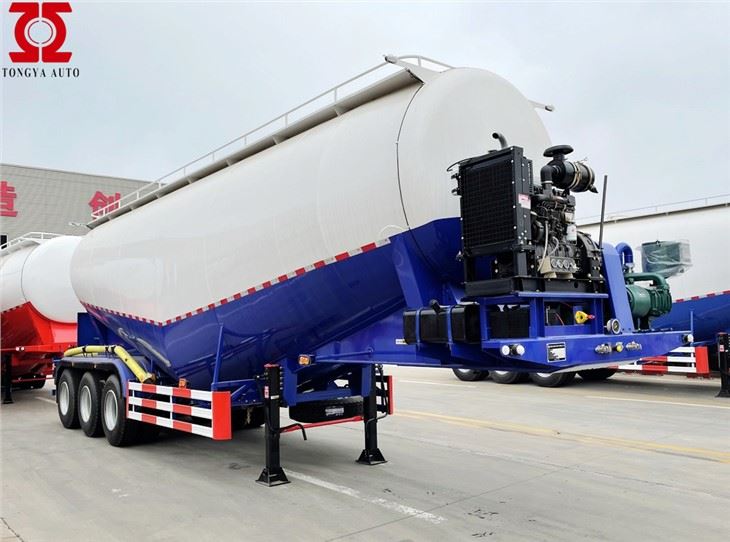

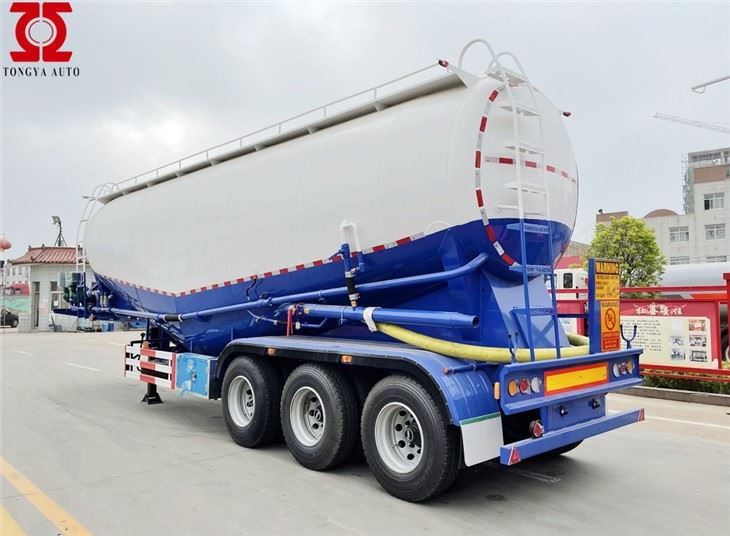

3axles Cement Tanker Trailer

3 axles cement tanker trailer yog lub ntsiab hom trailer rau kev thauj cov cement ntau tam sim no, nws tuaj yeem thauj cov cement ntau los ntawm lub Hoobkas cement mus rau qhov chaw tsim kho sai thiab yooj yim.

Xa kev nug

Khoom Taw qhia

Khoom taw qhia

1.Nws yog dav siv los thauj cov hmoov rau txoj kab uas hla tsawg dua 0.1mm.

2. Yooj yim heev rau thauj thiab tshem tawm cov cement. Txhim kho kev ua haujlwm zoo.

3. tuaj yeem lav qhov zoo ntawm cov cement, tiv thaiv cov cement los ntawm kev ntub dej.

4.Nws yuav tsis ua rau muaj kuab paug rau ib puag ncig thaum thauj.

Khoom piav qhia

3 axles cement tanker trailer yog hom tseem ceeb rau kev thauj cov cement ntau tam sim no, nws tuaj yeem thauj cov cement ntau los ntawm cov cement Hoobkas mus rau qhov chaw tsim kho sai thiab yooj yim, txawm tias nyob rau hauv los nag, lub tanker kaw tuaj yeem tiv thaiv cov cement los ntawm nag, lub tanker ntawm 3 axles cement tanker trailer yog ua los ntawm carbon steel, lub thickness ntawm kawg phaj yog hais txog 6 hli, thiab lub thickness ntawm tanker lub cev yog hais txog 5 hli.so lub tanker muaj zog txaus nqa cement. Dab tsi ntxiv, muaj folding armrest nyob rau sab saum toj ntawm 3 axles cement tanker trailer, yog tias cov neeg ua haujlwm nce rau saum lub tsheb, lub folding armrest tuaj yeem tiv thaiv cov neeg ua haujlwm. 3 axles yog tag nrho cov npe nrov hauv Suav teb, lawv tuaj yeem ua haujlwm zoo txawm tias txoj kev tsis zoo.

Tare luj	Txog 8T
Dimension	10000mm * 2500mm * 3850mm
Loading peev (m³)	45m³,, 54t ua
Qag	3 qag, FUWA hom
Rim	9.00-22.5 (tshwj xeeb rau kev lag luam xa tawm) 13pcs
Lub log	12R22.5 Daim duab peb sab hom 13pieces (nrog rau 1 seem)
Kev ncua	Mechanical American Hom
Nplooj nplooj	90 (W) mm * 13 (Thick) mm * 10 Layers
King pin	hom JOST xaiv tau, 90 #
Txhawb ceg	Jost hom xaiv, ob ceev
Khoom siv ntawm lub tanker	Carbon hlau, Q235B
Main beam	Q345
Tanker lub cev	5mm ib
Xaus phaj	6mm ib
Diesel cav	Tianhe lub tuam txhab, 4102
Cua compressor	12m³, ob lub tog raj kheej
NWP	0.2MPA
Manhole	Ob daim
Qhov hluav taws xob	1
Xim	Dawb thiab xiav

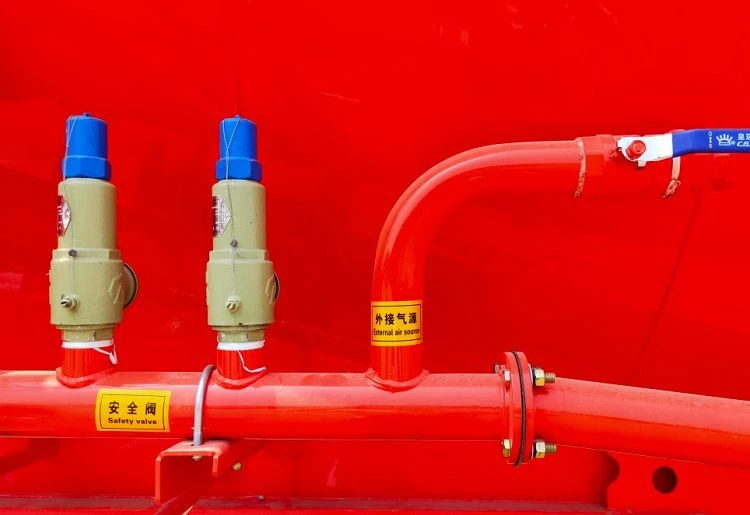

1(001)

Kev nyab xeeb valve: teeb tsa kev nyab xeeb huab cua siab rau kev ua haujlwm, thaum huab cua siab nyob rau hauv cov pa system ntau dua li kev nyab xeeb siab, lub valve kev nyab xeeb yuav tso pa tawm.

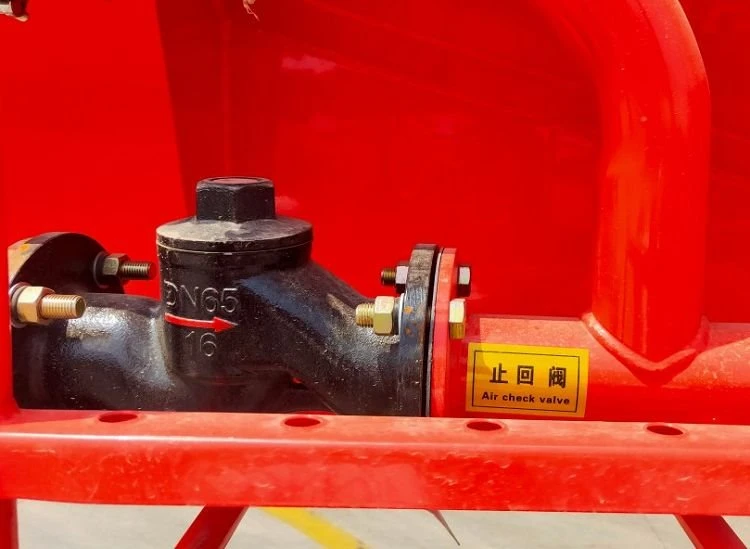

2(001)

Kuaj valve, tseem hu ua ib-txoj kev valve, DN65. Tiv thaiv kom tsis txhob muaj cua compressed rov qab, ua rau cov cement rau hauv lub hnab cua thiab cua chamber, tiv thaiv cua compressor.

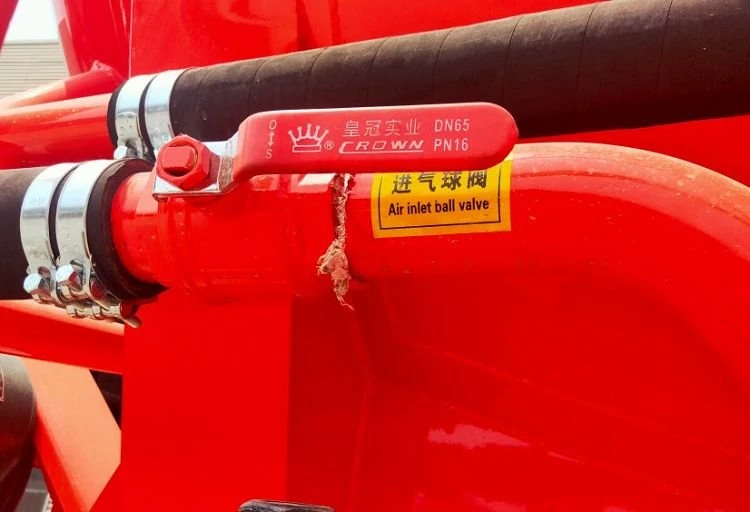

3(001)
