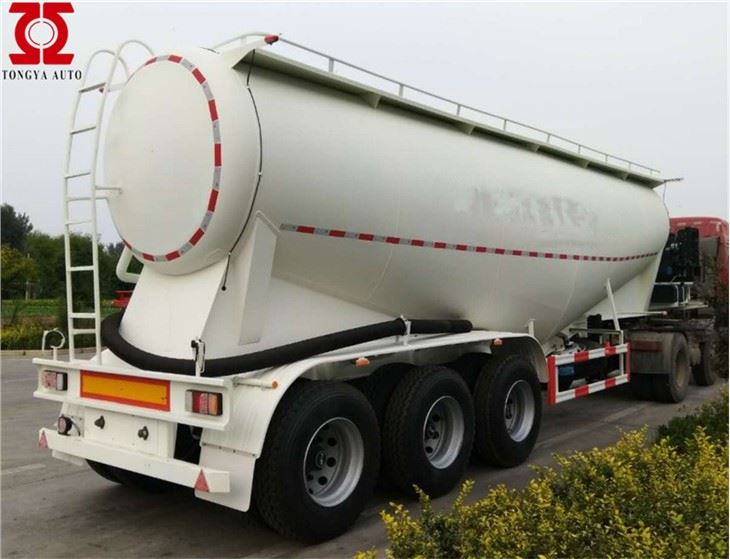

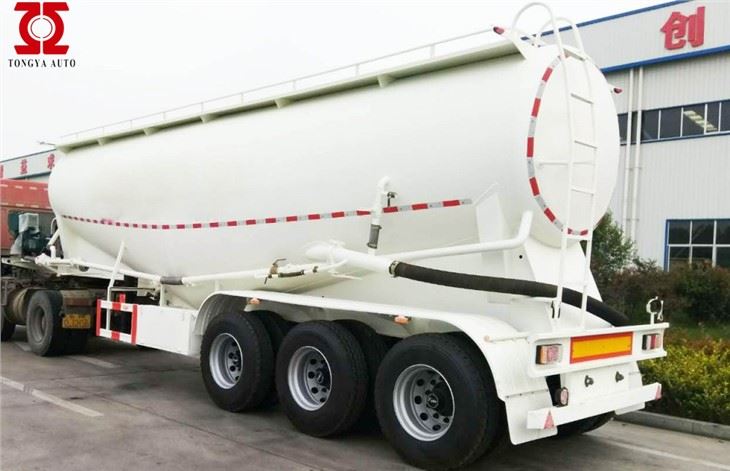

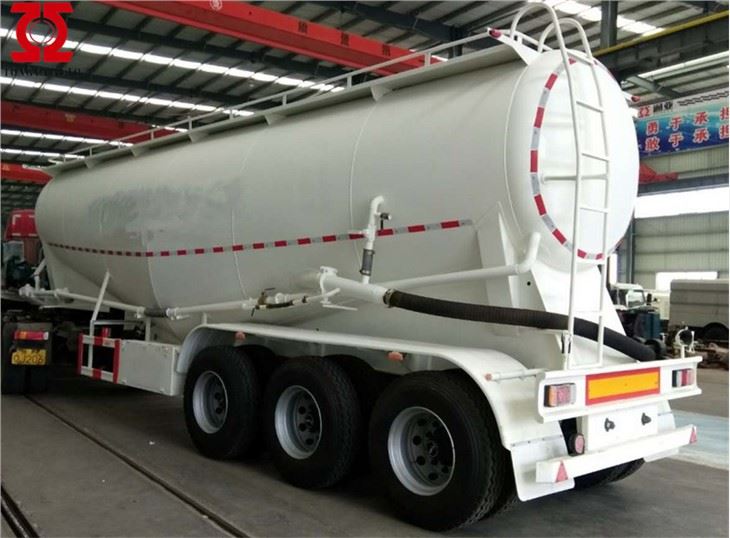

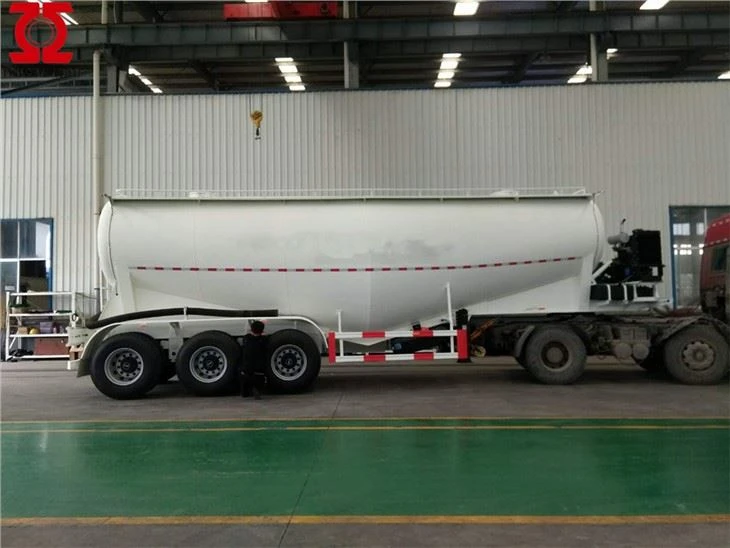

Tanker Trailer rau Cement
Tanker trailer rau cov cement yog tsim los thauj cov cement ntau ntau, es tsis txhob cov cement load hauv hnab.
Khoom Taw qhia
Khoom taw qhia
1.Nws yooj yim heev rau thauj thiab tshem tawm cov cement. Txhim kho kev ua haujlwm zoo.
2.Qhov poob ntawm cement yuav tsawg dua, tus nqi poob yuav qis dua 0.2 feem pua .
3. tuaj yeem lav qhov zoo ntawm cov cement, tiv thaiv cov cement los ntawm kev ntub dej.
4.Nws yuav tsis ua rau muaj kuab paug rau ib puag ncig thaum thauj.
Khoom piav qhia
Tanker trailer rau cov cement yog tsim los thauj cov cement ntau ntau, es tsis txhob cov cement load hauv hnab. Qhov tshwj xeeb tanker trailer rau cov cement muaj manholes los thauj cov cement nyob rau sab saum toj, qhov hluav taws xob hauv qab kom tso cov cement, dhau li ntawd, nws kuj muaj ntau yam li qub los xyuas kom meej lub trailer ua haujlwm zoo, xws li kev nyab xeeb valve, cua sab nraud valve, cua inlet. pob valve, cua kos valve thiab lwm yam. Dab tsi ntxiv, tseem muaj lub cav diesel thiab cua compressor, uas tseem ceeb heev rau kev tso cov cement, lub cav diesel tuaj yeem muab lub zog rau lub tshuab cua compressor, thiab cua compressor tuaj yeem muab cov cua siab hauv lub tank, yog li tuaj yeem thawb cov cement tawm ntawm lub tank. Lub tanker rau cov cement tuaj yeem txuag tau ntau lub zog thiab lub sijhawm hauv kev thauj khoom, thiab tshem tawm cov cement, yog vim li cas lub trailer thiaj li nrov hauv khw. Tam sim no ntau lub teb chaws tau siv xws li tanker trailer rau cov cement los hloov thauj cov cement hauv hnab.
Specifications
Tare luj | Txog 8T |
Dimension | 10000mm * 2500mm * 3850mm |
Loading peev (m3) | 30m3, 36 Tons |
Qag | 3 qag, FUWA hom |
Rim | 9.00-22.5 (tshwj xeeb rau kev lag luam xa tawm) 13pcs |
Lub log | 12R22.5 Daim duab peb sab hom 13pieces (nrog rau 1 seem) |

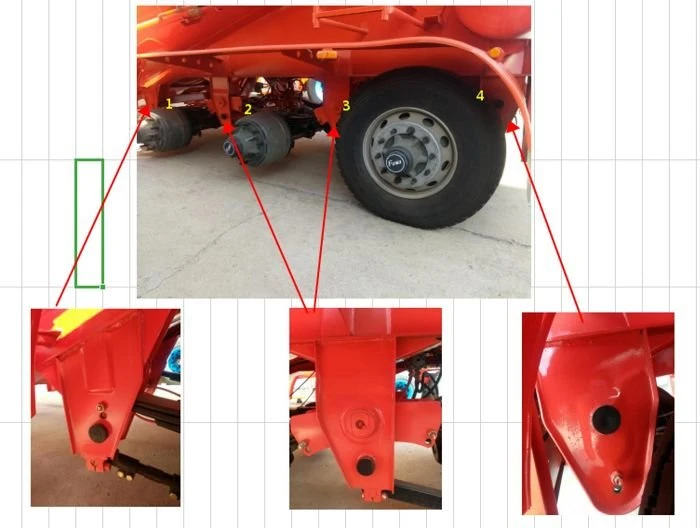

Kev ncua | Mechanical American Hom |
Nplooj nplooj | 90 (W) mm * 13 (Thick) mm * 10 Layers |

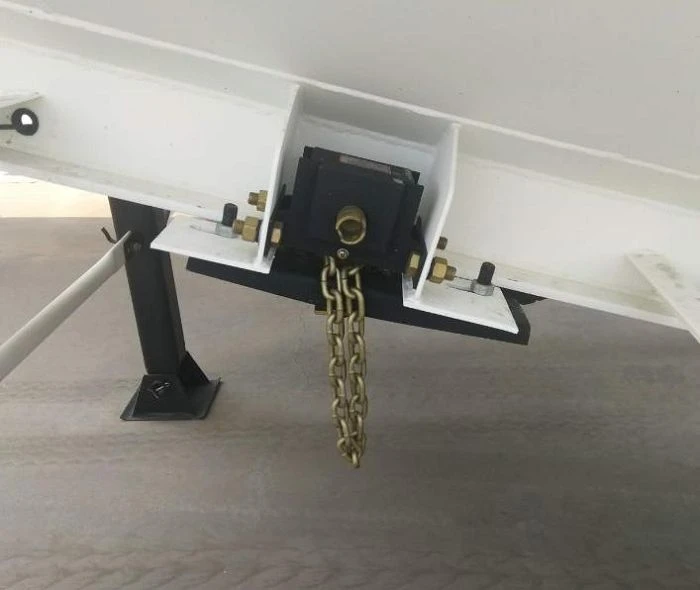

King pin | hom JOST yeem, 50 # |
Txhawb ceg | Jost hom xaiv, ob ceev |
Khoom siv ntawm lub tanker | Carbon hlau, Q235B |
Tanker lub cev | 5mm ib |
Xaus phaj | 6mm ib |
Diesel cav | Tianhe lub tuam txhab, 4102 |
Cua compressor | 12m3, ob lub tog raj kheej |
NWP | 0.2MPA |
Manhole | Ob daim |
Qhov hluav taws xob | 1 |
Xim | dawb |

Muaj peev xwm nqa lub log tsheb spare ntawm lub log tsheb no, yog tias lub log tsheb tawg ntawm txoj kev, tuaj yeem hloov lub log tsheb yooj yim

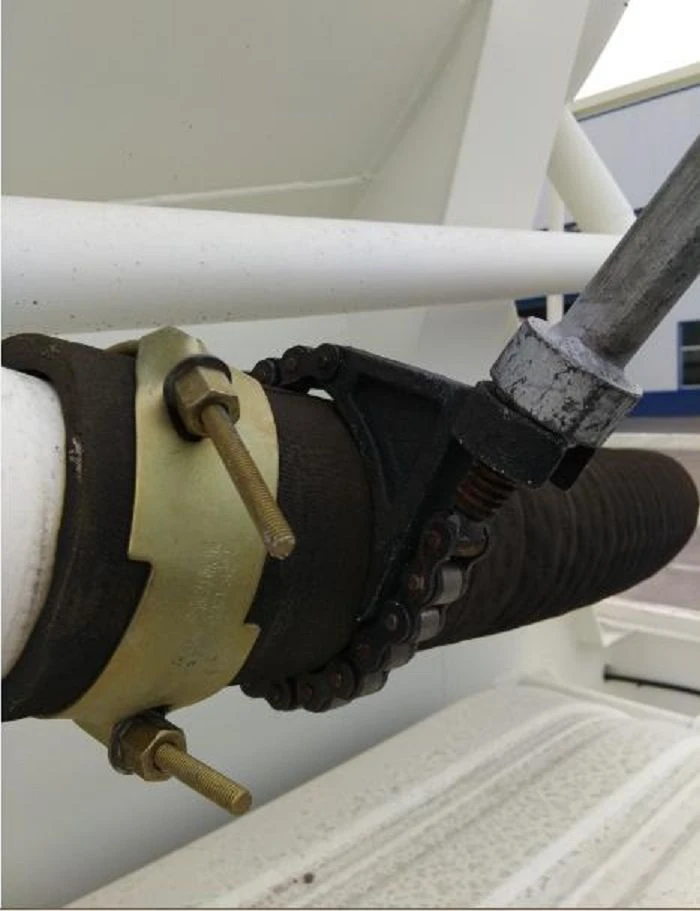

Qhov hluav taws xob ntawm cov cement, txuas lub raj ntev 8m. Yooj yim heev

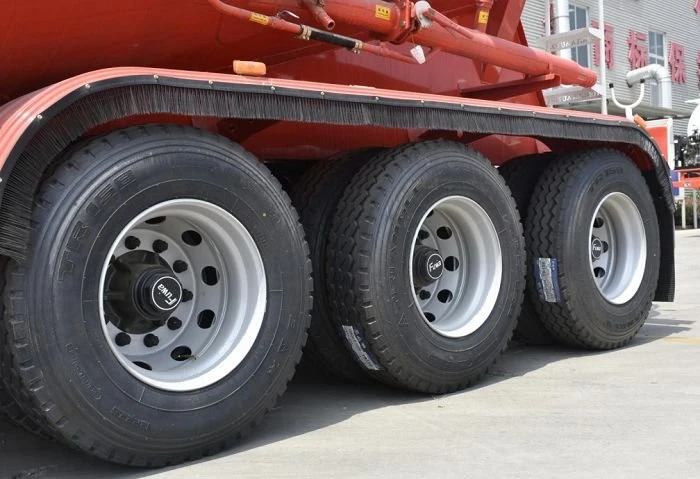

3 axles nrog 12 log tsheb, nws tuaj yeem nqa tau qhov hnyav
