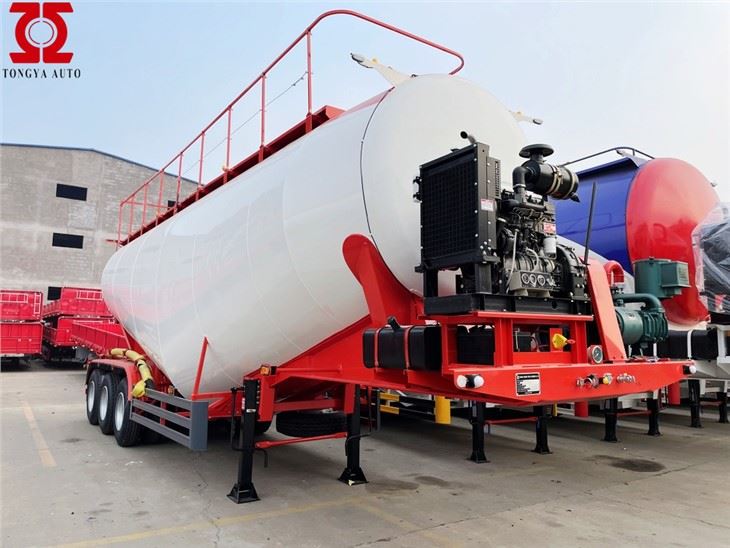

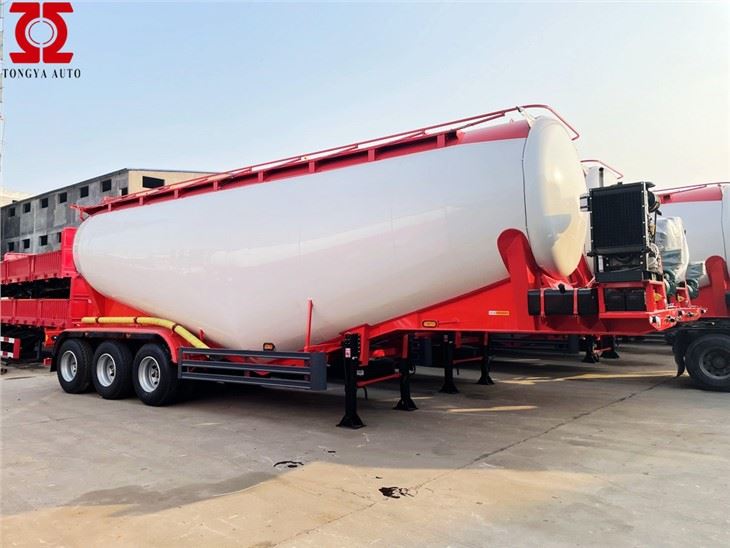

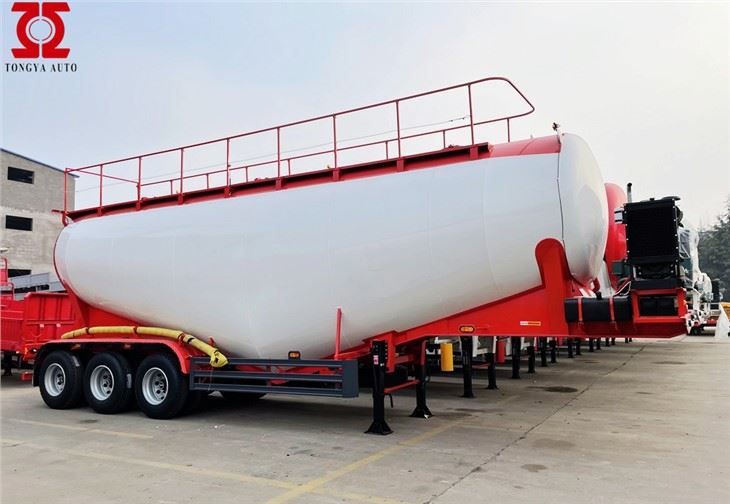

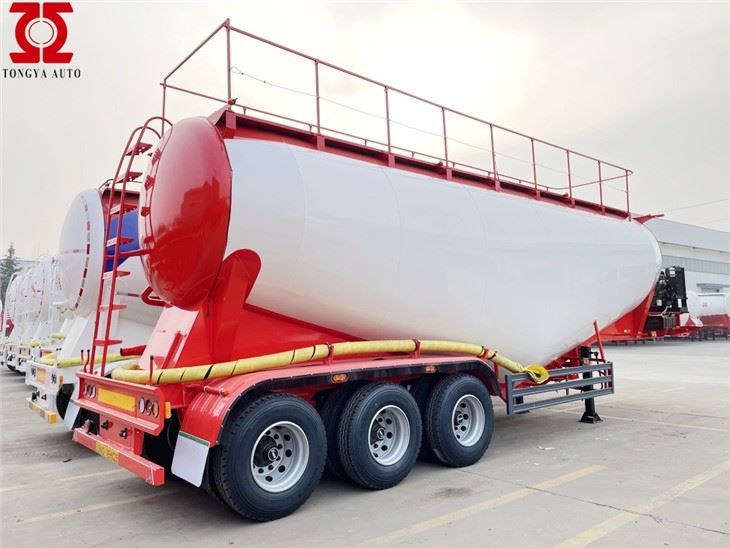

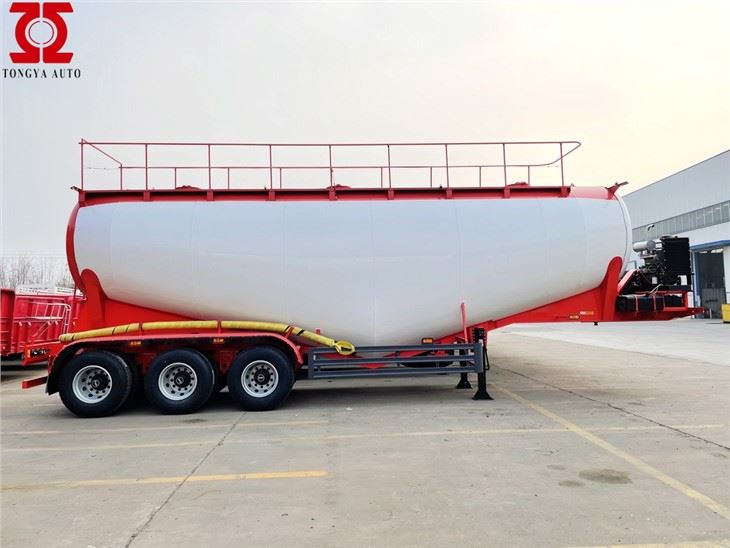

Bulk Cement Tanker Trailer

Qhov no bulk cement tanker trailer tsis muaj lub cav diesel thiab cua compressor ntawm lub tanker, nws yog vim nws siv lub cav diesel ntawm tsheb, tsav cua compressor.

Xa kev nug

Khoom Taw qhia

Khoom taw qhia

1.Cov qauv ntawm lub tanker yog "V" zoo, yooj yim rau paug cov cement

2.Nws tuaj yeem txo cov tib neeg noj, txhim kho kev ua haujlwm thiab kev ua haujlwm

3.Qhov poob ntawm cement yuav tsawg dua, tus nqi poob yuav qis dua 0.2 feem pua .

4.Ua kom txuag tau tus nqi ntawm cov khoom siv raw thiab cov hnab ntawv, thiab tawg, txo cov nqi thauj khoom

Khoom piav qhia

Qhov no bulk cement tanker trailer tsis muaj lub cav diesel thiab cua compressor ntawm lub tanker, nws yog vim nws siv lub cav diesel ntawm tsheb, tsav cua compressor. Yog li tuaj yeem txuag nyiaj, thiab tseem txo qhov hnyav ntawm bulk cement tanker trailer. Ntau lub teb chaws thiab cheeb tsam tau nruj me ntsis txwv rau tare hnyav ntawm trailer, yog li tuaj yeem daws qhov teeb meem zoo. Muaj ob lub manholes nyob rau sab saum toj ntawm lub tanker, yog li tuaj yeem thauj cov cement sai sai, tseem muaj ob tus ntaiv, ib qho yog nyob rau hauv pem hauv ntej, lwm qhov yog qhov kawg, nws yooj yim rau cov neeg ua haujlwm mus rau lub tanker. Tsis tas li ntawd, muaj lub qhov hluav taws xob nyob rau hauv qab ntawm lub tanker, nrog lub tso tawm valve los tswj nws.tseem muaj 8meter ntev tso cov yeeb nkab, koj tuaj yeem nqa mus rau qhov twg los tau. Kuj tseem muaj kev nyab xeeb valve, huab cua kos valve, cua inlet pob valve thiab lwm yam, kom paub tseeb tias cov cement tanker trailer tso cov cement kom nyab xeeb thiab ua haujlwm tau zoo.

Specifications

Tare luj	8.5 t
Dimension	9000mm * 2500mm * 3800mm
Chaw thau khoom muaj peev xwm (M3)	30m³,,36t ua
Qag	3 qag, FUWA hom
Rim	9.00-22.5 (tshwj xeeb rau kev lag luam xa tawm) 13pcs
Lub log	12R22.5 Daim duab peb sab hom 13pieces (nrog rau 1 seem)
Kev ncua	Mechanical American Hom
Nplooj nplooj	90 (W) mm * 13 (Thick) mm * 10 Layers
King pin	hom JOST xaiv tau, 50 #
Txhawb ceg	Jost hom yeem
Khoom siv ntawm lub tanker	Carbon steel, Q235b
Tanker lub cev	5mm ib
Xaus phaj	6mm ib
Manhole	2 qab
Diesel cav	Siv lub hwj chim lossis lub taub hau tsheb
Cua compressor	12m³
qhov hluav taws xob	1pc ua
ntaiv	2 pcs

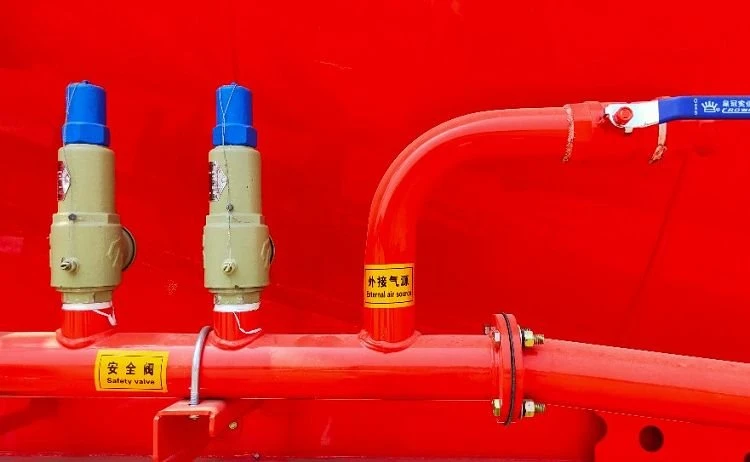

Rau kev nyab xeeb valve, teeb tsa kev nyab xeeb huab cua siab rau kev ua haujlwm, thaum huab cua siab nyob rau hauv cov pa system ntau dua li kev nyab xeeb siab, lub valve kev nyab xeeb yuav tso pa tawm.

1(001)

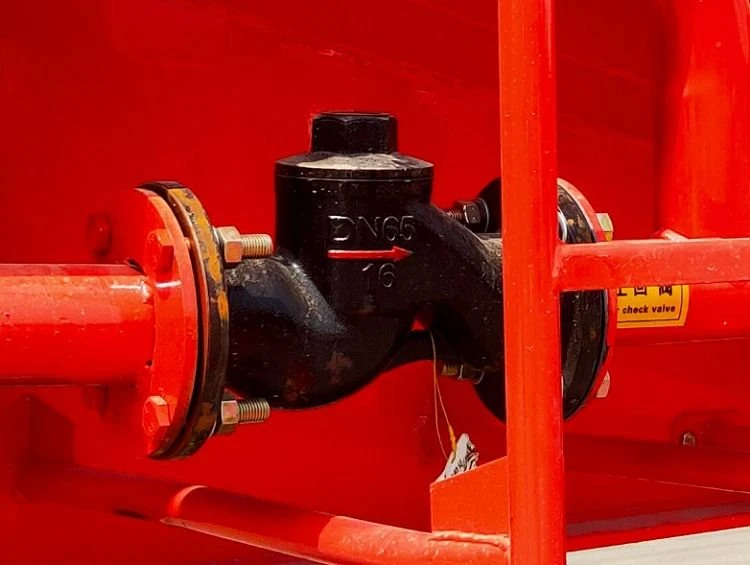

Kuaj valve, DN65. Tiv thaiv kom tsis txhob muaj cua compressed rov qab, ua rau cov cement rau hauv lub hnab cua thiab cua chamber, tiv thaiv cua compressor.

2(001)
