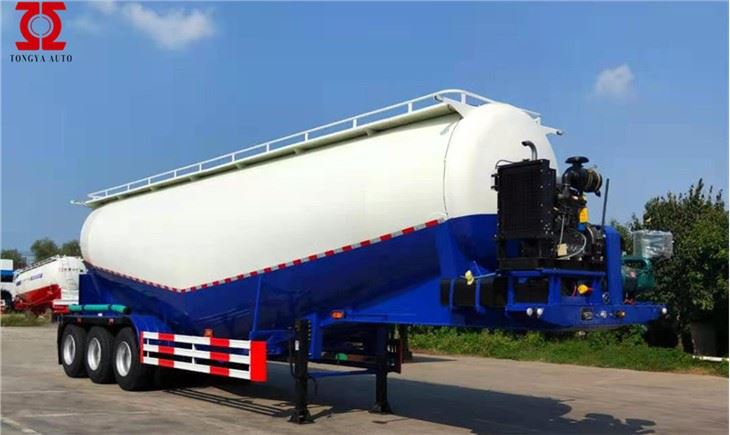

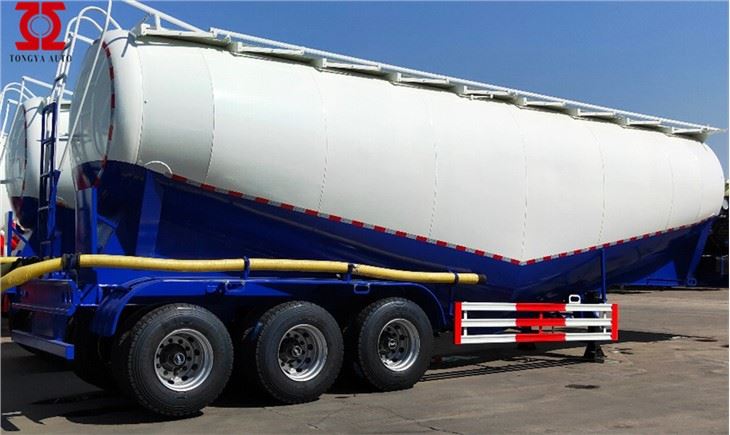

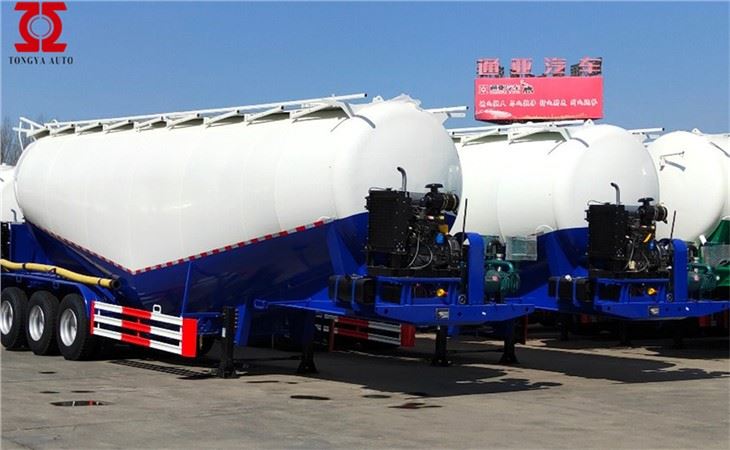

40m3 Bulk Cement Tanker Semi Trailer
1.Design tus qauv ntawm tanker rau "v" Shape.
2.Nws tuaj yeem txo cov tib neeg noj, txhim kho kev ua haujlwm thiab kev ua haujlwm
3.Qhov poob ntawm cement yuav tsawg dua, tus nqi poob yuav qis dua 0.2 feem pua .
Khoom Taw qhia
Khoom taw qhia
1.Design tus qauv ntawm tanker rau "v" Shape.
2.Nws tuaj yeem txo cov tib neeg noj, txhim kho kev ua haujlwm thiab kev ua haujlwm
3.Qhov poob ntawm cement yuav tsawg dua, tus nqi poob yuav qis dua 0.2 feem pua .
4.Can lav qhov zoo ntawm cov cement, tiv thaiv cov cement los ntawm kev ntub dej.
5.Txo ua paug rau ib puag ncig.
Khoom piav qhia
Qhov no 40m³ bulk cement tanker semi trailer tuaj yeem thauj khoom 48tons xis mas yooj yim, nrog rau 4102 diesel cav thiab 12 cubic meters ob lub tog raj kheej cua compressor, tuaj yeem thauj cov cement sai heev thiab ua tau zoo. Lub 40m³ bulk cement tanker semi trailer muaj 3 Suav nto moo hom axles, thiab cov neeg kho tshuab American hom ncua kev kawm ntawv, muaj zog heev, txawm tias khiav ntawm txoj kev phem, lub trailer yuav tsis muaj teeb meem. Dab tsi ntxiv, peb siv cov log tsheb tshwj xeeb kom haum rau cov xwm txheej sib txawv ntawm txoj kev. Tsis tas li ntawd, 40m³ bulk cement tanker semi trailer muaj lub log tsheb seem, yog li tuaj yeem nqa lub log tsheb seem txhua lub sijhawm, tsis hais thaum twg lossis qhov twg muaj log tsheb tawg, cov neeg ua haujlwm tuaj yeem hloov lub log tsheb yooj yim thiab yooj yim, kom tsis txhob ncua sijhawm ua haujlwm. . Peb kuj siv JOST hom tsaws iav los tuav lub trailer thaum sib cais nrog lub tsheb, thiab tuaj yeem kho qhov siab tau yooj yim.
Specification
Tare luj | Txog 10T |
Dimension | 11000mm * 2500mm * 3850mm |
Loading peev (m3) | 40m3,,48t ib |
Qag | 3 qag, FUWA hom |
Rim | 9.00-22.5 (tshwj xeeb rau kev lag luam xa tawm) 13pcs |
Lub log | 12R22.5 Daim duab peb sab hom 13pieces (nrog rau 1 seem) |
Kev ncua | Mechanical American Hom |
Nplooj nplooj | 90 (W) mm * 13 (Thick) mm * 10 Layers |

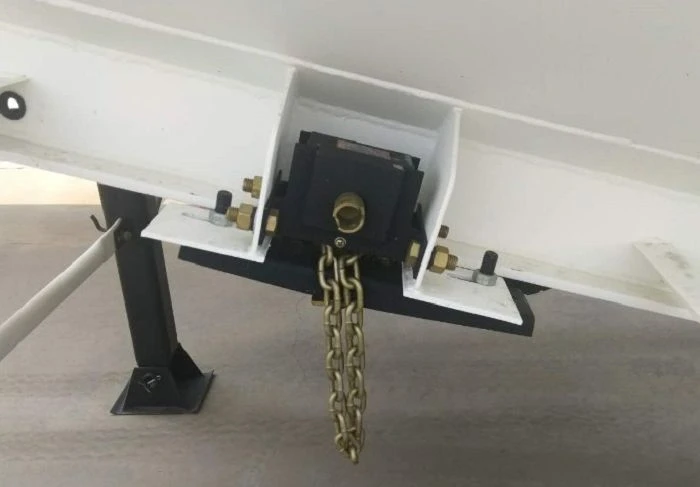

King pin | hom JOST yeem, 50 # |
Txhawb ceg | Jost hom yeem |
Tanker khoom | carbon hlau, q235b |
Tanker lub cev | Thickness: 5 hli |
Xaus phaj | Thickness: 6 hli |
Main beam | Q345 |

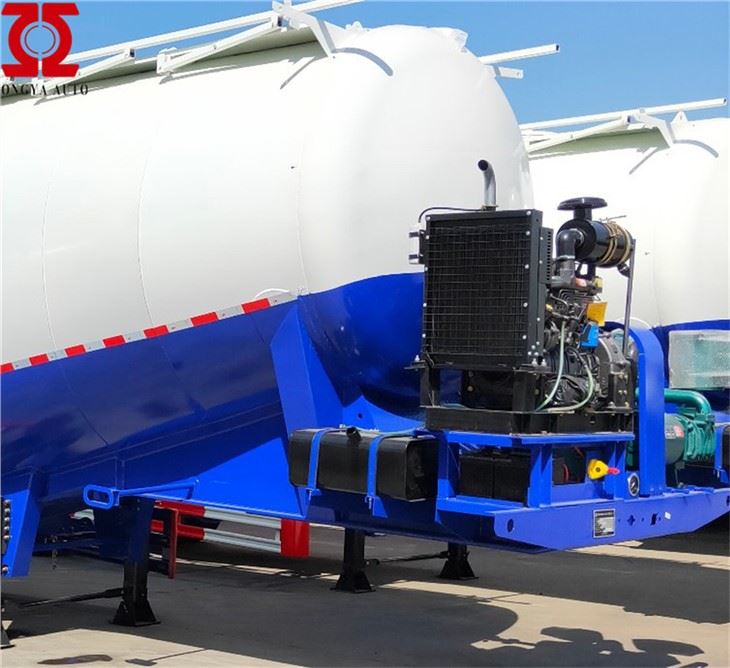

Diesel cav | Tianhe hom 4102 |
Cua compress | Bohai hom 12M3, ob lub tog raj kheej |
Manhole | Ob daim |
Qhov hluav taws xob | 1 |
ntaiv | 2 |
Xim | Dawb thiab xiav |
Spare log tsheb thauj khoom: nws muaj zog thiab yooj yim los tuav

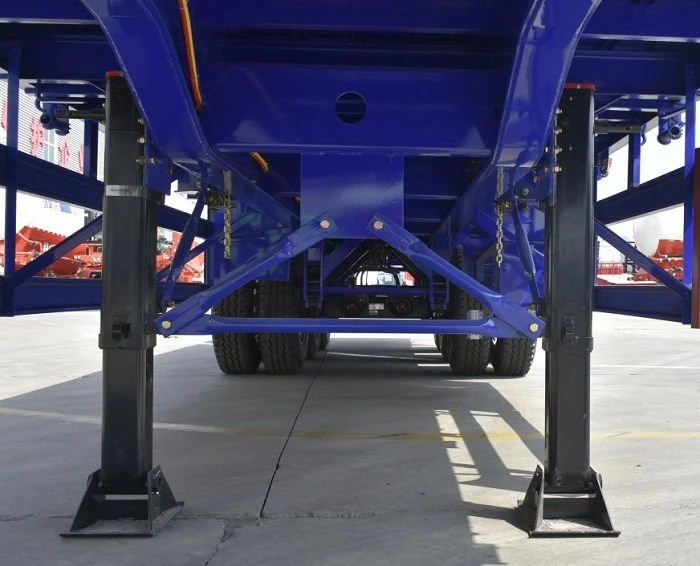

Kev tsaws iav, lub ntiaj teb nto moo hom, ob ceev nce thiab nqis
