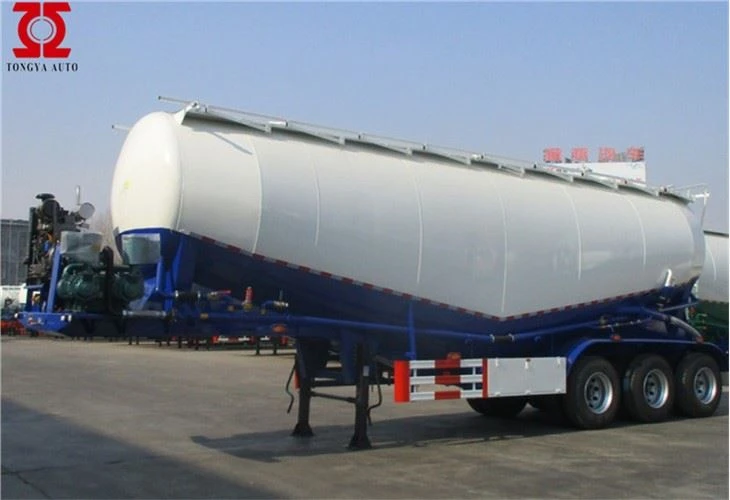

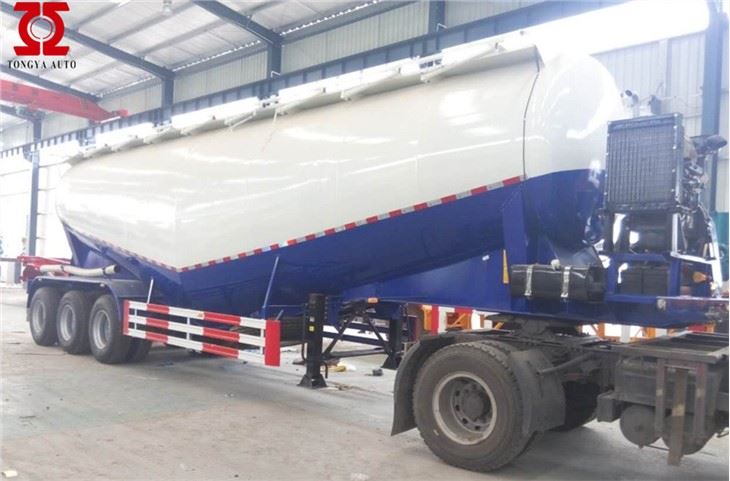

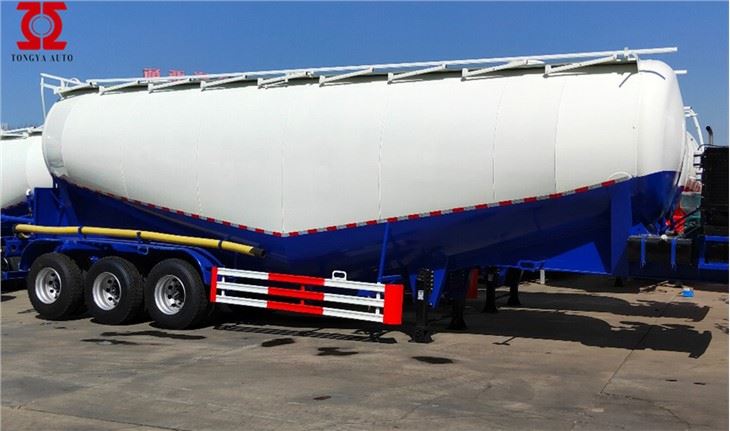

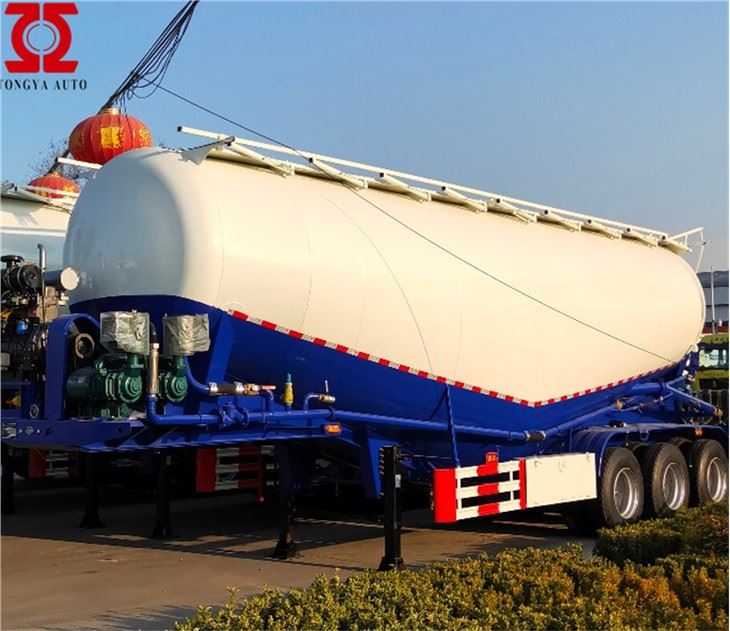

45m3 Cement Trailer

Dab tsi ntxiv, lub cav diesel thiab cua compressor kuj tseem yuav ua kom muaj txiaj ntsig zoo rau kev tso cov cement, cua compressor tuaj yeem muab cov cua muaj zog rau lub tanker

Xa kev nug

Khoom Taw qhia

Khoom taw qhia

1.Nws yog dav siv los thauj cov hmoov rau txoj kab uas hla tsawg dua 0.1mm.

2.Qhov poob ntawm cement yuav tsawg dua, tus nqi poob yuav qis dua 0.2 feem pua .

3. tuaj yeem lav qhov zoo ntawm cov cement, tiv thaiv cov cement los ntawm kev ntub dej.

4.Nws yuav tsis ua rau muaj kuab paug rau ib puag ncig thaum thauj.

Khoom piav qhia

45m³cement trailer load txog 54tons bulk cement rau ib zaug. ua 45m³cement tanker trailers nrov heev hauv cov chaw tsim kho thiab cov haujlwm loj, vim tias nws yooj yim heev, V cov qauv, tuaj yeem ua cov cement rau nruab nrab thiab hauv qab. Ob lub manholes nyob rau sab saum toj tuaj yeem thauj cov cement, nyob rau sab nraud cov kav dej, muaj ntau lub valve los pab tshem cov cement, xws li kev nyab xeeb valve, sab nraud cua qhov chaw li qub, cua inlet pob valve, cua kos valve thiab lwm yam, thaum tso cov cement, yuav tig. ntawm cov valve. Dab tsi ntxiv, lub cav diesel thiab cua compressor kuj tseem yuav ua kom muaj txiaj ntsig loj rau kev tso cov cement, cua compressor tuaj yeem muab cov cua siab rau lub tanker, thawb cov cement tawm ntawm lub tank los ntawm qhov hluav taws xob. Yog li 45m³cement trailers yog qhov kev xaiv zoo rau kev thauj cov cement ntau

Yam khoom	45m³cement trailer
Tare luj	8.5 t
Dimension	10500mm * 2500mm * 3850mm
Loading peev (m³)	45m³,, 54t ua
Qag	3 qag, FUWA brand 13t
Rim	9.00-22.5 (tshwj xeeb rau kev lag luam xa tawm) 13pcs
Lub log	12R22.5 Daim duab peb sab hom 13pieces (nrog rau 1 seem)
Kev ncua	Mechanical American Hom
Nplooj nplooj	90 (W) mm * 13 (Thick) mm * 10 Layers
King pin	hom JOST yeem, 50 #
Txhawb ceg	JOST hom kev xaiv, ob ceev
Khoom siv ntawm lub tanker	Carbon hlau, Q235B
Main beam	Q345
Tanker lub cev	5mm ib
Xaus phaj	6mm ib
Diesel cav	TIAB SA 4102
Cua compressor	12m³, ob lub tog raj kheej
NWP	0.2MPA
Manhole	Ob daim
Cat txoj kev	Anti skid
qhov hluav taws xob	1
ntaiv	2, ib tug yog nyob rau hauv lub rear, ib tug yog nyob rau hauv pem hauv ntej
Xim	Dawb thiab xiav

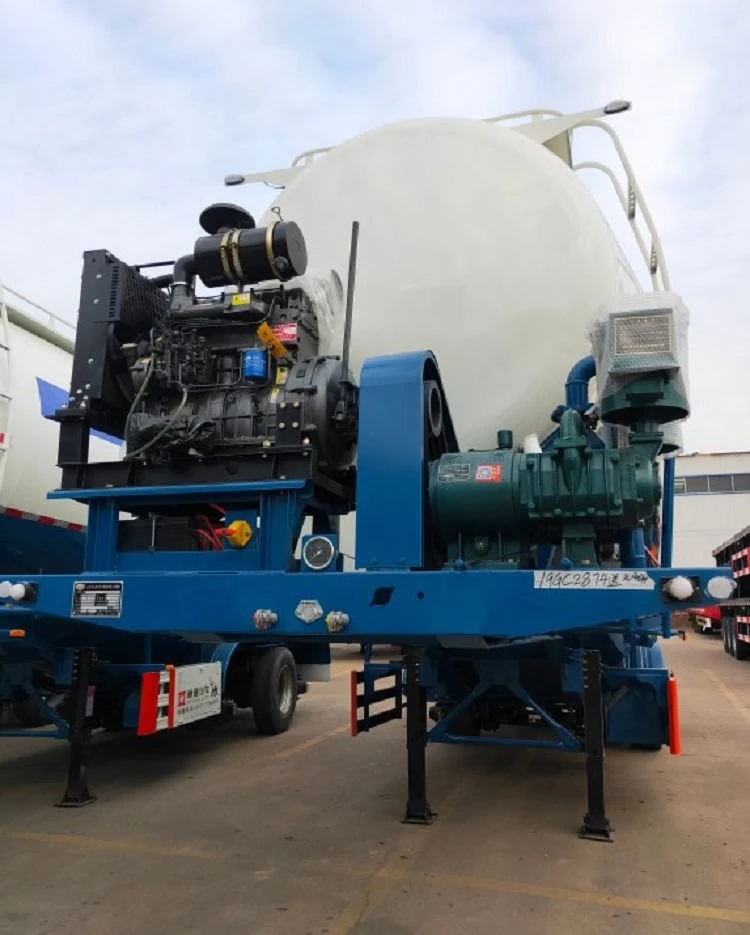

1(001)

Cov cav cav, nrog lub cav diesel thiab cua compressor, tuaj yeem tso cov cement ntau sai thiab yooj yim

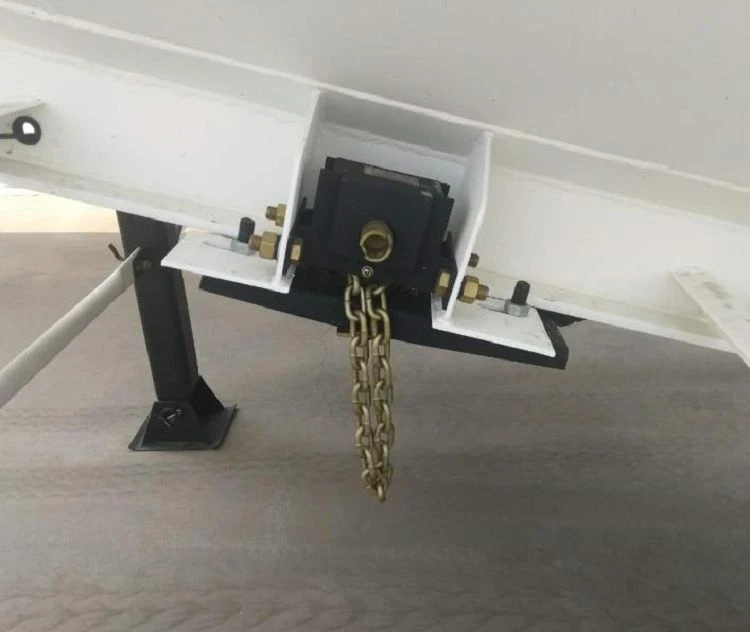

2(001)

Lub log tsheb spare, tuaj yeem nqa lub log tsheb ntawm lub log tsheb seem txhua lub sijhawm, yog tias ib lub log tsheb tawg ntawm txoj kev, tuaj yeem hloov cov log tsheb spare sai thiab yooj yim.

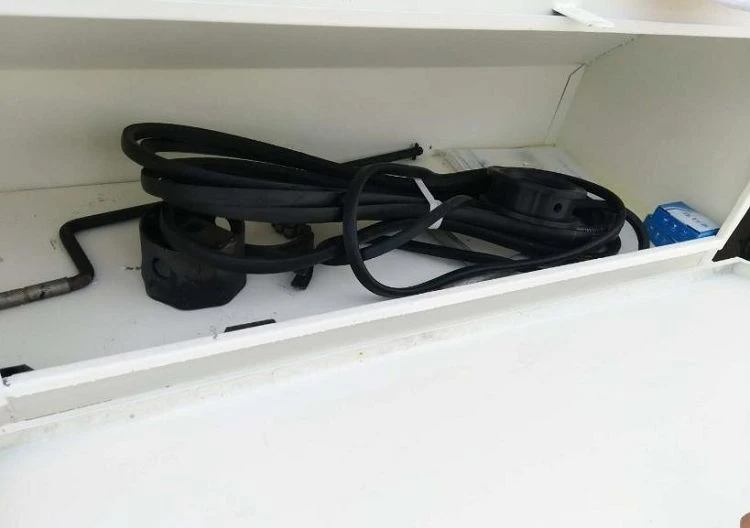

3(001)
