Thawv Thauj Semi Trailer
40TF thawv thauj semi trailer yog ib hom thawv thauj semi trailer thav duab thiab lwm yam yog hom tiaj tus.
Zoo Muag 40ft Truck Trailer Chassis / Thawv Thauj Chassis / skeleton Semi Trailer.
Khoom Taw qhia
TONGYA skeletal trailer tuaj yeem teeb tsa rau cov thawv tshwj xeeb sib txuas, txo qhov hnyav hnyav. Muaj peev xwm teeb tsa tus kheej rau: 20h, 30', 40', 45', 2x20' lossis ib qho kev sib xyaw ntawm tag nrho cov ntim no.
Tag nrho cov qauv ntawm lub cev pob txha trailer yog ncaj nqaj los yog gooseneck, nws yog tsuas yog siv nyob rau hauv lub logistics systems ntawm ships, ports, txoj kev, txoj kev loj, chaw nres tsheb thauj mus los, txuas hniav, tunnels thiab multimodal thauj.
f koj muaj kev xav tau tshwj xeeb rau lub cev pob txha semi-trailer nrog lub gooseneck, peb tuaj yeem tsim nws rau koj raws li koj xav tau.
Tare luj | Txog 6.5 tons |
Sab nraud dimension (mm) | 12450*2490*1400 |
Loading peev (Ton) | Tsawg dua lossis sib npaug rau 45T (40FT) |
Axles | 13T/PER, FUHUA Brand, Bpw Brand |
Lub log | 12.00R22.5 los yog 315/80R22.5 |
Rim | 9.00-22.5 Tuam Tshoj Hom |
Kev ncua | Mechanical suspension |
Nplooj nplooj | 90 (W) hli * 13 (Thickness) hli 10 pcs nplooj hlav |
King pin | JOST hom 2.0 lossis 3.5 |
tsaws ob txhais ceg | JOST hom E100 lossis Tuam Tshoj hom 28 Tuj (ob zaug ceev) |
Main Beam | Qhov siab: 500mm, sab phaj yog 14 hli, nruab nrab phaj yog 8 hli, nqes phaj yog 16 hli; Khoom siv yog Q345B Steel. |
Nres chamber | WABCO relay valve |

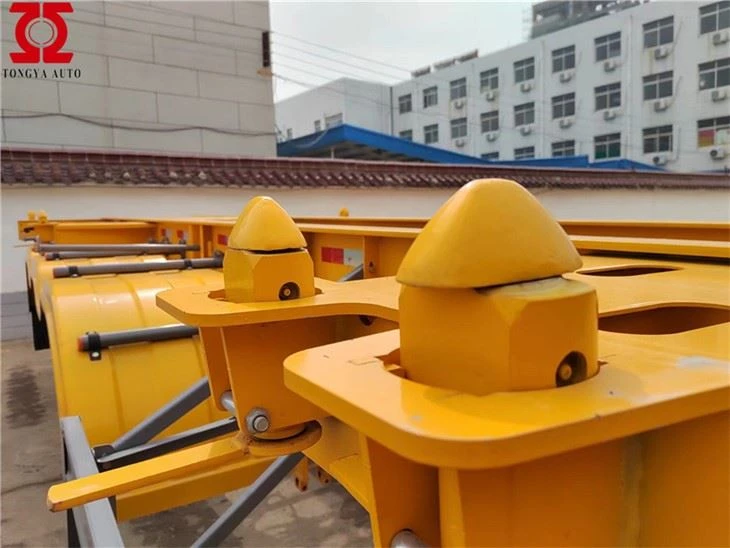

Twist Locks | 12 units ISO twist xauv |
ABS | xaiv tau |

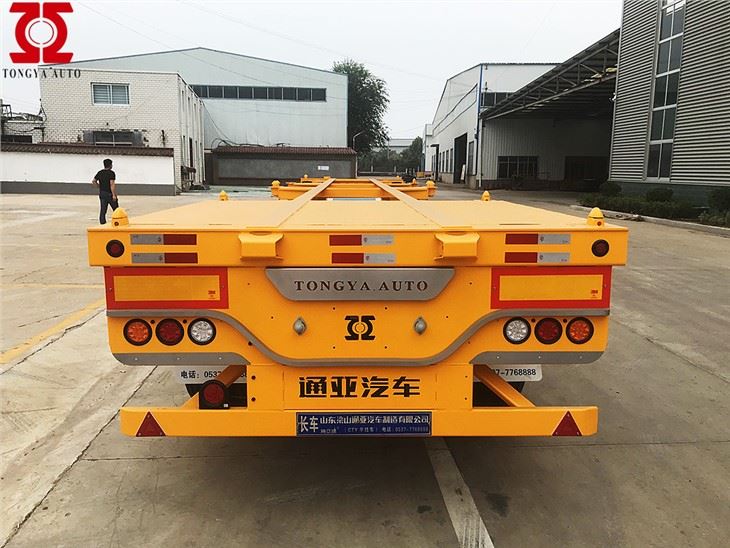

Teeb | LED teeb |
Qhov hluav taws xob | 24V |
Hluav taws xob | Ib chav ntawm 27V 7-pin ISO 1185 socket |
Tool lub thawv | Ib thooj, 1m * 0.5m * 0.5m (Qhov loj tuaj yeem xaiv tau dawb) |
Kev pleev xim | Xuab zeb blasting ua ntej painting; ib tug cam khwb cia ntawm primer, anti-corrosion; ob lub tsho ntawm tiav painting; xim qhia los ntawm cov neeg siv khoom. |
KHOOM PLIG
40TF thawv thauj semi trailer yog ib hom thawv thauj semi trailer thav duab thiab lwm yam yog hom tiaj tus.Lub thawv thauj semi trailer tsav tsheb yog tsim los ntawm vuam cov kab ntev ntev, cov kab hluav taws xob transverse thiab pem hauv ntej thiab nram qab kab. ; vuam los ntawm tsis siv neeg Submerged -Arc processes.40TF thawv thauj semi trailer yog siv rau loading2 * 20ft, 1 * 40ft thawv.Thiab peb qhov tsawg kawg nkaus txiav txim kom muaj nuj nqis yog 2 poob lawm.Main beam rau 40TF thawv thauj semi trailer yog oping rau siab zog Q345 steel, 500mm sib sib zog nqus welded i-section min beams.Top flange thickness 14mm, dav 140mm; Hauv qab Flange thickness 16mm, dav 140mm; Middle Flange thickness 8mm.
Cov nqe lus khoom xa tuaj rau lub thawv thauj khoom thauj semi trailer yog thauj los ntawm lub thawv, Ob lub pob txha pob txha semi trailer muab tso rau hauv ib lub thawv 40HC.Peb yog cov khoom siv semi trailer, thiab 40TF thawv thauj semi trailer yog peb cov khoom kub muag.Lub sijhawm ua haujlwm 7 hnub rau ib qho. chav tsev semi trailer, 300 units ib hlis. 6 lub hlis ntawm kev lav zoo yog muab.Ua raws li peb yuav muab cov khoom seem uas tsim nyog nrog tus nqi peb tau txais los ntawm peb cov neeg muag khoom, thiab xa engineer rau kev saib xyuas yog tias tsim nyog ntawm koj tus nqi.
Tongya Automobile Co., Ltd tau tsim nyob rau xyoo 2000, peb yog thawj lub Hoobkas tsim khoom ntawm cov tsheb thauj khoom hauv peb lub zos. Peb muaj peb tus kheej hom: TONGYA.Peb kuj yog thawj lub tuam txhab xa tawm hauv peb lub zos. Tam sim no peb cov tsheb thauj khoom thauj mus los ntawm tag nrho East Asia, Africa, South America, Middle East, Central Asia, Russia thiab Oceania cheeb tsam thiab tau txais lub koob npe zoo.Zoo siab txais tos tuaj xyuas peb lub tuam txhab txhua lub sijhawm.
Cim npe nrov: thawv thauj semi trailer, Tuam Tshoj, lwm tus neeg, manufacturers, customized, nqe
