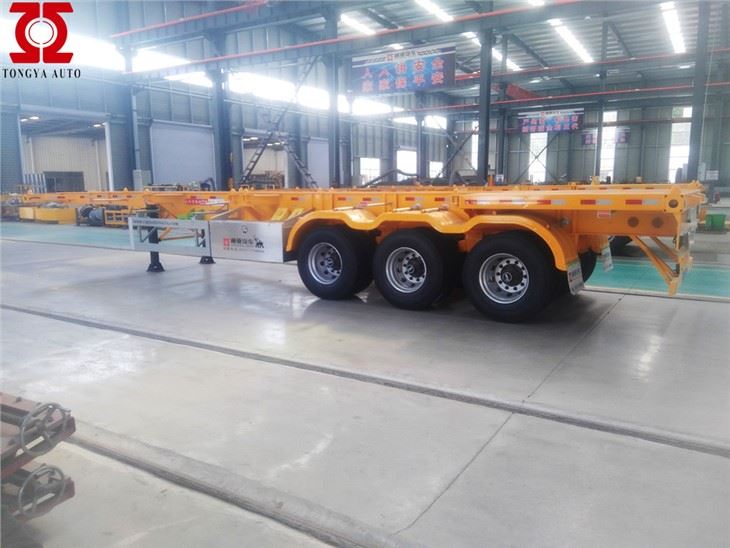

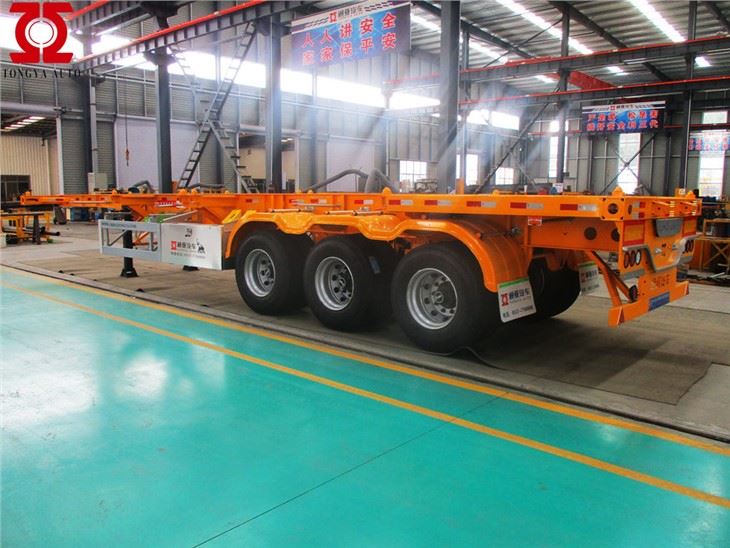

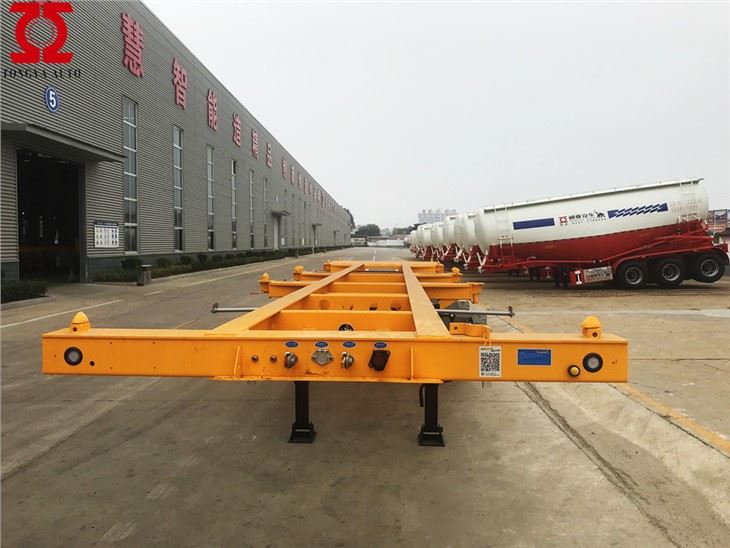

3 axles Skeleton Semi Trailer
Zoo siab 3 axles skeleton semi trailer kev muag khoom
Hom pob txha semi trailer no yog siv rau kev thauj khoom 2 * 20ft, 1 * 40ft thawv
Tsim / vuam thev naus laus zis yog lub luag haujlwm hnyav thiab muaj zog ntxiv tsim; vuam los ntawm
Tsis siv neeg Submerged-Arc txheej txheem;
Khoom Taw qhia
Tare luj | Txog 6.5 tons |
Sab nraud dimension (mm) | 12450*2490*1400 |
Loading peev (Ton) | Tsawg dua lossis sib npaug rau 45T (40FT) |
Axles | 3 axles square qag nrog 13 tons peev, FUHUA hom (Tuam Tshoj hom zoo tshaj) |
Lub log | 12.00R22.5 los yog 315/80R22.5 |
Rim | 9.00-22.5 Tuam Tshoj Hom |
Kev ncua | Mechanical suspension |
Nplooj nplooj | 90 (W) hli * 13 (Thickness) hli 10 pcs nplooj hlav |
King pin | JOST hom 2.0 lossis 3.5 |
tsaws ob txhais ceg | JOST hom E100 lossis Tuam Tshoj hom 28 Tuj (ob zaug ceev) |
Main Beam | Qhov siab: 500mm, sab phaj yog 14 hli, nruab nrab phaj yog 8 hli, nqes phaj yog 16 hli; Khoom siv yog Q345B Steel. |
Nres chamber | WABCO relay valve |
Twist Locks | 12 units ISO twist xauv |
ABS | xaiv tau |
Teeb | LED teeb |
Qhov hluav taws xob | 24V |
Hluav taws xob | Ib chav ntawm 27V 7-pin ISO 1185 socket |

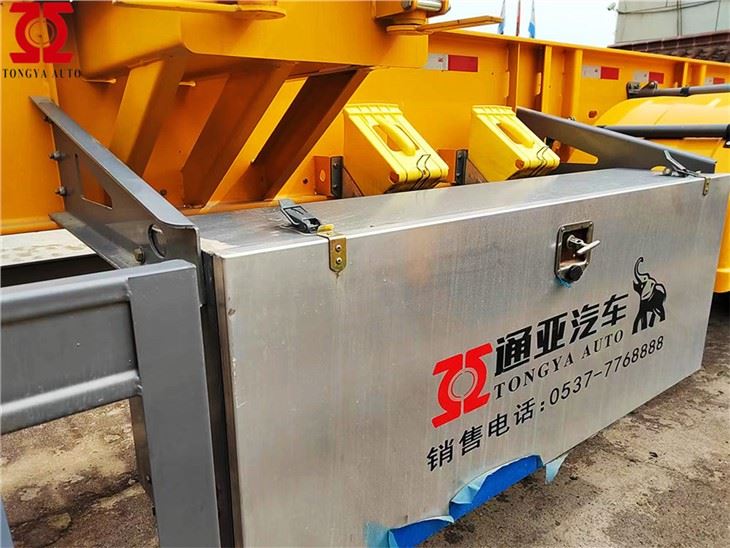

Tool lub thawv | Ib thooj, 1m * 0.5m * 0.5m (Qhov loj tuaj yeem xaiv tau dawb) |
Kev pleev xim | Xuab zeb blasting ua ntej painting; ib tug cam khwb cia ntawm primer, anti-corrosion; ob lub tsho ntawm tiav painting; xim qhia los ntawm cov neeg siv khoom. |
3axles skeleton semi trailer yog cov khoom siv thoob ntiaj teb. Nws lub hom phiaj yog thauj semi trailers ntawm 20-ko taw, 30- ko taw, 40- ko taw thiab 45- ko taw ntim. Yav dhau los, semi trailers tau manually welded. Tab sis tam sim no lub trailer kev lag luam tau officially nkag mus rau lub era ntawm neeg hlau vuam.Fully tsis siv neeg laser txiav tshuab. Nrog siab precision, ceev txiav, tsis txwv rau txiav cov qauv txwv, tsis siv neeg typeetting txuag cov ntaub ntawv, du txiav, thiab lwm yam., nws yuav maj mam txhim kho los yog hloov cov tsoos hlau txiav txheej txheem khoom.Our 3axles skeleton semi trailer ntau lawm kab yog ib qhov zoo tshaj plaws. nyob rau hauv peb kev lag luam, Nws yog ntshuam los ntawm ltalis thiab sib sau ua ke xwb 3 xyoo.Thiab peb cov txheej txheem ntau lawm yuav ua kom cov 3axles skeleton semi trailer zoo ruaj khov thiab txaus siab.Tongya Auto kawm los ntawm European tsim lub tswv yim thiab koom nrog suav hais.Tongya Tsheb launched Lub teeb yuag thiab siv tau 3axles pob txha pob txha semi trailer nrog qhov hnyav ntawm tsuas yog 5.7T.
Peb xyuam xim rau txhua ntu uas yuav cuam tshuam rau cov neeg siv khoom lag luam, thiab kev ntim khoom yog ib qho ntawm lawv.Peb ib txwm muab cov khoom ntim zoo tshaj plaws thiab cov khoom xa tuaj kom paub tseeb tias 3axles skeleton semi trailer muaj kev tiv thaiv zoo.
Peb tus thawj coj Mr. Yang tseem ceeb heev rau kev tshawb fawb thiab kev tsim cov khoom tshiab. Peb muaj pab pawg tshawb fawb thiab txhim kho ntawm 40 tus neeg. Kuj tseem ceeb heev rau lub sijhawm tsim khoom thiab cov khoom lag luam zoo, tom qab ntawd nws tau yuav lub laser txiav tshuab thiab cov neeg hlau. Peb lub tuam txhab tau dhau ntau daim ntawv pov thawj, xws li ISO 9 0 0 1, CCC, Kev Lag Luam Zoo Tshaj Plaws ntawm Tuam Tshoj, Taishan Daim Ntawv Pov Thawj Zoo.
Txais tos tuaj xyuas peb lub tuam txhab txhua lub sijhawm.
Cim npe nrov: 3 axes cev semi trailer, Suav teb, neeg muab khoom, manufacturers, customized, nqe
