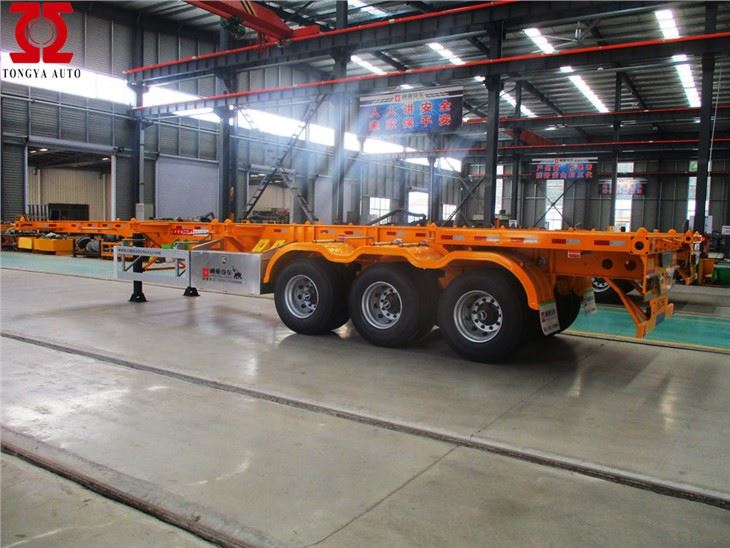

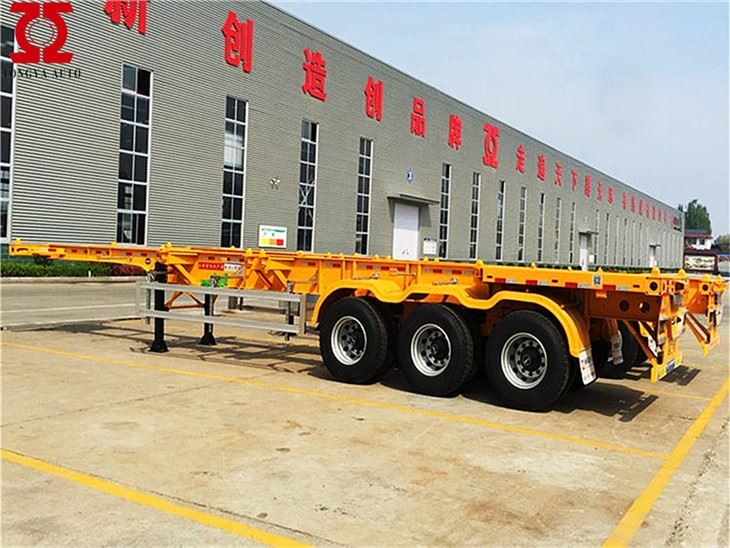

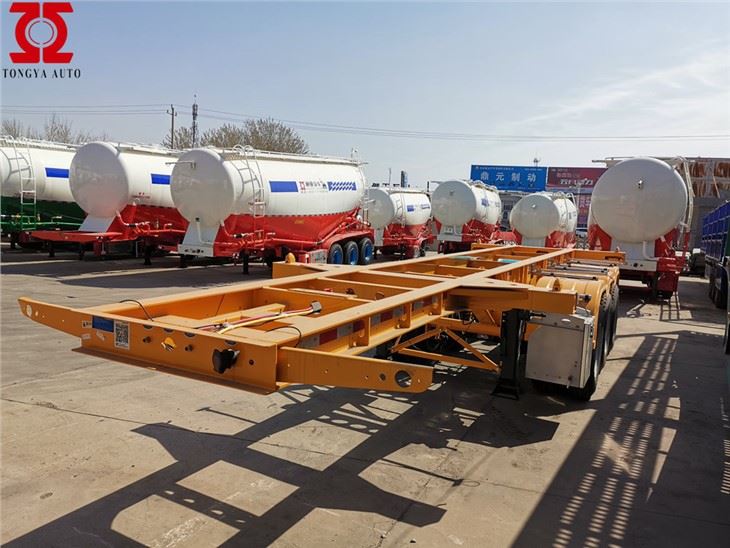

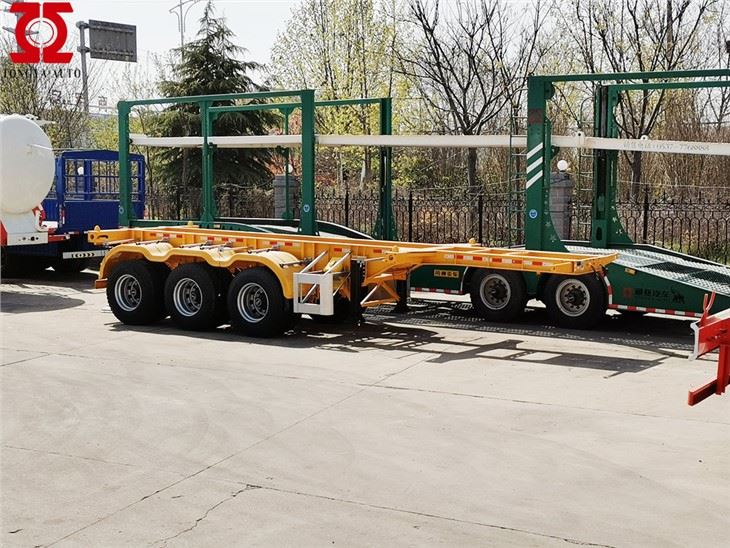

40ft Skeleton Trailer
TONGAY 3 axles 40ft hnyav luag hauj lwm thiab ntxiv durability tsim skeleton semi trailer rau muag.

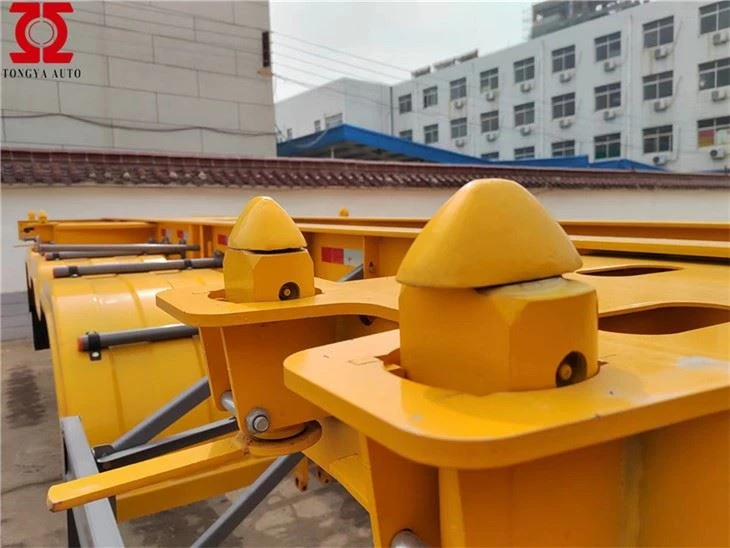

Qhov 40ft skeleton trailer muaj 12 units ISO twist locks rau 2x20ft, 1x40ft, 1x20ft thawv, 4 units tsau, 8 units retractable twist locks.
6 lub hlis ntawm kev lav zoo yog muab rau qhov 40ft skeleton semi trailer.
Khoom Taw qhia
Tare luj | Txog 6.5 tons |
Sab nraud dimension (mm) | 12450*2490*1400 |
Loading peev (Ton) | Tsawg dua lossis sib npaug rau 45T (40FT) |
Axles | 3 axles square qag nrog 13 tons peev, FUHUA hom (Tuam Tshoj hom zoo tshaj) |
Lub log | 12.00R22.5 los yog 315/80R22.5 |
Rim | 9.00-22.5 Tuam Tshoj Hom |
Kev ncua | Lub luag haujlwm hnyav tri-axle nrog 13 tons peev, FUHUA hom |
Nplooj nplooj | 90 (W) hli * 13 (Thickness) hli 10 pcs nplooj hlav |
King pin | JOST hom 2.0 lossis 3.5 |
tsaws ob txhais ceg | JOST hom E100 lossis Tuam Tshoj hom 28 Tuj (ob zaug ceev) |
Main Beam | Qhov siab: 500mm, sab phaj yog 14 hli, nruab nrab phaj yog 8 hli, nqes phaj yog 16 hli; Khoom siv yog Q345B Steel. |
Nres chamber | WABCO relay valve |
Twist Locks | 12 units ISO twist xauv |
ABS | xaiv tau |
Teeb | LED teeb |
Qhov hluav taws xob | 24V |
Hluav taws xob | Ib chav ntawm 27V 7-pin ISO 1185 socket |
Tool lub thawv | Ib thooj, 1m * 0.5m * 0.5m (Qhov loj tuaj yeem xaiv tau dawb) |
Kev pleev xim | Xuab zeb blasting ua ntej painting; ib tug cam khwb cia ntawm primer, anti-corrosion; ob lub tsho ntawm tiav painting; xim qhia los ntawm cov neeg siv khoom. |
Tongya tri-axles 40ft skeleton trailer rau muag.Siv rau 40ft skeleton trailer: siv rau kev thauj khoom 2 * 20ft / 1 * 40ft thawv.Qhov hnyav ntawm 40ft skeleton trailer txog 5.5T / unit., thiab lub peev xwm thauj khoom rau 40ft skeleton trailer yog 45T.Heavy luag hauj lwm thiab ntxiv durability tsim; vuam los ntawm tsis siv neeg Submerged-Arc txheej txheem.Main beam rau 40ft skeleton trailer; Opting rau siab zog Q345B steel, 500mm sib sib zog nqus welded I-section lub ntsiab beams .Top Flange thickness 14mm, dav 140mm; Hauv qab Flange thickness 16mm, dav 140mm.Middle Flange thickness 8mm; 3 axles * square qag nrog 13 tons muaj peev xwm, FUWA hom (Suav zoo tshaj plaws hom); 40ft skeleton trailer muaj 12 units ISO twist locks rau 2x20ft, 1x40ft, 1x20ft thawv, 4 units tsau, 8 units retractable twist locks.Shipping los ntawm thawv, ob skele trailer muab tso rau hauv ib lub thawv 40ft. Peb lub Hoobkas tseem ceeb heev txog kev tshuaj xyuas zoo thiab peb sim peb qhov zoo tshaj plaws kom tsis txhob muaj cov khoom puas los ntawm kev xa khoom. Thaum peb pom qhov teeb meem zoo, cov khoom tsis tsim nyog, peb yuav hloov lawv nrog txhua tus nqi.Peb yog cov chaw tsim khoom, lub sijhawm tsim khoom 7 hnub ua haujlwm rau ib chav tsev semi trailer, 300 units ib hlis.6 lub hlis ntawm 40tf skeleton trailer zoo lav yog muab ,
Ua raws li peb yuav muab cov khoom seem uas tsim nyog nrog tus nqi peb tau txais los ntawm peb cov neeg muag khoom, thiab xa engineer rau kev saib xyuas yog tias tsim nyog ntawm koj tus nqi.
Tam sim no peb muab ntau tshaj 60 hom tsheb thauj khoom thiab peb cov tsheb thauj khoom tuaj yeem hloov kho raws li koj cov kev qhia tshwj xeeb thiab cov qauv tsim. Zoo siab txais tos hu rau peb thiab peb npaj rau koj !!!
Cim npe nrov: 40ft cev trailer, Suav teb, neeg muab khoom, manufacturers, customized, nqe
