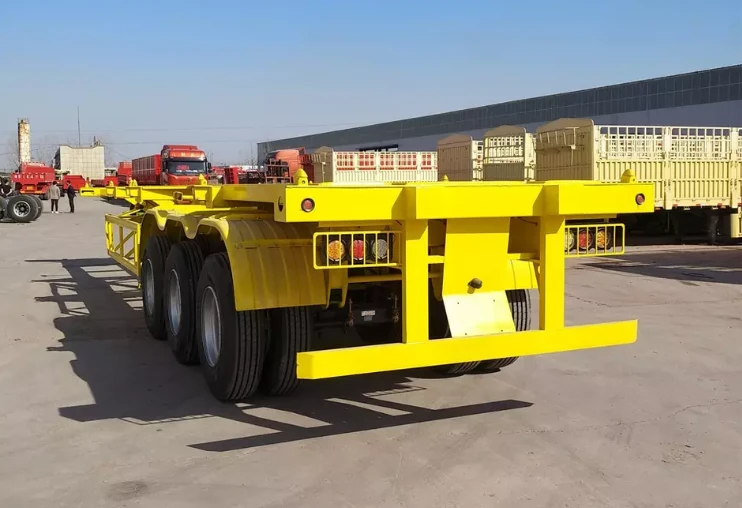

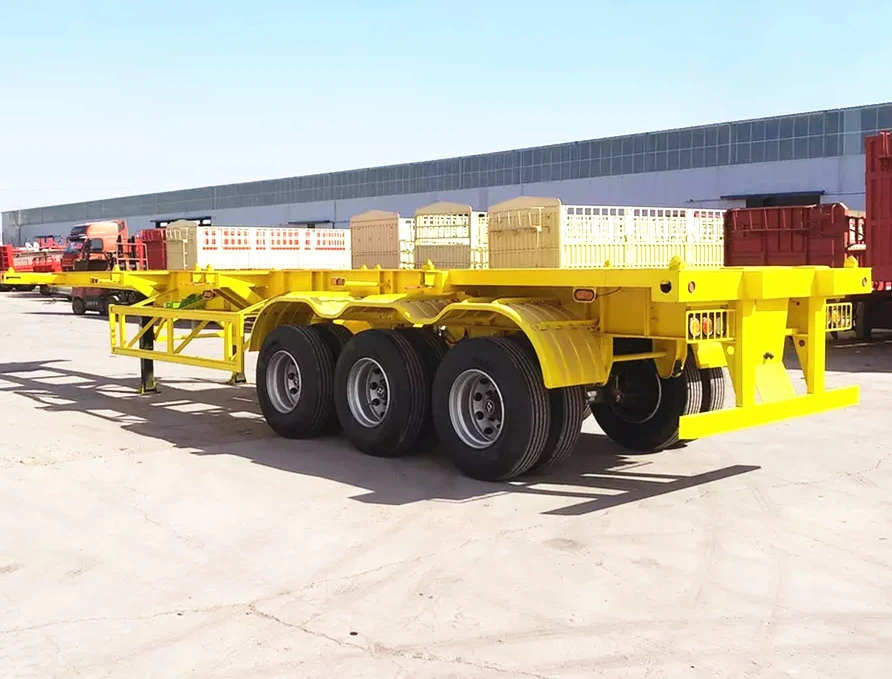

Skeleton Semi Trailer Nrog Gooseneck

Skeleton semi trailer nrog gooseneck yog tshwj xeeb tsim los nqa ntau lub thawv ntim khoom.Koj tuaj yeem xaiv thauj ib lub 20ft, 40ft lossis ob lub thawv 20ft ib zaug. Qhov sib txawv tsuas yog tus naj npawb ntawm cov xauv qhov yuav tsum tau ua rau daim ntawv thov kev thauj mus los tshwj xeeb.
1. Finite Element tsom xam siv nyob rau hauv lub tsheb los txhawb cov khoom ua tau zoo.
2.Txhua Trailer lub cev electrophoresis Painting, tsis kam, painting nyhuv tuaj yeem ncav cuag 10 xyoo.
3.High zog tag nrho thickness Steel, titanium cov ntsiab lus ntawm 0.98‰, uas ua kom Beam thiab ncej lub Toughness thiab lub zog.
4.42 tawv ribs tsim, Xyuas kom muaj kev nyab xeeb thiab nqa lub peev xwm ntawm trailer.
5.Tshwj xeeb tsim los tiv thaiv Tire abrasion ncua kev kawm ntawv, Tiv thaiv log tsheb offset tom qab thauj khoom

KhoomSpecification

Skeleton semi trailer nrog gooseneck yog ib hom thawv thauj semi trailer ncej thiab lwm yam yog hom tiaj tus. Lub cev pob txha hom tsav tsheb yog tsim los ntawm kev vuam cov kab ntev ntev, cov kab hluav taws xob transverse thiab cov kab hauv ntej thiab nram qab. Cov kab ntev ntev yog welded rau hauv high-zoo steel phaj 16Mn submerged arc los ua ib qho I-puab (qhov loj loj yog 450, 500). Lub beam muaj ib tug welded rectangular cross-section. Ib qho tseem ceeb ntev beam yog muab nyob rau ntawm txoj hauj lwm ntawm qhov nruab nrab lub thawv xauv lub cuab yeej los txhim kho lub peev xwm nqa ntawm lub thawv xauv khoom. Qhov txawv ntawm hom tiaj tus thiab cov pob txha pob txha yog tias hom tiaj tus ntxiv ib lub thav duab thiab cov qauv hauv pem teb. Lub thav duab ntawm ntoo series thawv thauj semi trailer yog tag nrho cov tua blasted. Tag nrho cov ncej yog sib sau ua ke thiab welded rau ntawm qhov chaw tshwj xeeb platform. Nws muaj cov qauv tsim nyog, siab zog thiab zoo nkauj tsos. Lub thawv ntim khoom nruj yog ntsia rau ntawm tus ncej, uas tuaj yeem thauj tau ob lub thawv txheem ntawm 40 ko taw thiab 20 ko taw. Plaub lub thawv kaw ntom nti ntawm lub hauv ntej thiab nram qab kawg yog ntawm cov qauv ruaj khov, thiab cov khoom siv hauv nruab nrab ntawm lub thawv kaw ntom nti yog cov qauv zais cia. Thaum thauj cov thawv ntim khoom, cov khoom siv nruab nrab ntawm lub thawv kaw tuaj yeem txo qis hauv qab ntawm cov khoom thauj khoom raws li xav tau.
