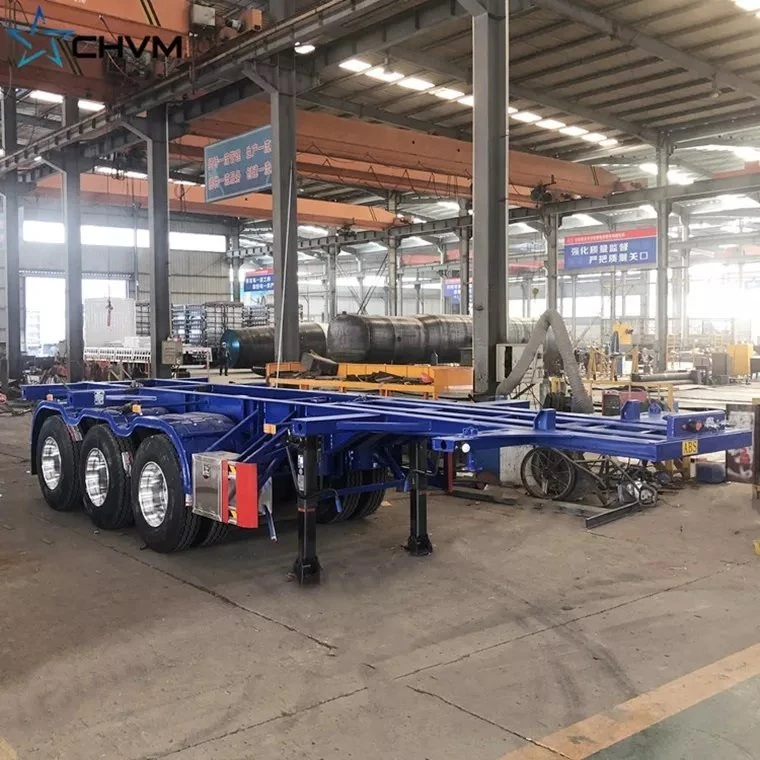

40FT Thawv Skeleton Truck Trailer
Skeleton tsheb trailer raws li lub npe hu ua skeletal trailer & thawv chassis trailer thiab lwm yam. Feem ntau yog siv rau thauj ISO thawv hauv chaw nres nkoj, shipyard, txoj kev, txuas hniav, tunnels, hloov chaw nres tsheb, txhawb multimodal thauj logistics system.
Khoom Taw qhia
Skeleton tsheb trailer raws li lub npe hu ua skeletal trailer & thawv chassis trailer thiab lwm yam. Feem ntau yog siv rau thauj ISO thawv hauv chaw nres nkoj, shipyard, txoj kev, txuas hniav, tunnels, hloov chaw nres tsheb, txhawb multimodal thauj logistics system.
Raws li lub pob txha pob txha thawv trailer, Peb muab cov kev xaiv trailer rau nqa 20 ko taw thiab 40ft thiab lwm cov thawv loj. Peb siv qhov loj tshaj plaws ntawm 12 pcs ntawm EU txheem thawv xauv.
|
Dimension |
12,500 * 2438 * 1450mm (Raws li tus neeg thov) |
|
ua si |
50T |
|
Tare luj |
7T |
|
Lub log |
12R22.5 (kev qhia tshwj xeeb tuaj yeem xaiv tau) |
|
Rim |
9.0-22.5 |
|
King pin |
JOST hom 3.5 nti bolts hom lossis Vuam hom |
|
Main beam |
Qhov siab: 450mm-520mm, sab phaj thickness yog 14mm-25mm, nruab nrab phaj thickness yog 8mm-12mm, down phaj thickness yog 16mm-25mm; |
|
Sab beam |
16mm -25mm channel steel (Cov khoom yog Q235B carbon steel) |
|
Hla beam |
80 * 40mm square tube (Cov khoom yog Q235B carbon steel) |
|
Twist xauv |
12sets Enhanced thoob ntiaj teb universal twist xauv |
|
tsaws iav |
JOST |
|
Qag |
13ton * 3 qag FUWA hom |
|
Kev ncua |
mechanical suspension / cua ncua kev kawm ntawv |
|
Nres chamber |
4 units T30/30 caij nplooj ntoos hlav nres chambers, 2 units T30 nres chambers |
|
Thaum muaj xwm ceev valve |
WABCO/Fitness brand |
|
Teeb |
Tail teeb nrog tig teeb liab, nres teeb & reflector, sab teeb thiab lwm yam |
|
Tool lub thawv |
1set txheem lub thawv (hom waterproof) |
|
Spare log carrier |
1 daim (Patent hom) |
|
Accessory |
Ib txheej ntawm cov cuab yeej, Phau ntawv qhia |
|
ABS system |
xaiv tau |
|
Xim |
Raws li cov neeg siv khoom xav tau |
|
Kev pleev xim |
Ua kom tiav Chassis xuab zeb blasting los ntxuav xeb, 1 lub tsho tiv no ntawm anticorrosive prime, 2 lub tsho tiv no ntawm cov xim kawg |
40FT thawv skeleton tsheb thauj khoom muaj nplooj siab rau txhua yam kev thauj mus los hauv lub thawv, tuaj yeem nqa lub thawv 40 feet, tuaj yeem nqa ob lub thawv 20 ko taw tib lub sijhawm, lossis 20 ft thawv, cov neeg siv khoom tuaj yeem ua raws li koj tus kheej xav tau hloov cov xauv. tus lej. Beam siv submerged arc vuam, trailer txhaj tshuaj blasting derusting, qauv phaj hauv qab yog 3 hli tuab, peb tuaj yeem ua raws li cov neeg siv khoom tsim cov khoom lag luam yuav khoom txawv teb chaws lossis hauv Suav teb. tuaj yeem siv sijhawm ntev dua, muaj lub zog txaus.
Peb tuaj yeem ua raws li qhov sib txawv ntawm cov neeg siv khoom los tsim lub trailer, lossis qhia peb t Qhia peb seb koj siv dab tsi. peb yuav muab rau koj tsim cov qauv sib xws, ua tau raws li tus kheej xav tau ntawm cov neeg siv khoom
Cim npe nrov: 40ft thawv skeleton tsheb trailer, Tuam Tshoj 40ft thawv skeleton tsheb trailer manufacturers, lwm tus neeg
