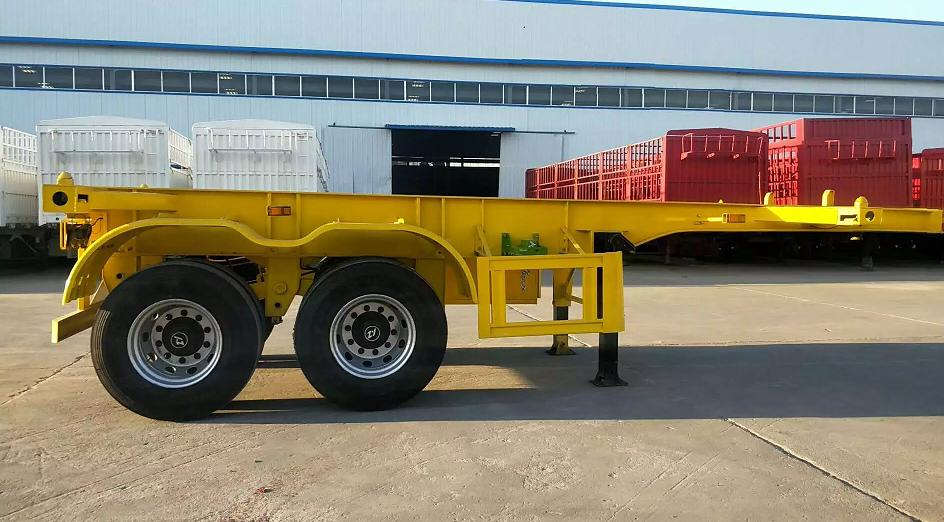

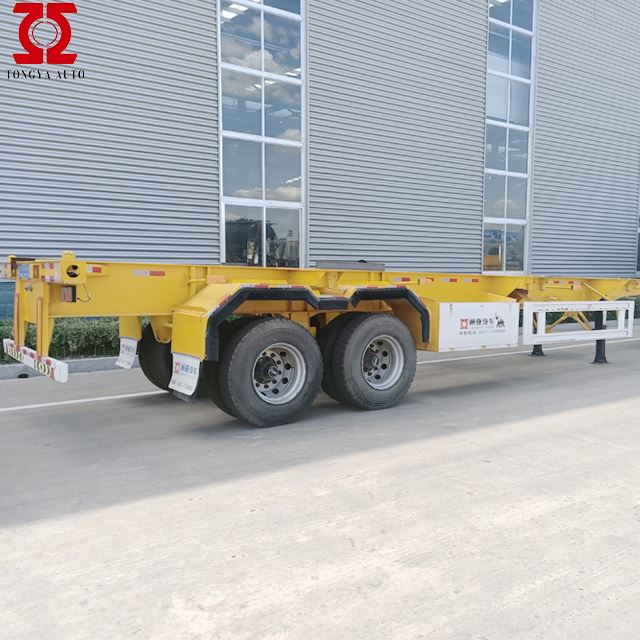

2 Axkes 40ft Thawv Trailer

Xa kev nug

Khoom Taw qhia

1.Load peev: 20 lossis 40 '' thawv
2.12 twist xauv

3.Components: chassis, ncua kev kawm ntawv, log tsheb thiab log, tsaws iav.

4. Kev Them Nyiaj: 20ton, 30ton, 40ton

5. qag:2ax

6. Guarantee: Peb lub sijhawm pub dawb yog 6 lub hlis. Peb yuav xa tus engineer rau kho lub semi trailer dawb nyob rau hauv rau lub hlis.

Khoom Specification

Hom	2 axkes 40ft thawv trailer
Muaj nuj nqi	2 x 20ft thiab 1x40ft thawv lossis lwm yam khoom
Main beam	Khoom siv yog Q345B, Qhov siab ntawm lub nqaj yog 500 hli, phaj sab sauv yog 14 hli, nqes phaj yog 16 hli, nruab nrab phaj yog 8 hli.
Thawv xauv	12 qab
Qag	3x13ton FUWA hom (lwm hom tuaj yeem xaiv
King pin	90mm los yog 50mm
tsaws iav	28 Tons
Lub log	Daim duab peb sab hom 12R22.5 8 pieces

Skeleton thawv semi trailer yog tshwj xeeb tsim los nqa ntau lub thawv ntim khoom. Koj tuaj yeem xaiv thauj ib lub 20ft, 40ft 0 lossis ob lub thawv 20 ft ib zaug. Qhov sib txawv tsuas yog tus naj npawb ntawm cov xauv qhov yuav tsum tau ua rau daim ntawv thov kev thauj mus los tshwj xeeb.
1. Finite Element tsom xam siv nyob rau hauv lub tsheb los txhawb cov khoom ua tau zoo.
2. Tag nrho Trailer lub cev electrophoresis Painting, tsis kam, painting nyhuv tuaj yeem ncav cuag 10 xyoo.
3. Lub zog siab puv thickness Steel, titanium cov ntsiab lus ntawm 0.98‰, uas ua kom Beam thiab ncej lub Toughness thiab lub zog.
4. 42 tawv ribs tsim, Xyuas kom muaj kev nyab xeeb thiab nqa lub peev xwm ntawm trailer.
5.Tshwj xeeb tsim los tiv thaiv Tire abrasion ncua kev kawm ntawv, Tiv thaiv log tsheb offset tom qab thauj khoom
