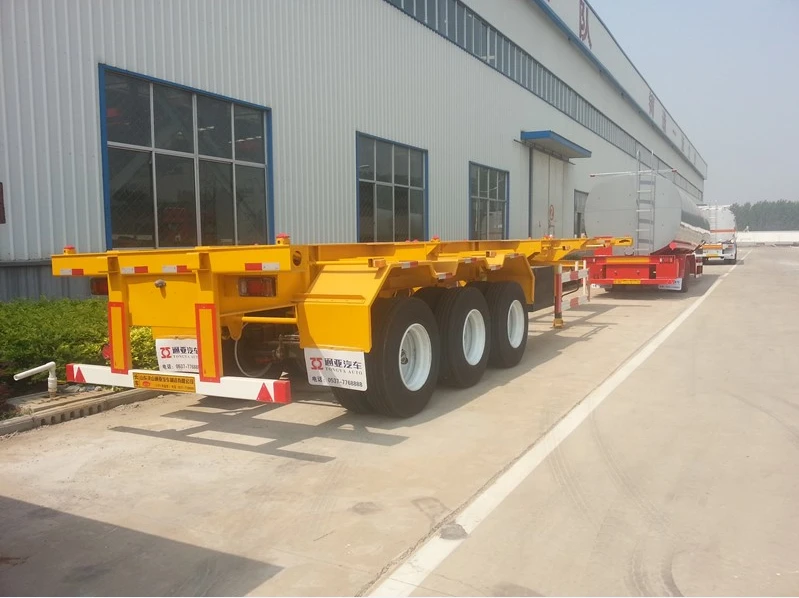

Thawv Thauj Truck Tailer
Tongyada thawv thauj tsheb tailer tshwj xeeb tsim los nqa ntau lub thawv ntim khoom. Koj tuaj yeem xaiv thauj ib lub thawv 20ft, 40ft lossis ob lub thawv 20ft ib zaug. Qhov sib txawv tsuas yog tus naj npawb ntawm cov xauv qhov yuav tsum tau ua rau daim ntawv thov kev thauj mus los tshwj xeeb.
Khoom Taw qhia
Tongyada thawv thauj tsheb tailer tshwj xeeb tsim los nqa ntau lub thawv ntim khoom. Koj tuaj yeem xaiv thauj ib lub thawv 20ft, 40ft lossis ob lub thawv 20ft ib zaug. Qhov sib txawv tsuas yog tus naj npawb ntawm cov xauv qhov yuav tsum tau ua rau daim ntawv thov kev thauj mus los tshwj xeeb.
Raws li tus neeg siv khoom lub sijhawm mus sij hawm ntev, thiab cov neeg siv khoom qhov chaw ntawm cov txheej txheem vuam, cov neeg siv khoom tuaj yeem xaiv cov khoom thauj ntau (Peb pawg, dai tawm tuaj yeem siv ncaj qha tom qab cov khoom xa mus rau qhov chaw nres nkoj.)
|
Dimension |
12,500 * 2450 * 1450mm (Raws li tus neeg thov) |
|
ua si |
40, 000kg |
|
Tare luj |
65, 1kg |
|
Lub log |
12R22.5 (kev qhia tshwj xeeb tuaj yeem xaiv tau) |
|
Rim |
9.0-22.5 |
|
King pin |
JOST hom 2.0 lossis 3.5 nti bolts hom |
|
Main beam |
Qhov siab: 520mm, sab phaj thickness yog 14mm |
|
Sab beam |
25mm channel steel (Cov khoom yog Q235B carbon steel) |
|
Hla beam |
80 * 40mm square tube (Cov khoom yog Q235B carbon steel) |
|
Twist xauv |
12sets Enhanced thoob ntiaj teb universal twist xauv |
|
tsaws iav |
JOST |
|
Qag |
13ton * 3 qag FUWA hom |
|
Kev ncua |
mechanical suspension |
|
Nres chamber |
4 units T30/30 caij nplooj ntoos hlav nres chambers, 2 units T30 nres chambers |
|
Thaum muaj xwm ceev valve |
WABCO |
|
Teeb |
Tail teeb nrog tig teeb liab, nres teeb & reflector, sab teeb thiab lwm yam |
|
Tool lub thawv |
1set txheem lub thawv (hom waterproof) |
|
Spare log carrier |
1 daim (Patent hom) |
|
Accessory |
Ib txheej ntawm cov cuab yeej, Phau ntawv qhia |
|
ABS system |
xaiv tau |
|
Xim |
Raws li cov neeg siv khoom xav tau |
|
Kev pleev xim |
Ua kom tiav Chassis xuab zeb blasting los ntxuav xeb, 1 lub tsho tiv no ntawm anticorrosive prime, 2 lub tsho tiv no ntawm cov xim kawg |
Lub thawv thauj khoom thauj tsheb thauj khoom tau mob siab rau txhua yam kev thauj mus los hauv lub thawv, tuaj yeem nqa lub thawv 40 ko taw, tuaj yeem nqa ob lub thawv 20 ko taw tib lub sijhawm, lossis lub thawv 20 ft, cov neeg siv khoom tuaj yeem ua raws li koj tus kheej xav tau hloov tus lej xauv . Beam siv submerged arc vuam, trailer txhaj tshuaj blasting derusting, qauv phaj hauv qab yog 3 hli tuab, peb tuaj yeem ua raws li cov neeg siv khoom tsim khoom siv cov khoom lag luam yuav khoom txawv teb chaws lossis hauv Suav teb .. tuaj yeem siv sijhawm ntev, muaj lub zog txaus.
Peb tuaj yeem ua raws li qhov sib txawv ntawm cov neeg siv khoom los tsim lub trailer, lossis qhia peb t Qhia peb seb koj siv dab tsi. peb yuav muab rau koj tsim cov qauv sib xws, ua tau raws li tus kheej xav tau ntawm cov neeg siv khoom
Cim npe nrov: Tuam Tshoj Customized Thawv Truck Tailer Manufacturers, Cov neeg nqa khoom, Lub Hoobkas - Ua nyob rau hauv Suav teb
