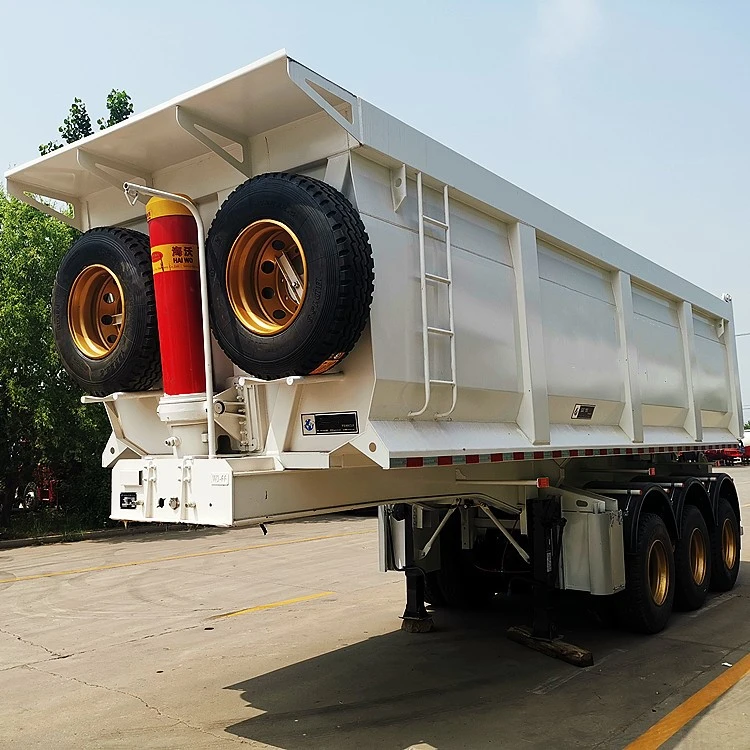

Tsheb Tipper Semi Trailer
Tsheb tipper semi trailer feem ntau yog siv rau hauv cov mines loj thiab nws tsim nyog rau kev thauj mus los ntawm cov khoom loj thiab cov khoom tawg, xws li thee, ore, earthwork, thiab cov khoom siv.
Khoom Taw qhia
Khoom taw qhia
Tsheb tipper semi trailer feem ntau yog siv rau hauv cov mines loj thiab nws tsim nyog rau kev thauj mus los ntawm cov khoom loj thiab cov khoom tawg, xws li thee, ore, earthwork, thiab cov khoom siv.
Lub chassis ntawm rear tipper semi trailer txais tshwj xeeb chassis uas tsim los ntawm ntau lub chassis manufacturers, nrog advanced technology thiab txhim khu kev qha kev ua tau zoo. Cov software siab heev optimizes tus tsim ntawm cov khoom kom tau raws li tus neeg xav tau kev pab ntawm cov neeg muas zaub. Cov txheej txheem cuab yeej ntawm kev khiav lag luam ua kom cov khoom zoo heev.

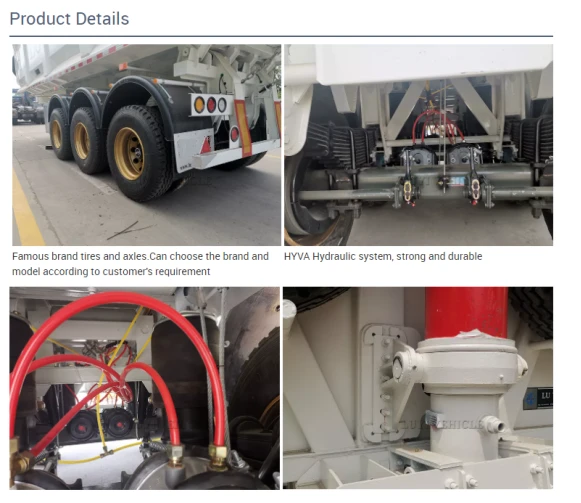

Khoom piav qhia
Tsheb tipper semi trailer txais laser txiav tshuab, yog li ua rau peb ntau lawm ceev thiab siab precision.
Lub ncua kev kawm ntawv ntawm rear tipper semi trailer yog cia li positioned thiab welded kom nws ruaj.
Peb rear tipper semi trailer txais tsis siv neeg vuam, ceev ceev, zoo nkauj vuam seam.
Rau painting, lub rear tipper semi trailer siv electrophoresis primer thiab hmoov txau txheej, nto yog du thiab tiaj tus, kom ntseeg tau xim xim nyob rau hauv lub tom ntej theem, tsis muaj xeb.
KhoomSpecification
|
Tsheb tipper Specification |
|
|
Khoom npe |
Tsheb tipper semi trailer |
|
Khoom siv |
Q345B carbon hlau |
|
Xim |
Cov neeg siv khoom xaiv tau |
|
Kev siv |
Thauj Khoom Thauj Khoom, Thauj Pob Zeb, Pob Zeb |
|
Main Beam |
Q345B carbon steel "H" nqaj |
|
Lifting System |
HYVA Brand |
|
Chaw thau khoom muaj peev xwm |
80 ton |
|
Tare luj |
12 ton |
|
Kev pleev xim |
Xuab zeb Blasting, Anti corrosive Prime |
|
Dimension |
9500x2500x3700mm |
|
Pem teb |
6mm Checkered Phaj |
|
Teeb pom kev zoo |
LED Teeb |
|
Kev ncua |
Mechanical Suspension |
|
Qag |
20 Ton Fuwa/BPW |
|
Lub log |
12R20 |
|
tsaws iav |
Standard 28Ton |
|
King pin |
3.5 "(90mm) |
|
Nres System |
Dual Line Braking System |
|
Rim |
8.0-20 |
|
Nplooj Caij nplooj ntoos hlav |
90 (W) mm * 16 (Thickness) mm * 10 (txheej) |

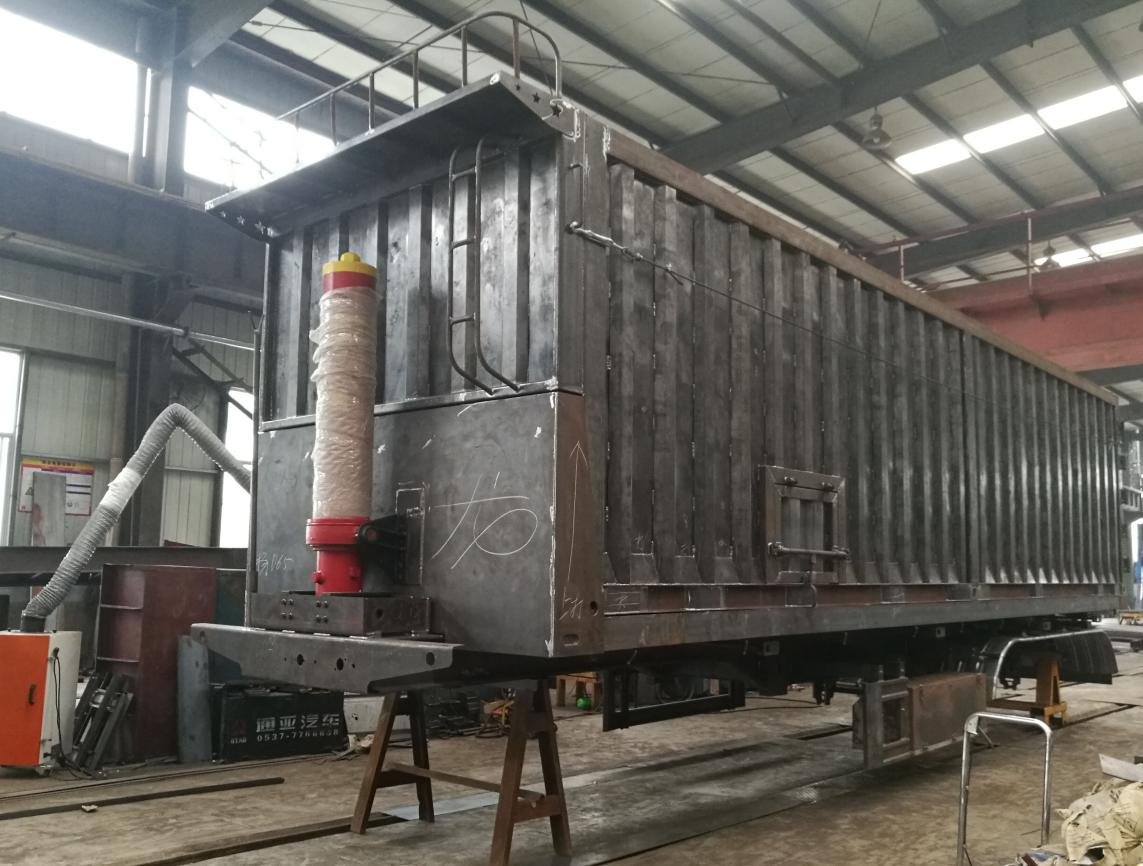

Khoom hauv Hoobkas

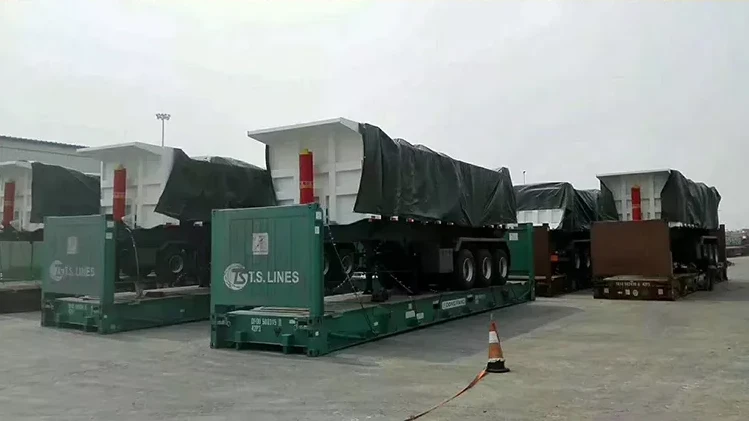

Txoj kev thauj mus los
