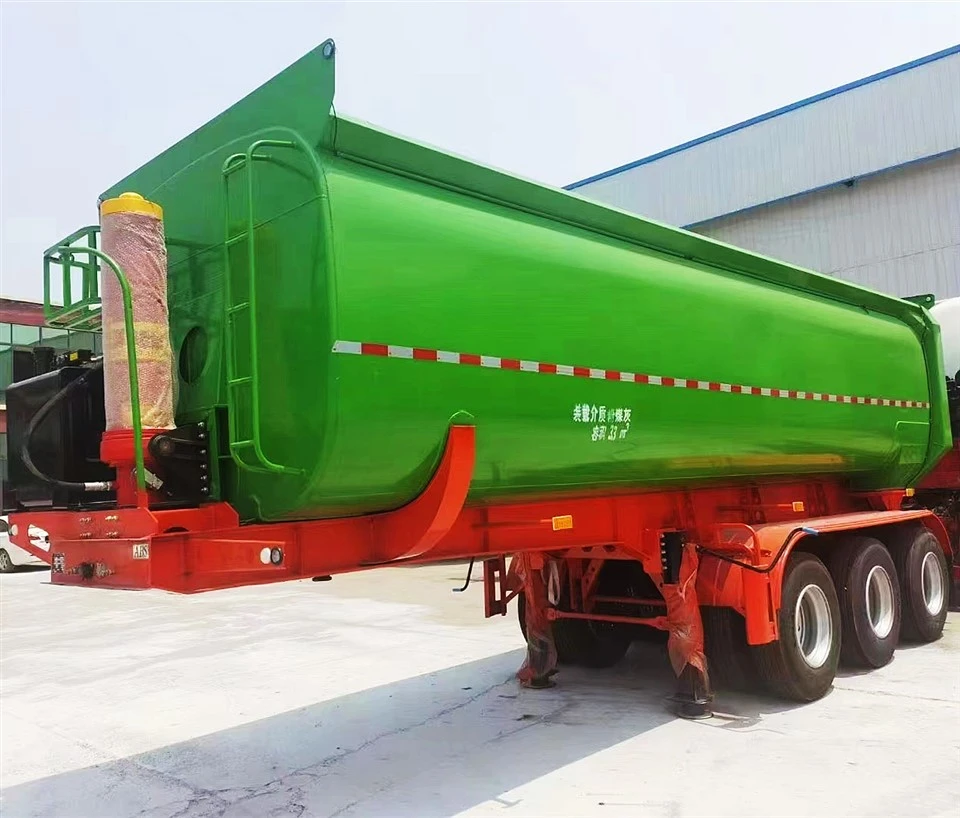

40M3 Tipper Truck
40M3 tipper tsheb tuaj yeem muab faib ua ob pawg raws li lawv siv: ib qho yog lub luag haujlwm hnyav thiab hnyav hnyav hnyav rau kev thauj mus los ntawm txoj kev loj, uas feem ntau ua haujlwm thauj mus los xws li cov mines loj thiab cov haujlwm, thiab feem ntau yog siv hauv txuas nrog excavators.
Khoom Taw qhia
Khoom taw qhia
40M3 tipper tsheb yog ib tug semi-trailer haum rau kev thauj mus los ntawm tej thiab tawg cov khoom xws li thee, ore, earthwork, thiab cov khoom siv.
40M3 tipper tsheb tuaj yeem muab faib ua ob pawg raws li lawv siv: ib qho yog lub luag haujlwm hnyav thiab hnyav hnyav hnyav rau kev thauj mus los ntawm txoj kev loj, uas feem ntau ua haujlwm thauj mus los xws li cov mines loj thiab cov haujlwm, thiab feem ntau yog siv hauv txuas nrog excavators.
Lwm hom lub teeb thiab nruab nrab-qhov loj me 40M3 tipper tsheb thauj mus los yog lub luag haujlwm tseem ceeb rau kev thauj mus los ntawm cov khoom xoob xws li xuab zeb, av, thiab thee, thiab feem ntau yog siv nrog cov khoom thauj.

Khoom piav qhia
Tuam Tshoj cov khoom tshiab siab zog 40M3 tipper tsheb nrog tus nqi zoo


Peb 40M3 tipper tsheb tau txais txoj hauv kev thim rov qab, uas tuaj yeem txhim kho kev thauj mus los zoo ntawm cov khoom thauj khoom thauj los ntawm lub loader.
Lub thav duab thiab cov nqaj ntev ntawm 40M3 tipper tsheb yog welded nrog zoo manganese daim hlau, thiab lub thawv ntim khoom muaj ob hom: plua plav thiab duab plaub. Nws muaj lub zog loj, muaj zog lifting quab yuam, zoo rigidity thiab toughness, muaj zog bearing muaj peev xwm thiab tsis tas yuav deformation.

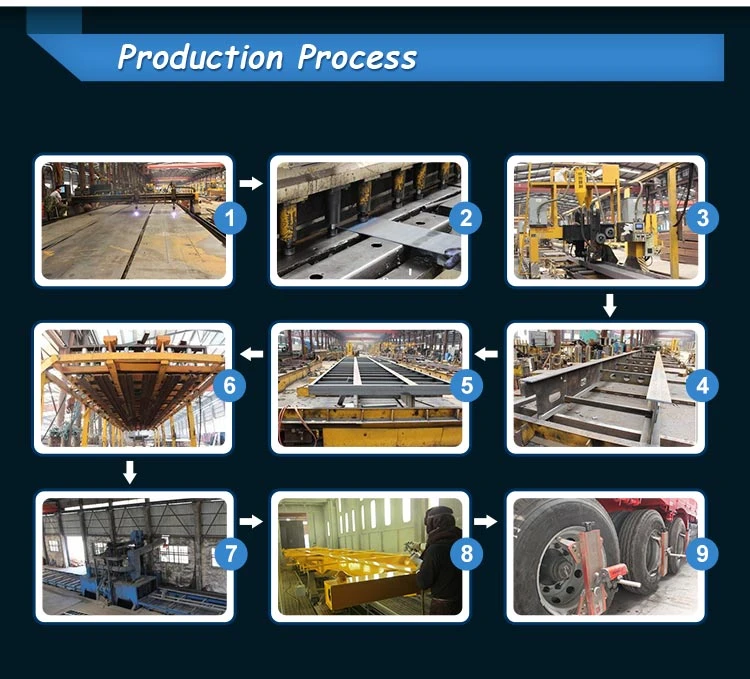

Sophisticated craftsmanship: Lub ntsiab Cheebtsam ntawm 40M3 tipper tsheb yog ua tiav los ntawm advanced cov khoom, lub longitudinal beams yog tag nrho tsis siv neeg submerged arc vuam, thiab axles thiab nplooj springs precisely assembled los ntawm ib tug sib dhos tshuab.
KhoomSpecification
|
Specification |
|
|
Qauv |
ZTY9407ZZX |
|
Hom |
3 qag 40M3 tipper tsheb Semi-trailer |
|
Tag nrho qhov ntev |
8600 * 2490 * 3420mm |
|
Sab hauv cargo box dimension |
7653 * 2300 * 1400 hli |
|
Muaj peev xwm ntawm cargo box |
23.9m3 |
|
Main beam |
Beam qhov siab: 500mm Upper phaj: 18mm Ib nrab phaj: 12 mm Down phaj: 20mm |
|
Platform thickness |
8mm ib |
|
Sab phab ntsa thickness |
6mm ib |
|
Khoom siv |
Cov pa roj carbon steel, Q345 |
|
Tag nrho lub tsheb hnyav |
8 500kg |
|
Tag nrho qhov hnyav |
40 000 kg |
|
Lifting system |
HYVA hom |
|
King pin |
90 # (3.5 nti) |
|
Txhawb ceg |
JOST C200 |
|
Qag |
FUWA hom, 3 * 13T |
|
Kev ncua |
Mechanical suspension 10pcs nplooj caij nplooj ntoos hlav |
|
Lub log |
Daim duab peb sab hom, 1100R20, 13pcs |
|
Rim |
8 0-20, 13 pcs |
|
Nres System |
30/30 hom ntawm txhua lub qag |
|
Spare log carrier |
0 1 pcs |
|
Tool lub thawv |
0 1 pcs |
|
Hluav taws xob System |
Suav txheem 24V teeb pom kev zoo |
|
Sab Maker Teeb |
LED teeb |

Cim npe nrov: 40m3 tipper tsheb, Tuam Tshoj 40m3 tipper tsheb manufacturers, lwm tus neeg
