Tipper Trailer
Tipper trailer yog ib qho khoom lag luam ntawm cov tsheb thauj khoom, uas yog ib qho semi-trailer uas tuaj yeem paub txog nws tus kheej unloading muaj nuj nqi.
Khoom Taw qhia
Khoom taw qhia
Tipper trailer yog ib qho khoom lag luam ntawm cov tsheb thauj khoom, uas yog ib qho semi-trailer uas tuaj yeem paub txog nws tus kheej unloading muaj nuj nqi. Piv nrog rau lwm cov khoom siv trailer, nws muaj qhov zoo ntawm kev ua haujlwm yooj yim, kev thauj mus los zoo, cov khoom siv qis qis, thiab kev txuag hluav taws xob, yog li nws yog ib qho nrov trailer hauv kev lag luam tsheb thauj mus los.

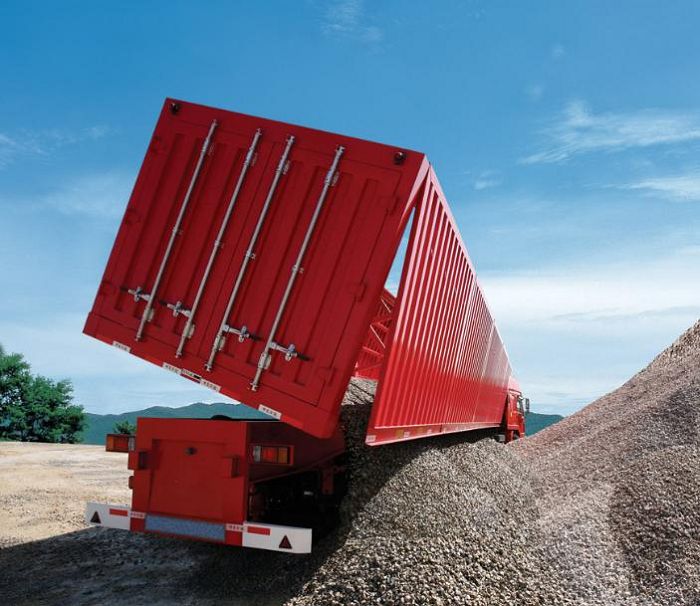

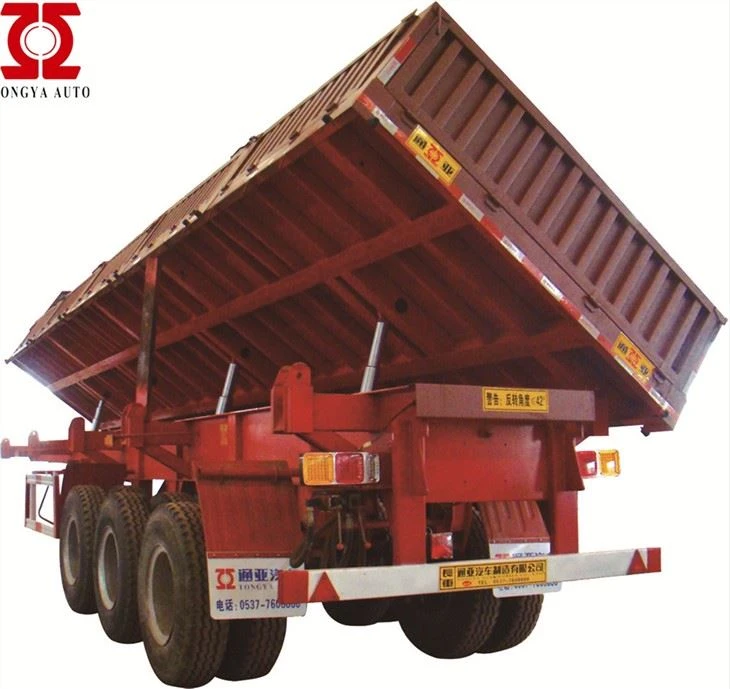

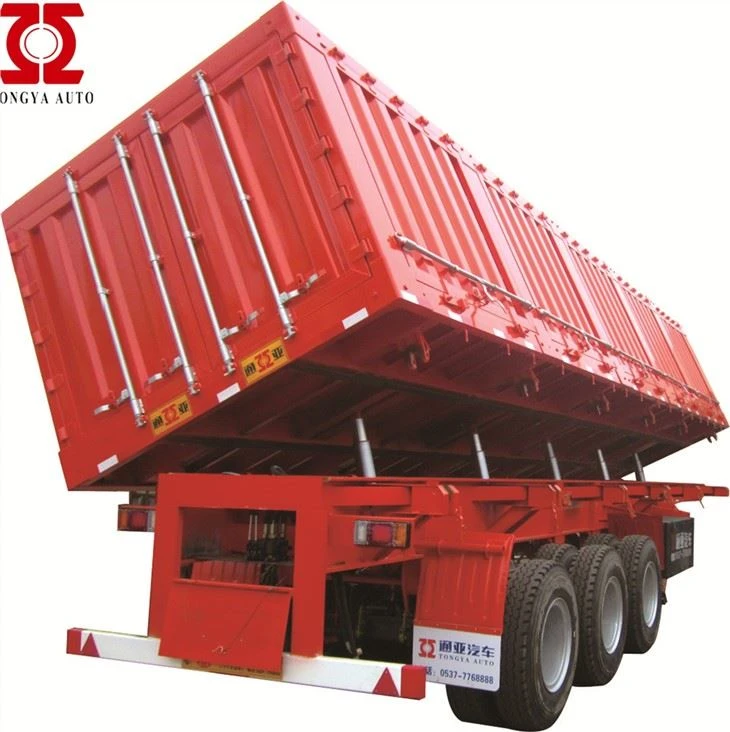

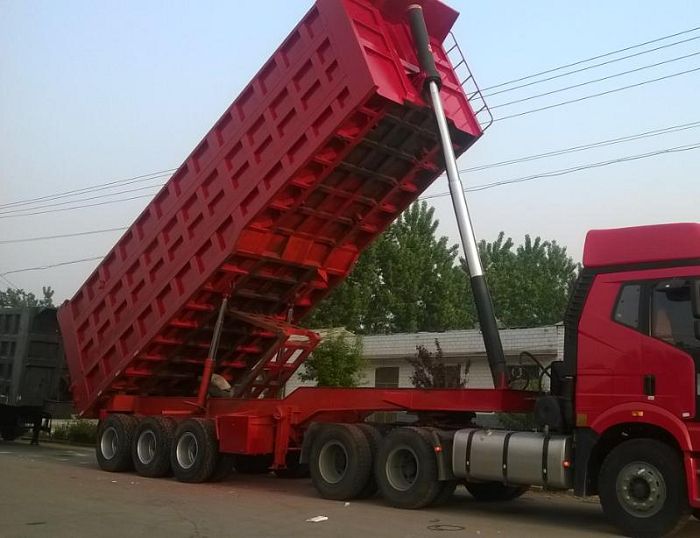

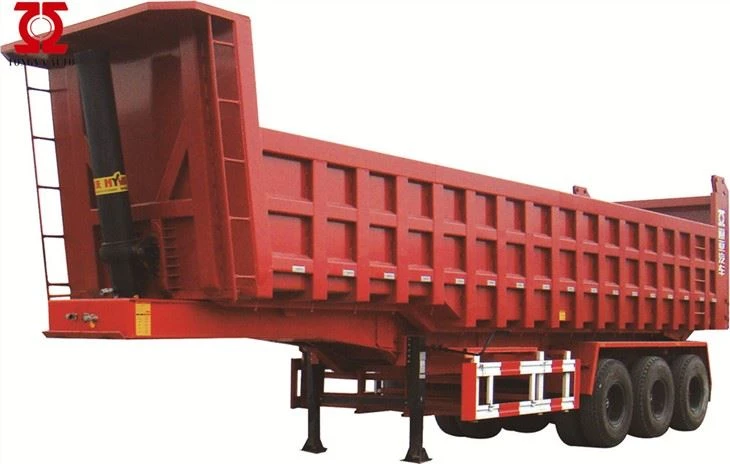

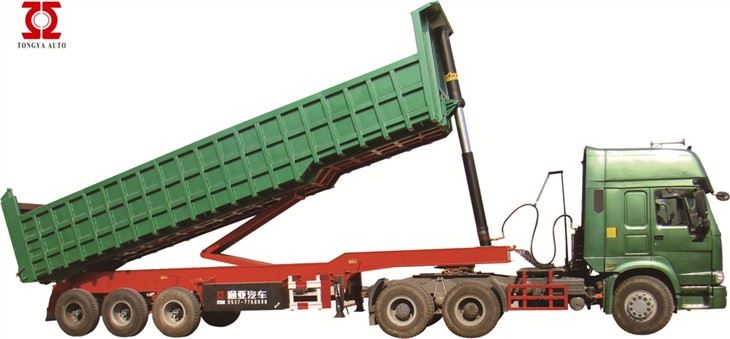

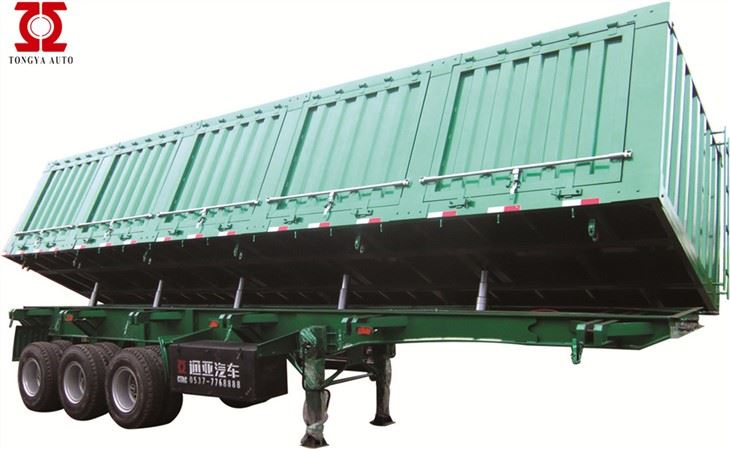

Raws li cov txheej txheem unloading, tus kheej unloading tipper trailer yuav muab faib ua ob hom: sab self-unloading semi-trailer thiab rear self-unloading semi-trailer. Lub hydraulic lub tog raj kheej nqa ntawm lub rear-tig nws tus kheej unloading semi-trailer yog ntev dhau lawm, qhov nruab nrab ntawm lub ntiajteb txawj nqus yog siab dhau lawm tom qab nqa, thiab txoj kev nto yog heev yooj yim mus ua uneven. Kev nyab xeeb xwm txheej tshwm sim thaum lub trailer dov dhau. Yog li ntawd, ntawm ob lub tipper trailer, sab tipper trailer yog qhov nrov tshaj plaws ntawm cov neeg siv khoom thiab yog cov khoom tseem ceeb tam sim no.
Khoom piav qhia
Lub tipper trailer feem ntau yog siv rau kev thauj mus los ntawm cov khoom thauj ntau. Feem ntau cov khoom thauj xws li xuab zeb thiab gravel, thee, nplej, thiab lwm yam.
Raws li nws tus kheej cov yam ntxwv, tipper trailer yuav tsum tau them sai sai rau cov ntsiab lus hauv qab no thaum tsim thiab tsim khoom:
Vim qhov kev txwv ntawm cov qauv, yog tias lub thawv ntim khoom ntev dhau lawm, qhov nruab nrab ntawm lub ntiajteb txawj nqus ntawm lub tsheb yuav siab dhau thiab tsis ruaj khov tom qab nqa. Yog tias hauv av tsis yog theem, kev sib tsoo yuav tshwm sim. Yog li ntawd, raws li tus qauv kev cai, tag nrho ntev ntawm lub tsheb thauj mus los yog feem ntau 8 ~ 1 0 m, qhov siab tshaj plaws sab nrauv ntawm lub carriage yog 2.55 m, qhov siab tshaj plaws sab hauv dav yog 2.45 m, qhov siab tshaj plaws ntawm lub carriage. laj kab yog 0.6 m, thiab qhov siab tshaj plaws ntim yog 14.7 m³.
Txij li lub nqa qhov siab ntawm sab tipper trailer tsis siab npaum li qhov kawg ntawm tus qauv, nws tuaj yeem ncav cuag qhov ntev ntawm 13m raws li kev cai, qhov siab tshaj plaws sab nrauv ntawm lub tsheb thauj khoom yog 2.55m, thiab qhov siab tshaj plaws sab hauv yog 2.45. m.
Ntau lawm specification
Tus neeg tsim khoom npe | Tongya Automobile Co., Ltd |
Hom | tipper trialer |
Cov ntsiab lus shipping | Los ntawm cov thawv lossis cov khoom thauj ntau raws li nws qhov loj me |
Lub sij hawm xa tuaj | Lub Sij Hawm Ntau Lawm 25 hnub ua haujlwm rau ib lub teeb pov tseg semi trailer |
Qhov hnyav: |
|
Tare luj | 8.5T |
Them nyiaj | 50T（37m3) |
Axle Nyhav Load | 13t rau axl |
Specification: |
|
Axle naj npawb | Peb |
Axle specifications. | FUWA hom |
Kev ncua | America hom mechanical suspensions |
King Pin | Jost 3.5 nti traction tus pin |
Qhov ntev | 9200 × 2400 × 3200mm (Sab nraud) |
Rim | 9. 00*22 |
Lifting system | hydraulic system ( Plaub ¢ 125 nqa lub tog raj kheej, thiab ib qho ¢ 140 nqa lub tog raj kheej .) |
Hlau Caij nplooj ntoos hlav | 10 daim |
Log tsheb: |
|
Tyre specs. | 12.00R22.5 Daim duab peb sab Hom |
Number of Tyre | 12 qab |
Spare Tyre Carriers | 2 qab |
Ncej: (kev qhia thiab cov khoom siv) | Main ncej qhov siab yog 500mm. |
Ncej Beam | Sab saum toj phaj yog 16 hli, phaj qis yog 18 hli, nruab nrab yog 8 hli .qhov siab yog 500 hli |
Ncej pem teb | Lub Thickness yog 3 hli ca txaj |
Sab phab ntsa | Muab faib ua peb lub qhov rooj txhua sab, raws li daim duab txuas. thickness yog 2.3mm |
Nres: |
|
Nres | Kemi Brand Tuam Tshoj |
Nres Chamber | Plaub ob chav thiab ob chav chamber (TKL hom) |
ABS | nrog |
Hluav taws xob: |
|
Qhov hluav taws xob | 24V |
Txais | 7 txoj kev (7 hlau hlua) |
Lub teeb xim: |
|
Sab marker teeb | Txiv kab ntxwv |
Tsheb teeb | Liab |
Tig teeb liab teeb | Txiv kab ntxwv |
Landing Leg Support: |
|
Ob txhais ceg | Yog D200T |
Lwm yam: |
|
Kev pleev xim | Raws li qhov xav tau ntawm tus neeg yuav khoom |
Kos npe | Raws li qhov xav tau ntawm tus neeg yuav khoom |
Sab Guard | Raws li qhov xav tau ntawm tus neeg yuav khoom |
Cov cuab yeej lub thawv | Ib daim los yog Raws li tus neeg yuav khoom |
Cov nqe lus shipping | Kev xa los ntawm 40HQ thawv, plaub units semi trailer tuaj yeem muab tso rau hauv 3 daim ntawm 40HQ ntim (tus neeg siv khoom yuav tsum vuam sab phab ntsa ua ke tom qab tau txais nws) |
Cim npe nrov: tipper trailer, Suav teb, neeg muab khoom, manufacturers, customized, nqe
