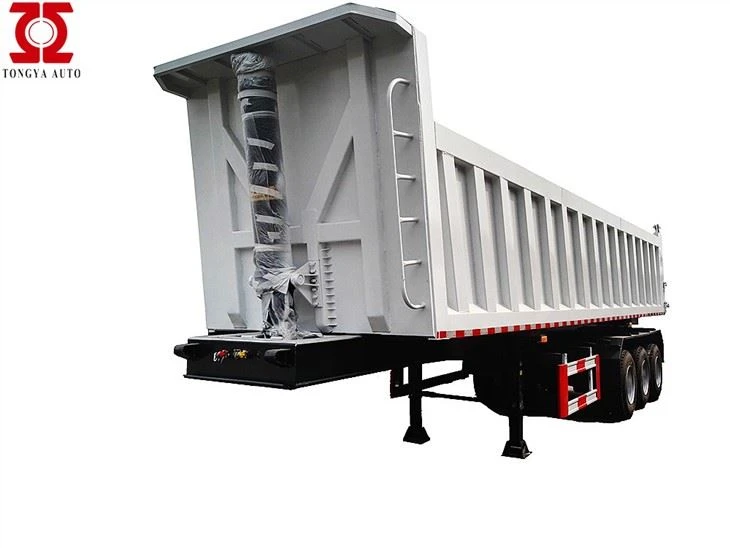

60tons Pob Tseg Trailer
60tons pob tseg trailer yog ib lub tsheb thauj khoom uas tsim nyog rau kev thauj mus los ntawm cov khoom loj thiab cov khoom tawg xws li cov thee, ore, av ua haujlwm, thiab cov khoom siv.
Khoom Taw qhia
Khoom taw qhia
60tons pob tseg trailer yog ib lub tsheb thauj khoom uas tsim nyog rau kev thauj mus los ntawm cov khoom loj thiab cov khoom tawg xws li cov thee, ore, av ua haujlwm, thiab cov khoom siv.
60tonsdDump trailer tuaj yeem muab faib ua ob pawg raws li lawv siv: ib qho yog lub luag haujlwm hnyav thiab super-hnyav pob tseg trailer rau kev thauj mus los ntawm txoj kev loj, uas feem ntau ua haujlwm thauj mus los xws li cov mines loj thiab cov haujlwm, thiab feem ntau yog siv los ua ke. nrog excavators.
Lwm hom teeb pom kev zoo thiab nruab nrab-qhov loj me 60tons pob tseg trailer rau kev thauj mus los yog lub luag haujlwm tseem ceeb rau kev thauj mus los ntawm cov khoom xoob xws li xuab zeb, av, thiab thee, thiab feem ntau yog siv nrog cov loaders.
Khoom piav qhia
Peb cov pob tseg trailer siv txoj hauv kev thim rov qab, uas tuaj yeem txhim kho kev thauj mus los zoo ntawm cov khoom thauj khoom thauj los ntawm lub loader.
Lub thav duab thiab cov kab ntev ntev ntawm cov khib nyiab trailer yog welded nrog cov hlau zoo manganese, thiab lub thawv ntim khoom muaj ob hom: plua plav thiab daim duab plaub. Nws muaj lub zog siab, muaj zog lifting quab yuam, zoo rigidity thiab toughness, muaj zog bearing muaj peev xwm thiab tsis tas yuav deformation.
Sophisticated craftsmanship: Lub ntsiab Cheebtsam ntawm pob tseg trailer yog ua tiav los ntawm cov cuab yeej siv siab heev, cov kab ntev ntev yog siab tsis siv neeg submerged arc vuam, thiab axles thiab nplooj springs yog precisely assembled los ntawm lub tshuab dhos.
Khoom Specification
Specification | |
Qauv | ZTY9407ZZX |
Hom | 3 axles U-puab rear pov tseg Semi-trailer |
Tag nrho qhov ntev | 8600 * 2490 * 3420mm |
Sab hauv cargo box dimension | 7653 * 2300 * 1400 hli |
Muaj peev xwm ntawm cargo box | 23.9m3 |
Main beam | Beam qhov siab: 500mm |
Platform thickness | 8mm ib |
Sab phab ntsa thickness | 6mm ib |
Khoom siv | Cov pa roj carbon steel, Q345 |
Tag nrho lub tsheb hnyav | 8 500kg |
Tag nrho qhov hnyav | 40 000 kg |

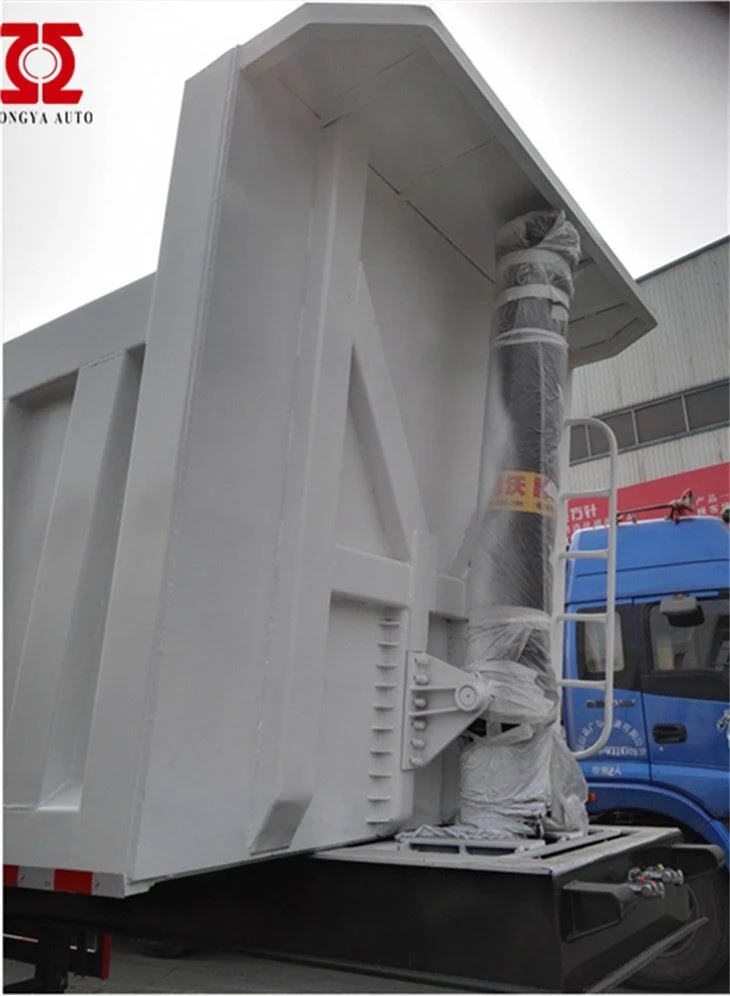

Lifting system | HYVA hom |
King pin | 90 # (3.5 nti) |

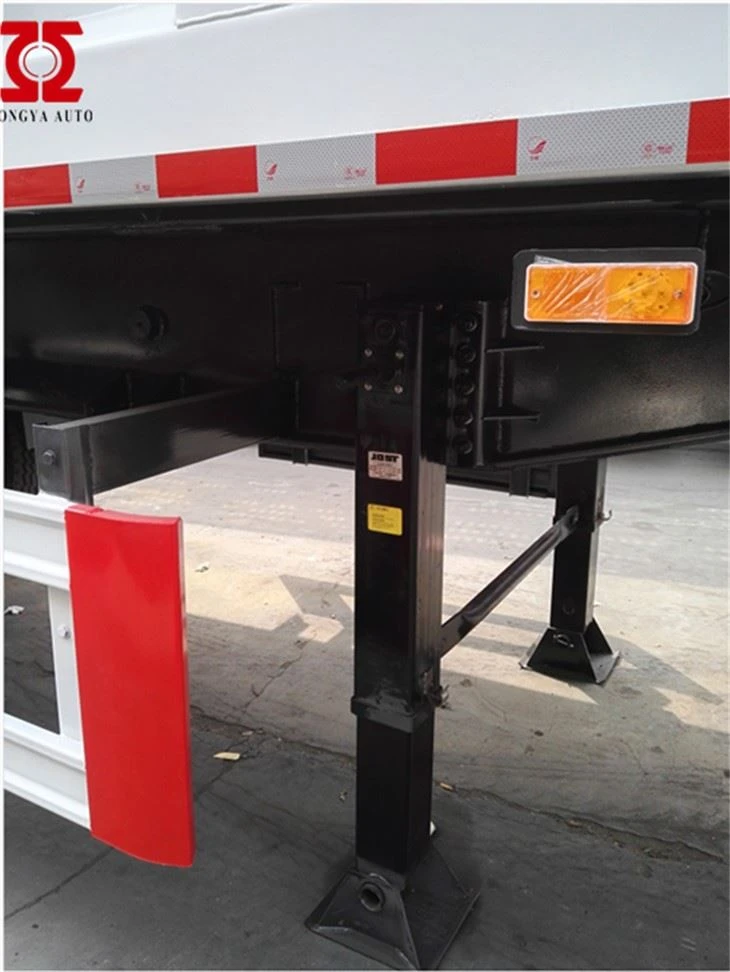

Txhawb ceg | JOST C200 |
Qag | FUWA hom, 3 * 13T |
Kev ncua | Mechanical suspension 10pcs nplooj caij nplooj ntoos hlav |
Lub log | Daim duab peb sab hom, 1100R20, 13pcs |
Rim | 8 0-20, 13 pcs |
Nres System | 30/30 hom ntawm txhua lub qag |
Spare log carrier | 0 1 pcs |
Tool lub thawv | 0 1 pcs |
Hluav taws xob System | Suav txheem 24V teeb pom kev zoo |
Sab Maker Teeb | LED teeb |
Cim npe nrov: 60 tuj pob trailer, Suav teb, neeg muab khoom, manufacturers, customized, nqe
