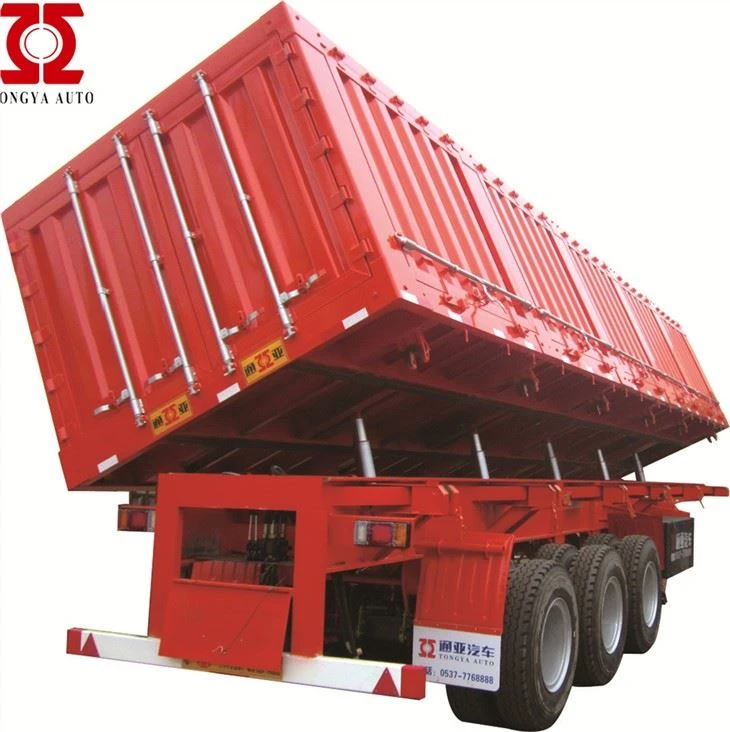

3 axles Sab Pob Tseg Trailer
Lub 3axles sab pob tseg trailer yog ib yam tshiab ntawm semi-trailer pob tseg tsheb hauv Suav teb xyoo tas los. Piv nrog rau cov tsheb thauj khoom pov tseg, cov tsheb thauj khoom semi-trailer muaj peev xwm nqa tau ntau dua, txo nqi tsheb thauj mus los, thiab tsim nyog rau kev thauj mus los ntev.
Khoom Taw qhia
Khoom taw qhia

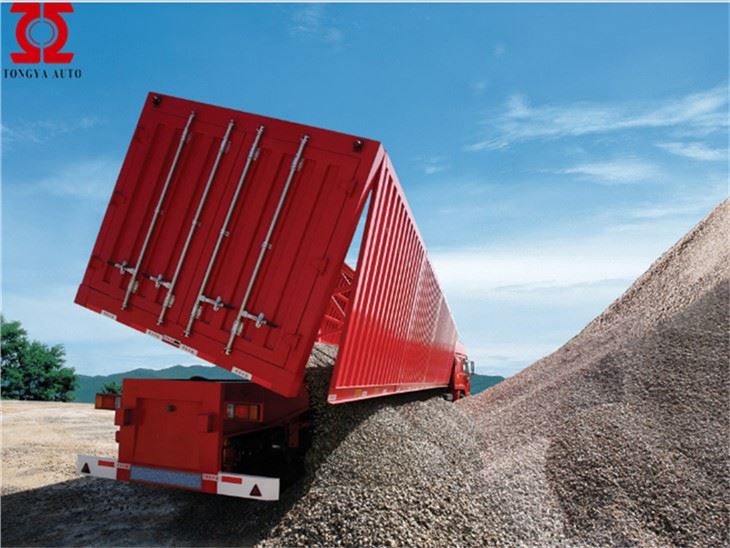

Lub 3axles sab pob tseg trailer yog ib yam tshiab ntawm semi-trailer pob tseg tsheb hauv Suav teb xyoo tas los. Piv nrog rau cov tsheb thauj khoom pov tseg, cov tsheb thauj khoom semi-trailer muaj peev xwm nqa tau ntau dua, txo nqi tsheb thauj mus los, thiab tsim nyog rau kev thauj mus los ntev. Lub 3axles sab pob tseg trailer feem ntau yog siv los thauj cov khoom lag luam xws li cov khoom siv, ore thiab thee. Lub 3axles sab pob tseg trailer tsis tsuas yog muaj qhov zoo ntawm kev thauj mus los ruaj khov, tab sis kuj tseem txhim kho kev thauj mus los zoo thiab kev thauj khoom thiab kev thauj mus los. Thaum unloading, 3axles sab pob tseg trailer tuaj yeem tig tau thiab lub qhov rooj tuaj yeem qhib kom pib unloading, uas tuaj yeem txo lub sijhawm thauj khoom thiab txhim kho kev ua haujlwm ntawm kev thauj khoom.
Khoom piav qhia
Lub 3axles sab pob tseg trailer yog tsim los ntawm tsheb laij teb, semi-trailer chassis, tsheb lub cev sib dhos, braking system, hydraulic system, pneumatic tswj system thiab lwm yam.
Lub 3alxes sab pob tseg trailer yog cov qauv thauj khoom, uas feem ntau yog tsim los ntawm tus ncej, lub tog raj kheej, axles, ncua kev kawm ntawv, guardrails, cuab yeej thawv, thiab lwm yam. tus pin traction. Ntxiv nrog rau cov roj thiab hluav taws xob txuas ntawm ib qho kev sib tw semi-trailer, nws kuj tau nruab nrog lub nrawm hloov txuas rau hydraulic system roj Circuit Court.
Lub pem hauv ntej ntawm 3 axles sab dumo trailer yog nruab nrog lifting outriggers. Thaum lub tsheb laij teb raug cais los ntawm semi-trailer, ob qho tib si pem hauv ntej outriggers yuav tsum tau txais kev txhawb nqa, thiab cov outriggers nyob rau hauv lub xeev retracted thaum tsav tsheb.

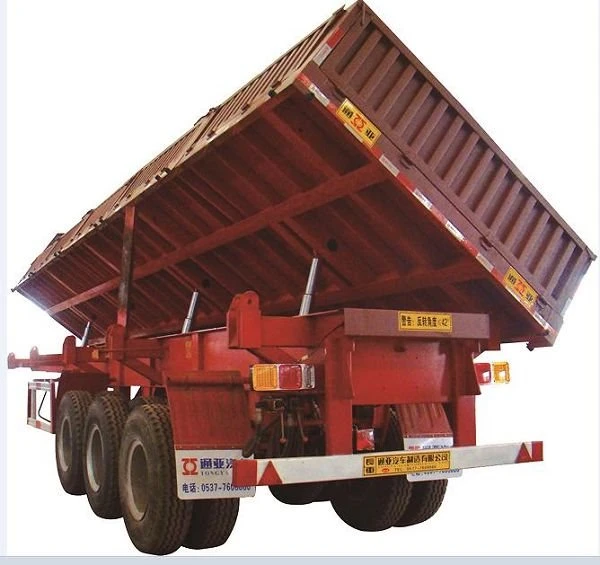

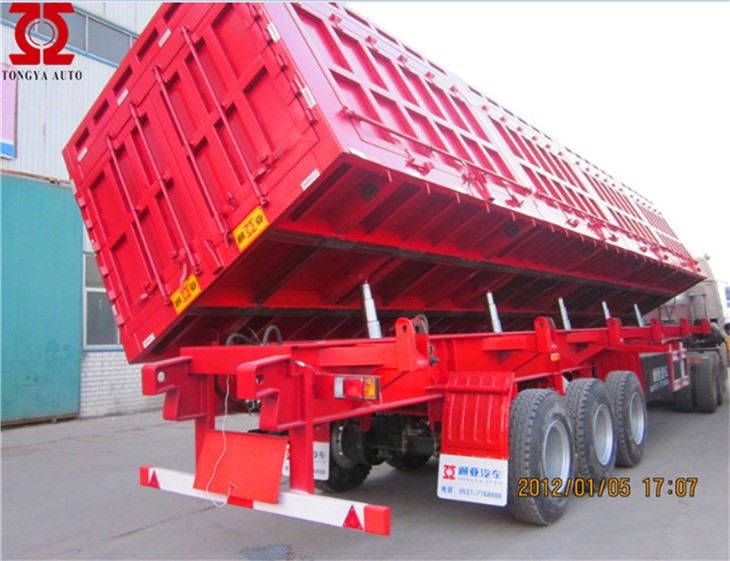

Lub cev txawv ntawm lub cev semi-trailer. Sab nraub qaum yog hinged rau sab saum toj ntawm lub tsheb lub cev, uas tuaj yeem tig tau thaum tshem tawm, uas yooj yim rau kev thauj khoom thiab thauj khoom. Tag nrho lub tsheb lub cev yog feem ntau hingedly txuas nrog tus ncej los ntawm hydraulic lub tog raj kheej thiab slewing kev txhawb nqa.
Ntau lawm specification
Tus neeg tsim khoom npe | Tongya Automobile Co., Ltd | |
Hom | 3 alxes side dump trialer | |
Cov ntsiab lus shipping | Los ntawm cov thawv lossis cov khoom thauj ntau raws li nws qhov loj me | |
Lub sij hawm xa tuaj | Lub Sij Hawm Ntau Lawm 15 hnub ua haujlwm rau ib lub teeb pov tseg semi trailer | |
Qhov hnyav: |
| |
Tare luj | 8.5T | |
Them nyiaj | 50T（37m3) | |
Axle Nyhav Load | 13t rau axl | |
Specification: |
| |
Axle naj npawb | Peb | |
Axle specifications. | FUWA hom | |
Kev ncua | America hom mechanical suspensions | |
King Pin | Jost 3.5 nti traction tus pin | |
Qhov ntev | 9200 × 2400 × 3200mm (Sab nraud) | |
Rim | 9. 00*22 | |
Lifting system | hydraulic system ( Plaub ¢ 125 nqa lub tog raj kheej, thiab ib qho ¢ 140 nqa lub tog raj kheej .) | |
Hlau Caij nplooj ntoos hlav | 10 daim | |
Log tsheb: |
| |
Tyre specs. | 12.00R22.5 Daim duab peb sab Hom | |
Number of Tyre | 12 qab | |
Spare Tyre Carriers | 2 qab | |
Ncej: (kev qhia thiab cov khoom siv) | Main ncej qhov siab yog 500mm. | |
Ncej Beam | Sab saum toj phaj yog 16 hli, phaj qis yog 18 hli, nruab nrab yog 8 hli .qhov siab yog 500 hli | |
Ncej pem teb | Lub Thickness yog 3 hli ca txaj | |
Sab phab ntsa | Muab faib ua peb lub qhov rooj txhua sab, raws li daim duab txuas. thickness yog 2.3mm | |
Nres: |
| |
Nres | Kemi Brand Tuam Tshoj | |
Nres Chamber | Plaub ob chav thiab ob chav chamber (TKL hom) | |
ABS | nrog | |
Hluav taws xob: |
| |
Qhov hluav taws xob | 24V | |
Txais | 7 txoj kev (7 hlau hlua) | |
Lub teeb xim: |
| |
Sab marker teeb | Txiv kab ntxwv | |
Tsheb teeb | Liab | |
Tig teeb liab teeb | Txiv kab ntxwv | |
Landing Leg Support: |
| |
Ob txhais ceg | Yog D200T | |
Lwm yam: |
| |
Kev pleev xim | Raws li qhov xav tau ntawm tus neeg yuav khoom | |
Kos npe | Raws li qhov xav tau ntawm tus neeg yuav khoom | |
Sab Guard | Raws li qhov xav tau ntawm tus neeg yuav khoom | |
Cov cuab yeej lub thawv | Ib daim los yog Raws li tus neeg yuav khoom | |
| Cov nqe lus shipping | Kev xa los ntawm 40HQ thawv, plaub units semi trailer tuaj yeem muab tso rau hauv 3 daim ntawm 40HQ ntim (tus neeg siv khoom yuav tsum vuam sab phab ntsa ua ke tom qab tau txais nws) | |
