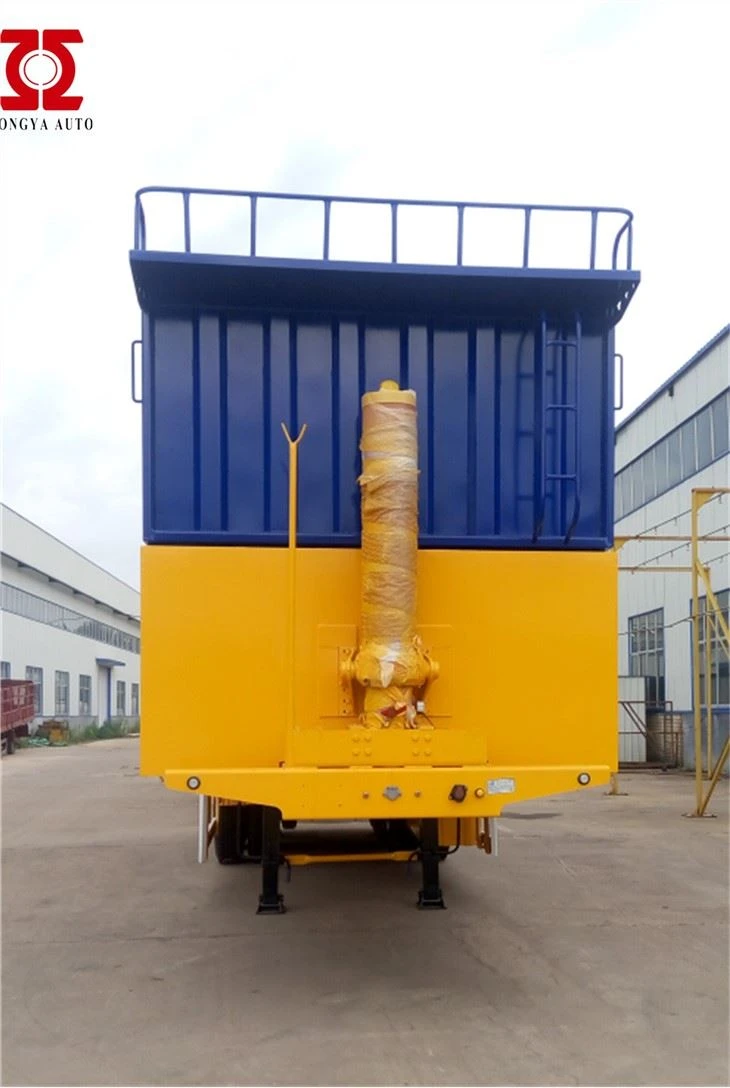

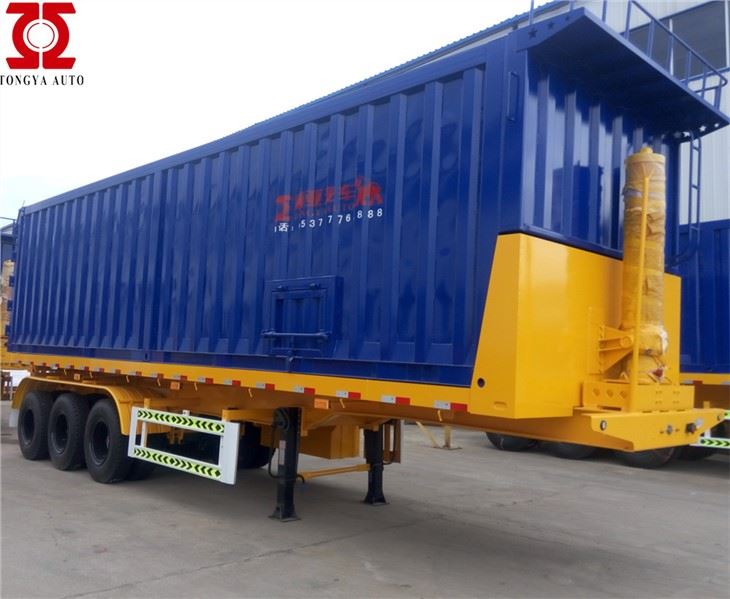

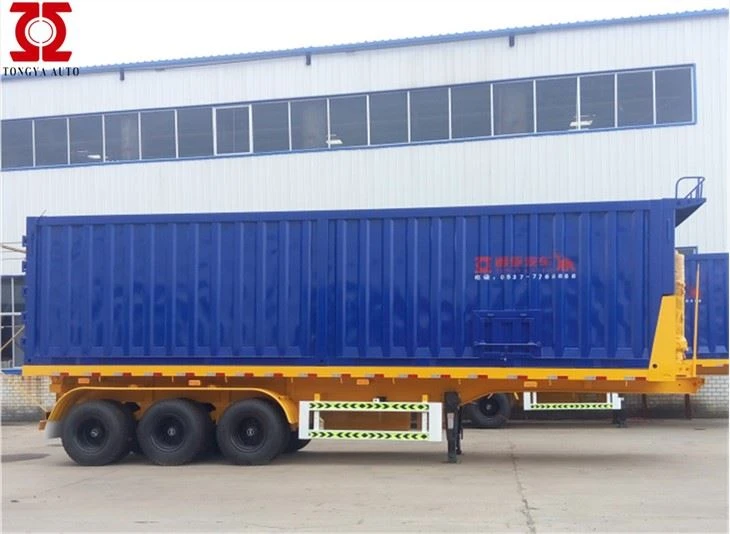

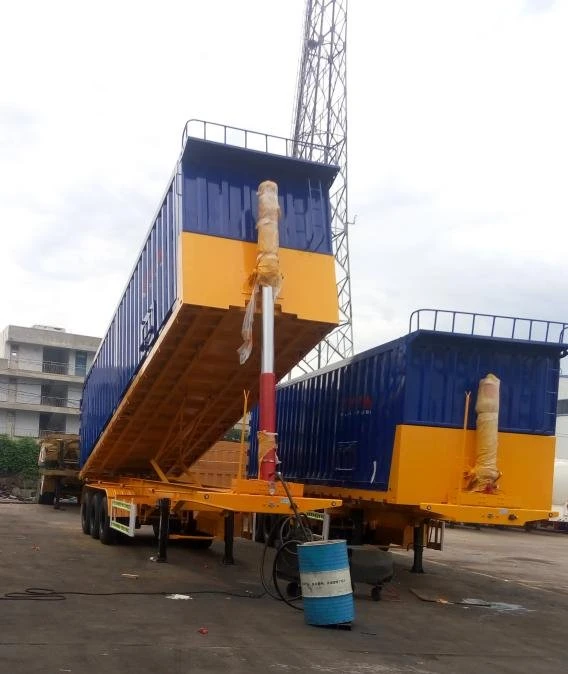

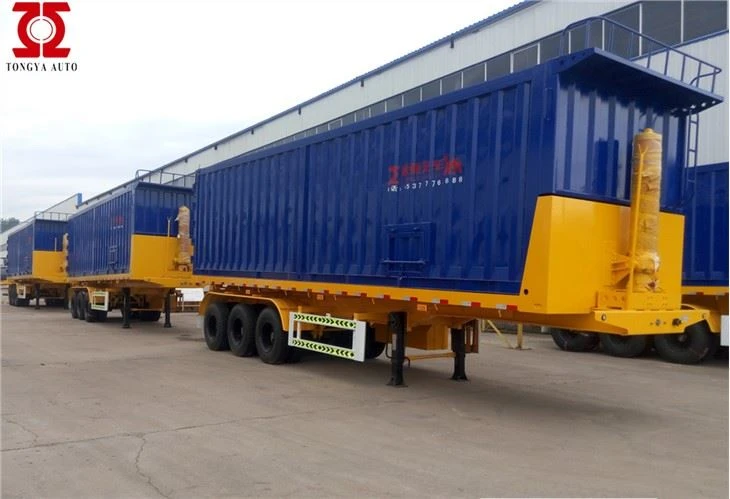

Tipper Pob Tseg Trailer

Xa kev nug

Khoom Taw qhia

Khoom taw qhia

Tipper dump trailer feem ntau yog siv hauv cov mines loj. Nws chassis txais cov chassis tshwj xeeb uas tsim los ntawm ntau lub tuam txhab chassis, nrog cov thev naus laus zis siab thiab kev ua tau zoo. Cov software siab heev optimizes tus tsim ntawm cov khoom kom tau raws li tus neeg xav tau kev pab ntawm cov neeg muas zaub. Cov txheej txheem cuab yeej ntawm kev khiav lag luam ua kom cov khoom zoo heev.

Khoom piav qhia

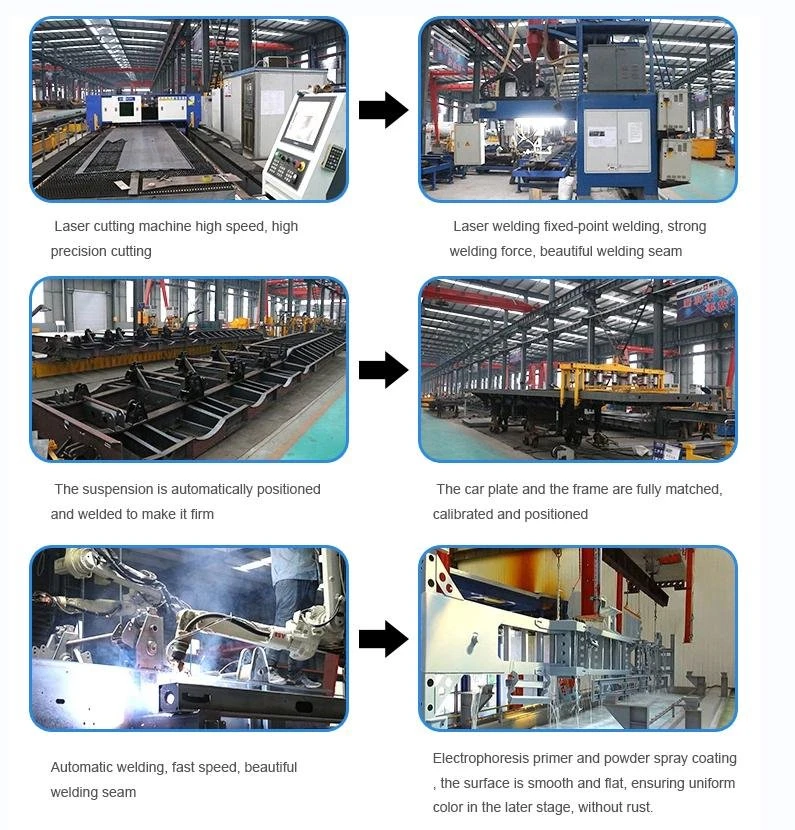

1.Tipper pob tseg trailer txais laser txiav tshuab, yog li ua rau peb ntau lawm ceev thiab siab precision.

2.Lub ncua kev kawm ntawv ntawm tipper dump trailer yog cia li positioned thiab welded kom nws ruaj.

3.Our tipper dump trailer txais tsis siv neeg vuam, ceev ceev, zoo nkauj vuam seam.

4.Rau painting, lub tipper dump trailer siv electrophoresis primer thiab hmoov txau txheej, qhov saum npoo yog du thiab tiaj tus, kom ntseeg tau tias xim xim nyob rau theem tom ntej, tsis muaj xeb.

Khoom Specification

Tsheb pob tseg tipper Specification
Cov khoom npe	Tsheb Semi Trailer
Khoom siv	Q345B carbon hlau
Xim	Cov neeg siv khoom xaiv tau
Kev siv	Thauj Khoom Thauj Khoom, Thauj Pob Zeb, Pob Zeb
Main Beam	Q345B carbon steel "H" nqaj
Lifting System	HYVA Brand
Chaw thau khoom muaj peev xwm	80 ton
Tare luj	8,5t ua
Kev pleev xim	Xuab zeb Blasting, Anti corrosive Prime
Dimension	9500x2500x3700mm
Pem teb	6mm Checkered Phaj
Teeb pom kev zoo	LED teeb
Kev ncua	Mechanical Suspension
Qag	16 Ton Fuwa/BPW
Lub log	12R20
Kev tsaws iav	Txheem 28Ton
King pin	3.5 "(90mm)
Nres System	Dual Line Braking System
Rim	8.0-20
Nplooj Caij nplooj ntoos hlav	90 (W) mm * 16 (Thickness) mm * 10 (txheej)
