Pob tseg Semi Trailer
Lub pob tseg semi trailer yog hom tshiab ntawm cov tsheb thauj khoom hauv Suav teb xyoo tas los. Piv nrog rau cov tsheb thauj khoom hauv qab, cov pob tseg semi trailer muaj peev xwm nqa tau ntau dua, txo nqi tsheb thauj mus los, thiab tsim nyog rau kev thauj mus los ntev.
Khoom Taw qhia
Khoom taw qhia
Lub pob tseg semi trailer yog hom tshiab ntawm cov tsheb thauj khoom hauv Suav teb xyoo tas los. Piv nrog rau cov tsheb thauj khoom hauv qab, cov pob tseg semi trailer muaj peev xwm nqa tau ntau dua, txo nqi tsheb thauj mus los, thiab tsim nyog rau kev thauj mus los ntev.
Cov pob tseg semi trailers feem ntau yog siv los thauj cov khoom loj xws li cov khoom siv, ore thiab thee.

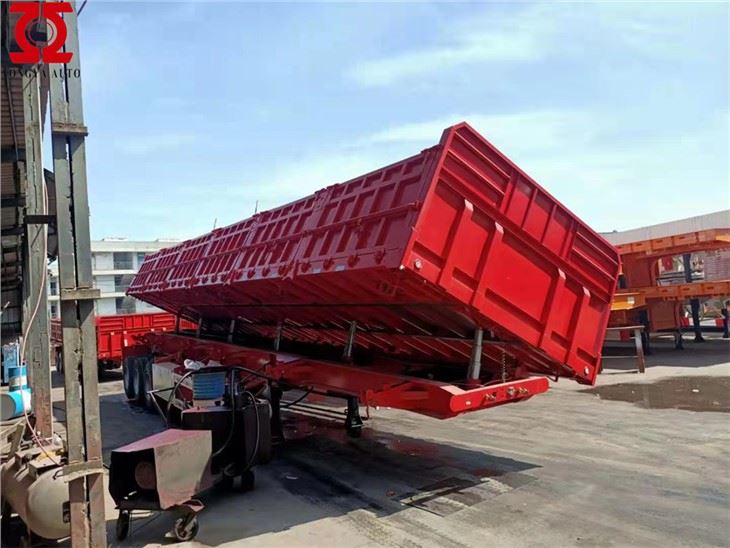

Lub pob tseg semi trailer tuaj yeem ua tiav ob txoj haujlwm sab nraud pov tseg, uas muaj qhov zoo ntawm kev yooj yim thiab yooj. Yog li ntawd, nws tau siv dav hauv kev thauj mus los.
Khoom piav qhia
Sab pob tseg trailer txais ob lub yeeb nkab cua nres. Ib leeg-chamber nres cua chamber yog ntsia rau pem hauv ntej qag ntawm lub trailer, thiab ib tug ob-chamber nres cua chamber yog ntsia rau nram qab ob qag. Lub nres tswj yog ib qho xwm txheej ceev relay valve xwm txheej ceev. Thaum braking, nws ua rau peb axles los ntawm lub nres cua chamber thiab thaum nres nres, nws ua rau lub rear ob axles los ntawm ob-chamber nres cua chamber.
Lub kaw lus hydraulic ntawm cov pob tseg semi trailer muaj plaub ntu, suav nrog lub zog hluav taws xob hydraulic, hydraulic roj tank, nqa nqa qhov system, thiab hloov lub tog raj kheej ua haujlwm. Lub luag haujlwm paub yog: nqa thiab qis ntawm lub tsheb thauj khoom; sab ntawm lub semi-trailer.
Lub tshuab tswj huab cua feem ntau yog los ntawm cov pa roj hauv cov roj tseem ceeb ntawm lub tsheb laij teb uas cov cua tswj valve hauv lub cab thiab hydraulic tswj valve ntawm semi-trailer txuas nrog. Cov pa pa tawm ntawm txoj hauj lwm valve tswj lub inclination lub kaum sab xis ntawm lub tsev.
Ntau lawm specification
Tus neeg tsim khoom npe | Tongya Automobile Co., Ltd | |
Hom | pov tseg semi trialer | |
Cov ntsiab lus shipping | Los ntawm cov thawv lossis cov khoom thauj ntau raws li nws qhov loj me | |
Lub sij hawm xa tuaj | Lub Sij Hawm Ntau Lawm 15 hnub ua haujlwm rau ib lub teeb pov tseg semi trailer | |
Qhov hnyav: |
| |
Tare luj | 8.5T | |
Them nyiaj | 50T（37m3) | |
Axle Nyhav Load | 13t rau axl | |
Specification: |
| |
Axle naj npawb | Peb | |
Axle specifications. | FUWA hom | |
Kev ncua | America hom mechanical suspensions | |
King Pin | Jost 3.5 nti traction tus pin | |
Qhov ntev | 9200 × 2400 × 3200mm (Sab nraud) | |
Rim | 9. 00*22 | |
Lifting system | hydraulic system ( Plaub ¢ 125 nqa lub tog raj kheej, thiab ib qho ¢ 140 nqa lub tog raj kheej .) | |
Hlau Caij nplooj ntoos hlav | 10 daim | |
Log tsheb: |
| |
Tyre specs. | 12.00R22.5 Daim duab peb sab Hom | |
Number of Tyre | 12 qab | |
Spare Tyre Carriers | 2 qab | |
Ncej: (kev qhia thiab cov khoom siv) | Main ncej qhov siab yog 500mm. | |
Ncej Beam | Sab saum toj phaj yog 16 hli, phaj qis yog 18 hli, nruab nrab yog 8 hli .qhov siab yog 500 hli | |
Ncej pem teb | Lub Thickness yog 3 hli ca txaj | |
Sab phab ntsa | Muab faib ua peb lub qhov rooj txhua sab, raws li daim duab txuas. thickness yog 2.3mm | |
Nres: |
| |
Nres | Kemi Brand Tuam Tshoj | |
Nres Chamber | Plaub ob chav thiab ob chav chamber (TKL hom) | |
ABS | nrog | |
Hluav taws xob: |
| |
Qhov hluav taws xob | 24V | |
Txais | 7 txoj kev (7 hlau hlua) | |
Lub teeb xim: |
| |

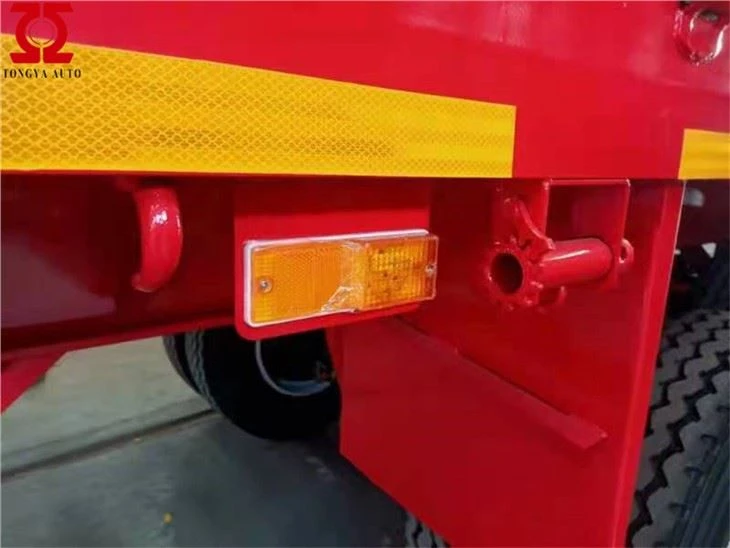

Sab marker teeb | Txiv kab ntxwv | |
Tsheb teeb | Liab | |
Tig teeb liab teeb | Txiv kab ntxwv | |
Landing Leg Support: |
| |
Ob txhais ceg | Yog D200T | |
Lwm yam: |
| |
Kev pleev xim | Raws li qhov xav tau ntawm tus neeg yuav khoom | |
Kos npe | Raws li qhov xav tau ntawm tus neeg yuav khoom | |
Sab Guard | Raws li qhov xav tau ntawm tus neeg yuav khoom | |
Cov cuab yeej lub thawv | Ib daim los yog Raws li tus neeg yuav khoom | |
| Cov nqe lus shipping | Kev xa los ntawm 40HQ thawv, plaub units semi trailer tuaj yeem muab tso rau hauv 3 daim ntawm 40HQ ntim (tus neeg siv khoom yuav tsum vuam sab phab ntsa ua ke tom qab tau txais nws) | |
