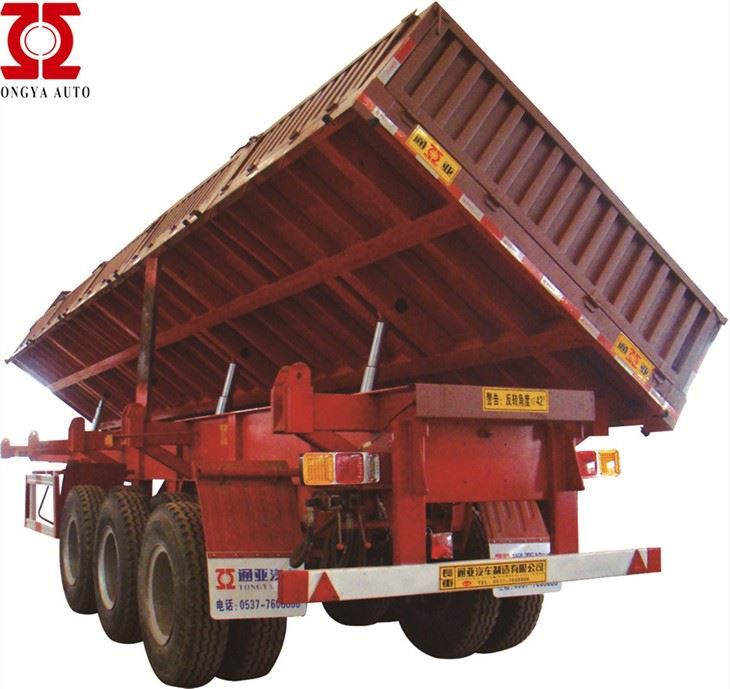

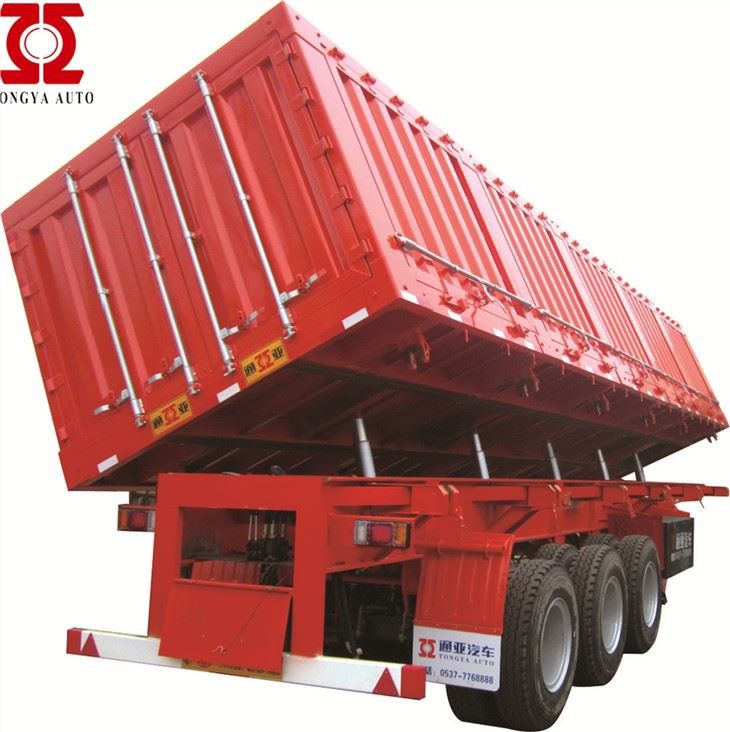

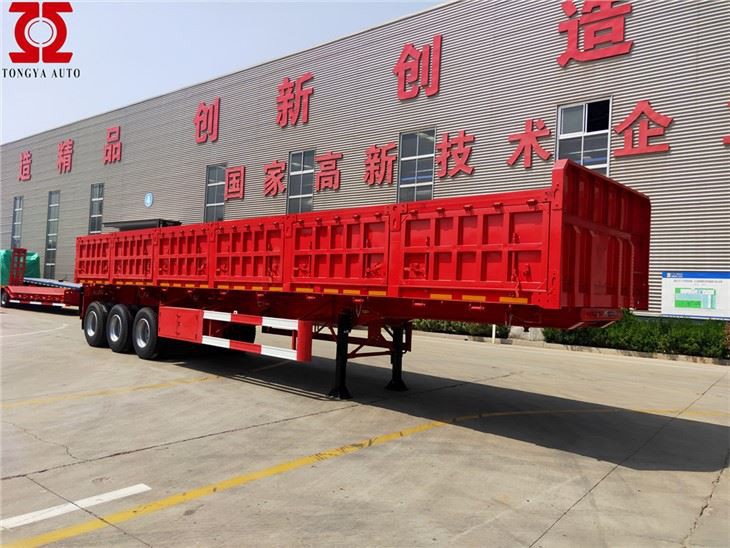

Sab Pob Tseg Trailer

Xa kev nug

Khoom Taw qhia

Khoom taw qhia

Sab pob tseg trailer feem ntau yog siv los thauj cov thee, Hlau Ore, pob kws, nplej, pub. Piv nrog rau lub thawv zoo tib yam semi trailer, qhov kom zoo dua yog tias qhov kev tshem tawm kev ua haujlwm siab. Yog li kev lag luam ntawm sab pob tseg trailer yog ci. Thiab vim muaj kev txhim khu kev qha zoo thiab siv dav, sab tipper dump trailer tau dhau los ua lub ntsiab trailer hauv nruab nrab thiab kev thauj mus los ntev.

Khoom piav qhia

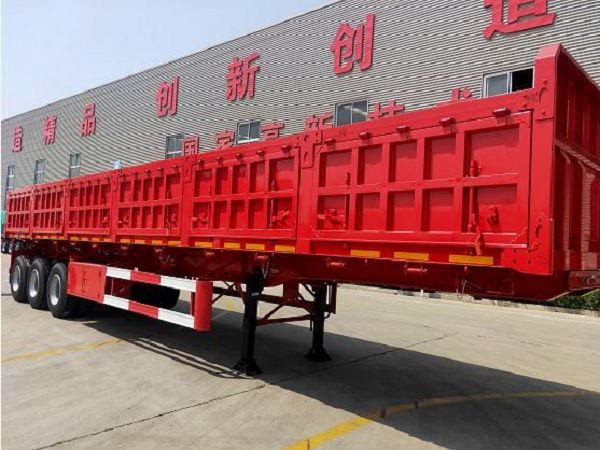

1(001)

Peb sab pob tseg trailer tau xa tawm mus rau ntau lub teb chaws thiab muaj ntau ntau txhua xyoo, vim peb ib txwm nco ntsoov qhov no:

1. Vim muaj ntau lub ntsiab lus ntawm lub lifting mechanism, ntau cov ntsiab lus pob khawm, thiab cov txheej txheem tsim khoom, qhov chaw thiab kev sib koom tes ntawm lub pob khawm taw tes slewing bearing yuav tsum tau tswj nruj me ntsis.

2. Lub tshuab hydraulic muaj cov kav dej ntev thiab ntau lub tog raj kheej roj, thiab cov roj xau tau yooj yim. Yog li ntawd, ntau yam siab heev valve lub cev thiab cov pob qij txha yuav tsum tau siv ntau li ntau tau.

3. Txij li thaum hydraulic roj Circuit Court ntawm semi-trailer adopts ceev-hloov pob qij txha txuas nrog lub tsheb laij teb, yuav tsum tau them nyiaj rau kev tu cov pob qij txha thaum lub semi-trailer thiab lub tsheb laij teb raug sib cais thiab koom ua ke kom tsis txhob muaj cov kab mob sib kis. vaj huam sib luag.

4. Thaum tsim lub tsheb ciav hlau rollover semi-trailer, vim qhov ntev ntawm lub tsheb ciav hlau yuav tsum tau them nyiaj tshwj xeeb rau kev sib koom ua ke ntawm lub hauv ntej thiab nram qab trailer brakes, seb qhov chaw unloading raws li lub vojvoog tig ntawm lub tsheb ciav hlau, kev ruaj ntseg. ntawm lub rollover ntawm pem hauv ntej thiab nram qab trailers, thiab tilting ntawm pem hauv ntej thiab nram qab trailers. Yooj yim ntawm flipping kev ua haujlwm.

5. Kev tsim cov tsheb thauj khoom pem hauv ntej thiab nram qab yuav tsum sib hloov tau ntau npaum li qhov ua tau, xws li kev sib txuas ntawm cov hluav taws xob hluav taws xob thiab cov roj hluav taws xob ntawm lub hauv ntej thiab nram qab trailer, thiaj li ua kom yooj yim rau kev sib txuas ceev ntawm lub tsheb ciav hlau;

6. Lub synchronism ntawm lub tog raj kheej rau lifting lub cargo compartment yuav tsum tau teem kom tsim nyog raws li lub loaded cargo thiab cov qauv ntawm lub tsheb, thiab lub tog raj kheej synchronization ntaus ntawv yuav tsum tau siv los tswj lub synchronism ntawm lub tog raj kheej nyob rau hauv ib tug tej yam kev mob.

Tus neeg tsim khoom npe		Tongya Automobile Co., Ltd
Hom		sab pob tseg trailer
Lub sij hawm xa tuaj		hauv 45 hnub ua haujlwm tom qab them nyiaj them poob haujlwm
Qhov hnyav:
Tare luj		8.5T
Them nyiaj		40T
Axle Nyhav Load		13t rau axl
Specification:
Axle naj npawb		Peb
Axle specifications.		FUWA hom
Kev ncua		mechanical suspensions (America hom)
King Pin		JOST hom 3.5 nti bolts hom lossis vuam hom
Qhov ntev (LxWxH)		12500 × 2400 × 2500mm (sab nraud), kho tau 11500 × 2200 × 1000mm (hauv), kho tau
Qhov siab ntawm sab phab ntsa		1000 hli
tsaws ob txhais ceg		JOST
Rim		9. 0-22.5, 12 daim
Lifting system		Tag nrho cov txheej txheem Hyva hydraulic (rau ¢ 110 nqa lub tog raj kheej, thiab ib qho ¢ 125 nqa lub tog raj kheej.)
Hlau Caij nplooj ntoos hlav		10 pieces rau axle
Log tsheb:
Tyre specs.		12 R22.5, 12 pcs
Number of Tyre		12 qab
Spare Tyre Carriers		2 qab
Ncej: (kev qhia thiab cov khoom siv)		lub ntsiab ncej qhov siab 500mm
Ncej Beam		ua los ntawm Q345 carbon steel. Qhov siab 500mm. Sab saum toj phaj thickness 14 hli, thiab qis phaj thickness 16 hli, nruab nrab phaj thickness 8 hli, ob chav phaj
Hauv qab Platform		ua los ntawm Q235 carbon steel. thickness 3 hli

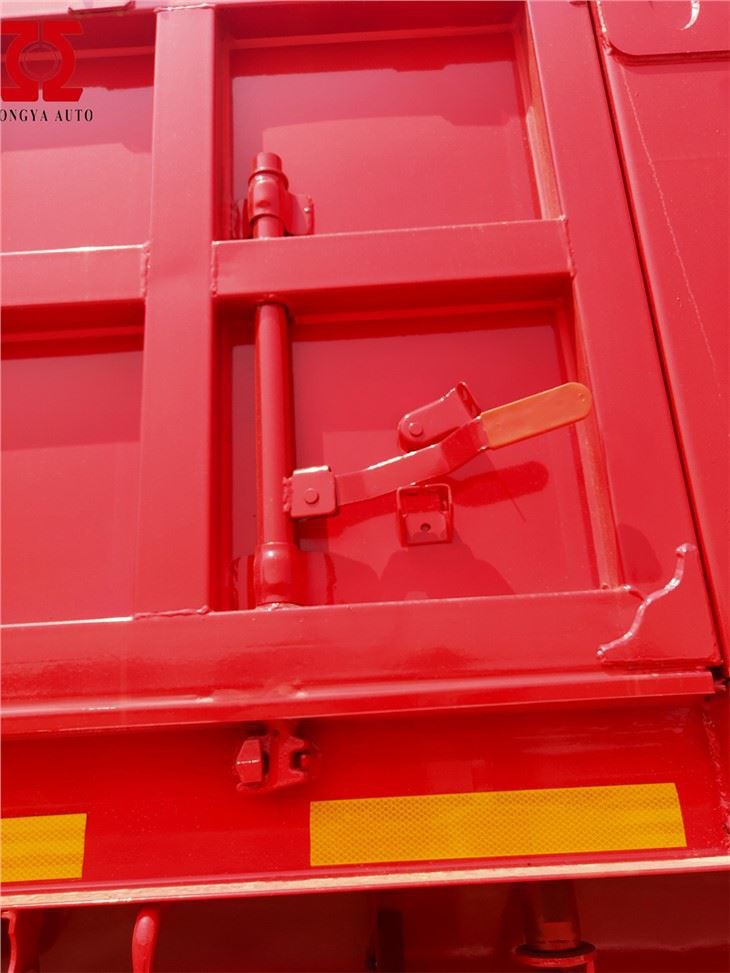

Sab phab ntsa		muab faib ua peb lub qhov rooj txhua sab. thickness 2 0 hli
Nres:
Thaum muaj xwm ceev Valve		WABCO
Nres Chamber		WABCO RE 6 relay valve; T30/30 ntxiv rau T30 Caij Nplooj Hlav Nres Chamber (TKL hom); Ob daim ntawm 45L cua tso tsheb hlau luam
ABS		xaiv tau
Hluav taws xob:
Qhov hluav taws xob		24V
Txais		7 txoj kev (7 hlau hlua)
Lub teeb xim:		LED hom
Sab marker teeb		Txiv kab ntxwv
Tsheb teeb		Liab
Tig teeb liab teeb		Txiv kab ntxwv
Lwm yam:
Kev pleev xim		Ua kom tiav chassis xuab zeb blasting los ntxuav xeb, 1 lub tsho tiv no ntawm anticorrosive prime, 2 lub tsho tiv no ntawm cov xim kawg
Kos npe		Raws li qhov xav tau ntawm tus neeg yuav khoom
Sab Guard		Raws li qhov xav tau ntawm tus neeg yuav khoom
Cov cuab yeej lub thawv		2 daim, 1.8mX0.5mX0.5m (Qhov Loj tuaj yeem xaiv tau dawb) (nrog 1 chav log tsheb spanner, 1 unit gudgeon lub tes tsho thiab 1 unit cranking bar)
Cov nqe lus shipping		Kev xa los ntawm bulk cargo shipping
