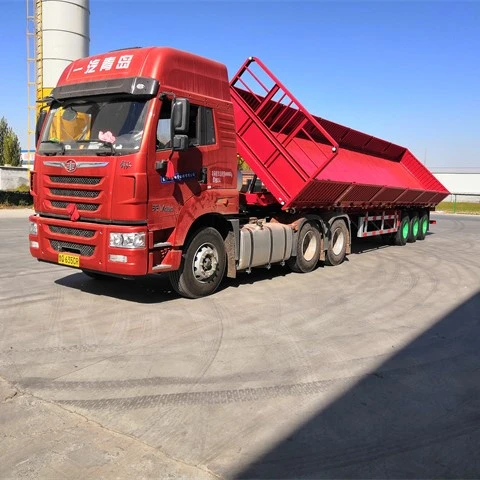

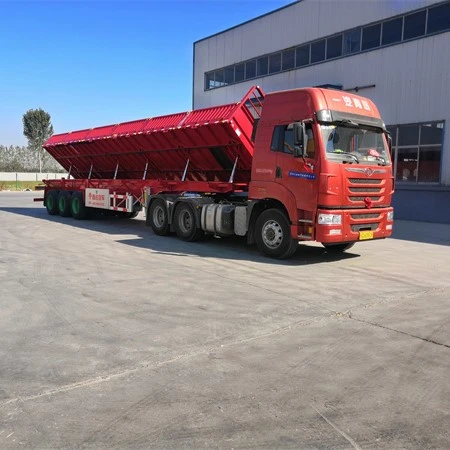

Pob tseg Trailer
Sab tipping trailer yog hom tshiab ntawm cov tsheb thauj khoom hauv Suav teb xyoo tas los. Piv nrog rau lub tsheb thauj khoom rov qab, sab tipping trailer muaj peev xwm nqa tau ntau dua, txo nqi tsheb thauj mus los, thiab tsim nyog rau kev thauj mus los ntev.
Khoom Taw qhia
Khoom taw qhia
Sab tipping trailer yog hom tshiab ntawm cov tsheb thauj khoom hauv Suav teb xyoo tas los. Piv nrog rau lub tsheb thauj khoom rov qab, sab tipping trailer muaj peev xwm nqa tau ntau dua, txo nqi tsheb thauj mus los, thiab tsim nyog rau kev thauj mus los ntev.
Sab tipping trailers feem ntau yog siv los thauj cov khoom siv granular xws li cov khoom siv, ore thiab thee.
Sab tipping trailer tuaj yeem nqa tawm ob txoj kev ua haujlwm sab nraud, uas muaj qhov zoo ntawm kev yooj yim thiab yooj. Yog li ntawd, nws tau siv dav hauv kev thauj mus los.
Khoom piav qhia
Customized tongya sab tipping trailer nrog tus nqi pheej yig dua.
Sab pob tseg trailer txais ob lub yeeb nkab cua nres. Ib leeg-chamber nres cua chamber yog ntsia rau pem hauv ntej qag ntawm lub trailer, thiab ib tug ob-chamber nres cua chamber yog ntsia rau nram qab ob qag. Lub nres tswj yog ib qho xwm txheej ceev relay valve xwm txheej ceev. Thaum braking, nws ua rau peb axles los ntawm lub nres cua chamber thiab thaum nres nres, nws ua rau lub rear ob axles los ntawm ob-chamber nres cua chamber.

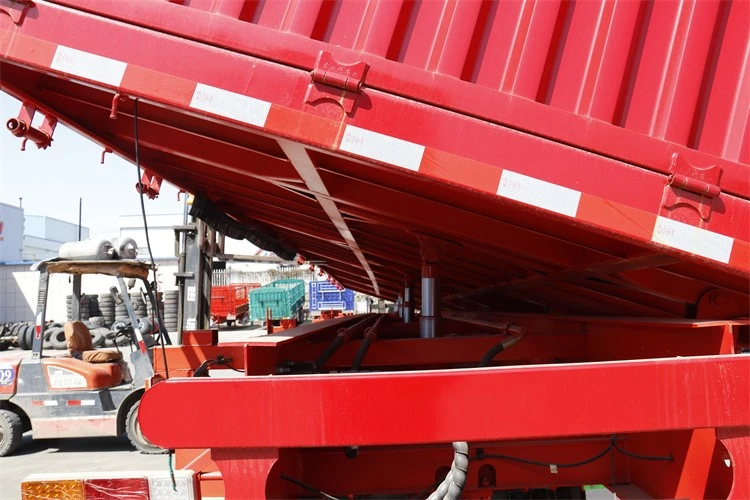

Lub tshuab hydraulic ntawm sab tipping trailer muaj plaub ntu, suav nrog lub zog hluav taws xob hydraulic, hydraulic roj tank, carriage lift system, thiab hloov lub tog raj kheej ua haujlwm. Cov haujlwm ua tiav yog: nqa thiab qis ntawm lub tsheb thauj khoom; sab ntawm lub semi-trailer.
Lub tshuab tswj huab cua feem ntau yog los ntawm cov pa roj hauv cov pa roj tseem ceeb ntawm lub tsheb laij teb uas lub tshuab cua tswj valve hauv lub cab thiab hydraulic tswj valve ntawm semi-trailer txuas nrog. Cov pa pa tawm ntawm txoj hauj lwm valve tswj lub inclination lub kaum sab xis ntawm lub tsev.
Ntau lawm specification
|
Tus neeg tsim khoom npe |
Tongya Automobile Co., Ltd. Ltd |
|
|
Hom |
sab tipper pob tseg trailer |
|
|
Lub sij hawm xa tuaj |
hauv 45 hnub ua haujlwm tom qab them nyiaj them poob haujlwm |
|
|
Qhov hnyav: |
|
|
|
Tare luj |
8.5T |
|
|
Them nyiaj |
35T |
|
|
Axle Nyhav Load |
13T rau axle |
|
|
Specification: |
|
|
|
Axle naj npawb |
Peb |
|
|
Axle specifications. |
FUWA hom |
|
|
Kev ncua |
mechanical suspensions (America hom) |
|
|
King Pin |
JOST hom 2.0inch bolts hom lossis vuam hom |
|
|
Qhov ntev |
12500×2500 × 1500mm (sab hauv), kho tau |
|
|
Qhov siab ntawm sab phab ntsa |
600 hli |
|
|
tsaws ob txhais ceg |
JOST E100T |
|
|
Rim |
9 0-20, 12 daim |
|
|
Lifting system |
full teeb ntawm Hyva hydraulic system(rau ¢ 150 lifting lub tog raj kheej, thiab ib lub ¢ 140 nqa lub tog raj kheej.) |
|
|
Hlau Caij nplooj ntoos hlav |
10 pieces rau axle |
|
|
Log tsheb: |
|
|
|
Tyre specs. |
12 R22.5, 13 pcs |
|
|
Number of Tyre |
13 qab |
|
|
Spare Tyre Carriers |
2 qab |
|
|
Ncej:(spec. thiab cov ntaub ntawv) |
lub ntsiab ncej qhov siab 500mm |
|
|
Ncej Beam |
ua los ntawm Q345 carbon steel. Qhov siab 520mm. Sab saum toj phaj thickness 14 hli, thiab qis phaj thickness 1 mm, nruab nrab phaj thickness 8 hli, ob lub phaj |
|
|
Sab Beam |
ua los ntawm Q235 carbon steel. 16 hli channel steel |
|
|
Sab phab ntsa |
muab faib ua 6 qhov rooj txhua sab. thickness 2 0 hli |
|
|
Nres: |
|
|
|
Emergency Valve |
WABCO |
|
|
Nres Chamber |
WABCO RE 6 relay valve; T30/30 ntxiv rau T30 Caij Nplooj Hlav Nres Chamber (TKL hom); Ob daim ntawm 45L cua tso tsheb hlau luam |
|
|
ABS |
xaiv tau |
|
|
Hluav taws xob: |
|
|
|
Qhov hluav taws xob |
24V |
|
|
Txais |
7 txoj kev (7 hlau hlua) |
|
|
Lub teeb xim: |
LED hom |
|
|
Sab marker teeb |
Txiv kab ntxwv |
|
|
Tsheb teeb |
Liab |
|
|
Tig teeb liab teeb |
Txiv kab ntxwv |
|
|
Lwm yam: |
|
|
|
Kev pleev xim |
Ua kom tiav chassis xuab zeb blasting los ntxuav xeb, 1 lub tsho tiv no ntawm anticorrosive prime, 2 lub tsho tiv no ntawm cov xim kawg |
|
|
Kos npe |
Raws li qhov xav tau ntawm tus neeg yuav khoom |
|
|
Sab Guard |
Raws li qhov xav tau ntawm tus neeg yuav khoom |
|
|
Cov cuab yeej thawv |
2 daim, 1.8mX0.5mX0.5m(Qhov Loj tuaj yeem xaiv tau dawb) (nrog 1 chav log tsheb spanner, 1 unit gudgeon lub tes tsho thiab 1 unit cranking bar) |
|
|
Cov nqe lus shipping |
Kev xa los ntawm bulk cargo shipping |
|
