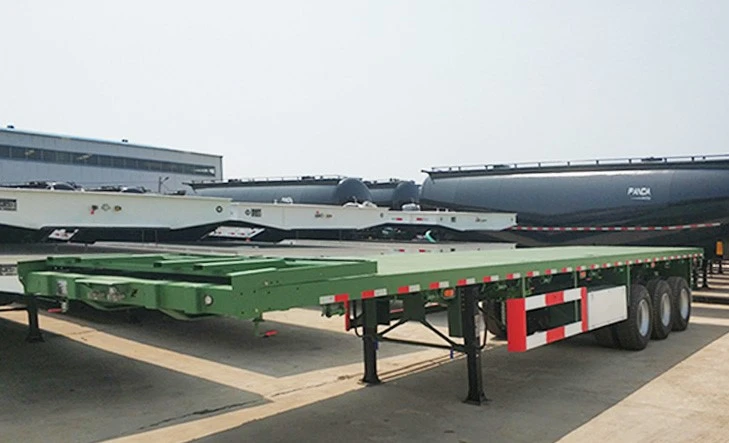

TONGYA 40ft Thawv Flatbed Semi Trailer Nrog Zoo Zoo
TONGYA 40ft thawv flatbed semi trailer yog siv rau kev thauj khoom ntim lossis qhuav cargos.Main beams welded los ntawm cov txheej txheem loj loj tshwj xeeb vuam tshuab txiav.TONGYA hom thiab CCC / ISO9001 daim ntawv pov thawj pom zoo.Peb txais cov khoom lag luam nto moo rau peb cov tsheb thauj khoom, ua kom cov cim zoo. Peb yog cov chaw tsim khoom hauv Suav teb los ntawm 1982, koj tuaj yeem kho koj tus kheej cov tsheb thauj khoom, peb tsim thiab tsim khoom raws li koj qhov kev xav tau.
Khoom Taw qhia
TONGYA 40ft thawv flatbed semi trailer nrog ruaj zoo
Xa lus nug Hu rau tus neeg muag khoom Rau Cov Kev Pabcuam Tshwj Xeeb Thiab Tus Nqi Zoo Tshaj.
Peb yog Hoobkas tsim, txais tos koj tuaj xyuas peb lub Hoobkas.
Peb TONGYA 40ft thawv flatbed semi trailer: Peb thauj cov semi trailers los ntawm tej, thawv los yog RORO. Peb lub Hoobkas muaj kev koom tes ntev nrog lub koom haum nkoj uas tuaj yeem muab tus nqi qis tshaj rau koj. Tsis tas li peb yog cov chaw tsim khoom ncaj qha thiab peb muaj peev xwm tsim tau thiab R & D muaj peev xwm! Peb cov khoom siv raw thiab OEM qhov chaw suav nrog qag, ncua kev kawm, log tsheb, tau yuav hauv nruab nrab ntawm Tongya pab pawg, txhua lub pob yuav raug tshuaj xyuas nruj me ntsis. Ntxiv mus, cov cuab yeej siv siab heev es tsis yog cov neeg ua haujlwm nkaus xwb tau siv rau lub sijhawm ua haujlwm tag nrho los xyuas kom meej qhov vuam zoo. Peb lub tuam txhab koom ua ke kev tshawb fawb thiab kev tsim kho, kev tswj xyuas zoo thiab pab pawg muag khoom, txhua qhov zoo tuaj yeem muab kev pabcuam tag nrho ntawm cov tsheb thauj khoom, semi-trailers, tsheb thauj khoom thiab cov khoom seem. Lub Hoobkas nqe, kev sib tw heev hauv kev ua lag luam, pab pawg kws tshaj lij tom qab muag daws koj qhov teeb meem tom qab muag hauv 3 hnub ua haujlwm rau 5 hnub ua haujlwm, thiab tag nrho cov khoom seem muaj rau koj.
KhoomSpecification
|
Qauv |
40ft thawv flatbed semi trailer |
|
Zuag qhia tag nrho |
12,500mm * 2,500mm * 1,550mm |
|
Tare luj |
7, 200 Kg |
|
Them nyiaj |
45,000kgs, peb tuaj yeem tsim raws li koj xav tau |
|
Kuv Beam & Chassis |
Heavy luag hauj lwm thiab ntxiv durability tsim kuv beam; Kev xaiv rau siab tensile steel Q345B, welded los ntawm cov txheej txheem tsis siv neeg Submerged-Arc. Sab saum toj Flange 16mm, dav 140mm; Middle Flange 8mm, Qhov siab 500mm, Hauv qab Flange 16mm, dav 140mm |
|
Qag |
Tongya hom, 13T / qag |
|
Tus naj npawb ntawm axles |
3ax ua |
|
Kev ncua |
Heavy duty mechanical suspension |
|
Pem teb |
3mm pob zeb diamond steel phaj |
|
King Pin |
JOST hom 2" Bolt-hauv King Pin |
|
tsaws iav |
JOST hom Ob-ceev, phau ntawv khiav haujlwm, hnyav tsaws iav |
|
Log Rim |
9. 0-22.5, 13 daim |
|
Lub log |
12 R22.5, 13 pcs |
|
Spare Tyre |
2 units |
|
Twist Lock |
12 units |
|
Braking System |
WABCO RE 6 relay valve; T30/30+T30 Caij nplooj ntoos hlav braking chambers; ob daim ntawm 45L cua tso tsheb hlau luam |
|
Kev pleev xim |
Ua kom tiav Chassis xuab zeb blasting los ntxuav xeb, 1 lub tsho tiv no ntawm anticorrosive prime, 2 lub tsho tiv no ntawm cov xim kawg |
|
Tool lub thawv |
Ib lub thawv khoom txheem (Qhov Loj tuaj yeem xaiv tau dawb) (nrog 1 lub log tsheb spanner, 1 unit gudgeon lub tes tsho thiab 1 unit cranking bar) |
Cim npe nrov: Tongya 40ft thawv flatbed semi trailer nrog ruaj zoo, Tuam Tshoj tongya 40ft thawv flatbed semi trailer nrog ruaj zoo manufacturers, lwm tus neeg
