Tuam Tshoj Kub Muag 3 Axles Thawv Flatbed Trailer Nrog Durable Zoo
3 axles thawv flatbed trailer yog siv los thauj cov thawv los yog qhuav cargos.Main beams welded los ntawm advanced loj-scale tshwj xeeb vuam tshuab txiav.TONGYA hom thiab CCC/ISO9001 daim ntawv pov thawj pom zoo.Peb txais yuav nto moo hom qhov chaw rau peb trailers, xyuas kom meej cov cim zoo. yog cov chaw tsim khoom hauv Suav teb los ntawm 1982, koj tuaj yeem kho koj tus kheej cov tsheb thauj khoom, peb tsim thiab tsim khoom raws li koj qhov kev xav tau.
Khoom Taw qhia

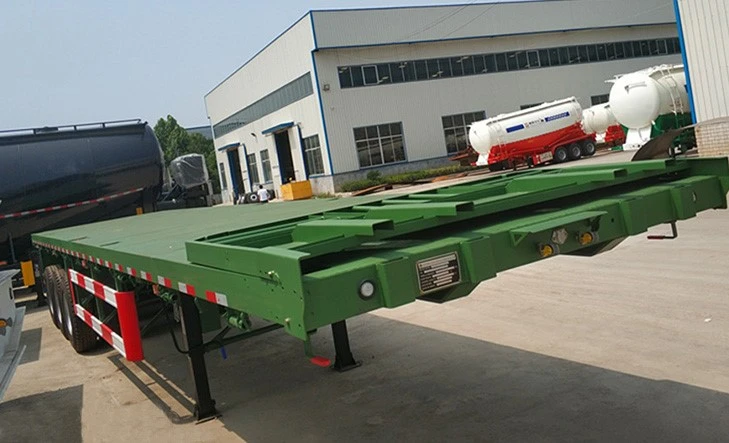

Tuam Tshoj Kub muag 3 axles thawv flatbed trailer nrog ruaj zoo
Peb 3 axles thawv flatbed trailer: Nto ntxuav los ntawm kev txhaj tshuaj blasting. Ib qho epoxy txheej thiab acrylic tiav txheej. Durable tiv thaiv xeb, txhawb nqa ntev zoo saib thiab kev pab cuam lub neej. Submerged arc Tsis siv neeg vuam siv, Cov ntsiab lus tseem ceeb txhawb nqa thiab lub hom phiaj vuam kom tsis txhob muaj qee qhov yooj yim plam vuam raws li kev paub txog kev txhawb nqa lub tsheb ntev dua ua haujlwm yam tsis kho. BPW, FUWA thoob ntiaj teb zoo tshaj plaws axles ua haujlwm nrog WABCO nres valve, ua haujlwm zoo dua nres kom muaj kev nyab xeeb thiab txuag nqi log tsheb Kho qhov zoo tshaj plaws thiab ncua kev kawm, txhawb lub neej ntev kev pab cuam, txuag nqi. Peb koom tes nrog cov tuam txhab shipping uas paub zoo, xws li MAERSK, NYK thiab Wallenius, ua kom muaj kev thauj mus los ntawm txhua qhov khoom xa tuaj. Cov kws tshaj lij xaiv txoj kev xa khoom tsim nyog tshaj plaws rau cov neeg siv khoom sib txawv ntawm cov thawv ntim khoom, RORO thiab cov khoom xa tuaj ntau, ntsuas kev nyab xeeb thiab kev lag luam tus nqi. Tongya automobile Co., Ltd. yog ib qho ntawm cov kws tshaj lij trailer tsim nyob rau hauv Suav teb. Cov khoom tseem ceeb yog flatbed semi trailer / qis txaj semi trailer / roj tanker trailer / bulk cement tank trailer, thiab lwm yam TONGYA yuav sim peb qhov zoo tshaj plaws los txhawb peb cov neeg koom tes, tsim kom muaj lub neej yav tom ntej.
Xa lus nug Hu rau tus neeg muag khoom Rau Cov Kev Pabcuam Tshwj Xeeb Thiab Tus Nqi Zoo Tshaj.
Peb yog Hoobkas tsim, txais tos koj tuaj xyuas peb lub Hoobkas.
KhoomSpecification:
|
Qauv |
3 axles thawv flatbed trailer |
|
Zuag qhia tag nrho |
12,500mm * 2,500mm * 1,550mm |
|
Tare luj |
7, 200 Kg |
|
Them nyiaj |
45,000kgs, peb tuaj yeem tsim raws li koj xav tau |
|
Kuv Beam & Chassis |
Heavy luag hauj lwm thiab ntxiv durability tsim kuv beam; Kev xaiv rau siab tensile steel Q345B, welded los ntawm cov txheej txheem tsis siv neeg Submerged-Arc. Sab saum toj Flange 16mm, dav 140mm; Middle Flange 8mm, Qhov siab 500mm, Hauv qab Flange 16mm, dav 140mm |
|
Qag |
Tongya hom, 13T / qag |
|
Tus naj npawb ntawm axles |
3ax ua |
|
Kev ncua |
Heavy duty mechanical suspension |
|
Pem teb |
3mm pob zeb diamond steel phaj |
|
King Pin |
JOST hom 2" Bolt-hauv King Pin |
|
tsaws iav |
JOST A300C los yog TONGYA 28T |
|
Log Rim |
9. 0-22.5, 13 daim |
|
Lub log |
12 R22.5, 13 pcs |
|
Spare Tyre |
2 units |
|
Twist Lock |
12 units |
|
Braking System |
WABCO RE 6 relay valve; T30/30+T30 Caij nplooj ntoos hlav braking chambers; ob daim ntawm 45L cua tso tsheb hlau luam |
|
Kev pleev xim |
Ua kom tiav Chassis xuab zeb blasting los ntxuav xeb, 1 lub tsho tiv no ntawm anticorrosive prime, 2 lub tsho tiv no ntawm cov xim kawg |
|
Tool lub thawv |
Ib lub thawv khoom txheem (Qhov Loj tuaj yeem xaiv tau dawb) (nrog 1 lub log tsheb spanner, 1 unit gudgeon lub tes tsho thiab 1 unit cranking bar) |
Cim npe nrov: Tuam Tshoj kub muag 3 axles thawv flatbed trailer nrog ruaj zoo, Tuam Tshoj kub muag 3 axles thawv flatbed trailer nrog ruaj zoo manufacturers, lwm tus neeg
