Tuam Tshoj Tsim TONGYA 4 Axles Petrol Tankers
1.Oil thauj trailer yog siv los thauj cov roj av, diesel, xibtes roj, thiab lwm yam.2. Peb yog cov chaw tsim khoom hauv Suav teb los ntawm 1982, koj tuaj yeem kho koj tus kheej cov tsheb thauj khoom, peb tsim thiab tsim khoom raws li koj qhov kev xav tau.
Khoom Taw qhia

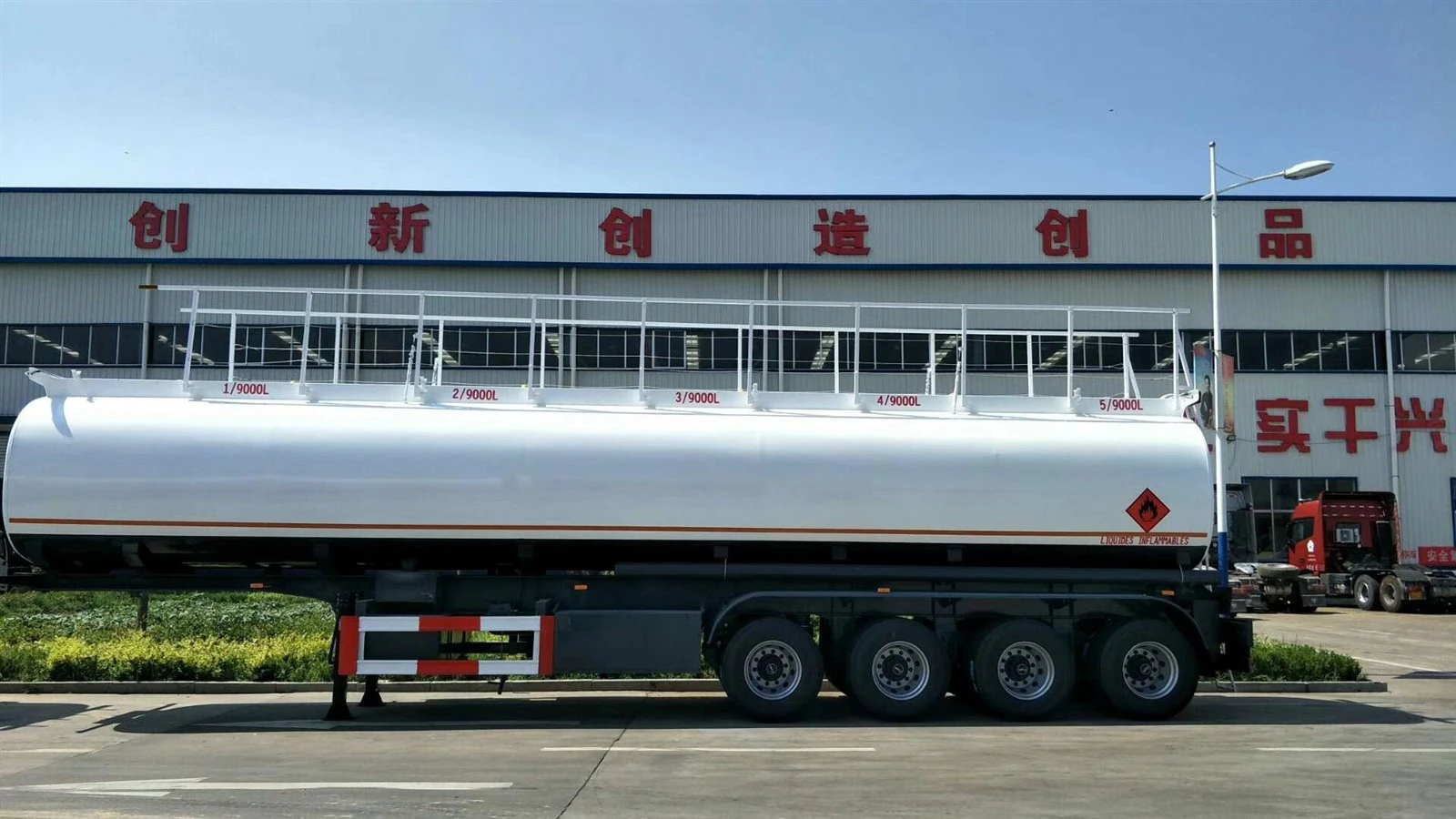

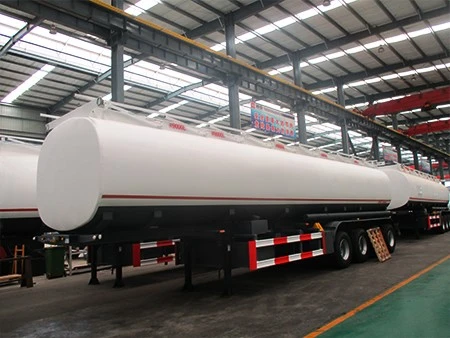

Tuam Tshoj Tsim TONGYA 4 axles petrol tankers
Txhua yam khoom siv roj tuaj yeem nqa nrog 4 axles petrol tankers. Petroleum, Diesel, Roj Roj, JET A1 thiab ntau lwm yam khoom siv roj tsheb thauj mus los haum nrog peb lub qag tanker semi-trailer.
Chaw thau khoom muaj peev xwm nruab nrab ntawm 20.000 ltr txog 57.000 ltr rau 4 axles petrol tankers . Cov khoom ntim tuaj yeem npaj tau raws li cov neeg siv khoom thov ntawm Tuam Tshoj Chaw Tsim Khoom TPNGYA 4 axles petrol tankers.
Tuam Tshoj Chaw tsim tshuaj paus TONGYA 4 axles petrol tankers tsum:
|
Cov ntaub ntawv yooj yim |
||
|
Qhov loj me |
13000x2500x3780mm |
|
|
Design Capacity (tag nrho) |
45000L |
|
|
Qhov hnyav (± 3%) |
13000KG |
|
|
Hom |
Tri-axle semi-trailer |
|
|
Coupling qhov siab |
Qhov siab 1320mm |
|
|
Tank sib dhos |
||
|
Chav tsev |
xaiv tau |
|
|
Pem hauv ntej / rear kawg phaj |
Khoom siv |
Cov pa roj carbon steel |
|
Pem hauv ntej / rear kawg phaj |
tuab |
6mm ib |
|
Tank lub cev (nrog insulating txheej) |
Khoom siv |
Cov pa roj carbon steel |
|
Thickness |
5mm ua |
|
|
Wave-proof phaj thickness |
4mm ib |
|
|
Manhole cover |
Txoj kab uas hla |
500 hli |
|
Khoom siv |
Hoobkas txheem |
|
|
Tus lej |
2-6pcs (yeem) |
|
|
Tshem tawm valve |
Txoj kab uas hla |
3 nti |
|
Khoom siv |
Aluminium Alloy API Valve |
|
|
Tus lej |
2-6 pcs (yeem) |
|
|
Hauv qab kev nyab xeeb valve |
Aluminium Alloy4 nti |
|
|
Cov yeeb nkab tawm |
Txoj kab uas hla |
3 nti |
|
Hom |
Roj hmab hose, 2pcs |
|
|
Cat taug kev |
Txuj |
|
|
CHASSIS
|
||
|
Qag |
Hom |
Fuwa |
|
Hom |
13t |
|
|
Tus lej |
4pcs ib |
|
|
Rim |
Hom |
9.0-22.5 |
|
Tus lej |
16 pcs |
|
|
Lub log |
Hom |
Daim duab peb sab hom |
|
Hom |
12R22.5 |
|
|
Tus lej |
16 pcs |
|
|
Kev ncua |
Mechaniacal suspension / cua ncua kev kawm ntawvtuaj yeem xaiv tau |
|
|
Nplooj nplooj |
Nplooj dav |
90mm ua |
|
Nplooj tuab |
13 hli |
|
|
Txheej / txheej |
10 Txheej |
|
|
King pin |
Hom |
Bolts hom |
|
Txoj kab uas hla |
2 nti |
|
|
Nres system |
Cua tank |
45L cua tso tsheb hlau luam |
|
Nres chamber |
WABCO RE6 relay valve; T30/30+T30 Caij nplooj ntoos hlav nres chamber |
|
|
ABS |
xaiv tau |
|
|
tsaws iav |
Hom |
JOST |
|
Hom |
E100 |
|
Xa ib qho kev nug thiab peb yuav muab cov nqi luv nqi rau koj.
Peb yog Hoobkas tsim, txais tos koj tuaj xyuas peb lub Hoobkas.

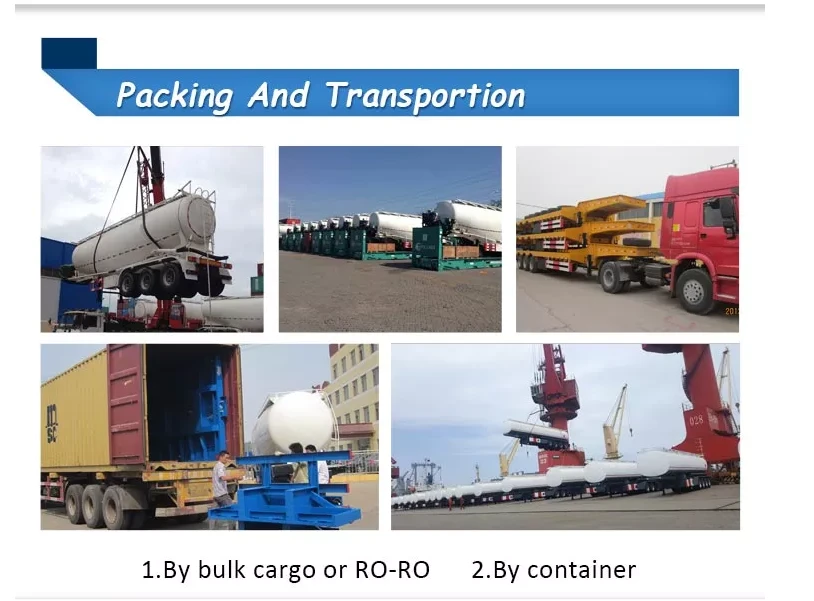

Packing thiab thauj:
Lub tank sab hauv ntawm lub tank trailer yog haum nrog corrugated reinforced yoj tiv thaiv txhua 2m. Thaum cov brakes tau thov thaum lub tank ntim cov roj tag nrho, cov yoj tiv thaiv tuaj yeem txo qhov cuam tshuam ntawm cov roj ntawm lub tank lub cev thiab ua lub luag haujlwm tiv thaiv kev nyab xeeb. Tag nrho lub cev lub cev yog tag nrho tsis siv neeg thiab seamlessly welded, 100% dhau qhov kev soj ntsuam nruj xws li kev nkag mus rau cov kua, kev ntsuas huab cua thiab qhov tsis zoo, lub tanker semi-trailer muaj kev nyab xeeb dua rau kev khiav thiab qhov zoo yog lav.
Thawv Thauj Khoom(hauv qab 41 cbm tuaj yeem thauj khoom hauv 40hq, ntau dua 42 cbm xav tau lub thawv loj thiab lub thawv me me.)
Kev xa khoom loj. Qhov no yog feem ntau txoj kev, nws tuaj yeem ua kom tiav ntawm qhov trailer.
Ro-Ro khoom xa tuaj. Tus nqi ntawm Ro-Ro khoom xa tuaj yog qhov kim tshaj plaws ntawm txhua txoj kev. Nws tuaj yeem tiv thaiv lub trailer zoo thiab ua kom tiav ntawm lub trailer.
Flat Rack. Nws yog ib qho ntawm cov thawv tab sis nws muaj qhov ntev txwv uas yog li 11.7 meters.
Peb ua haujlwm nrog ntau tus neeg muag khoom thauj khoom thiab peb yuav xaiv qhov tsim nyog tshaj plaws, pheej yig tshaj thiab nyab xeeb tshaj plaws rau koj raws li qhov ntau ntawm cov tsheb thauj khoom thiab koj qhov kev thov.
Cim npe nrov: Tuam Tshoj tsim Tongya 4 axles petrol tankers, Tuam Tshoj Tuam Tshoj tsim tongya 4 axles petrol tankers manufacturers, lwm tus neeg
