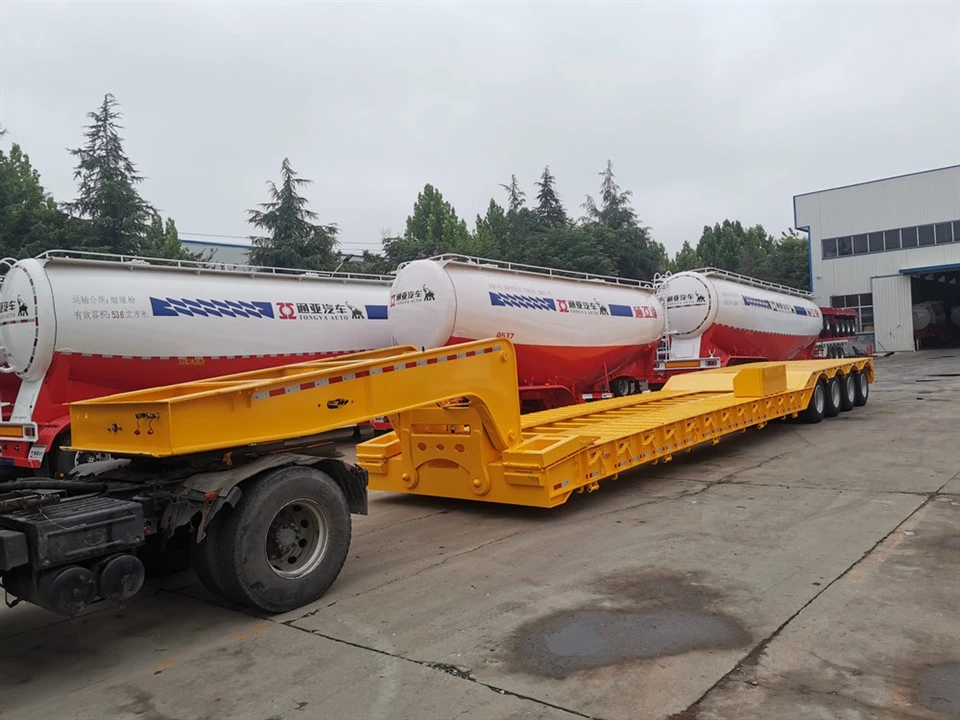

Hydraulic Gooseneck Lowbed Semi Trailer
Lub Hydraulic gooseneck semi trailer yog dav siv, thiab yog hom ntau hom ntawm qis txaj semi trailers. Muaj lub tog raj kheej hydraulic ntawm lub trailer kom tso tawm lub caj dab goose. Thaum thauj khoom, lub tog raj kheej hydraulic tuaj yeem nce lossis txo lub trailer yog xav tau.
Khoom Taw qhia
Khoom taw qhia
Hydraulic goose caj dab qis txaj semi trailer yog siv los thauj cov tshuab hnyav thiab khoom siv
Lub gooseneck tuaj yeem detachable
Cov khoom tuaj yeem nce mus rau lub phaj ua haujlwm los ntawm lub hauv ntej ntawm lub trailer
Nws tuaj yeem ua haujlwm hauv kev sib txawv ntawm txoj kev thiab huab cua
Khoom piav qhia
Lub Hydraulic gooseneck semi trailer yog dav siv, thiab yog hom ntau hom ntawm qis txaj semi trailers. Muaj lub tog raj kheej hydraulic ntawm lub trailer kom tso tawm lub caj dab goose. Thaum thauj khoom, lub tog raj kheej hydraulic tuaj yeem nce lossis txo lub trailer yog xav tau. Ib qho ntawm qhov zoo ntawm hydraulic gooseneck semi trailer yog, thauj khoom los ntawm pem hauv ntej muaj kev nyab xeeb ntau dua li kev thauj khoom los ntawm sab lossis tom qab ntawm lub trailer. Kev thauj khoom los ntawm lub tsheb thauj khoom tsis zoo, tshwj xeeb tshaj yog thauj khoom hnyav, muaj cov ntaiv hauv qab ntawm lub tsheb thauj khoom, yog li xav tau tus ntaiv ntev heev los thauj cov khoom hnyav, dab tsi ntxiv, cov cuab yeej hnyav tuaj yeem poob ntawm tus ntaiv, lossis poob rau ntawm tus ntaiv. ua hauj lwm phaj ntawm semi trailer, yog li qhov no tej zaum yuav rhuav tshem semi trailer lossis khoom ua ntej thauj.
Specifications
|
Qhov hnyav: |
Tare luj |
12 T |
|
Chaw thau khoom muaj peev xwm |
70 T |
|
|
Qhov Loj: |
Sab nraud dimension |
15000 * 3000 * 1700 hli |
|
Ncej: |
Tsim / vuam tshuab |
Heavy luag hauj lwm thiab ntxiv durability tsim; |
|
Main beam |
Opting rau siab zog Q345B steel, |
|
|
Hla beam |
Lub luag haujlwm hnyav tshwj xeeb U steel |
|
|
Sab beam |
20 # channel steel |
|
|
Pem teb |
5 hli thickness checkered phaj |
|
|
Tsheb kauj vab (ramp) |
Tsis muaj tsheb kauj vab |
|
|
OEM qhov chaw:
|
Qag |
4 * 13T muaj peev xwm, FUWA hom (Suav hom zoo tshaj) |
|
King Pin |
2.00'' bolting huab tais tus pin, JOST hom |
|
|
Kev ncua |
Heavy luag hauj lwm undermount ncua kev kawm ntawv nrog equalizers, |
|
|
Hlau Caij nplooj ntoos hlav |
10pcs nplooj hlav, 13mm thickness, 90mm dav |
|
|
tsaws ob txhais ceg |
JOST hom, kev tuav haujlwm tsaws ceg nrog xuab zeb khau |
|
|
Tyre specs |
11.00R20, Daim duab peb sab hom (Suav npe nrov) |
|
|
Rim |
8.0-20 |
|
|
Tus naj npawb ntawm lub log |
17 daim (nrog rau ib lub log spare) |
|
|
Nres system |
WABCO relay valve; |
|
|
ABS system |
Tsis muaj (yuav xaiv tau dawb, 450 USD / teeb) |
|
|
Hluav taws xob: |
Ib chav ntawm 24V 7-pin ISO 1185 qhov (socket); LED teeb |
|
|
|
Kev pleev xim |
xim qhia los ntawm cov neeg siv khoom |
|
Kos npe |
Txuj |
|
|
Sab Guard |
Txuj |
|
|
Spare Tyre Carriers |
Ob txheej ntawm lub luag haujlwm hnyav spare log nqa |
|
|
Cov cuab yeej thawv |
Ib daim (1. 0*0. 5*0. 5m), nyob rau hauv lub caj dab goose |
|
|
Nco tseg: Tag nrho cov ntsiab lus tsis hais yuav tsim raws li qhov kev pom zoo zaum kawg nrog tus neeg siv khoom |
||

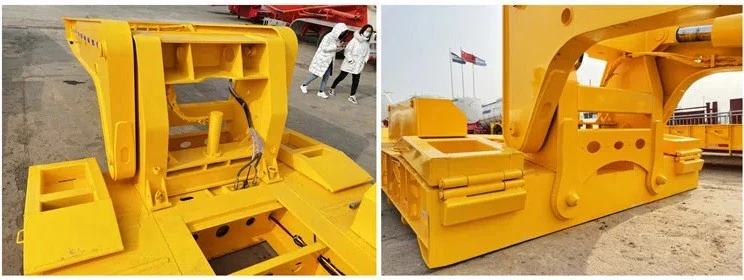

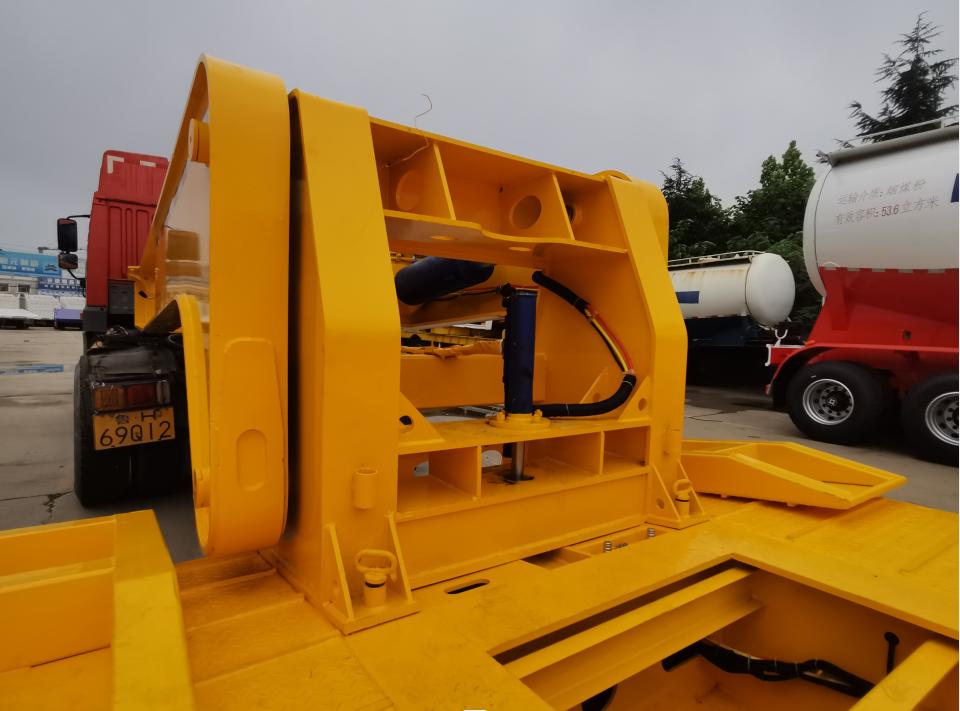

Qhov no yog hydraulic gooseneck ntawm qis txaj semi trailer, thiab qhov gooseneck no tuaj yeem raug tshem tawm, yog li cov cuab yeej hnyav, xws li excavator, txoj kev cov menyuam tuaj yeem nce lub trailer mus rau pem hauv ntej, yooj yim heev.
