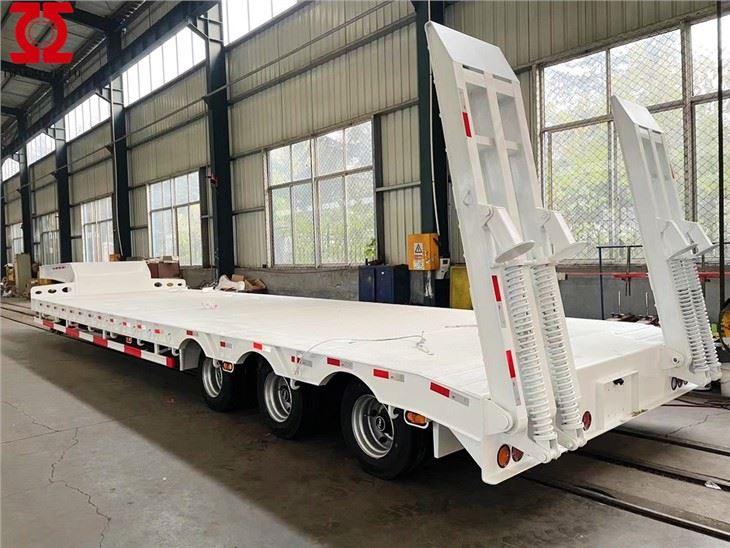

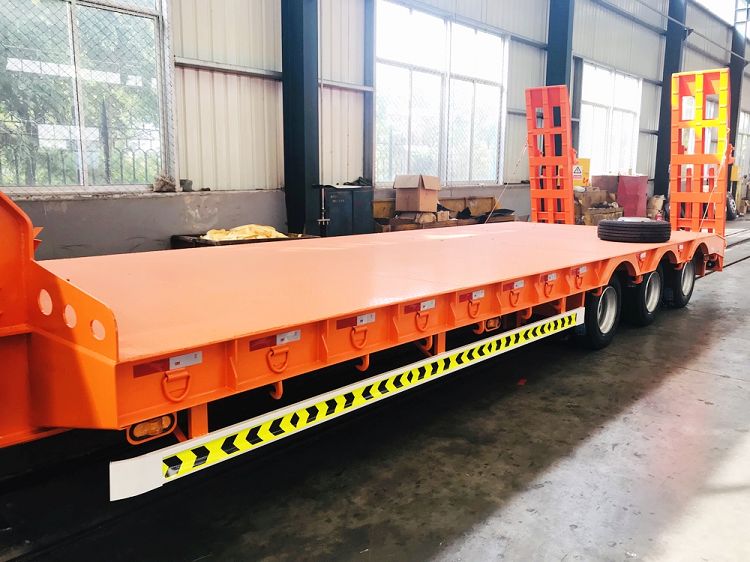

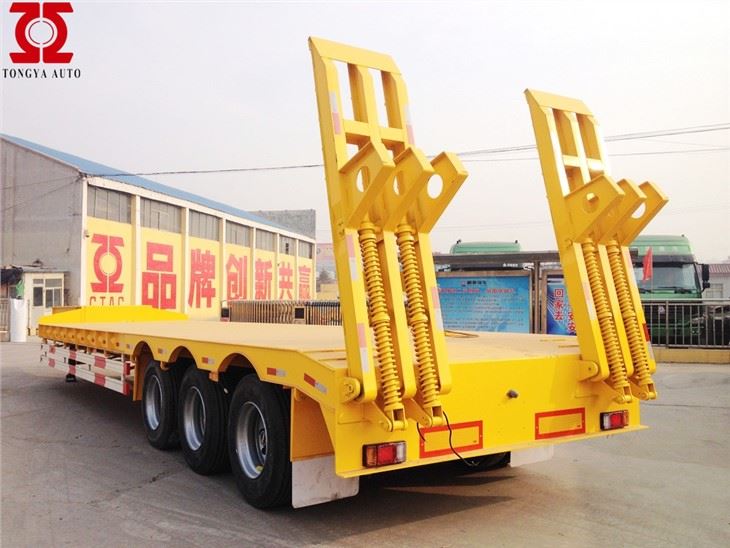

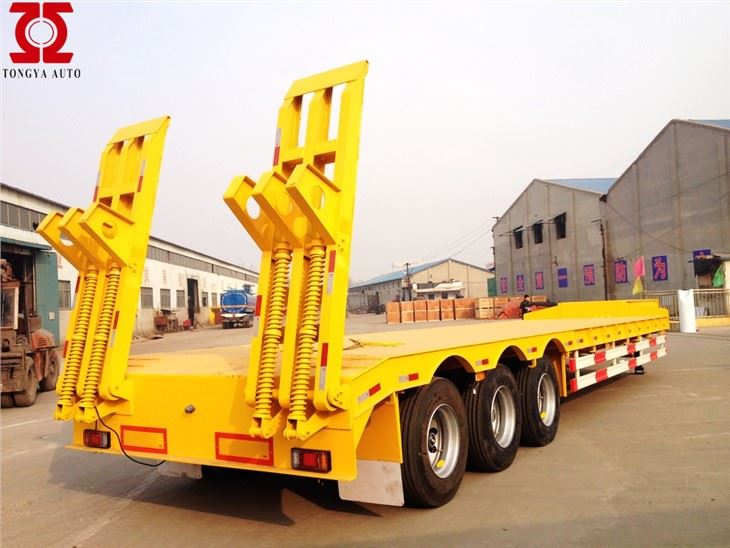

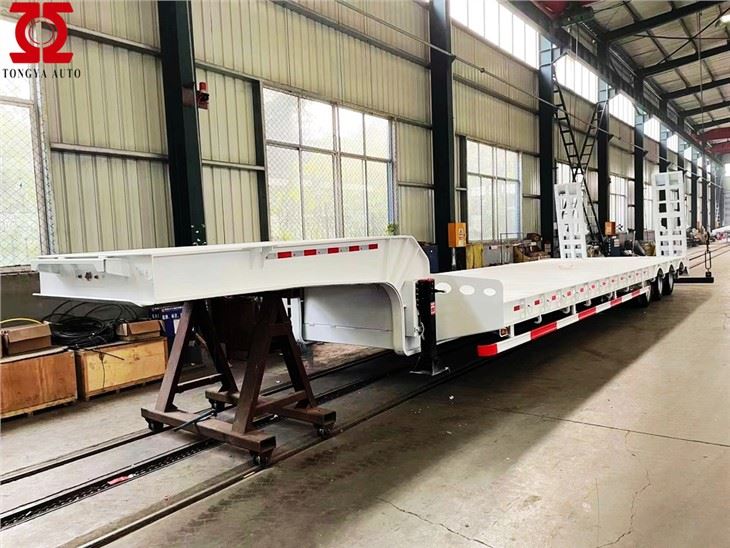

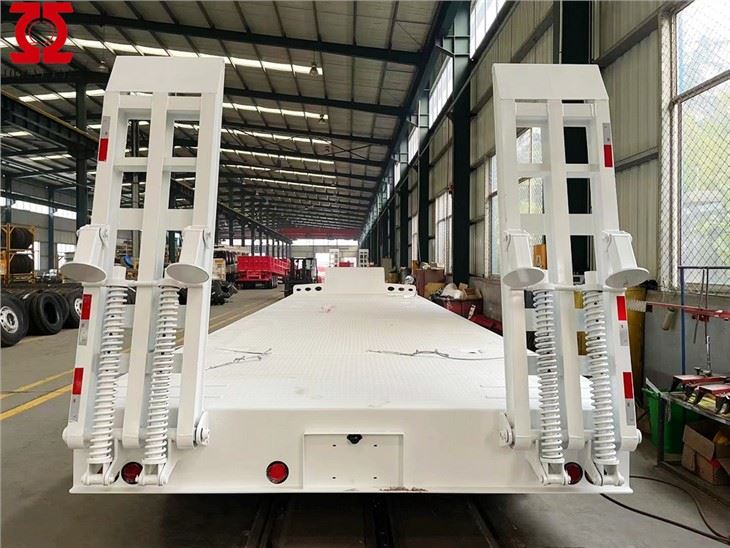

Semi Lowbed Trailer
1, Tuam Tshoj ua semi trailer chaw tsim tshuaj paus txij thaum 1982, export lag luam pib los ntawm 2006
2, Customization yog txais tau rau style, loading peev thiab loj
3, Kev xa khoom hauv 25 hnub
4, 12 lub hlis lav zoo yog muab
Khoom Taw qhia
Qhov hnyav: | Tare luj | 11.5T |
Chaw thau khoom muaj peev xwm | 50 T | |
Tag nrho qhov hnyav | 61.5 T | |
Qhov Loj: | Sab nraud dimension | 13000 * 3000 * 2950 hli |
Ncej: | Tsim / vuam tshuab | Heavy luag hauj lwm thiab ntxiv durability tsim; |
Main beam | Opting rau siab zog Q345B steel, | |
Hla beam | Lub luag haujlwm hnyav tshwj xeeb U steel | |
Sab beam | 250mm siab kuv beam | |
Pem teb | 5 hli thickness checker phaj | |
Tsheb kauj vab (ramp) | Ob daim caij nplooj ntoos hlav steel ntaiv, (Q345B steel) | |
OEM qhov chaw: | Qag | 3 * 13T muaj peev xwm, FUWA hom (Suav hom zoo tshaj) |
King Pin | 2.00''/3.5'' bolting huab tais tus pin, JOST hom | |
Kev ncua | Heavy luag hauj lwm undermount ncua kev kawm ntawv nrog equalizers, | |
Hlau Caij nplooj ntoos hlav | 10pcs nplooj hlav, 13mm thickness, 90mm dav | |
tsaws ob txhais ceg | JOST hom, kev tuav haujlwm tsaws ceg nrog xuab zeb khau | |
Tyre specs | 8.25R20, Daim duab peb sab hom (Suav nto moo hom) | |
Rim | 6.5 (Suav npe nrov) | |
Tus naj npawb ntawm lub log | 13 daim (nrog rau ib lub log spare) | |
Nres system | WABCO relay valve; | |
ABS system | Tsis muaj (yuav xaiv tau dawb, 450 USD / teeb) | |
Hluav taws xob: | Ib chav ntawm 24V 7-pin ISO 1185 qhov (socket); LED teeb | |
| Kev pleev xim | xim qhia los ntawm cov neeg siv khoom |
Kos npe | Txuj | |
Sab Guard | Txuj | |
Spare Tyre Carriers | Ob txheej ntawm lub luag haujlwm hnyav spare log nqa | |
Cov cuab yeej lub thawv | Ib daim (1. 0*0. 5*0. 5m), nyob rau hauv lub caj dab goose | |
Nco tseg: Tag nrho cov ntsiab lus tsis hais yuav tsim raws li qhov kev pom zoo zaum kawg nrog tus neeg siv khoom | ||
Feem ntau, muaj ob yam sib txawv ntawm lowbed trailer, feem ntau thov yog semi lowbed trailer
Hom trailer no yog lub tiaj tiaj tus qauv (saib daim duab hauv qab no), lub semi lowbed trailer yog tsim rau nqa lub tshuab nrog ntev ntev tab sis lub cev qhov siab.
Peb cov engineers yuav tsim lub ntsiab nqaj rau lub semi lowbed trailer nyob ntawm seb lub peev xwm thauj khoom uas yog muab los ntawm cov neeg siv khoom kawg, thiab xaiv Q345B siab tensile steel hauv cov tuab tuab, nrog cov txheej txheem tsis siv neeg Submerged-Arc vuam, kom paub tseeb tias lub semi lowbed trailer nrog muaj zog loading lawj.
Kev ntseeg tau ntawm cov khoom lag luam yog qhov tseem ceeb tshaj plaws ntawm cov khoom, peb ib txwm xaiv cov khoom lag luam zoo tshaj plaws ntawm cov khoom seem uas peb tuaj yeem tau txais xws li BPW, JOST, WABCO, FUWA, Daim duab peb sab, SAF .... Kom paub tseeb tias lub semi lowbed trailer nrog kev ntseeg tau zoo ntawm qhov zoo.

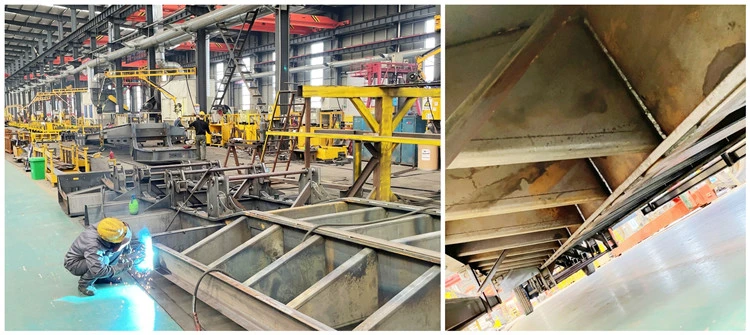

Peb lub Hoobkas tsim cov khoom siv tswj cov qauv ntawm cov kab khiav ntau lawm, muaj cov khoom lag luam saum toj kawg nkaus tswj cov tshuab txiav, tsis siv neeg vuam tshuab, loj-loj khi tshuab, cov kab ntau lawm thiab cov khoom siv niaj hnub sib dhos hauv Suav teb. Kom paub tseeb tias qhov zoo ntawm peb semi lowbed trailer yog guaranteed!
Cim npe nrov: semi lowbed trailer, Suav teb, neeg muab khoom, manufacturers, customized, nqe
