Tsawg txaj Trailer
1, Truck trailer rau nqa excavator, loader, bulldozer thiab lwm yam hnyav machinery
2, 45-55T loading peev, loj: 13 * 3m, 820mm loading lawj qhov siab
3, Customization yog txais tau rau, loading peev xwm, loj thiab style
4, Tuam Tshoj ua semi trailer chaw tsim tshuaj paus txij thaum 1982, export lag luam pib los ntawm 2006
5, Nrog ntau tshaj 400 welders kom paub tseeb tias xa khoom raws sijhawm
Khoom Taw qhia
Qhov hnyav: | Tare luj | 11.5T |
Chaw thau khoom muaj peev xwm | 50 T | |
Tag nrho qhov hnyav | 61.5 T | |
Qhov Loj: | Sab nraud dimension | 13000 * 3000 * 2950 hli |
Ncej: | Tsim / vuam tshuab | Heavy luag hauj lwm thiab ntxiv durability tsim; |
Main beam | Opting rau siab zog Q345B steel, | |
Hla beam | Lub luag haujlwm hnyav tshwj xeeb U steel | |
Sab beam | 250mm siab kuv beam | |
Pem teb | 5 hli thickness checker phaj | |
Tsheb kauj vab (ramp) | Ob daim caij nplooj ntoos hlav steel ntaiv, (Q345B steel) | |
OEM qhov chaw: | Qag | 3 * 13T muaj peev xwm, FUWA hom (Suav hom zoo tshaj) |
King Pin | 2.00''/3.5'' bolting huab tais tus pin, JOST hom | |
Kev ncua | Heavy luag hauj lwm undermount ncua kev kawm ntawv nrog equalizers, | |
Hlau Caij nplooj ntoos hlav | 10pcs nplooj hlav, 13mm thickness, 90mm dav | |

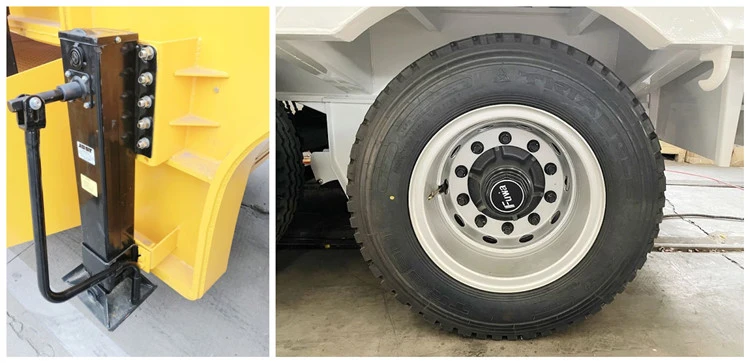

tsaws ob txhais ceg | JOST hom, kev tuav haujlwm tsaws ceg nrog xuab zeb khau | |
Tyre specs | 8.25R20, Daim duab peb sab hom (Suav nto moo hom) | |
Rim | 6.5 (Suav npe nrov) | |
Tus naj npawb ntawm lub log | 13 daim (nrog rau ib lub log spare) | |
Nres system | WABCO relay valve; | |
ABS system | Tsis muaj (yuav xaiv tau dawb, 450 USD / teeb) | |
Hluav taws xob: | Ib chav ntawm 24V 7-pin ISO 1185 qhov (socket); LED teeb | |
| Kev pleev xim | xim qhia los ntawm cov neeg siv khoom |
Kos npe | Txuj | |
Sab Guard | Txuj | |
Spare Tyre Carriers | Ob txheej ntawm lub luag haujlwm hnyav spare log nqa | |
Cov cuab yeej lub thawv | Ib daim (1. 0*0. 5*0. 5m), nyob rau hauv lub caj dab goose | |
Nco tseg: Tag nrho cov ntsiab lus tsis hais yuav tsim raws li qhov kev pom zoo zaum kawg nrog tus neeg siv khoom | ||
Tsawg txaj trailer yog lub tsheb thauj khoom nrov uas tsim los rau kev thauj khoom excavator, loader, bulldozer thiab lwm yam khoom siv hnyav.

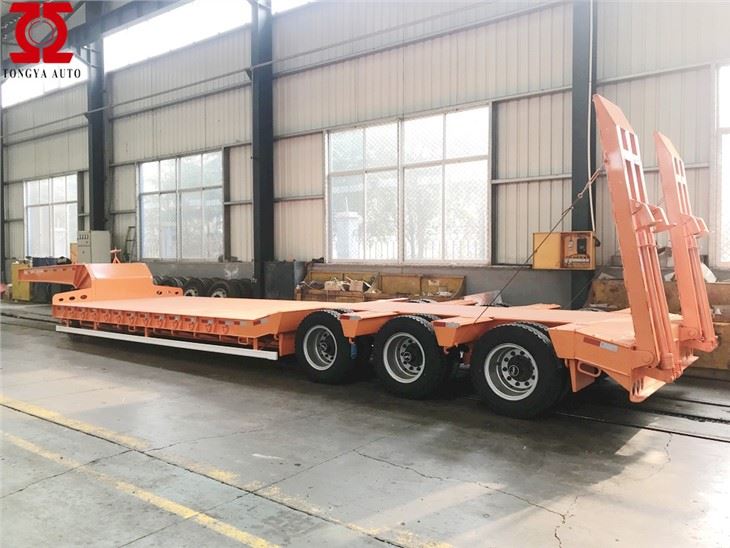

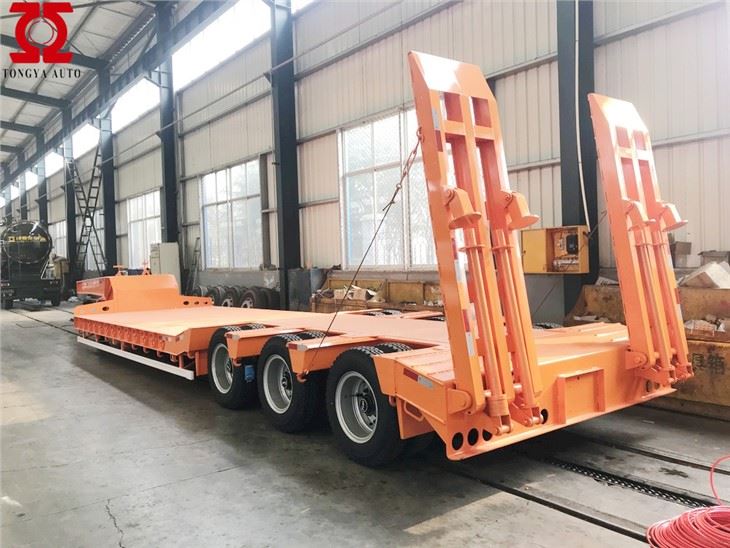

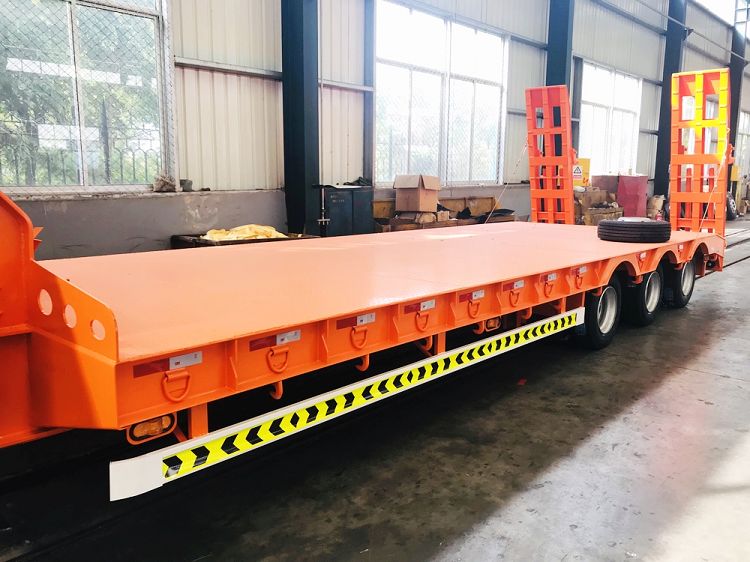

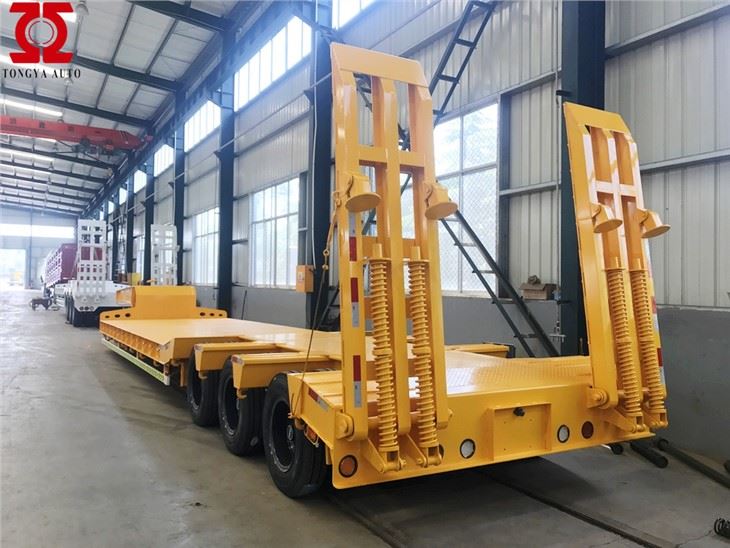

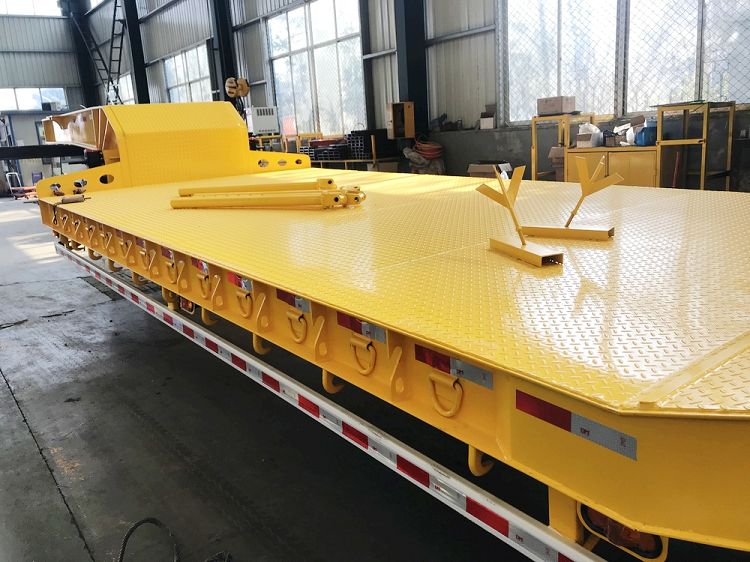

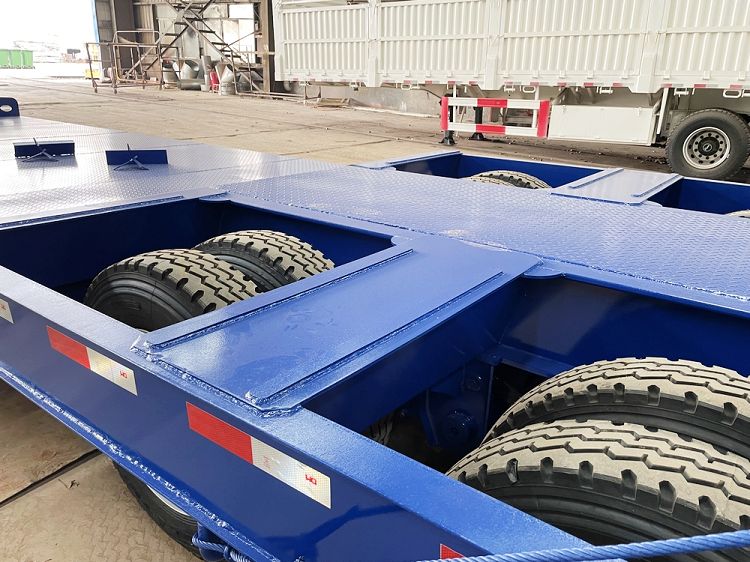

Peb muaj ob hom kev txaj txaj txaj rau cov neeg siv khoom xaiv, thawj zaug yog lub tiaj tiaj tiaj tus qauv (txiv kab ntxwv ib qho), cov qauv no zoo dua rau nqa cov tshuab nrog ntev ntev tab sis lub cev qhov siab, hauv qee lub tebchaws lawv hu qhov no ua ib nrab. lowbed trailer. Ib qho ntxiv yog tus qauv hollow lawj (daj ib qho), nws txhais tau hais tias lub lawj thauj khoom tshwj xeeb qis dua lub log tsheb sab saum toj qhov siab, cov qauv no zoo dua rau nqa cov tshuab nrog lub cev siab heev, hla tus choj qis lossis qhov.

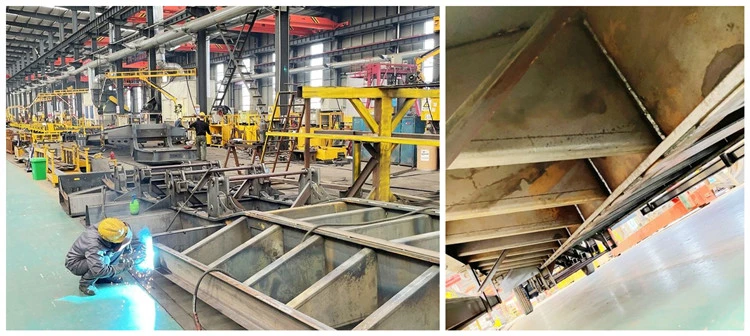

Peb cov engineers yuav tsim lub trailer lub ntsiab beam chassis nyob ntawm seb lub peev xwm thauj khoom uas muab los ntawm cov neeg siv khoom kawg, thiab peb muaj 2 qag 3 qag qis txaj trailer, peb xaiv Q345B siab tensile steel nyob rau hauv tuab tuab, nrog tsis siv neeg Submerged-Arc vuam. cov txheej txheem, kom paub tseeb tias lub txaj qis trailer nrog ib qho chaw thau khoom muaj zog.
Kev ntseeg siab ntawm ib yam khoom yog suav tias yog qhov tseem ceeb tshaj plaws ntawm cov khoom, peb xaiv cov khoom lag luam saum toj kawg nkaus ntawm cov khoom seem uas peb tuaj yeem tau txais xws li BPW, JOST, WABCO, FUWA .... Kom paub tseeb tias lub txaj qis trailer nrog ib qho kev ntseeg tau zoo ntawm qhov zoo.

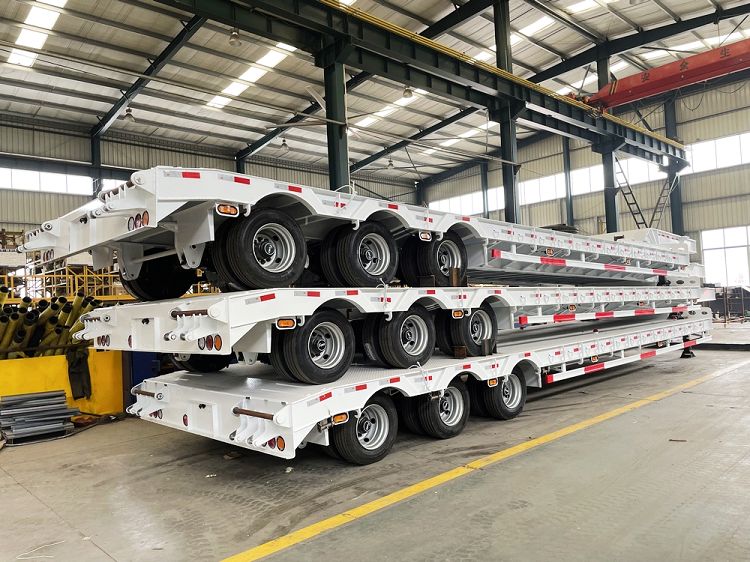

Raws li kev thauj khoom thauj tau nce ntxiv txij li xyoo 2021, kom txuag tau tus nqi thauj khoom, peb feem ntau ua 2 lossis 3 units 4 qag qis txaj semi trailers hauv ib pawg, kom txo qis tag nrho rau cov kab xa khoom.

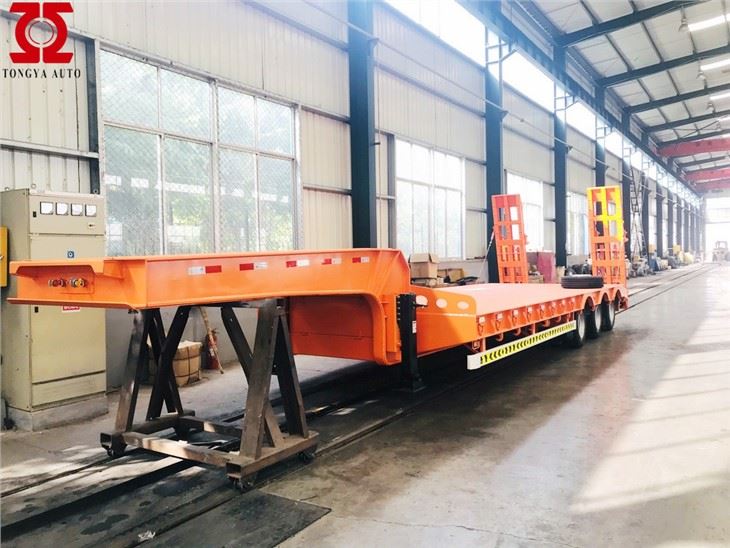

Feem ntau, sab nqaj ntawm lub txaj qis qis yuav xaus rau hauv pem hauv ntej ntawm thawj qag, tab sis muaj qee tus neeg siv khoom yuav xaiv tus ntoo khaub lig sab nqaj ntawm sab xub ntiag mus rau tom qab kawg, zoo li daim duab hauv qab no, peb tuaj yeem tsim cov style nyob ntawm cov neeg siv khoom thov.
