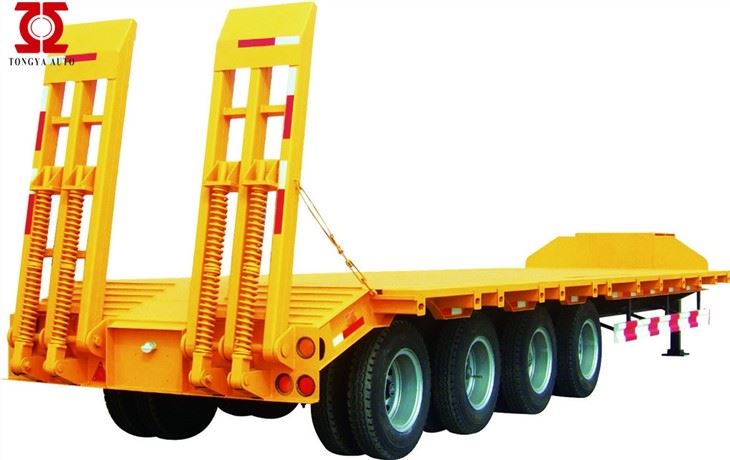

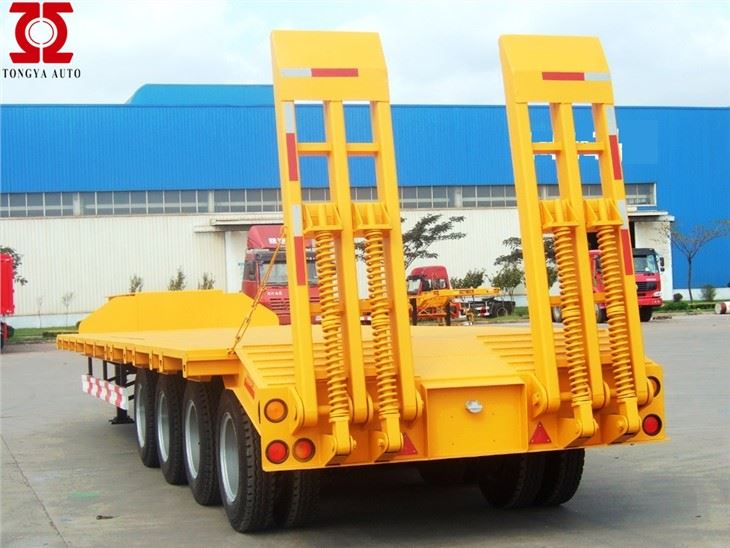

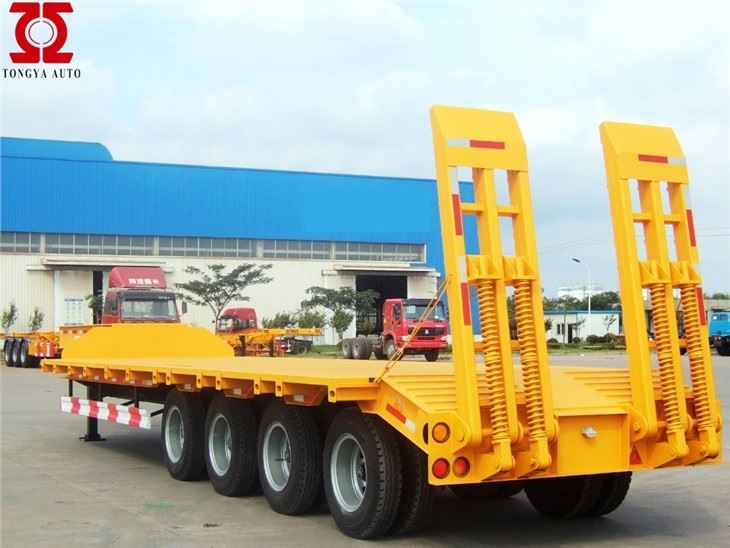

4axles Tsawg txaj Semi Trailer

1, Heavy luag hauj lwm tsim rau nqa excavator, loader, bulldozer thiab lwm yam hnyav machinery
2, 60-70T loading peev, loj: 15 * 3m, 1.33m loading lawj qhov siab
3, Customization yog txais tau rau qhov loj me, thauj khoom muaj peev xwm thiab style
4, Tuam Tshoj ua semi trailer chaw tsim tshuaj paus txij thaum 1982, export lag luam pib los ntawm 2006
5, Nrog ntau tshaj 400 welders kom paub tseeb tias xa khoom raws sijhawm

Xa kev nug

Khoom Taw qhia

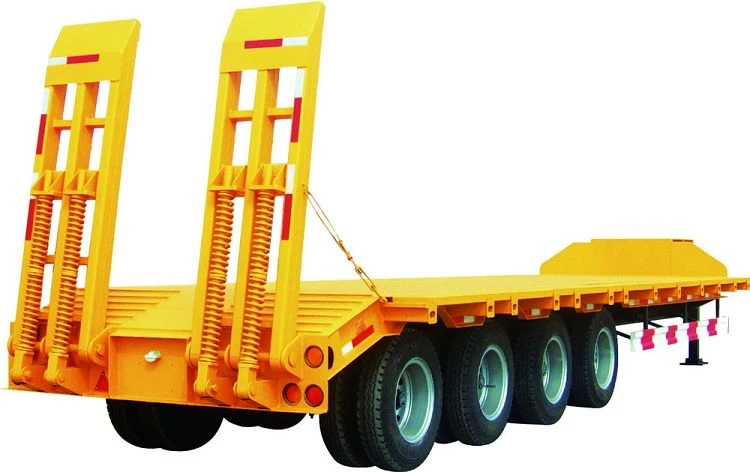

1(001)

Qauv:		CTY9401TDP3N
Qhov hnyav:	Tare luj	13T
	Chaw thau khoom muaj peev xwm	70 T
	Tag nrho qhov hnyav	83 T
Qhov Loj:	Sab nraud dimension	15000 * 3000 * 2950 hli (Qhov kawg qhov ntev nyob ntawm qhov kawg tsim cov duab kos)
Ncej:	Tsim / vuam tshuab	Heavy luag hauj lwm thiab ntxiv durability tsim; vuam los ntawm cov txheej txheem Submerged-Arc tsis siv neeg.
	Main beam	Opting rau siab zog Q345B steel, 520mm sib sib zog nqus welded I-section lub ntsiab kab teeb Sab saum toj Flange thickness 20mm, dav 140mm; Hauv qab Flange thickness 25mm, dav 140mm. Middle Flange thickness 12 hli;
	Hla beam	Lub luag haujlwm hnyav tshwj xeeb U steel
	Sab beam	250mm siab kuv beam
	Pem teb	5 hli thickness checker phaj
	Tsheb kauj vab (ramp)	Ob daim caij nplooj ntoos hlav steel ntaiv, (Q345B steel)
OEM qhov chaw:	Qag	4 * 13T muaj peev xwm, FUWA hom (Suav hom zoo tshaj)
	King Pin	2.00''/3.5'' bolting huab tais tus pin, JOST hom
	Kev ncua	Heavy luag hauj lwm undermount ncua kev kawm ntawv nrog equalizers, American tsim (hom muaj zog)
	Hlau Caij nplooj ntoos hlav	10pcs nplooj hlav, 13mm thickness, 90mm dav
	tsaws ob txhais ceg	JOST hom, kev tuav haujlwm tsaws ceg nrog xuab zeb khau
	Tyre specs	10.00R20, Daim duab peb sab hom (Suav npe nrov)
	Rim	7.5 (Suav npe nrov)
	Tus naj npawb ntawm lub log	17 pieces (nrog rau ib lub log spare)
	Nres system	WABCO relay valve; Rau ob chav thiab ob chav nres tsheb; Ob chav ntawm ISO standard coppery air-connector.
	ABS system	Tsis muaj (yuav xaiv tau dawb, 450 USD / teeb)
	Hluav taws xob:	Ib chav ntawm 24V 7-pin ISO 1185 qhov (socket); LED teeb
Lwm yam:	Kev pleev xim	xim qhia los ntawm cov neeg siv khoom
	Kos npe	Txuj
	Sab Guard	Txuj
	Spare Tyre Carriers	Ob txheej ntawm lub luag haujlwm hnyav spare log nqa
	Cov cuab yeej lub thawv	Ib daim (1. 00. 50. 5m), nyob rau hauv lub caj dab goose (nrog 1 lub log tsheb, 1 lub tes tsho gudgeon thiab 1 cranking bar)
Nco tseg: Tag nrho cov ntsiab lus tsis hais yuav tsim raws li qhov kev pom zoo zaum kawg nrog tus neeg siv khoom

4 axles qis txaj semi trailer yog lub luag haujlwm hnyav trailer tsim, peb xaiv 4 axles es tsis txhob tus qauv 3 axles ntxiv cov peev txheej ntxiv, tshwj xeeb tshaj yog rau cov tshuab uas hnyav heev.

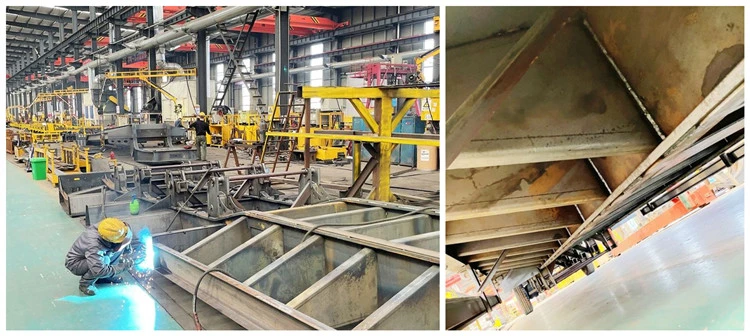

Peb cov engineers yuav tsim cov trailer lub ntsiab beam chassis nyob ntawm seb lub peev xwm thauj khoom uas muab los ntawm cov neeg siv khoom kawg, peb xaiv Q345B siab tensile steel hauv cov tuab tuab nrog cov txheej txheem tsis siv neeg Submerged-Arc vuam, kom paub tseeb tias 4 qag qis txaj semi trailer nrog ib tug muaj zog loading lawj.

initpintu_1

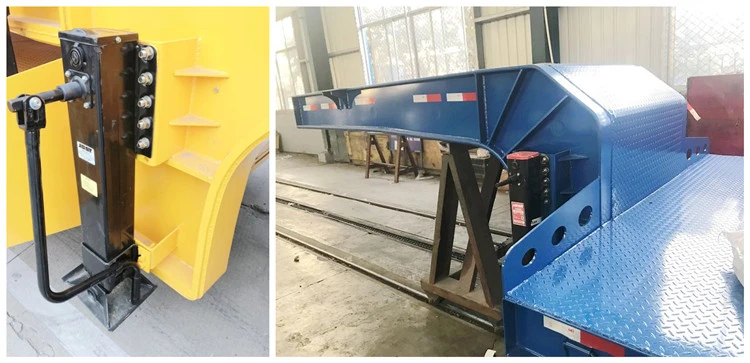

Kev ntseeg tau ntawm cov khoom lag luam yog suav tias yog qhov zoo tshaj plaws ntawm cov khoom, peb xaiv cov npe saum toj kawg nkaus ntawm cov khoom seem xws li BPW, JOST, WABCO, FUWA .... Kom paub tseeb tias 4 qag qis txaj semi trailer nrog kev ntseeg tau zoo .

initpintu_2

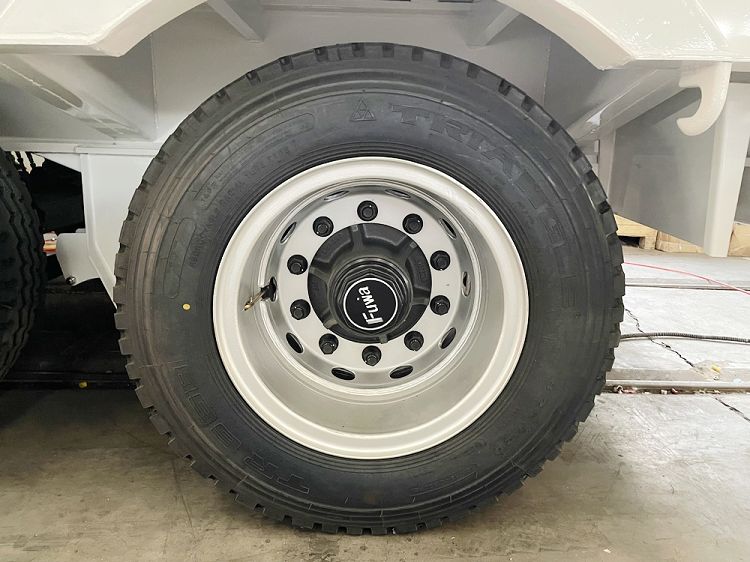

6(001)

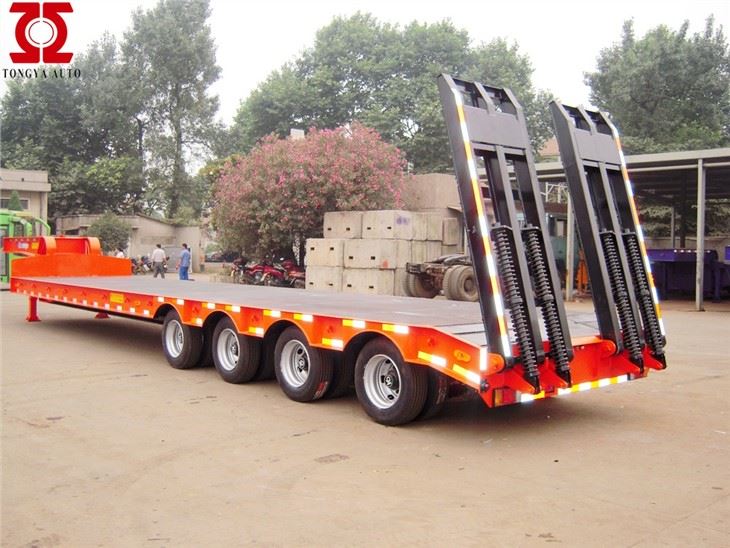

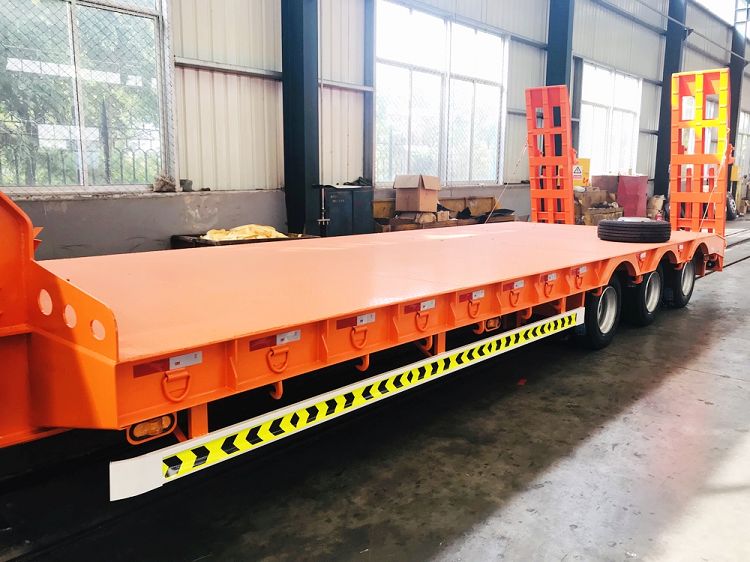

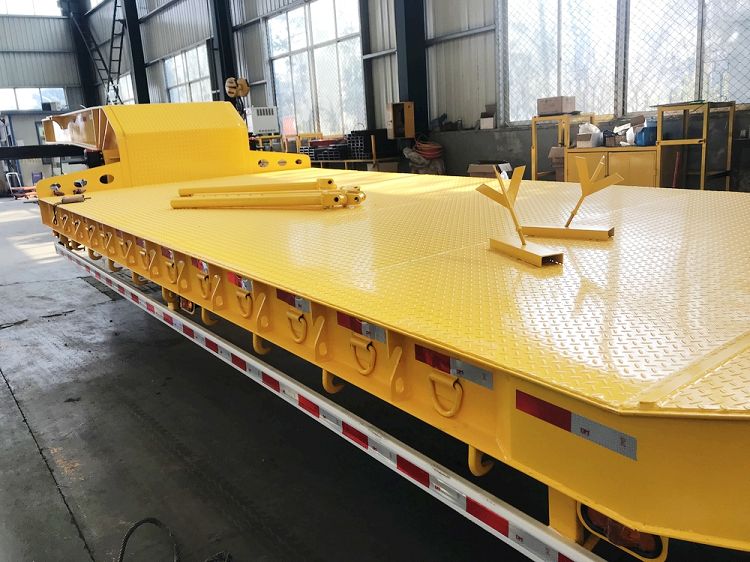

Peb muaj ob hom 4 qag qis txaj semi trailer rau cov neeg siv khoom xaiv, thawj zaug yog lub tiaj tiaj tiaj tus qauv (txiv kab ntxwv ib qho ntawm cov duab), cov qauv no haum rau nqa lub tshuab nrog ntev ntev tab sis qhov siab tsis loj, hauv qee lub tebchaws lawv hu qhov no ua semi lowbed. Lwm qhov yog tus qauv hollow lawj (daj ib qho ntawm cov duab), nws txhais tau hais tias lub lawj loading yog tshwj xeeb qis dua lub log tsheb qhov siab, cov qauv no haum rau nqa lub tshuab nrog lub cev siab heev, hla tus choj qis lossis qhov.

7(001)

8(001)

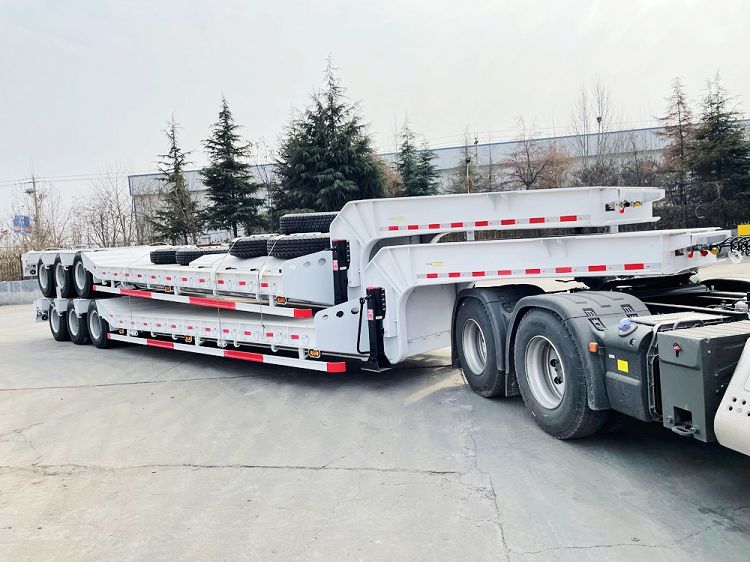

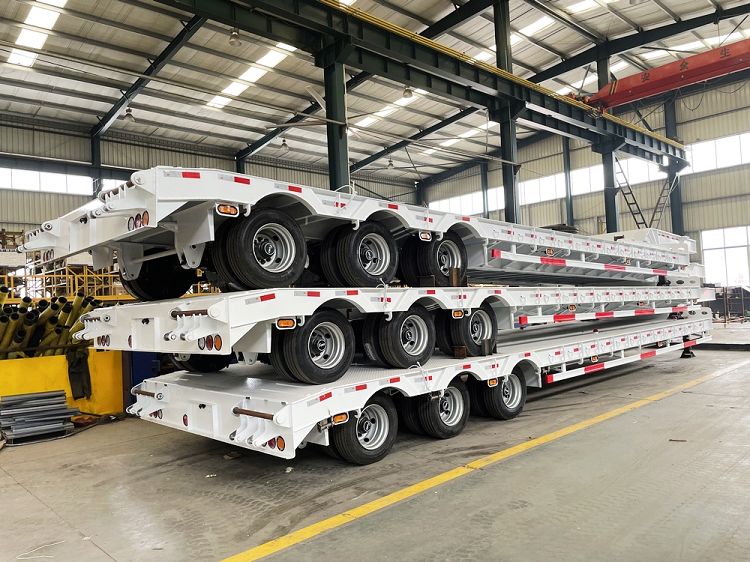

Raws li kev thauj khoom thauj tau nce ntxiv txij li xyoo 2021, kom txuag tau tus nqi thauj khoom, peb feem ntau ua 2 lossis 3 units 4 qag qis txaj semi trailers hauv ib pawg, kom txo qis tag nrho rau cov kab xa khoom.
