Hydraulic Tsawg txaj Trailer

1, Tshwj xeeb hnyav hnyav qis txaj trailer
2, Customization yog txais tau rau style, loading peev thiab loj
3, Kev xa khoom tsis pub dhau 25 hnub, 12 lub hlis lav zoo yog muab

Xa kev nug

Khoom Taw qhia

Qhov hnyav:	Tare luj	15 T
	Chaw thau khoom muaj peev xwm	85 T
	Tag nrho qhov hnyav	100 T
Qhov Loj:	Sab nraud dimension	15000 * 3000 * 2950 hli (Qhov kawg qhov ntev nyob ntawm qhov kawg tsim cov duab kos)
Ncej:	Tsim / vuam tshuab	Heavy luag hauj lwm thiab ntxiv durability tsim; vuam los ntawm cov txheej txheem Submerged-Arc tsis siv neeg.
	Main beam	Opting rau siab zog Q345B steel, 520mm sib sib zog nqus welded I-section lub ntsiab kab teeb Sab saum toj Flange thickness 25mm, dav 140mm; Hauv qab Flange thickness 25mm, dav 140mm. Nruab nrab Flange thickness 14mm;
	Hla beam	Lub luag haujlwm hnyav tshwj xeeb U steel
	Sab beam	280mm siab kuv beam
	Pem teb	5 hli thickness checker phaj
	Tsheb kauj vab (ramp)	Tsis muaj tsheb kauj vab
OEM qhov chaw:	Qag	4 * 13T muaj peev xwm, FUWA hom (Suav hom zoo tshaj)
	King Pin	2.00''/3.5'' bolting huab tais tus pin, JOST hom
	Kev ncua	Heavy luag hauj lwm undermount ncua kev kawm ntawv nrog equalizers, American tsim (hom muaj zog)
	Hlau Caij nplooj ntoos hlav	10pcs nplooj hlav, 13mm thickness, 90mm dav
	tsaws ob txhais ceg	JOST hom, kev tuav haujlwm tsaws ceg nrog xuab zeb khau
	Tyre specs	11.00R20, Daim duab peb sab hom (Suav npe nrov)
	Rim	8.0(Suav npe nrov)
	Tus naj npawb ntawm lub log	13 daim (nrog rau ib lub log spare)
	Nres system	WABCO relay valve; Yim ob chav nres tsheb; Ob chav ntawm ISO standard coppery air-connector.
	ABS system	Tsis muaj (yuav xaiv tau dawb, 450 USD / teeb)
	Hluav taws xob:	Ib chav ntawm 24V 7-pin ISO 1185 qhov (socket); LED teeb
Lwm yam:	Kev pleev xim	xim qhia los ntawm cov neeg siv khoom
	Kos npe	Txuj
	Sab Guard	Txuj
	Spare Tyre Carriers	Ob txheej ntawm lub luag haujlwm hnyav spare log nqa
	Cov cuab yeej lub thawv	Ib daim (1. 00. 50. 5m), nyob rau hauv lub caj dab goose (nrog 1 lub log tsheb, 1 lub tes tsho gudgeon thiab 1 cranking bar)
Nco tseg: Tag nrho cov ntsiab lus tsis hais yuav tsim raws li qhov kev pom zoo zaum kawg nrog tus neeg siv khoom

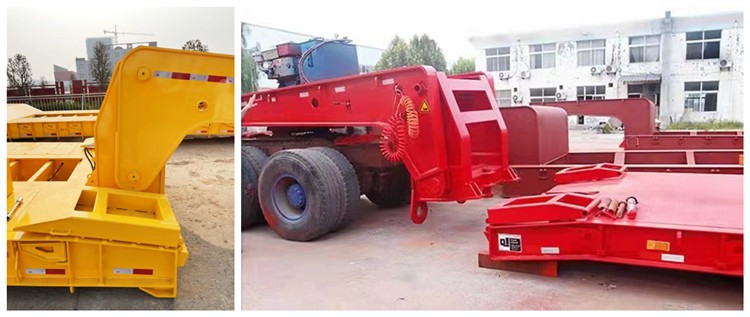

Feem ntau cov hydraulic qis txaj trailer yog ib qho tshwj xeeb trailer nrog hydraulic goose caj dab.

Qhov no hydraulic lowbed trailer nrog hnyav hnyav loading muaj peev xwm, siv rau nqa loj heev machinery nrog loj loj thiab hnyav hnyav, thiab tsis tuaj yeem nce lub rear ramp ntawm tus qauv lowbed trailer.

Qhov tshwj xeeb trailer no nrog rau pem hauv ntej loading hydraulic system, tom qab ntawd lub tshuab hnyav hnyav tuaj yeem nce mus rau lub lawj thauj khoom los ntawm sab xub ntiag tom qab lub caj dab goose yog detachable ntawm lub trailer.

2(001)

3(001)

initpintu_1

initpintu_2

Nyob rau hauv kev xav ntawm peb cov neeg muas zaub yog los ntawm txawv teb chaws, thiab lawv tsoom fwv muaj sib txawv txoj kev kev nyab xeeb txoj cai thiab cov kev cai, yog li cov specifications ntawm peb hydraulic lowbed trailer tshwj xeeb tshaj yog qhov loj thiab loading muaj peev xwm sib txawv, raws li cov chaw tsim tshuaj paus, peb muaj peev xwm tsim cov trailers raws li. cov kev xav tau sib txawv ntawm peb cov neeg siv khoom, rau txhua tus neeg siv khoom.

Thiab yog hais tias koj xav tau ib tug ntev loading lawj nrog txwv tag nrho ntev, ces

3 kab 6 axles hydraulic qis txaj trailer yog qhov kev xaiv zoo tshaj plaws, qhov no yog qhov tshwj xeeb hnyav hnyav trailer, nrog 24 lub log, thiab muaj zog heev.

6(001)

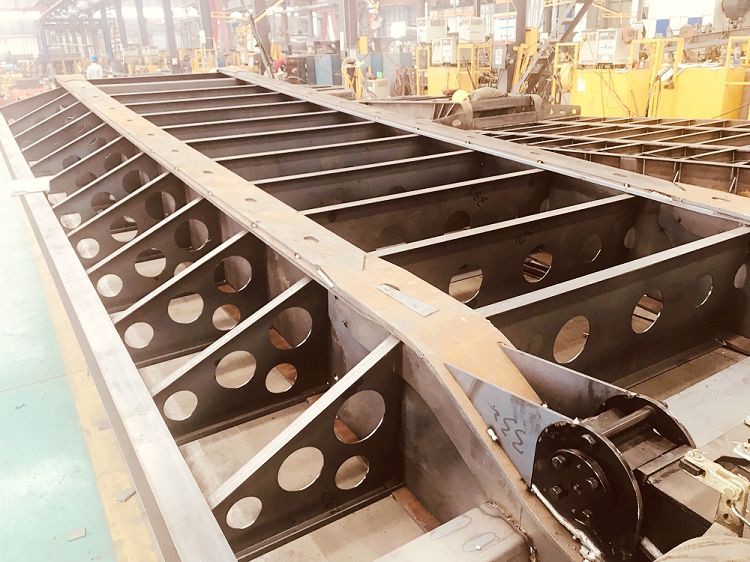

Peb cov engineers yuav tsim lub ntsiab nqaj nyob ntawm lub peev xwm thauj khoom uas muab los ntawm cov neeg siv khoom kawg, peb xaiv Q345B siab tensile steel nyob rau hauv ib tug thicken thickness, nrog tsis siv neeg Submerged-Arc vuam txheej txheem, kom paub tseeb tias lub gooseneck qis txaj trailer nrog ib tug muaj zog. loading lawj.

7(001)
