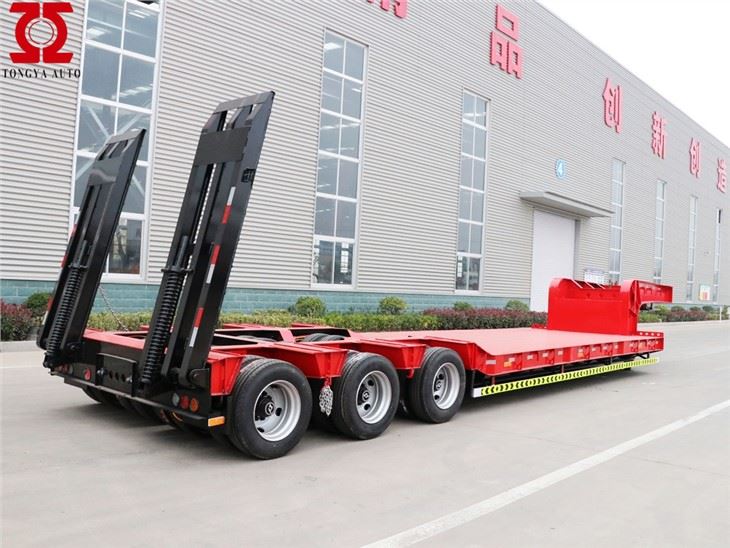

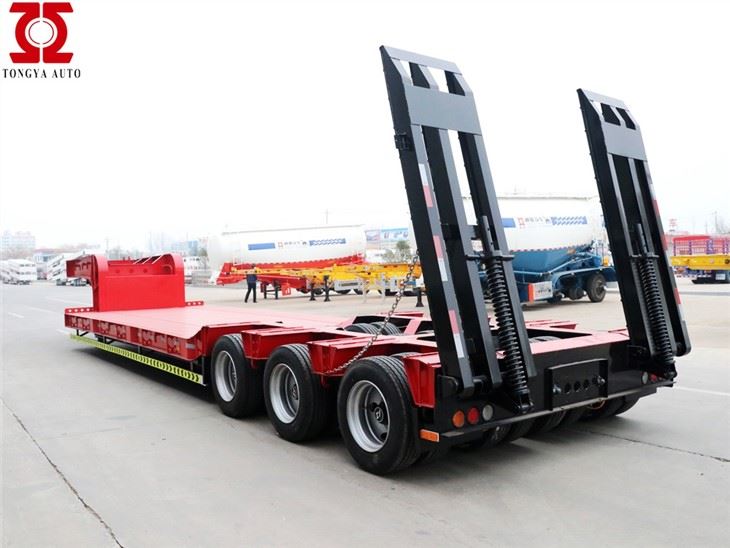

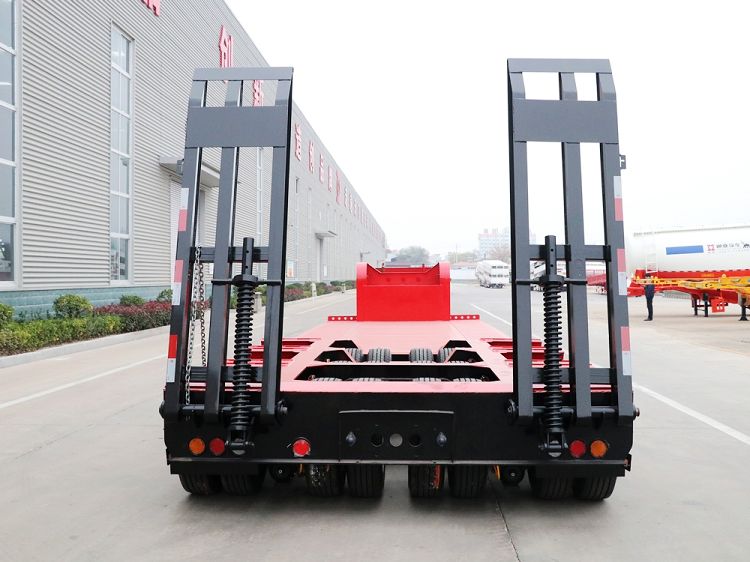

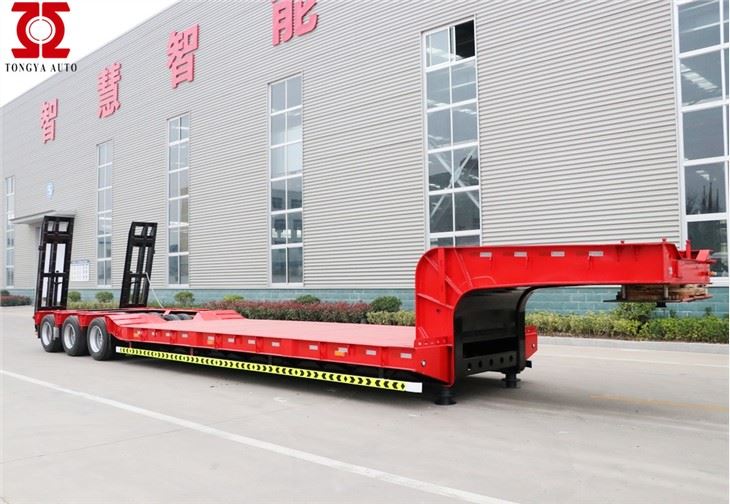

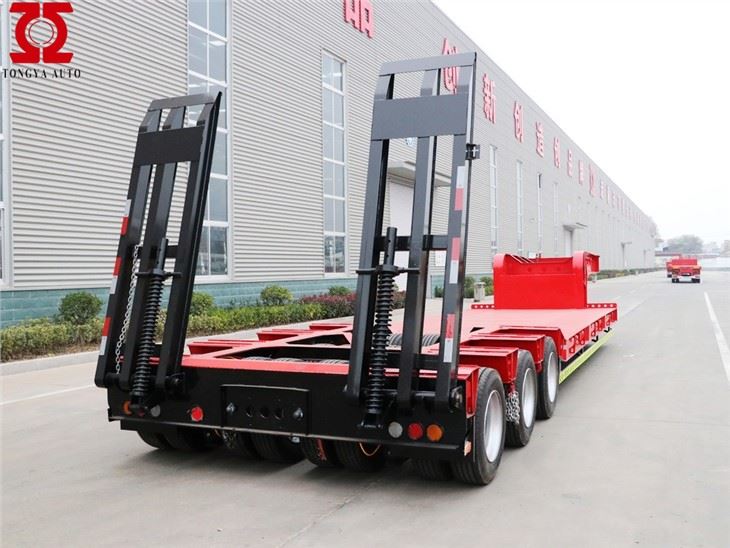

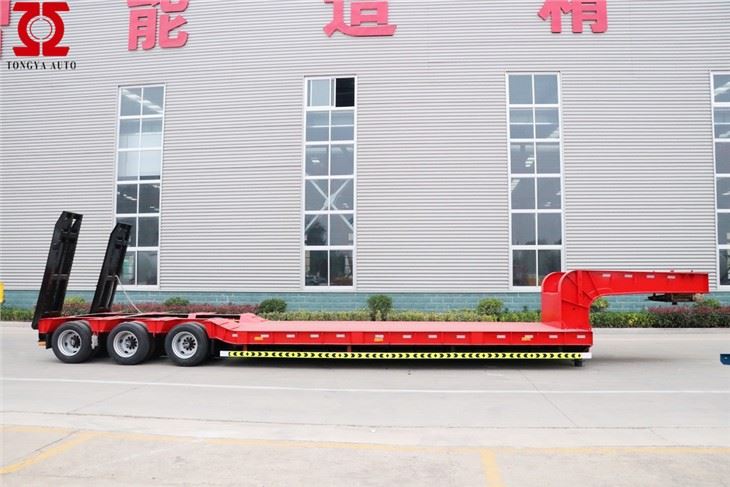

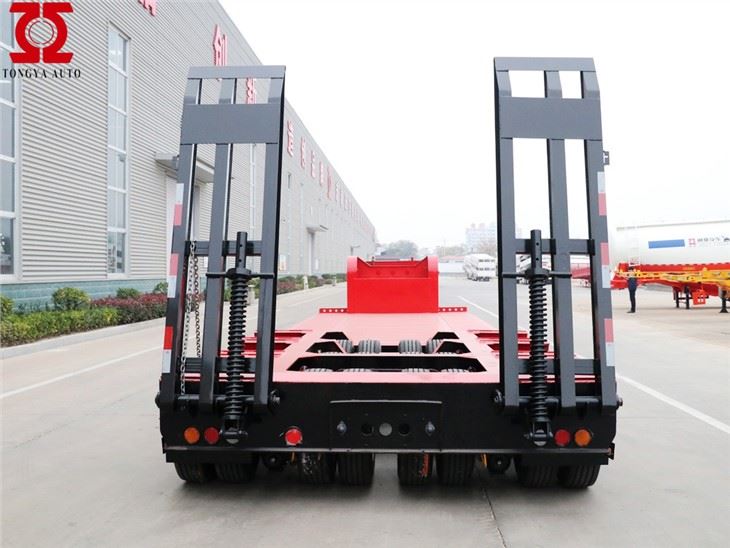

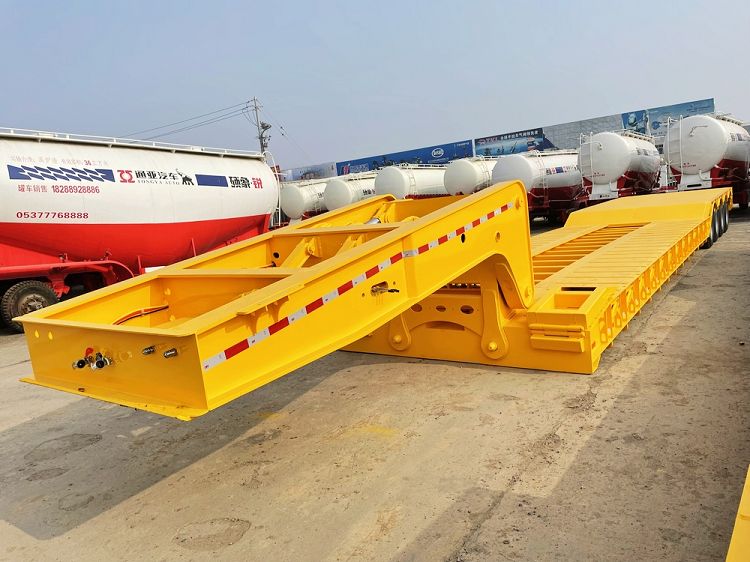

Heavy Duty Low Bed Trailer

Chaw thau khoom muaj peev xwm

90T

Tag nrho qhov hnyav

100.5 T

Qhov Loj:

Sab nraud dimension

16000 * 3200 * 2950 hli
(Qhov kawg qhov ntev nyob ntawm qhov kawg tsim cov duab kos)

Ncej:

Tsim / vuam tshuab

Heavy luag hauj lwm thiab ntxiv durability tsim;
vuam los ntawm cov txheej txheem Submerged-Arc tsis siv neeg.

Main beam

Opting rau siab zog Q345B steel,
520mm sib sib zog nqus welded I-section lub ntsiab kab teeb
Sab saum toj Flange thickness 25mm, dav 140mm;
Hauv qab Flange thickness 25mm, dav 140mm.
Nruab nrab Flange thickness 14mm;

Hla beam

Lub luag haujlwm hnyav tshwj xeeb U steel

Sab beam

250mm siab kuv beam

Pem teb

5 hli thickness checker phaj

Tsheb kauj vab (ramp)

Ob daim caij nplooj ntoos hlav steel ntaiv, (Q345B steel)

OEM qhov chaw:

Qag

3 kab 6 qag, 90T muaj peev xwm, TONGYA hom

King Pin

2.00''/3.5'' bolting huab tais tus pin, JOST hom

Kev ncua

Heavy luag hauj lwm ncua kev kawm ntawv nrog equalizers,
American tsim (hom muaj zog)

Hlau Caij nplooj ntoos hlav

Tsis muaj nplooj hlav

tsaws ob txhais ceg

JOST hom, kev tuav haujlwm tsaws ceg nrog xuab zeb khau

Tyre specs

10.00R20, Daim duab peb sab hom (Suav npe nrov)

Rim

7.5 (Suav npe nrov)

Tus naj npawb ntawm lub log

25 daim (nrog rau ib lub log spare)

Nres system

WABCO relay valve;
Rau ob chav thiab ob chav nres tsheb;
Ob chav ntawm ISO standard coppery air-connector.

ABS system

Tsis muaj (yuav xaiv tau dawb, 450 USD / teeb)

Hluav taws xob:

Ib chav ntawm 24V 7-pin ISO 1185 qhov (socket); LED teeb

　
　
　
Lwm yam:

Kev pleev xim

xim qhia los ntawm cov neeg siv khoom

Kos npe

Txuj

Sab Guard

Txuj

Spare Tyre Carriers

Ob txheej ntawm lub luag haujlwm hnyav spare log nqa

Cov cuab yeej lub thawv

Ib daim (1. 0*0. 5*0. 5m), nyob rau hauv lub caj dab goose
(nrog 1 lub log tsheb, 1 lub tes tsho gudgeon thiab 1 cranking bar)

Nco tseg: Tag nrho cov ntsiab lus tsis hais yuav tsim raws li qhov kev pom zoo zaum kawg nrog tus neeg siv khoom
