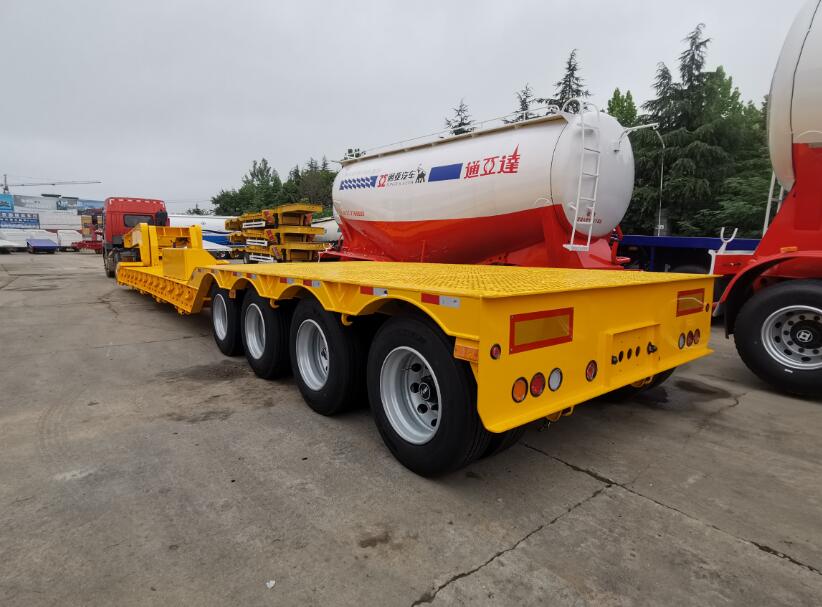

Detachable Gooseneck Lowbed Semi Trailer
Detachable gooseneck lowbed semi trailer yog dav siv nyob rau hauv hnyav machinery thiab khoom siv tam sim no, xws li excavator, txoj kev cov menyuam. Raws li feem ntau, cov tshuab no hnyav heev, yog tias nce trailer los ntawm tus ntaiv tom qab, nws yuav tsis ruaj khov thiab nyab xeeb. Lub tshuab tuaj yeem poob ntawm lub trailer, dab tsi ntxiv, tus ntaiv tom qab yuav tsis muaj zog txaus los nqa qhov hnyav ntawm lub tshuab.
Khoom Taw qhia
Khoom taw qhia
Detachale gooseneck lowbed semi trailer yog dav siv nyob rau hauv thauj excavator, tsheb nrau av, txoj kev cov menyuam thiab lwm yam
Lub peev xwm ntawm lub txaj qis semi trailer tuaj yeem tsim rau 60 tons, 70tons, 60tons lossis ntau dua
Lub gooseneck tuaj yeem detachable tuaj yeem ua haujlwm hauv txoj kev sib txawv thiab huab cua
Khoom piav qhia
Detachable gooseneck lowbed semi trailer yog dav siv nyob rau hauv hnyav machinery thiab khoom siv tam sim no, xws li excavator, txoj kev cov menyuam. Raws li feem ntau, cov tshuab no hnyav heev, yog tias nce trailer los ntawm tus ntaiv tom qab, nws yuav tsis ruaj khov thiab nyab xeeb. Lub tshuab tuaj yeem poob ntawm lub trailer, dab tsi ntxiv, tus ntaiv tom qab yuav tsis muaj zog txaus los nqa qhov hnyav ntawm lub tshuab. Lub Detachable tuaj yeem daws cov lus nug no zoo kawg nkaus. Raws li lub gooseneck tuaj yeem detachable, thaum lub tshuab hnyav nce tsheb thauj mus los ntawm lub hauv ntej ntawm trailer, pem hauv ntej ntawm trailer tuaj yeem txo qis mus rau hauv av, thiab tom qab ntawd nce siab thaum lub tshuab ncav cuag cov phaj ua haujlwm los ntawm hydraulic lub tog raj kheej.Dab tsi ntxiv, lub detachable gooseneck lowbed semi trailer tuaj yeem ua kev cai ua raws li cov neeg siv khoom xav tau, qhov ntev, qhov dav thiab qhov siab ntawm cov phaj ua haujlwm yuav ua raws li cov khoom siv thauj khoom. Yog li no hom qis txaj semi trailer yog nrov heev nrog cov neeg siv khoom tam sim no.
Specifications
|
Qhov hnyav: |
Tare luj |
13 T |
|
Chaw thau khoom muaj peev xwm |
70 T |
|
|
Qhov Loj: |
Sab nraud dimension |
15000 * 3000 * 1700 hli |
|
Ncej: |
Tsim / vuam tshuab |
Heavy luag hauj lwm thiab ntxiv durability tsim; |
|
Main beam |
Opting rau siab zog Q345B steel, |
|
|
Hla beam |
Lub luag haujlwm hnyav tshwj xeeb U steel |
|
|
Sab beam |
20 # channel steel, tuab hom |
|
|
Pem teb |
5 hli thickness checkered phaj |
|
|
Tsheb kauj vab (ramp) |
Tsis muaj tsheb kauj vab |
|
|
OEM qhov chaw:
|
Qag |
4 * 13T muaj peev xwm, FUWA hom |
|
King Pin |
3.5 '' bolting huab tais tus pin, JOST hom |
|
|
Kev ncua |
American design (siab zog hom) |
|
|
Hlau Caij nplooj ntoos hlav |
10pcs nplooj hlav, 13mm thickness, 90mm dav |
|
|
tsaws ob txhais ceg |
JOST hom, kev tuav haujlwm tsaws ceg nrog xuab zeb khau |
|
|
Tyre specs |
11.00R20, Daim duab peb sab hom |
|
|
Rim |
8.0-20 |
|
|
Tus naj npawb ntawm lub log |
17 daim (nrog rau ib lub log spare) |
|
|
Nres system |
WABCO relay valve; |
|
|
Hluav taws xob: |
Ib chav ntawm 24V 7-pin ISO 1185 qhov (socket); LED teeb |
|
|
|
Kev pleev xim |
xim qhia los ntawm cov neeg siv khoom |
|
Kos npe |
Txuj |
|
|
Sab Guard |
Txuj |
|
|
Spare Tyre Carriers |
Ob txheej ntawm lub luag haujlwm hnyav spare log nqa |
|
|
Cov cuab yeej thawv |
Ib thooj (1. 0*0. 5*0. 5m), nyob rau hauv lub caj dab goose (nrog cov cuab yeej tsim nyog hauv) |

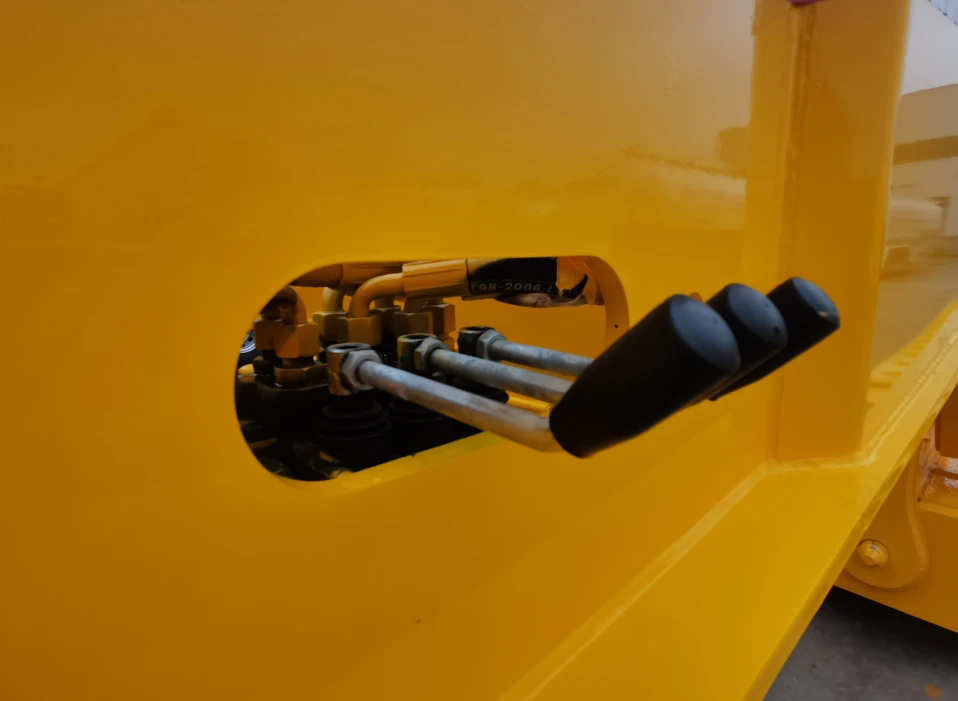

Cov no yog hydraulic goose caj dab, nrog hydraulic lub tog raj kheej thiab kev khiav hauj lwm kov. Gooseneck tuaj yeem raug tshem tawm, thiab lub trailer tuaj yeem nce thiab nqis tau yooj yim
Cim npe nrov: detachable gooseneck lowbed semi trailer, Tuam Tshoj detachable gooseneck lowbed semi trailer manufacturers, lwm tus neeg
