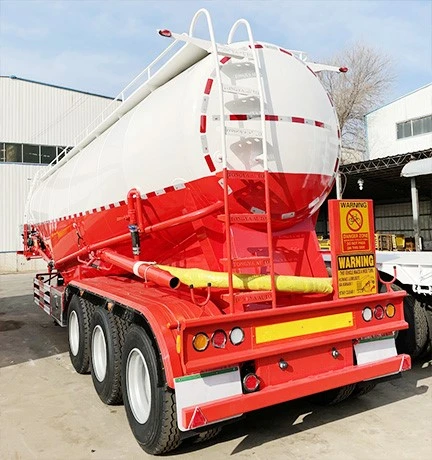

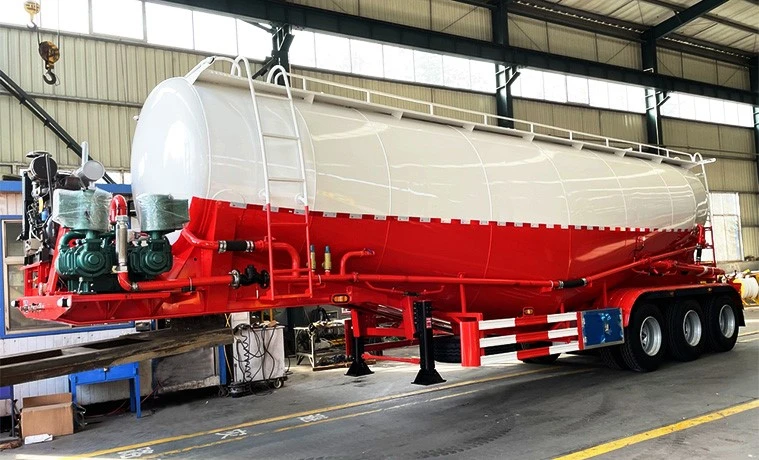

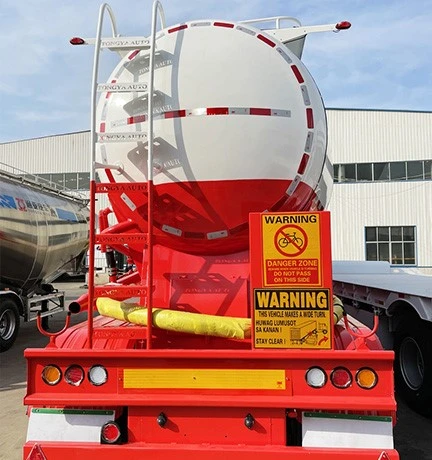

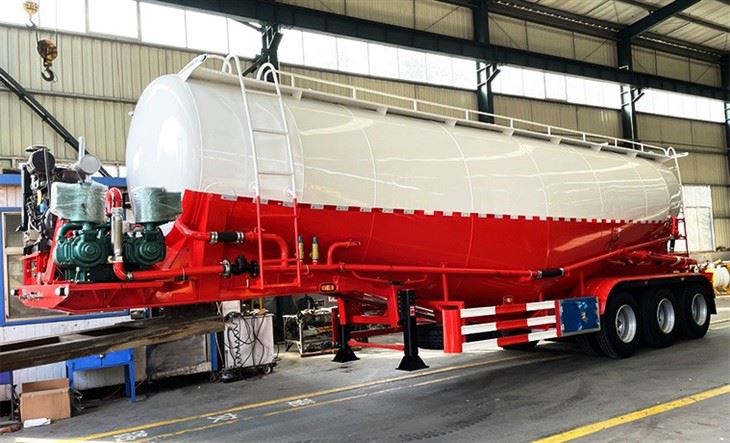

Tuam Tshoj Tsim TONGYA Tej Cemen Tank Semi Trailer

Qhov hnyav:

Tare luj

9.5 T

Chaw thau khoom muaj peev xwm

45 T

Tag nrho qhov hnyav

54.5 T

Qhov ntev:

Dimension

11400 × 2500 * 3800mm (Qhov kawg qhov ntev nyob ntawm qhov kawg tsim kos duab)

Tanker muaj peev xwm

45m3 (45000L)

Tanker lub cev:

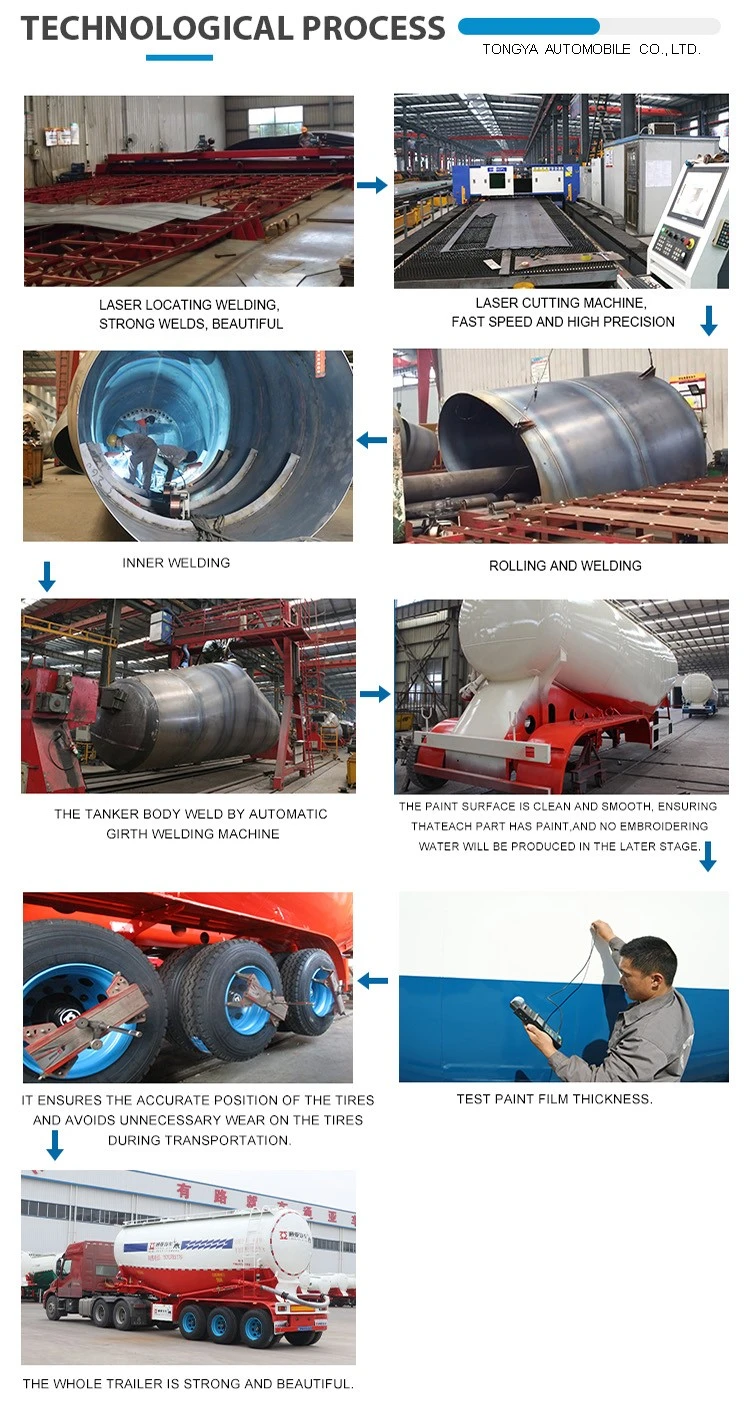

Tsim / vuam tshuab

Heavy luag hauj lwm thiab ntxiv durability tsim;

vuam los ntawm cov txheej txheem Submerged-Arc tsis siv neeg.

Tanker lub cev

Lub tanker lub cev ua los ntawm 5 hli, tanker kawg ua los ntawm 6 hli thickness steel, Q235 steel

Hauv qab chassis

Siab zog Q345B steel

Tanker puab

"V" shape

Silo

1 silo

Manhole:

3 daim, (inch yog 500mm)

Tshem lub qhov ncauj

4 nti tawm qhov ncauj

Kev nyab xeeb siab valve

Txuj

Tshem tawm hose

8m nrog Hose nqa, qhov ntev yog raws li cov neeg siv khoom xav tau

Cua compressor

12m3 ob-lub tog raj kheej cua compressor, Bohai hom

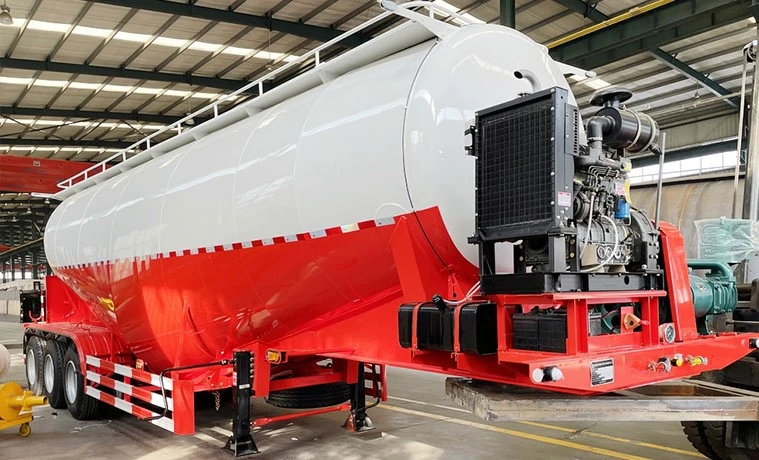

Cav

Diesel Cav, Weichai 4102 cav

Tsheb kauj vab thiab tes tuav

Txuj

Khaws ntim ntim

<0.3%

OEM qhov chaw:

Qag

3 * 13 tons muaj peev xwm, FUWA hom (Suav zoo tshaj hom)

King Pin

2.00 /3.5 nti, bolting huab tais tus pin, JOST hom

Kev ncua

Heavy luag hauj lwm ncua kev kawm ntawv nrog equalizers, American tsim (high-strength hom)

Hlau Caij nplooj ntoos hlav

Rau 10pcs nplooj hlav, 16mm thickness, 90mm dav

tsaws ob txhais ceg

JOST hom, kev tuav haujlwm tsaws ceg nrog xuab zeb khau

Tyre specs

12R22.5, Daim duab peb sab hom

Rim

9.0

Tus lejntawmlub log

13 daim (nrog rau ib lub log spare)

Nres system

WABCO relay valve;

Plaub ob chav thiab ob chav nres tsheb;

Ib chav tsev ntawm kev ntseeg siab hauv zos hom 45L cua tank;

Ob chav nyob ntawm cov khoom lag luam txhim khu kev qha hauv zos tus qauv coppery air-connector.

ABS system

Tsis muaj (yuav xaiv tau dawb, 450 USD / teeb)

Hluav taws xob:

Ib chav ntawm 24V 7-pin ISO 1185 qhov (socket); LED teeb

(standard rear teeb, tig lub teeb, rear reflector, sab teeb, sab reflector thiab lwm yam.)

Lwm yam:

Kev pleev xim

xim qhia los ntawm cov neeg siv khoom

Kos npe

Txuj

Sab Guard

Txuj

spare log carrier

Ob txheej ntawm lub luag haujlwm hnyav spare log nqa, nrog rau riser.

Cov cuab yeej thawv

Ib daim (1. 0*{2}}. 5*{4}}. 5m)

(nrog 1 lub log tsheb spanner, 1 lub tes tsho gudgeon thiab 1 cranking bar)

Nco tseg: Tag nrho cov ntsiab lus tsis tau haisyuav tsim raws li qhov kawg kev pom zoo nrog tus neeg siv khoom
