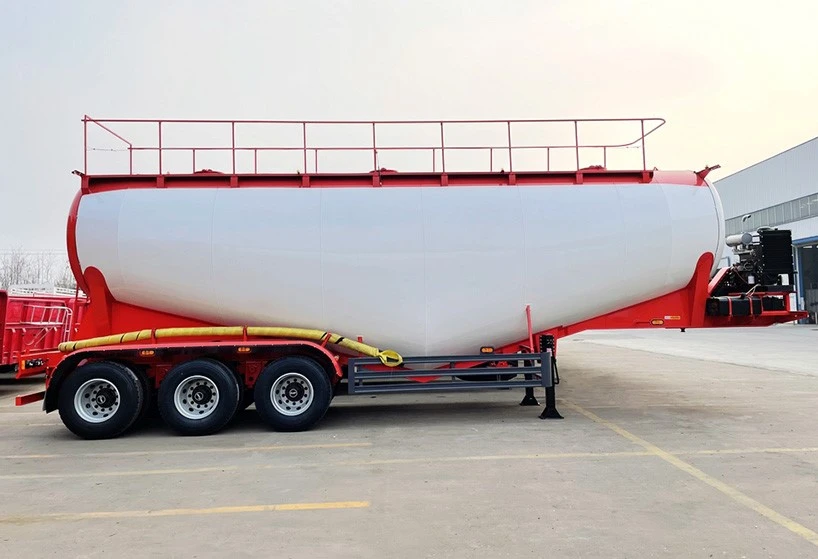

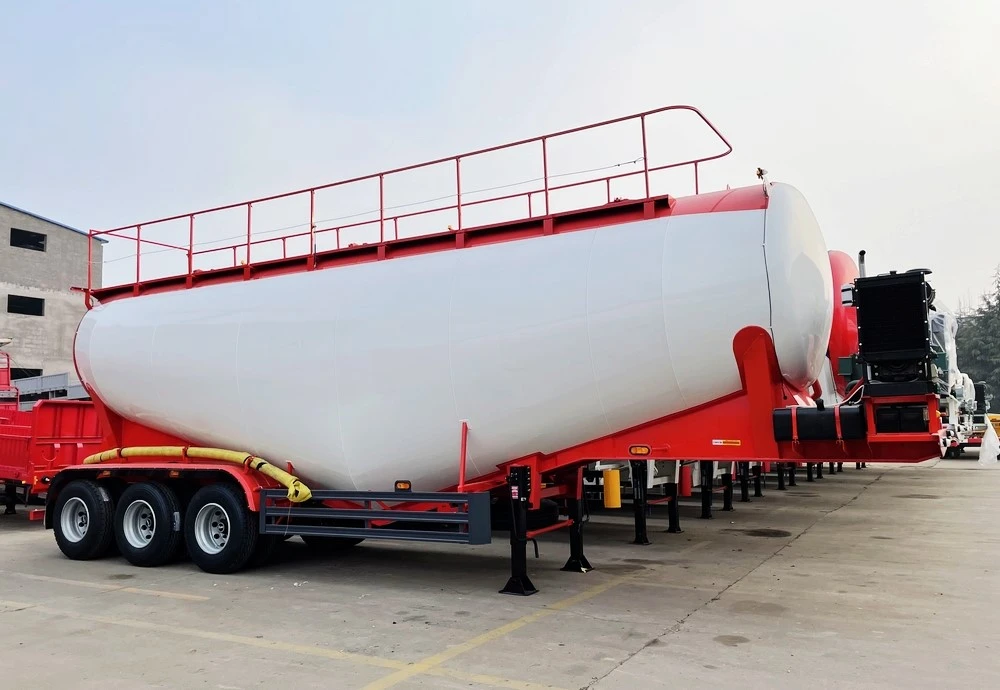

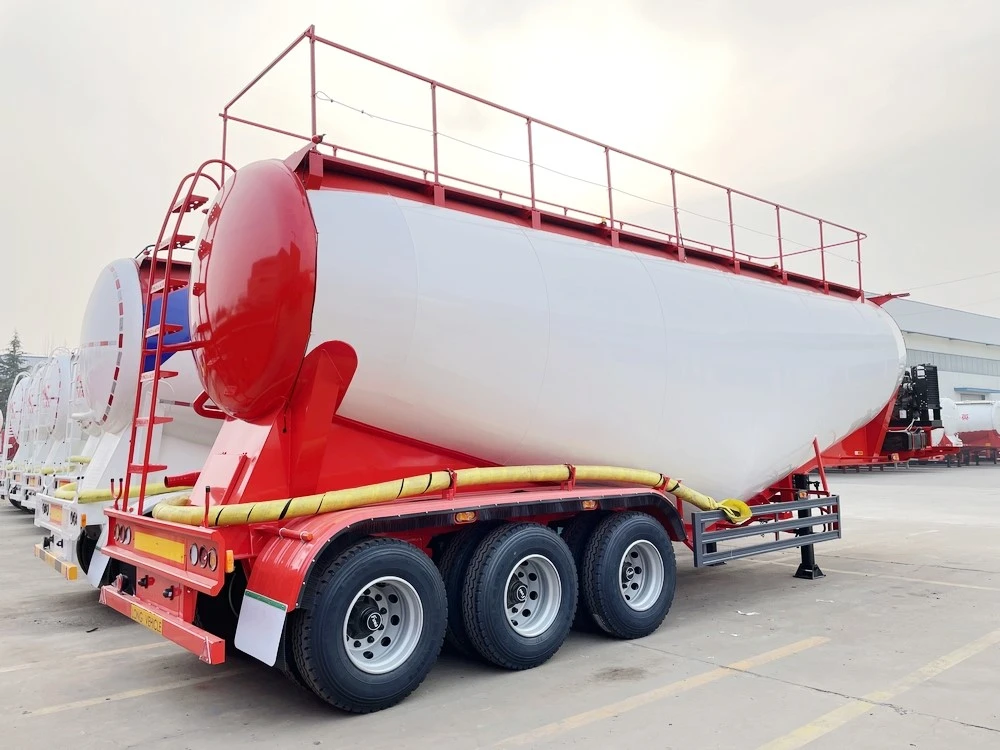

Kub Muag Tuam Tshoj Hom TONGYA Qhuav Bulk Cement Tank Semi Trailer Nrog Zoo
1.transport bulk cement, thee tshauv, txiv qaub hmoov, ntxhia hmoov, thiab lwm yam, 2.customization yog txais rau tanker muaj peev xwm thiab style.3.Tuam Tshoj ua chaw tsim tshuaj paus txij li thaum 1982, sab saum toj 1 muag nyob rau hauv Tuam Tshoj ua lag luam txij li thaum 2012.4.fast tawm,<0.3% retention volume, 18 days delivery time. 5.engine and compressor is available, PTO via truck tractor optional.
Khoom Taw qhia
Kub Muag Tuam Tshoj Hom TONGYA Qhuav Bulk Cement Tank Semi Trailer Nrog Zoo
|
Qhov hnyav: |
Tare luj |
11T |
|
|
Chaw thau khoom muaj peev xwm |
60 T |
|
|
Tag nrho qhov hnyav |
71T |
|
Qhov ntev: |
Dimension |
11700 × 2500 * 3900mm (Qhov kawg qhov ntev nyob ntawm qhov kawg tsim kos duab) |
|
|
Tanker muaj peev xwm |
50m3 (50000L) |
|
Tanker lub cev: |
Tsim / vuam tshuab |
Heavy luag hauj lwm thiab ntxiv durability tsim; vuam los ntawm cov txheej txheem Submerged-Arc tsis siv neeg. |
|
|
Tanker lub cev |
Lub tanker lub cev ua los ntawm 5 hli, tanker kawg ua los ntawm 6 hli thickness steel, Q235 steel |
|
|
Hauv qab chassis |
Siab zog Q345B steel |
|
|
Tanker puab |
"V" shape |
|
|
Silo |
1 silo |
|
|
Manhole: |
3 daim, (inch yog 500mm) |
|
|
Tshem lub qhov ncauj |
4 nti tawm qhov ncauj |
|
|
Kev nyab xeeb siab valve |
Txuj |
|
|
Tshem tawm hose |
8m nrog Hose nqa, qhov ntev yog raws li cov neeg siv khoom xav tau |
|
|
Cua compressor |
12m3 ob-lub tog raj kheej cua compressor, Bohai hom |
|
|
Cav |
Diesel Cav, Weichai 4102 cav |
|
|
Tsheb kauj vab thiab tes tuav |
Txuj |
|
|
Khaws ntim ntim |
<0.3% |
|
OEM qhov chaw: |
Qag |
3 * 13 tons muaj peev xwm, FUWA hom (Suav zoo tshaj hom) |
|
|
King Pin |
2.00 /3.5 nti, bolting huab tais tus pin, JOST hom |
|
|
Kev ncua |
Heavy luag hauj lwm ncua kev kawm ntawv nrog equalizers, American tsim (high-strength hom) |
|
|
Hlau Caij nplooj ntoos hlav |
Rau 10pcs nplooj hlav, 16mm thickness, 90mm dav |
|
|
tsaws ob txhais ceg |
JOST A300C los yog TONGYA 28T |
|
|
Tyre specs |
12R22.5, Daim duab peb sab hom |
|
|
Rim |
9.0 |
|
|
Tus lejntawmlub log |
13 daim (nrog rau ib lub log spare) |
|
|
Nres system |
WABCO relay valve; Plaub ob chav thiab ob chav nres tsheb; Ib chav tsev ntawm kev ntseeg siab hauv zos hom 45L cua tank; Ob chav nyob ntawm cov khoom lag luam txhim khu kev qha hauv zos tus qauv coppery air-connector. |
|
|
ABS system |
Tsis muaj (yuav xaiv tau dawb, 450 USD / teeb) |
|
|
Hluav taws xob: |
Ib chav ntawm 24V 7-pin ISO 1185 qhov (socket); LED teeb (standard rear teeb, tig lub teeb, rear reflector, sab teeb, sab reflector thiab lwm yam.) |
|
Lwm yam: |
Kev pleev xim |
xim qhia los ntawm cov neeg siv khoom |
|
|
Kos npe |
Txuj |
|
|
Sab Guard |
Txuj |
|
|
spare log carrier |
Ob txheej ntawm lub luag haujlwm hnyav spare log nqa, nrog rau riser. |
|
|
Cov cuab yeej thawv |
Ib daim (1. 0*{2}}. 5*{4}}. 5m) (nrog 1 lub log tsheb spanner, 1 lub tes tsho gudgeon thiab 1 cranking bar) |
|
Nco tseg: Tag nrho cov ntsiab lus tsis tau haisyuav tsim raws li qhov kawg kev pom zoo nrog tus neeg siv khoom |
||
Xa lus nug Hu rau tus neeg muag khoom Rau Cov Kev Pabcuam Tshwj Xeeb Thiab Tus Nqi Zoo Tshaj.
Peb yog Hoobkas tsim, txais tos koj tuaj xyuas peb lub Hoobkas.
