Tuam Tshoj 60000litres Roj Tank Truck Trailer Chaw tsim tshuaj paus
1.Peb yog cov chaw tsim khoom, Raws li cov neeg siv khoom xav tau, peb tuaj yeem kho cov ntim sib txawv thiab cov khoom sib txawv.2. Peb lub cev tanker yog longitudinally welded. Xyuas kom muaj kev nyab xeeb ntawm lub tanker thiab ua kom lub neej ua haujlwm.3. Peb txais yuav cov khoom lag luam nto moo rau peb lub tank trailer, nws txuag nqi & xyuas kom muaj kev pabcuam ntev.
Khoom Taw qhia

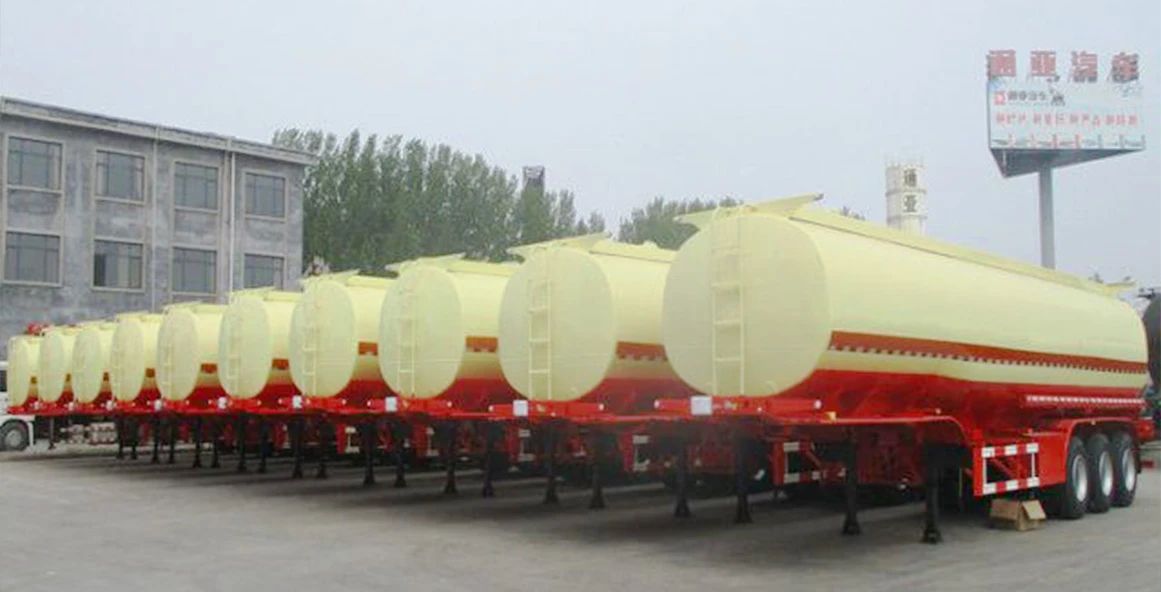

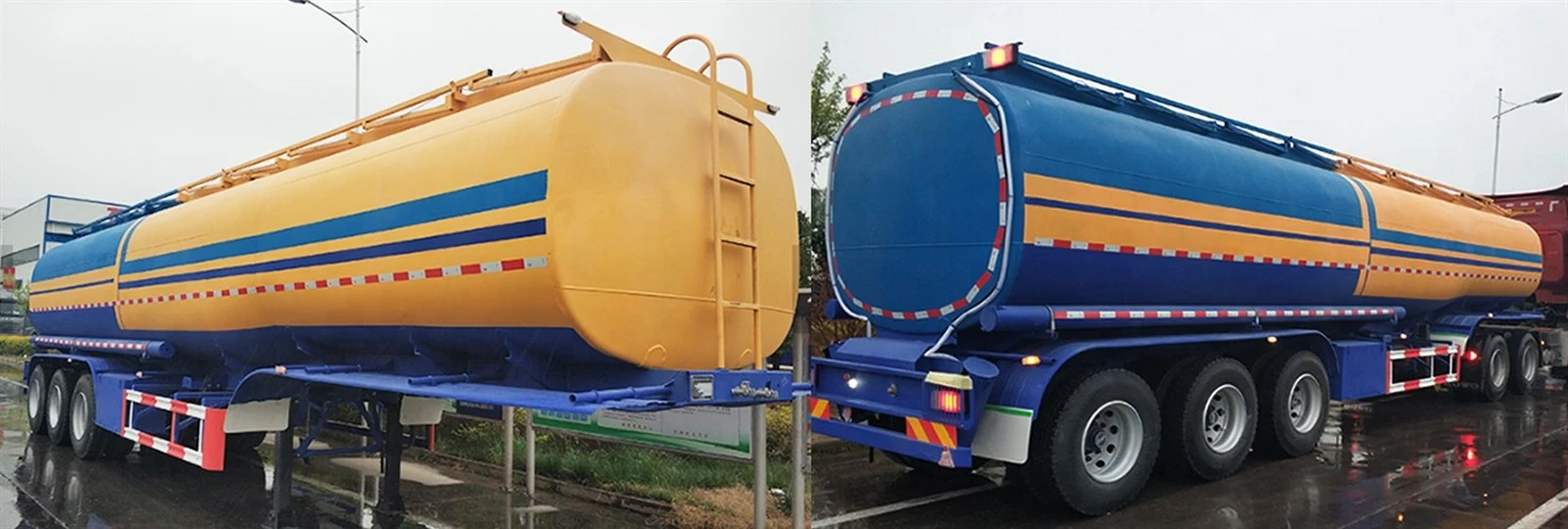

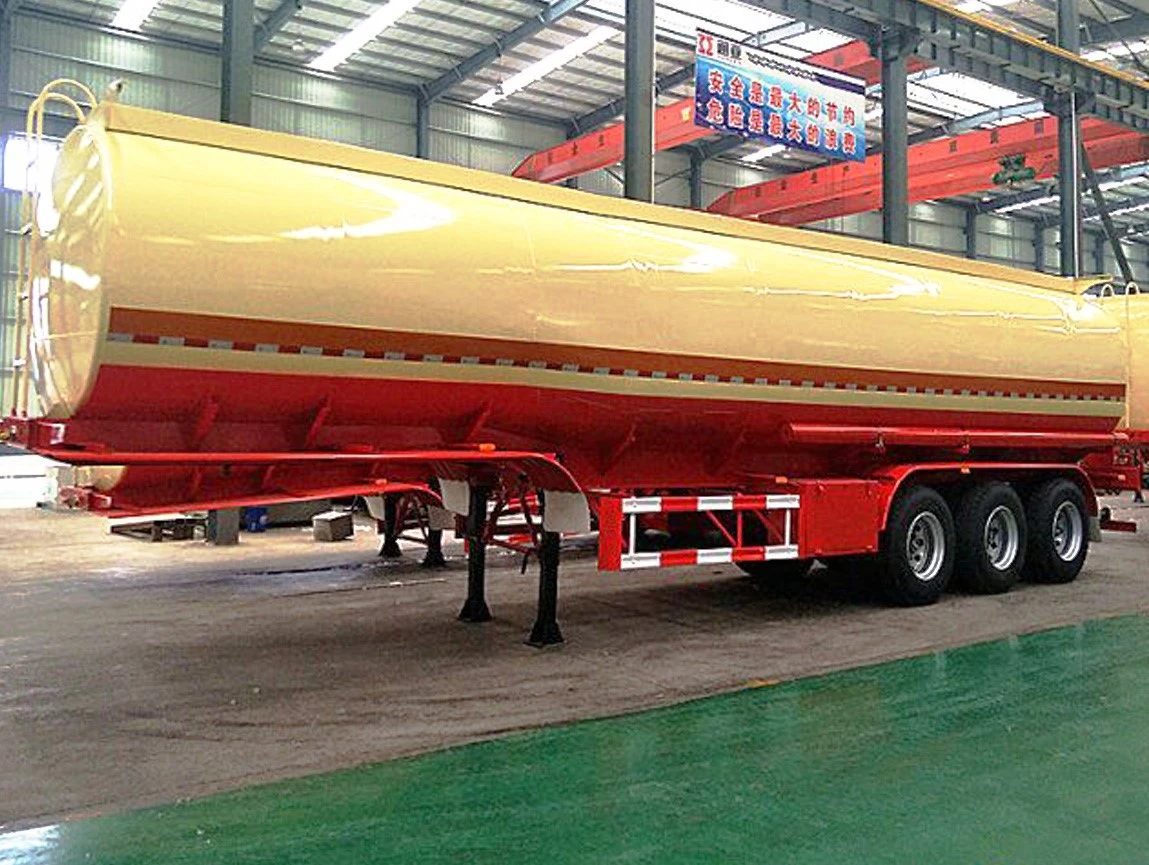

Tuam Tshoj60000 litres roj tank tsheb trailertsim tawm
Thov rau thauj roj, JET A-1, Dej, kua tshuaj, Crude roj, roj zaub mov thiab lwm yam yog dav siv nyob rau hauv roj depot, petrol chaw nres tsheb, roj teb, tshuaj Hoobkas, khoom noj roj Hoobkas, bitumen Hoobkas thiab lwm yam.Loading muaj peev xwm nruab nrab ntawm 20.000 ltr txog 57.000 ltr rau 3 qag roj tanker semi-trailer. Cov khoom ntim tuaj yeem npaj tau raws li cov neeg siv khoom thov ntawm 3 qag roj tanker semi-trailer.
Tank seem style: Lub voj voog zoo meej; oval; Rectangular voj voog
Tank lub cev style: Ncaj style; Goose-caj dab style; tag nrho trailer style; V-hom tsis muaj stringer style thiab lwm yam.
Tuam Tshoj60000 litres roj tank tsheb trailerspecification:
|
Cov ntaub ntawv yooj yim |
||
|
Qhov loj me |
13500x2500x3780mm |
|
|
Design Capacity (tag nrho) |
60000L |
|
|
Qhov hnyav (± 3%) |
13000KG |
|
|
Hom |
Tri-axle semi-trailer |
|
|
Coupling qhov siab |
Qhov siab 1320mm |
|
|
Tank sib dhos |
||
|
Chav tsev |
xaiv tau |
|
|
Pem hauv ntej / rear kawg phaj |
Khoom siv |
Cov pa roj carbon steel |
|
Pem hauv ntej / rear kawg phaj |
tuab |
6mm ib |
|
Tank lub cev (nrog insulating txheej) |
Khoom siv |
Cov pa roj carbon steel |
|
Thickness |
5mm ua |
|
|
Wave-proof phaj thickness |
4mm ib |
|
|
Manhole cover |
Txoj kab uas hla |
500 hli |
|
Khoom siv |
Hoobkas txheem |
|
|
Tus lej |
2-6pcs (yeem) |
|
|

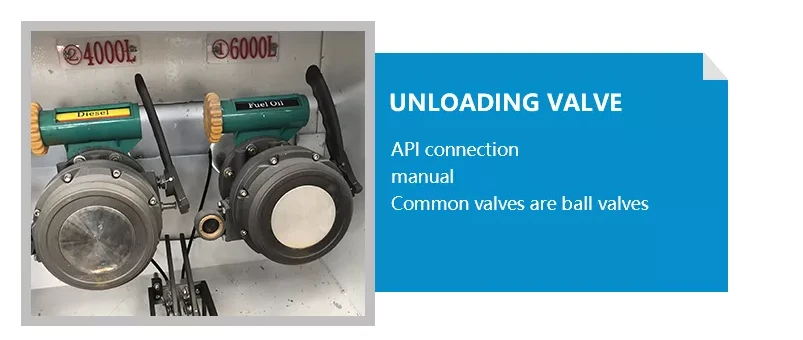

Tshem tawm valve |
Txoj kab uas hla |
3 nti |
|
Khoom siv |
Aluminium Alloy API Valve |
|
|
Tus lej |
2-6 pcs (yeem) |
|
|
Hauv qab kev nyab xeeb valve |
Aluminium Alloy4 nti |
|
|
Cov yeeb nkab tawm |
Txoj kab uas hla |
3 nti |
|
Hom |
Roj hmab hose, 2pcs |
|
|
Cat taug kev |
Txuj |
|
|
CHASSIS
|
||
|

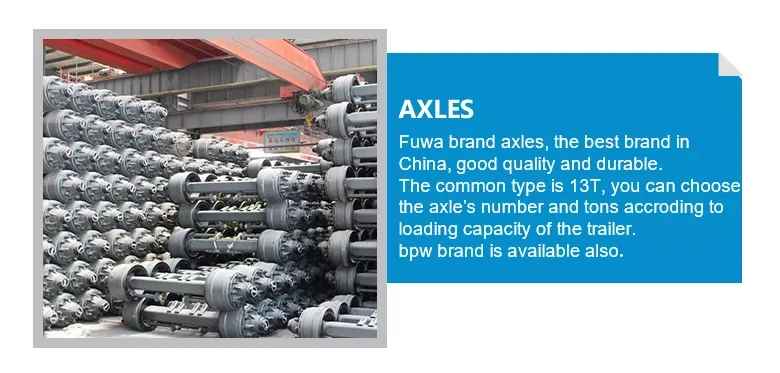

Qag |
Hom |
Fuwa |
|
Hom |
13t |
|
|
Tus lej |
3 pcs |
|
|
Rim |
Hom |
9.0-22.5 |
|
Tus lej |
/ 12 pcs |
|
|
Lub log |
Hom |
Daim duab peb sab hom |
|
Hom |
12R22.5 |
|
|
Tus lej |
12 pcs |
|
|

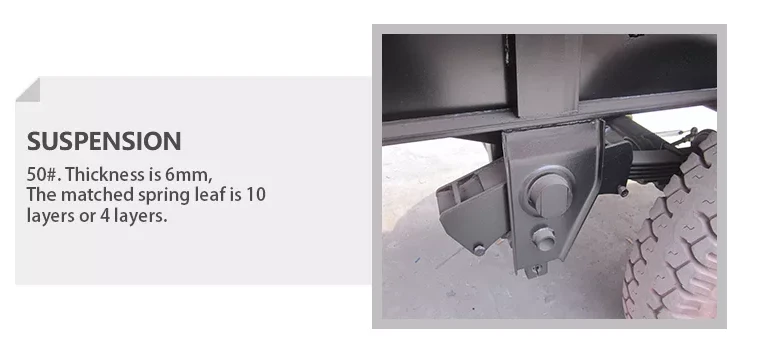

Kev ncua |
Mechaniacal suspension / cua ncua kev kawm ntawvtuaj yeem xaiv tau |
|
|
Nplooj nplooj |
Nplooj dav |
90mm ua |
|
Nplooj tuab |
13 hli |
|
|
Txheej / txheej |
10 Txheej |
|
|
King pin |
Hom |
Bolts hom |
|
Txoj kab uas hla |
2 nti |
|
|
Nres system |
Cua tank |
45L cua tso tsheb hlau luam |
|
Nres chamber |
WABCO RE6 relay valve; T30/30+T30 Caij nplooj ntoos hlav nres chamber |
|
|
ABS |
xaiv tau |
|
|

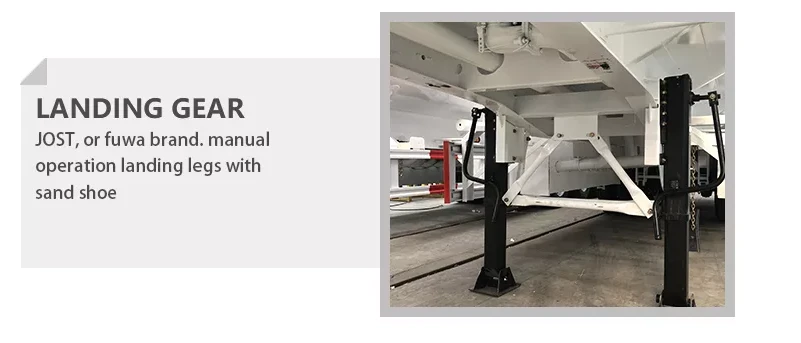

tsaws iav |
Hom |
JOST |
|
Hom |
E100 |
|
60000litres roj tank tsheb trailer accessories:
Cov khoom siv roj tank muaj xws li Euro tus qauv manhole npog, API adapter valve, Lub ntiajteb txawj nqus poob coupler, plua plav hau; hauv qab valve, Vapor vent valve; vapor adapter valve; vapor rov ua ke; optic sensor, optic socket, optic sensor tester; roj kwv yees. tank lub cev ntawm lub tank trailer yog haum nrog corrugated reinforced yoj tus neeg zov txhua 2m. Thaum cov brakes tau thov thaum lub tank ntim cov roj tag nrho, cov yoj tiv thaiv tuaj yeem txo qhov cuam tshuam ntawm cov roj ntawm lub tank lub cev thiab ua lub luag haujlwm tiv thaiv kev nyab xeeb. Tag nrho lub cev lub cev yog tag nrho tsis siv neeg thiab seamlessly welded, 100% dhau qhov kev soj ntsuam nruj xws li kev nkag mus rau cov kua, kev ntsuas huab cua thiab qhov tsis zoo, lub tanker semi-trailer muaj kev nyab xeeb dua rau kev khiav thiab qhov zoo yog lav.
