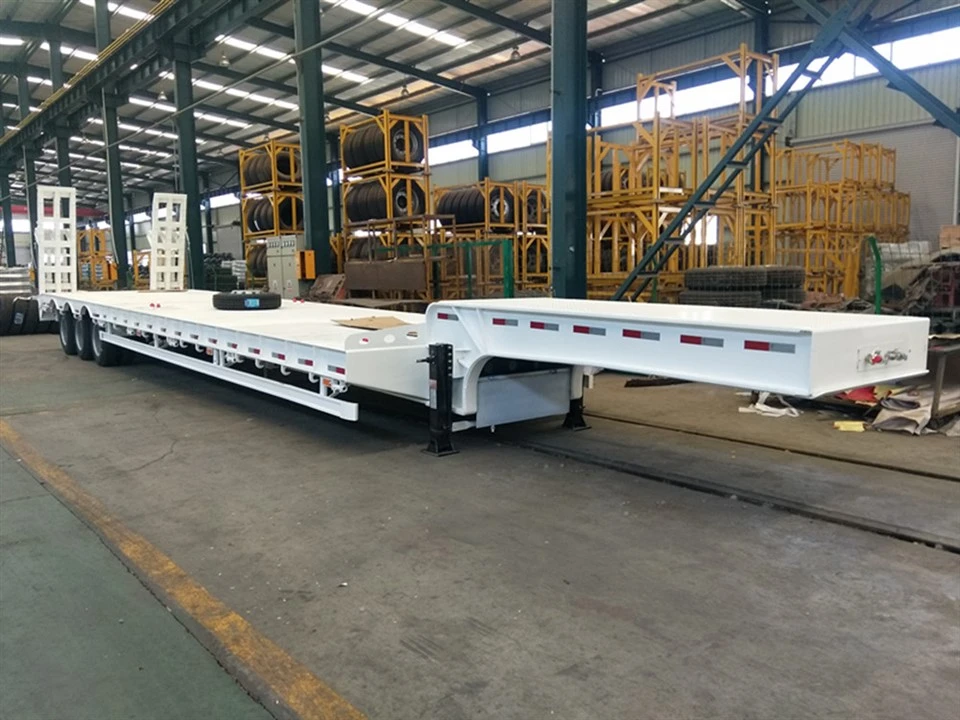

Heavy Duty Low Bed Semi Trailer
Lub luag haujlwm hnyav qis txaj semi trailer feem ntau yog siv los thauj cov tshuab hnyav thiab cov cuab yeej tshwj xeeb, xws li excavator, txoj kev cov menyuam, crane, cua turbine hniav thiab lwm yam. Cov khoom no hnyav thiab tsis yooj yim txav mus los, yog li lawv yuav tsum thauj los ntawm lub luag haujlwm hnyav qis txaj semi trailer.
Khoom Taw qhia
Khoom taw qhia
Muaj peev xwm ua tau raws li cov neeg siv khoom xav tau
Tsawg txaj semi trailer yog dav siv hauv kev thauj khoom hnyav thiab khoom siv.
Qhov ntev thiab dav tuaj yeem ua raws li kev cai tuaj yeem ua haujlwm nyob rau hauv txoj kev sib txawv thiab huab cua
Khoom piav qhia
Lub luag haujlwm hnyav qis txaj semi trailer feem ntau yog siv los thauj cov tshuab hnyav thiab cov cuab yeej tshwj xeeb, xws li excavator, txoj kev cov menyuam, crane, cua turbine hniav thiab lwm yam. Cov khoom no hnyav thiab tsis yooj yim txav mus los, yog li lawv yuav tsum thauj los ntawm lub luag haujlwm hnyav qis txaj semi trailer. Lub luag haujlwm hnyav qis txaj semi trailer yog tsim los nrog qhov chaw qis heev ntawm lub ntiajteb txawj nqus. yog li txawm tias thauj cov tshuab hnyav, lub trailer kuj tuaj yeem ruaj khov heev thaum khiav. Dhau li ntawd, lub semi trailer txuas mus rau lub tsheb laij teb siv huab tais tus pin, muaj ob hom huab tais tus pin, 2.0inch thiab 3.5inch, nws nyob ntawm seb hom tsib lub log ntawm tsheb laij teb. Dab tsi ntxiv, ua ntej tsim lub trailer, peb yuav tsum paub qee cov ntaub ntawv ntawm lub tsheb laij teb, xws li qhov siab ntawm tsib lub log, pem hauv ntej tig lub voj voog thiab lub voj voog tig rov qab. Yog li peb tuaj yeem tsim qhov ntev ntawm gooseneck, kom paub tseeb tias lub gooseneck ntawm lub trailer yuav tsis kov lub tsheb laij teb thaum nws tig.
Specifications
|
Qhov hnyav: |
Tare luj |
13 T |
|
Chaw thau khoom muaj peev xwm |
60 T |
|
|
Qhov Loj: |
Sab nraud dimension |
15500 * 3000 * 1700 hli |
|
Ncej: |
Tsim / vuam tshuab |
Heavy luag hauj lwm thiab ntxiv durability tsim; |
|

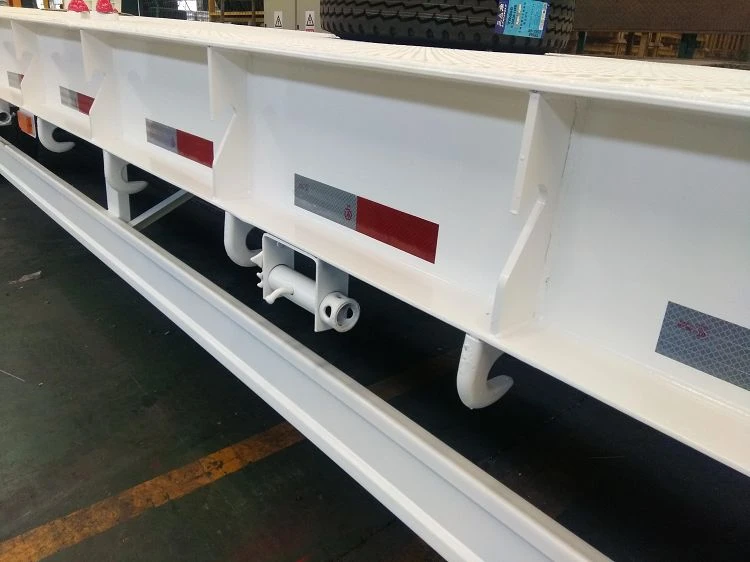

Main beam |
Opting rau siab zog Q345B steel, |
|
|
Hla beam |
Lub luag haujlwm hnyav tshwj xeeb U steel |
|
|
Sab beam |
20 # channel steel, tuab hom |
|
|

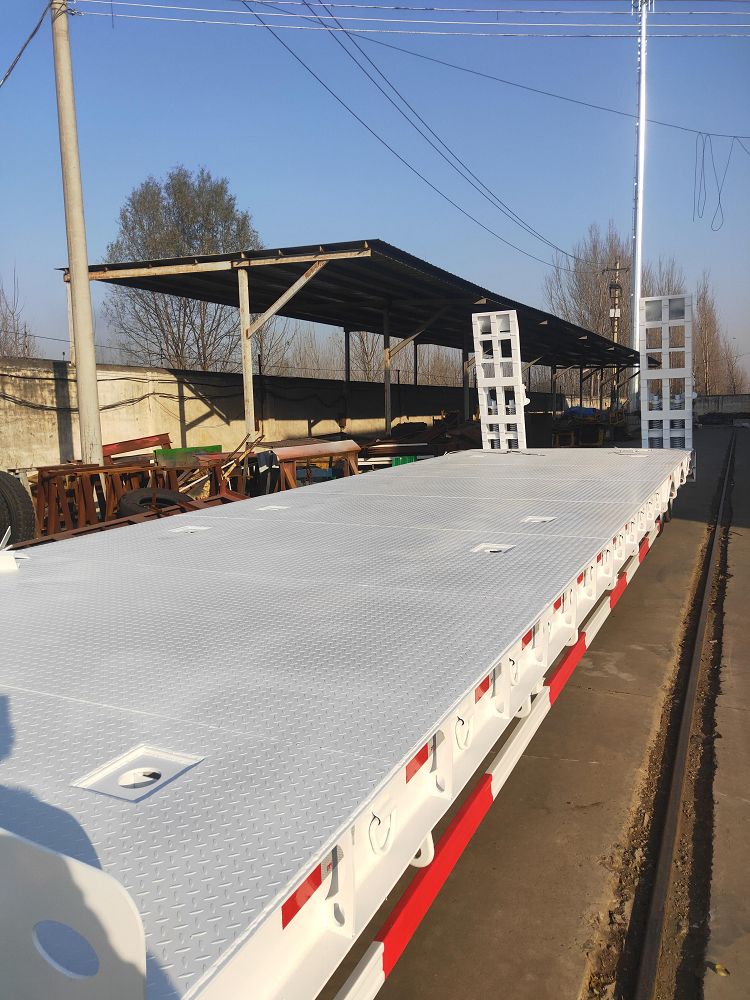

Pem teb |
5 hli thickness checkered phaj |
|
|
Tsheb kauj vab (ramp) |
rov qab ramp |
|
|
OEM qhov chaw:
|
Qag |
3 * 13T muaj peev xwm, FUWA hom |
|

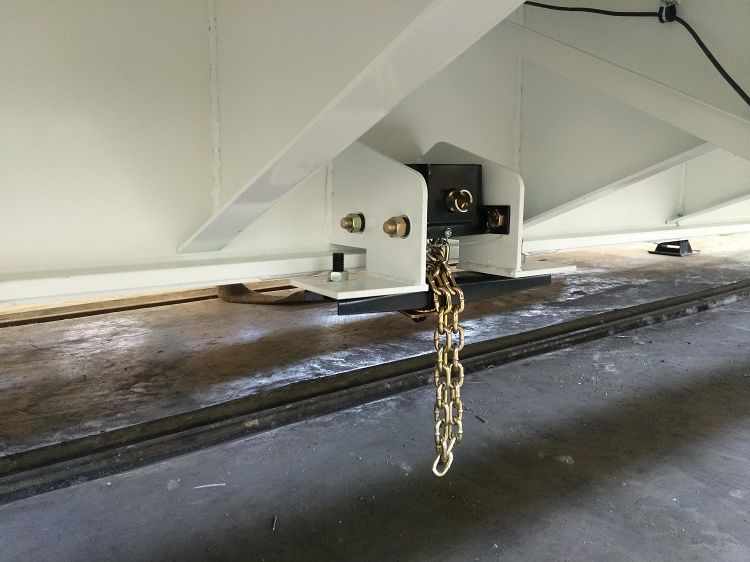

King Pin |
3.5 '' bolting huab tais tus pin, JOST hom |
|
|
Kev ncua |
American design (siab zog hom) |
|
|
Hlau Caij nplooj ntoos hlav |
10pcs nplooj hlav, 16mm thickness, 90mm dav |
|
|
tsaws ob txhais ceg |
JOST hom, kev tuav haujlwm tsaws ceg nrog xuab zeb khau |
|
|
Tyre specs |
11.00R20, Daim duab peb sab hom |
|
|
Rim |
8.0-20 |
|
|
Tus naj npawb ntawm lub log |
13 daim (nrog rau ib lub log spare) |
|
|
Nres system |
WABCO relay valve; |
|
|
Hluav taws xob: |
Ib chav ntawm 24V 7-pin ISO 1185 qhov (socket); LED teeb |
|
|
|
Kev pleev xim |
xim qhia los ntawm cov neeg siv khoom |
|
Kos npe |
Txuj |
|
|
Sab Guard |
Txuj |
|
|
Spare Tyre Carriers |
Ob txheej ntawm lub luag haujlwm hnyav spare log nqa |
|
|
Cov cuab yeej thawv |
Ib thooj (1. 0*0. 5*0. 5m), nyob rau hauv lub caj dab goose (nrog cov cuab yeej tsim nyog hauv) |
Cov no yog 3 qag nrog 12 log tsheb, tag nrho cov npe nrov Suav.
Ob lub ntaiv yog siv rau cov tshuab hnyav kom nce siab
Lub log tsheb spare, nws nyob hauv qab phaj ua haujlwm, tuaj yeem khaws lub log tsheb, yog tias xav tau hloov lub log tsheb
Euphroe tuaj yeem khaws txoj hlua kom nruj thiab nyab xeeb thaum thauj khoom
Twist locks: 8 twist locks pab kom lub trailer thauj 20ft thiab 40ft thawv
