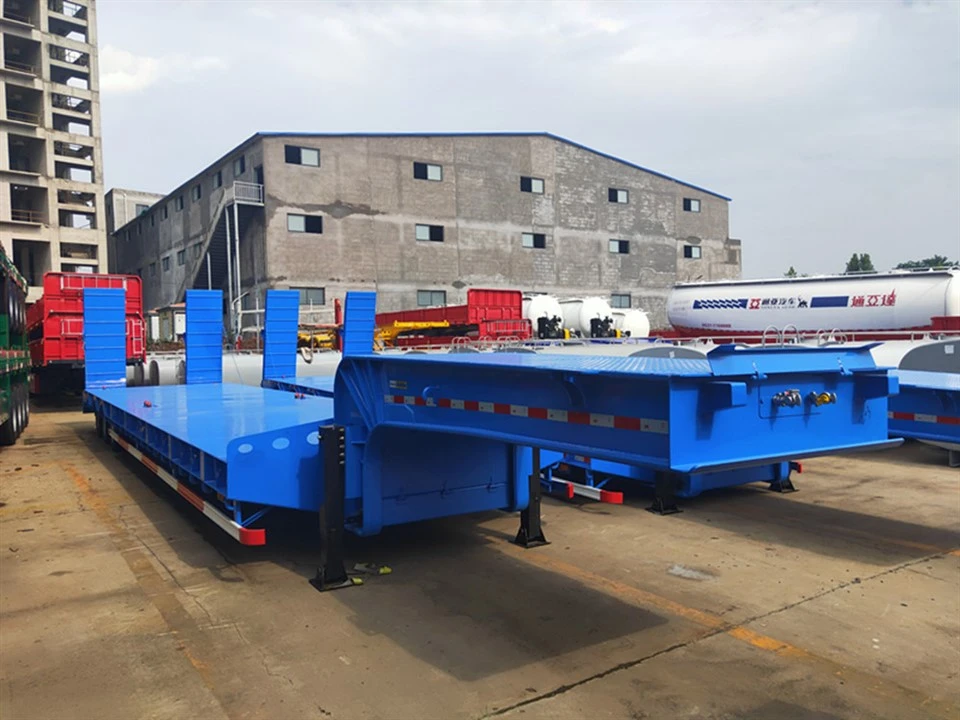

Custom-made Low txaj Semi Trailer
Tam sim no, kev cai tsim lub txaj qis semi trailer yog nrov heev nrog cov neeg siv khoom, vim tias nws tuaj yeem ua tiav raws li cov neeg siv khoom xav tau, lub txaj qis semi trailer tuaj yeem ua tau raws li cov neeg siv khoom xav tau. Raws li cov tsheb thauj khoom tuaj yeem siv los thauj ntau yam ntawm cov tshuab hnyav thiab khoom siv, xws li excavator, txoj kev cov menyuam, crane, Cua turbine hniav thiab lwm yam.
Khoom Taw qhia
Khoom taw qhia
Tsawg txaj semi trailer yog dav siv hauv kev thauj khoom hnyav thiab khoom siv.
Qhov ntev thiab dav tuaj yeem ua raws li kev cai tuaj yeem ua haujlwm nyob rau hauv txoj kev sib txawv thiab huab cua
Muaj peev xwm ua tau raws li cov neeg siv khoom xav tau
Khoom piav qhia
Tam sim no, kev cai tsim lub txaj qis semi trailer yog nrov heev nrog cov neeg siv khoom, vim tias nws tuaj yeem ua tiav raws li cov neeg siv khoom xav tau, lub txaj qis semi trailer tuaj yeem ua tau raws li cov neeg siv khoom xav tau. Raws li cov tsheb thauj khoom tuaj yeem siv los thauj ntau yam ntawm cov tshuab hnyav thiab khoom siv, xws li excavator, txoj kev cov menyuam, crane, Cua turbine hniav thiab lwm yam. Cov neeg siv khoom tsuas yog thauj qee yam ntawm lawv, yog li peb tuaj yeem tsim lub txaj qis semi trailer raws li qhov hnyav thiab qhov ntev ntawm cov tshuab thiab khoom siv. Dab tsi ntxiv, tsim lub txaj qis semi trailer tseem yuav tsum paub cov ntaub ntawv ntawm cov neeg siv khoom siv lub tsheb laij teb, vim tias lub txaj qis semi trailer yuav tsum ua haujlwm nrog tsheb laij teb, yog li peb yuav tsum paub txog hom tsib lub log, yog 50 # lossis 90 #, Dab tsi yog qhov siab ntawm lub log thib tsib, thiab lub vojvoog tig pem hauv ntej thiab rov qab tig lub vojvoog, yog li tuaj yeem ua kom lub trailer tuaj yeem ua haujlwm zoo nrog tsheb laij teb. Yog li cov neeg siv khoom nyiam kev cai ua qis txaj semi trailer ntau heev.
Tsawg txaj semi trailer nrog extension board tuaj yeem yog peb
Specifications
|
Qhov hnyav: |
Tare luj |
13 T |
|
Chaw thau khoom muaj peev xwm |
60 T |
|
|
Qhov Loj: |
Sab nraud dimension |
15500 * 3000 * 1700 hli |
|
Ncej: |
Tsim / vuam tshuab |
Heavy luag hauj lwm thiab ntxiv durability tsim; |
|
Main beam |
Opting rau siab zog Q345B steel, |
|
|
Hla beam |
Lub luag haujlwm hnyav tshwj xeeb U steel |
|
|
Sab beam |
20 # channel steel, tuab hom |
|
|
Pem teb |
5 hli thickness checkered phaj |
|
|
Tsheb kauj vab (ramp) |
rov qab ramp |
|
|
OEM qhov chaw:
|
Qag |
3 * 13T muaj peev xwm, FUWA hom |
|
King Pin |
3.5 '' bolting huab tais tus pin, JOST hom |
|
|
Kev ncua |
American design (siab zog hom) |
|
|
Hlau Caij nplooj ntoos hlav |
10pcs nplooj hlav, 16mm thickness, 90mm dav |
|
|
tsaws ob txhais ceg |
JOST hom, kev tuav haujlwm tsaws ceg nrog xuab zeb khau |
|
|
Tyre specs |
11.00R20, Daim duab peb sab hom |
|
|
Rim |
8.0-20 |
|
|
Twist xauv |
nrog |
|
|
Tus naj npawb ntawm lub log |
13pcs (nrog rau ib lub log spare) |
|
|
Nres system |
WABCO relay valve; |
|
|
Hluav taws xob: |
Ib chav ntawm 24V 7-pin ISO 1185 qhov (socket); LED teeb |
|
|
|
Kev pleev xim |
xim qhia los ntawm cov neeg siv khoom |
|
Kos npe |
Txuj |
|
|
Sab Guard |
Txuj |
|
|
Spare Tyre Carriers |
Ob txheej ntawm lub luag haujlwm hnyav spare log nqa |
|
|
Cov cuab yeej thawv |
Ib thooj (1. 0*0. 5*0. 5m), nyob rau hauv lub caj dab goose (nrog cov cuab yeej tsim nyog hauv) |

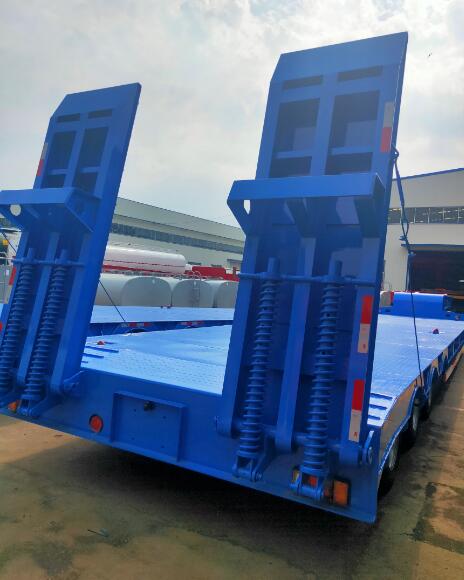

Cov ntaiv tom qab, cov tshuab hnyav tuaj yeem nce los ntawm cov ntaiv no los ntawm lawv tus kheej
Twist xauv, nws pab kom lub txaj qis qis no thauj 20ft thiab 40ft ntim

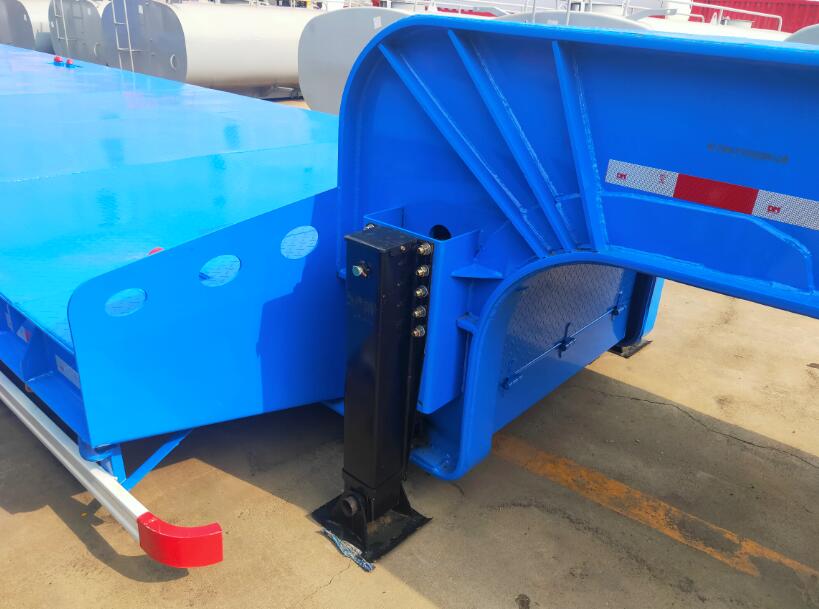

Kev tsaws iav, lub ntiaj teb nto moo hom JOST
