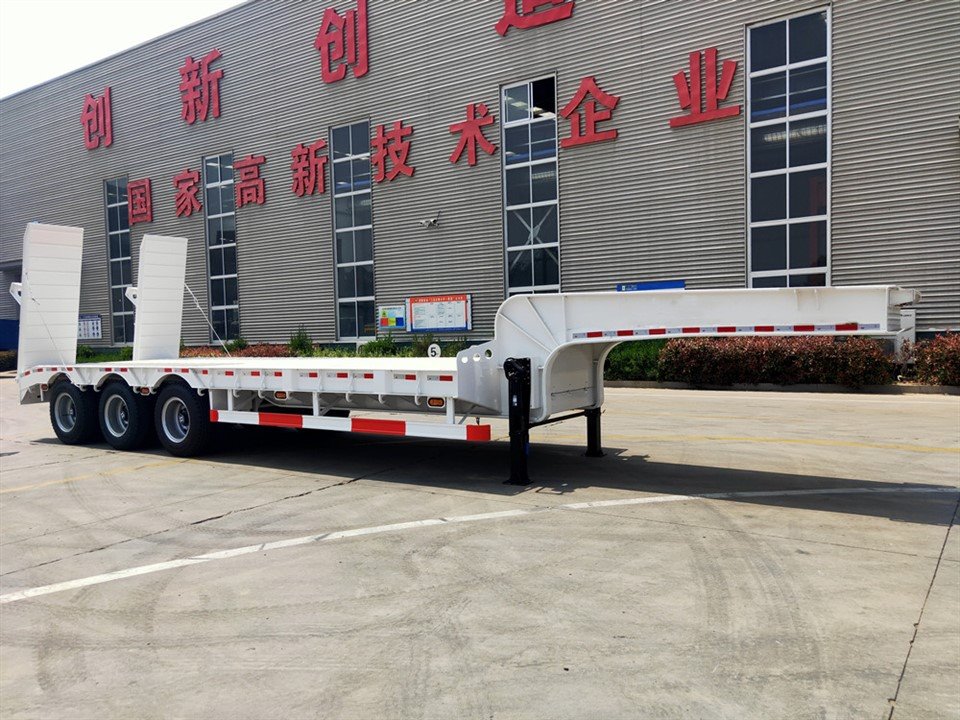

Semi Trailer Rau Execavator
Tuam Tshoj semi trailer rau excavator feem ntau txhais tau hais tias tsis tshua muaj txaj semi trailer, vim hais tias lub excavator tsis yooj yim rau kev tsav tsheb mus ntev, yog tias nws xav tau mus rau qhov chaw tsim kho kom ntev, nws yuav ua li cas, ces peb yuav siv lub txaj qis dua. trailer rau excavator los ntawm ib qho chaw mus rau lwm qhov rau kev ncua deb.
Khoom Taw qhia
Khoom taw qhia
Tsawg txaj semi trailer yog dav siv nyob rau hauv thauj excavator thiab lwm yam hnyav machinery.
Qhov ntev thiab dav tuaj yeem ua raws li kev cai tuaj yeem ua haujlwm nyob rau hauv txoj kev sib txawv thiab huab cua
Muaj peev xwm ua tau raws li cov neeg siv khoom xav tau
Khoom piav qhia
Tuam Tshoj semi trailer rau excavator feem ntau txhais tau hais tias tsis tshua muaj txaj semi trailer, vim hais tias lub excavator tsis yooj yim rau kev tsav tsheb mus ntev, yog tias nws xav tau mus rau qhov chaw tsim kho kom ntev, nws yuav ua li cas, ces peb yuav siv lub txaj qis dua. trailer rau excavator los ntawm ib qho chaw mus rau lwm qhov rau kev ncua deb. Lub semi trailer rau excavator muaj lub phaj ua haujlwm muaj zog thiab nrog ob tus ntaiv tom qab, lub excavator tuaj yeem nce mus rau cov phaj ua haujlwm los ntawm ob tus ntaiv. Tsis tas li ntawd, qhov ntev ntawm lub txaj qis semi trailer tuaj yeem tsim raws li qhov ntev ntawm excavator, xws li qhov ntev, dav thiab txawm tias qhov siab ntawm cov phaj ua haujlwm. Dab tsi ntxiv, lub peev xwm ntawm semi trailer kuj tsim raws li qhov hnyav ntawm excavator.nquag muaj peev xwm yog 50-60tons, yog tias lub excavator hnyav dua, tsis muaj teeb meem, peb tuaj yeem txhawb nqa lub ntsiab nqaj, sab nqaj, hla. beam, nrog rau kom muaj nuj nqis ntawm axles.
Specifications
|
Qhov hnyav: |
Tare luj |
13 T |
|
Chaw thau khoom muaj peev xwm |
60 T |
|
|
Qhov Loj: |
Sab nraud dimension |
15000 * 3000 * 1700 hli |
|
Ncej: |
Tsim / vuam tshuab |
Heavy luag hauj lwm thiab ntxiv durability tsim; |
|
Main beam |
Opting rau siab zog Q345B steel, |
|
|
Hla beam |
Lub luag haujlwm hnyav tshwj xeeb U steel |
|
|
Sab beam |
20 # channel steel, tuab hom |
|
|
Pem teb |
5 hli thickness checkered phaj |
|
|
Tsheb kauj vab (ramp) |
rov qab ramp |
|
|
OEM qhov chaw:
|
Qag |
3 * 13T muaj peev xwm, FUWA hom |
|
King Pin |
3.5 '' bolting huab tais tus pin, JOST hom |
|
|
Kev ncua |
American design (siab zog hom) |
|
|
Hlau Caij nplooj ntoos hlav |
10pcs nplooj hlav, 16mm thickness, 90mm dav |
|
|
tsaws ob txhais ceg |
JOST hom, kev tuav haujlwm tsaws ceg nrog xuab zeb khau |
|
|
Tyre specs |
11.00R20, Daim duab peb sab hom |
|
|
Rim |
8.0-20 |
|
|
Tus naj npawb ntawm lub log |
13 daim (nrog rau ib lub log spare) |
|
|
Nres system |
WABCO relay valve; |
|
|
Hluav taws xob: |
Ib chav ntawm 24V 7-pin ISO 1185 qhov (socket); LED teeb |
|
|
|
Kev pleev xim |
xim qhia los ntawm cov neeg siv khoom |
|
Kos npe |
Txuj |
|
|
Sab Guard |
Txuj |
|
|
Spare Tyre Carriers |
Ob txheej ntawm lub luag haujlwm hnyav spare log nqa |
|
|
Cov cuab yeej thawv |
Ib thooj (1. 0*0. 5*0. 5m), nyob rau hauv lub caj dab goose (nrog cov cuab yeej tsim nyog hauv) |

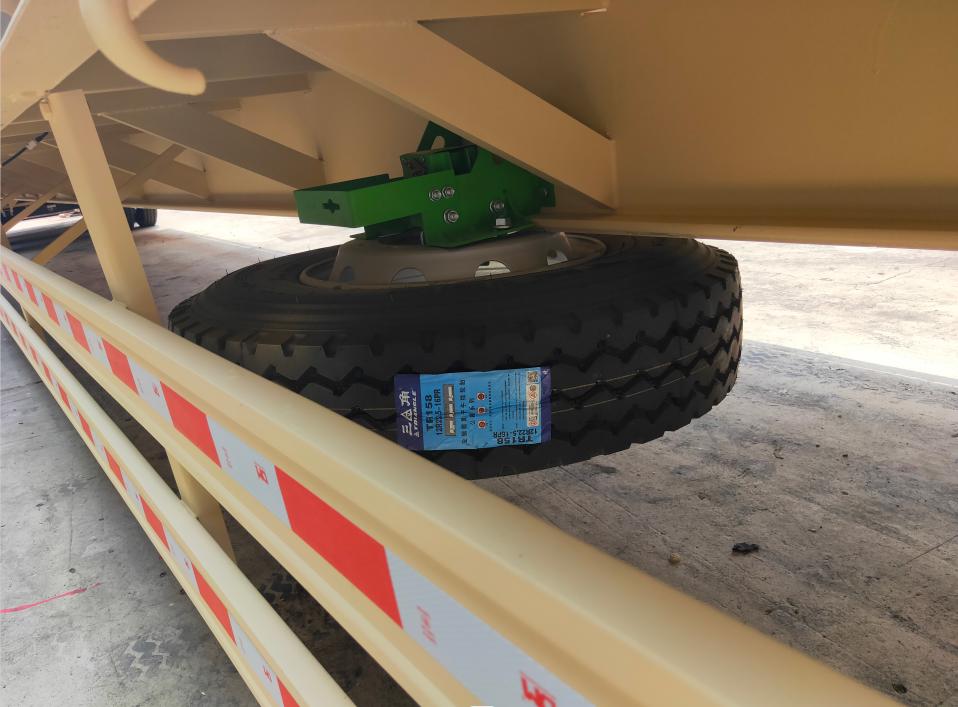

Qhov no yog cov log tsheb spare ntsia rau ntawm cov cab kuj, thaum lwm cov log tsheb tawg, tus neeg tsav tsheb tuaj yeem hloov cov log tsheb seem yooj yim thiab sai.

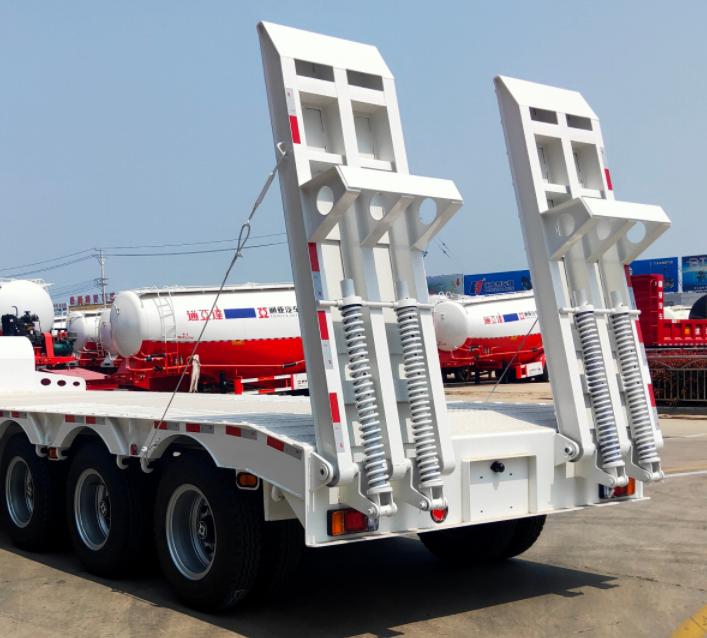

Qhov no yog rear ntaiv nrog springs, lub excavator thiab lwm yam hnyav machinery yuav nce mus rau lub phaj ua hauj lwm yooj yim heev.
Qhov no yog underslung ncua kev kawm ntawv, tuaj yeem txo qhov siab ntawm kev ua haujlwm phaj, yog li lub trailer tuaj yeem ruaj khov thiab nyab xeeb.
Cim npe nrov: Tuam Tshoj Semi Trailer rau Execavator Manufacturers thiab lwm tus neeg - Factory Price
