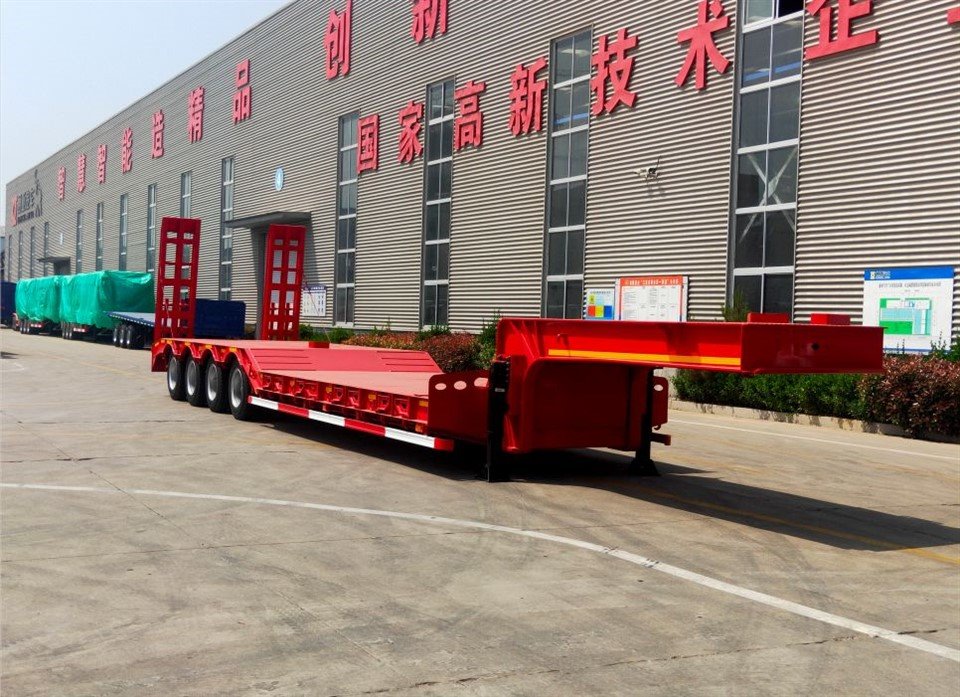

60tons Tsawg txaj Semi Trailer
60tons qis txaj semi trailer feem ntau yog siv los thauj cov tsheb thauj khoom hnyav (tsheb laij teb, tsheb npav loj, tsheb tshwj xeeb), tsheb ciav hlau, mining machinery, Forestry machinery, engineering machinery (xws li excavator, bulldozer, loader, paver, crane) thiab lwm yam tuag. hnyav cargo, qhov qis dua yog qhov nruab nrab ntawm lub ntiajteb txawj nqus, qhov ruaj khov thiab kev nyab xeeb yuav zoo dua
Khoom Taw qhia
Khoom taw qhia
Tsawg txaj semi trailer yog dav siv hauv kev thauj khoom hnyav thiab khoom siv.
Cov axles tuaj yeem yog 3 lossis 4 pcs tuaj yeem ua haujlwm hauv txoj kev sib txawv thiab huab cua
Muaj peev xwm ua tau raws li cov neeg siv khoom xav tau
Khoom piav qhia
60tons qis txaj semi trailer feem ntau yog siv los thauj cov tsheb thauj khoom hnyav (tsheb laij teb, tsheb npav loj, tsheb tshwj xeeb), tsheb ciav hlau, mining machinery, Forestry machinery, engineering machinery (xws li excavator, bulldozer, loader, paver, crane) thiab lwm yam tuag. hnyav cargo, qhov qis dua yog qhov nruab nrab ntawm lub ntiajteb txawj nqus, kev ruaj ntseg thiab kev nyab xeeb yuav zoo dua, lub peev xwm ntawm kev thauj khoom tshaj qhov siab thiab los ntawm kev thaiv qhov siab txwv yuav zoo dua. 60tons qis txaj semi trailer series cov khoom tsim nyog rau kev thauj mus los ntawm ntau yam khoom siv tshuab, cov khoom loj, cov khoom siv hauv kev, cov tso tsheb hlau luam loj, cov khoom siv hluav taws xob thiab ntau yam hlau. Lawv tau siv dav, ua haujlwm siab thiab ceev. 60tons qis txaj semi trailer txais cov khoos phis tawj-pab tsim software, thiab kev tsim kho kom zoo. Tsis tas li peb tsim qhov siab ntawm cov phaj ua haujlwm raws li cov neeg siv khoom xav tau, kom ua tau raws li kev thauj mus los ntawm ntau yam khoom tshwj xeeb
Specifications
|
Qhov hnyav: |
Tare luj |
13 T |
|
Chaw thau khoom muaj peev xwm |
60 T |
|
|
Qhov Loj: |
Sab nraud dimension |
14500 * 3000 * 1700 hli |
|
Ncej: |
Tsim / vuam tshuab |
Heavy luag hauj lwm thiab ntxiv durability tsim; |
|
Main beam |
Opting rau siab zog Q345B steel, |
|
|
Hla beam |
Lub luag haujlwm hnyav tshwj xeeb U steel |
|
|
Sab beam |
20 # channel steel, tuab hom |
|
|
Pem teb |
5 hli thickness checkered phaj |
|
|
Tsheb kauj vab (ramp) |
rov qab ramp |
|
|
OEM qhov chaw:
|
Qag |
4 * 13T muaj peev xwm, FUWA hom |
|
King Pin |
3.5 '' bolting huab tais tus pin, JOST hom |
|
|
Kev ncua |
American design (siab zog hom) |
|
|
Hlau Caij nplooj ntoos hlav |
10pcs nplooj hlav, 16mm thickness, 90mm dav |
|
|
tsaws ob txhais ceg |
JOST hom, kev tuav haujlwm tsaws ceg nrog xuab zeb khau |
|
|
Tyre specs |
8.25R20, Daim duab peb sab hom |
|
|
Rim |
6.5-20 |
|
|
Tus naj npawb ntawm lub log |
17 daim (nrog rau ib lub log spare) |
|
|
Nres system |
WABCO relay valve; |
|
|
Hluav taws xob: |
Ib chav ntawm 24V 7-pin ISO 1185 qhov (socket); LED teeb |
|
|
|
Kev pleev xim |
xim qhia los ntawm cov neeg siv khoom |
|
Kos npe |
Txuj |
|
|
Sab Guard |
Txuj |
|
|
Spare Tyre Carriers |
Ob txheej ntawm lub luag haujlwm hnyav spare log nqa |
|
|
Cov cuab yeej thawv |
Ib thooj (1. 0*0. 5*0. 5m), nyob rau hauv lub caj dab goose (nrog cov cuab yeej tsim nyog hauv) |

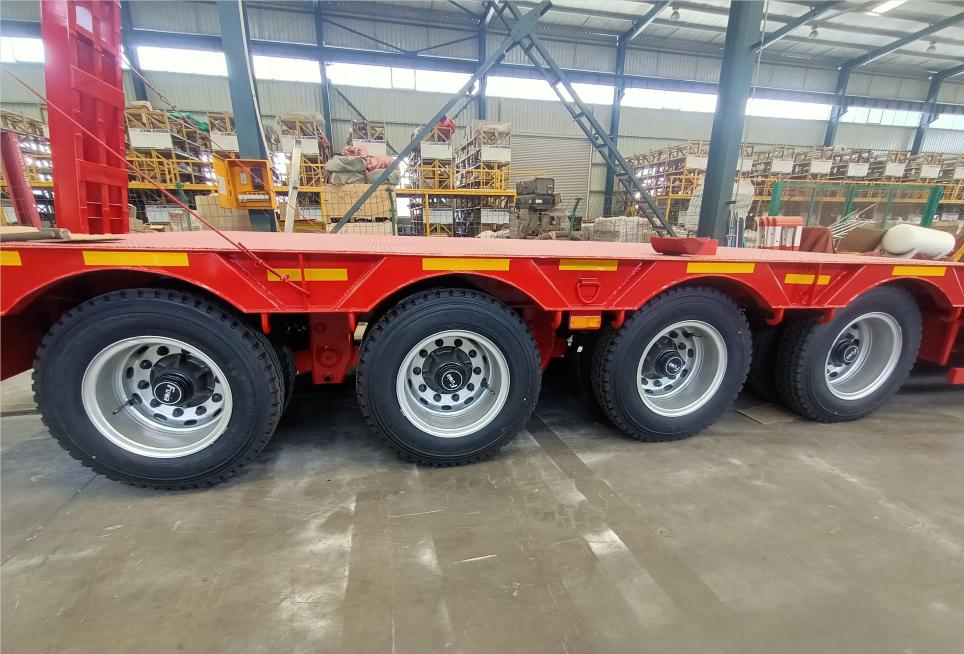

Plaub axles rau hnyav muaj peev xwm

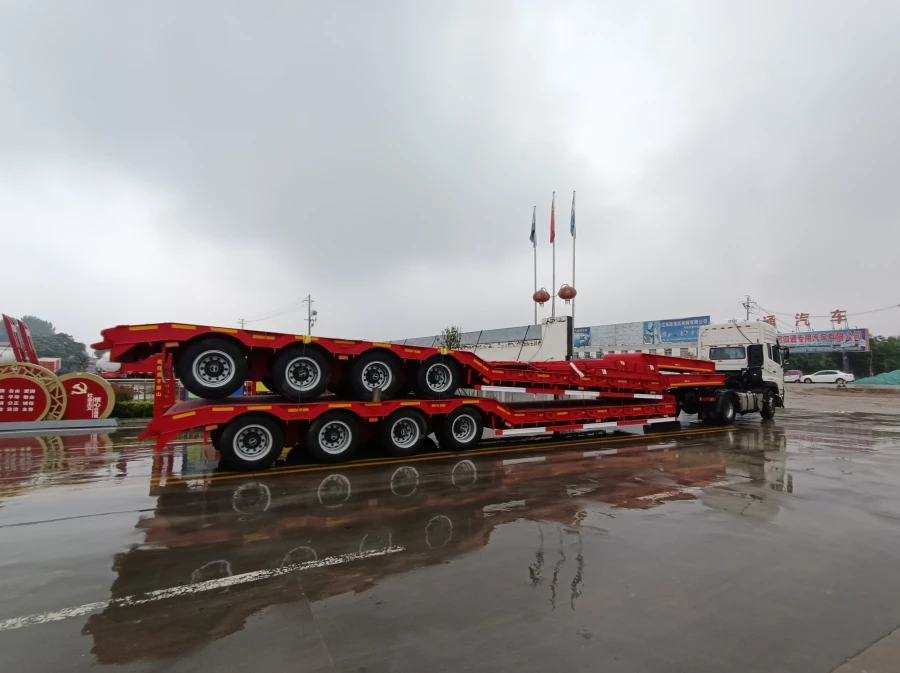

Packing 2 units ua ke rau shipping los ntawm lub nkoj
