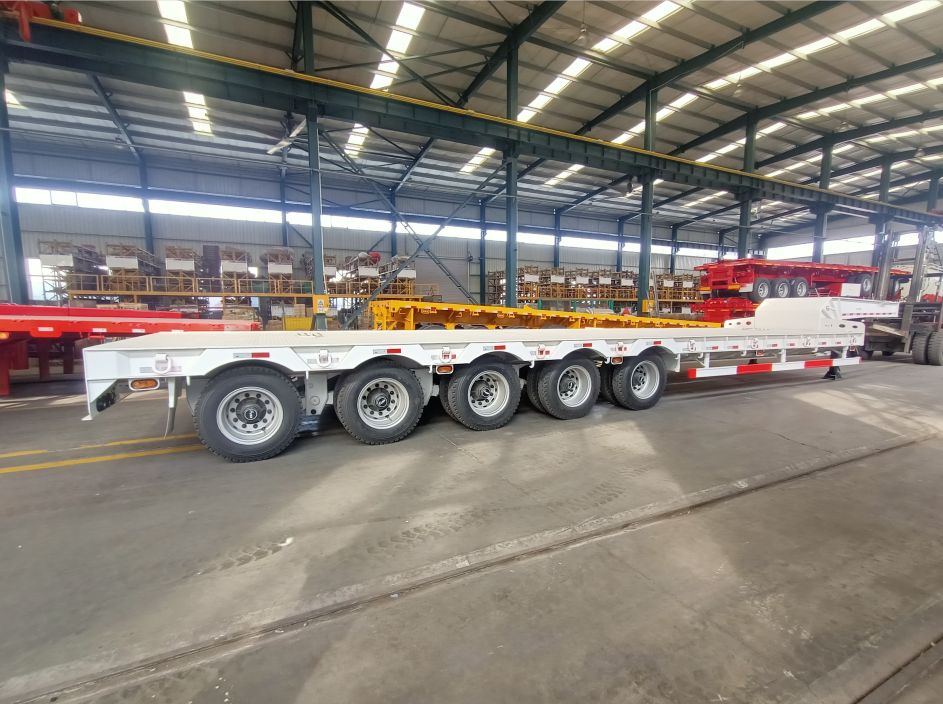

Semi Trailer Rau Heavy Machinery
Semi trailer rau cov tshuab hnyav yog tsim raws li cov neeg siv khoom tshwj xeeb. Tam sim no nyob rau hauv cov chaw tsim kho, muaj ntau lub tshuab tshwj xeeb hnyav, lawv hnyav thiab loj txaus, tsis yooj yim txav. Yog li xav tau lub tsheb tshwj xeeb los thauj lawv. Raws li qhov tshwj xeeb qis txaj semi trailer yog tsim los thauj lawv
Khoom Taw qhia
Khoom taw qhia
Tsawg txaj semi trailer yog dav siv hauv kev thauj cov tshuab hnyav.
Qhov ntev thiab dav tuaj yeem ua raws li kev cai tuaj yeem ua haujlwm nyob rau hauv txoj kev sib txawv thiab huab cua
Muaj peev xwm ua tau raws li cov neeg siv khoom xav tau
Khoom piav qhia
Semi trailer rau cov tshuab hnyav yog tsim raws li cov neeg siv khoom tshwj xeeb. Tam sim no nyob rau hauv cov chaw tsim kho, muaj ntau lub tshuab tshwj xeeb hnyav, lawv hnyav thiab loj txaus, tsis yooj yim txav. Yog li xav tau lub tsheb tshwj xeeb los thauj lawv. Raws li qhov tshwj xeeb qis txaj semi trailer yog tsim los thauj lawv. Lub txaj qis semi trailer rau cov tshuab hnyav muaj zog txaus, lub peev xwm ntawm nws tuaj yeem ua tau ntau tshaj 70tons, cov qauv ntawm lub cev trailer yog tshwj xeeb ntxiv, piv txwv li, lub ntsiab nqaj, hla nqaj, sab phab ntsa nqaj yog loj thiab tuab hom. , thiab cov phaj hauv qab kuj yog hom tuab, yog li tuaj yeem txhawb nqa qhov hnyav, ntawm ib sab, lub trailer muaj 5 axles 20 log tsheb, vim li ntawd, txawm tias lub tshuab hnyav, peb cov trailer tseem tuaj yeem nqa thiab mus yam tsis muaj lus nug.
Specifications
|
Qhov hnyav: |
Tare luj |
13 T |
|
Chaw thau khoom muaj peev xwm |
70 T |
|
|
Qhov Loj: |
Sab nraud dimension |
15000 * 3000 * 1700 hli |
|
Ncej: |
Tsim / vuam tshuab |
Heavy luag hauj lwm thiab ntxiv durability tsim; |
|
Main beam |
Opting rau siab zog Q345B steel, |
|
|
Hla beam |
Lub luag haujlwm hnyav tshwj xeeb U steel |
|
|
Sab beam |
20 # channel steel, tuab hom |
|
|
Pem teb |
5mm thickness checkered phaj |
|
|
Tsheb kauj vab (ramp) |
tsis muaj |
|
|
OEM qhov chaw:
|
Qag |
5 * 13T muaj peev xwm, FUWA hom |
|
King Pin |
3.5 '' bolting huab tais tus pin, JOST hom |
|
|
Kev ncua |
American design (siab zog hom) |
|
|

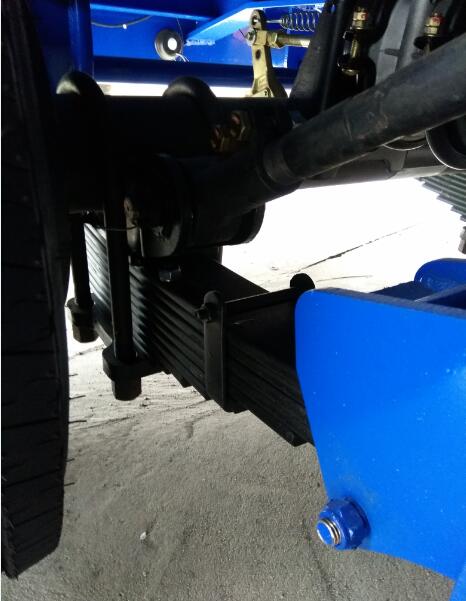

Hlau Caij nplooj ntoos hlav |
10pcs nplooj hlav, 16mm thickness, 90mm dav |
|
|

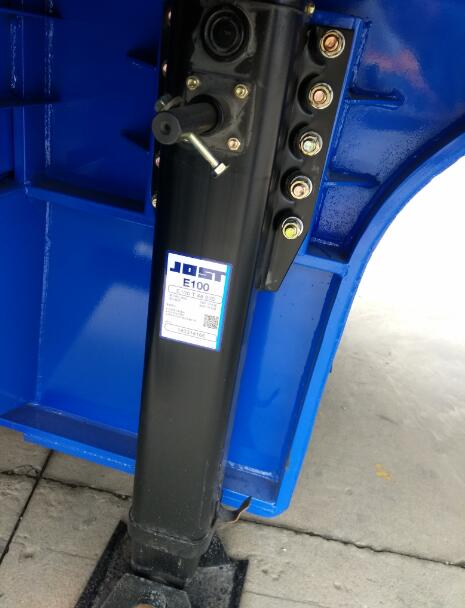

tsaws ob txhais ceg |
JOST hom, kev tuav haujlwm tsaws ceg nrog xuab zeb khau |
|
|
Tyre specs |
11.00R20, Daim duab peb sab hom |
|
|
Rim |
8.0-20 |
|
|
Tus naj npawb ntawm lub log |
17 daim (nrog rau ib lub log spare) |
|
|
Nres system |
WABCO relay valve; |
|
|
Hluav taws xob: |
Ib chav ntawm 24V 7-pin ISO 1185 qhov (socket); LED teeb |
|
|
|
Kev pleev xim |
xim qhia los ntawm cov neeg siv khoom |
|
Kos npe |
Txuj |
|
|
Sab Guard |
Txuj |
|
|
Spare Tyre Carriers |
Ob txheej ntawm lub luag haujlwm hnyav spare log nqa |
|
|
Cov cuab yeej thawv |
Ib thooj (1. 0*0. 5*0. 5m), nyob rau hauv lub caj dab goose (nrog cov cuab yeej tsim nyog hauv) |

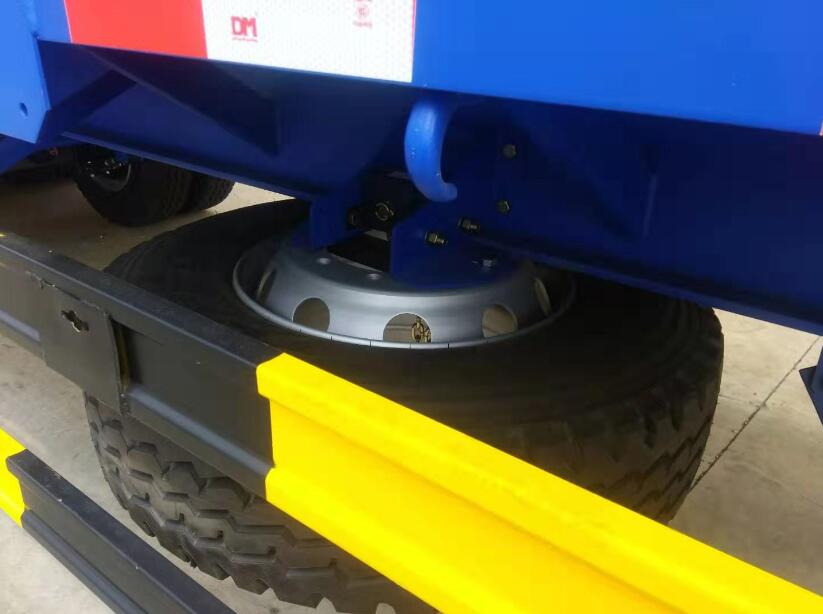

Lub log tsheb spare: yog lub log tsheb tawg thaum ua haujlwm, tuaj yeem hloov cov log tsheb spare sai thiab yooj yim
Nyob rau hauv mounted suspension, tuaj yeem txo qhov siab ntawm cov phaj ua haujlwm
tsaws iav
