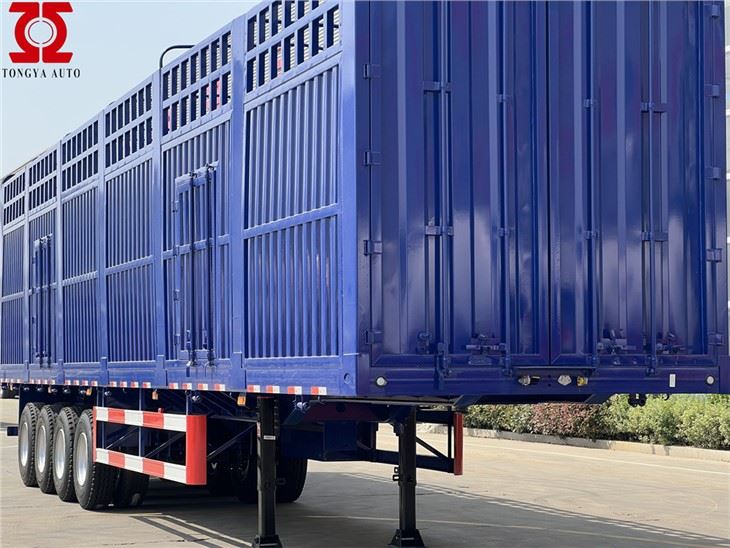

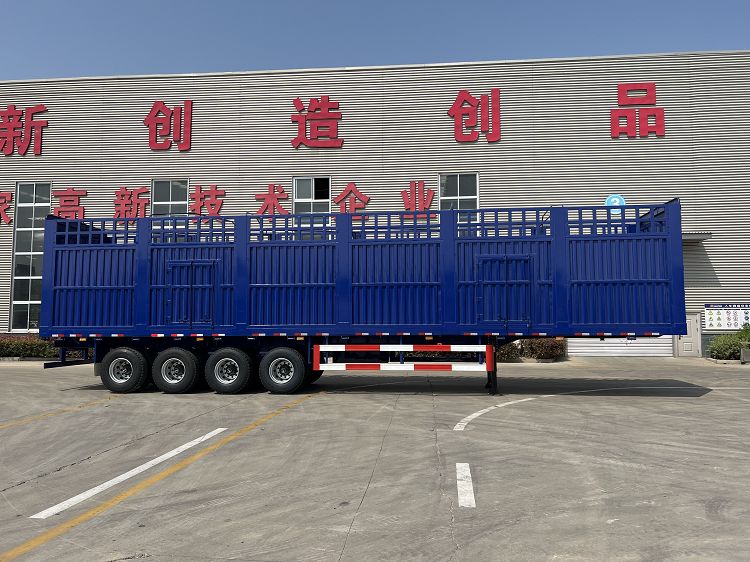

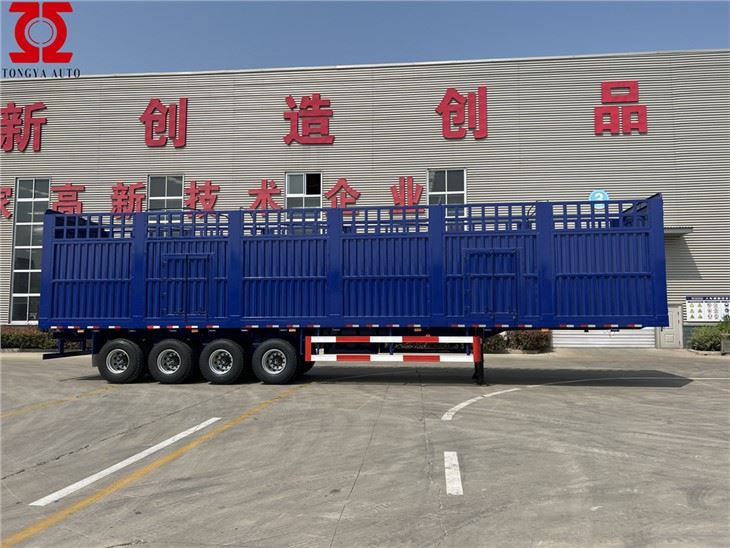

4axles Stake Semi Trailer

1. 4 axles ceg txheem ntseeg semi trailer Finite Element tsom xam siv nyob rau hauv lub tsheb los txhawb cov khoom ua tau zoo.
2. 4 axles ceg txheem ntseeg semi trailer Electrophoresis Painting, tsis kam, painting nyhuv tuaj yeem ncav cuag 10 xyoo.
3. High Strength tag nrho thickness Steel, titanium cov ntsiab lus ntawm 0.98‰, uas ua kom Beam thiab ncej lub Toughness thiab lub zog.
4. 42 tawv ribs tsim, Xyuas kom muaj kev nyab xeeb thiab nqa lub peev xwm ntawm trailer.

Xa kev nug

Khoom Taw qhia

1(001)

Trailer Qauv	4 axles ceg txheem ntseeg semi trailer
Zuag qhia tag nrho Dimension	13500 * 2500 * 4000mm
Zuag qhia tag nrho Dimension	13500 * 2500 * 4000mm
Qhov hnyav (KG)	8700
Loading Nyhav (KG)	60000
Log Base (mm)	6980mm plus 1310mm plus 1310mm plus 1310mm
Cov khoom siv ntawm Main beam	Q345B carbon steel, qhov siab ntawm lub nqaj yog 500 hli, phaj sab sauv yog 14 hli, nqes phaj yog 16 hli, phaj nruab nrab yog 8 hli.
Sab beam	Q235 16# channel steel
Axle Brand	FUWA hom
Axle Number	4ax ib
Kev kaw lus kaw lus	Mechanical Suspension
Nplooj caij nplooj ntoos hlav	90 (W) hli * 13 (Thick) hli * 10 Txheej

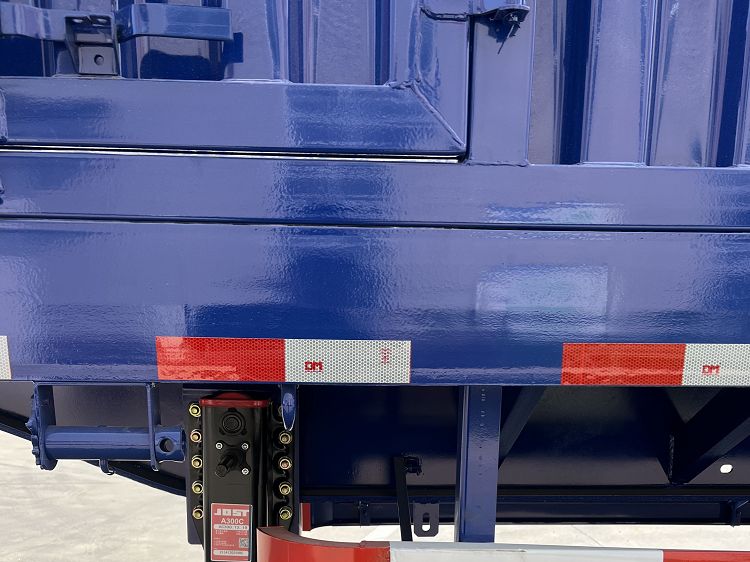

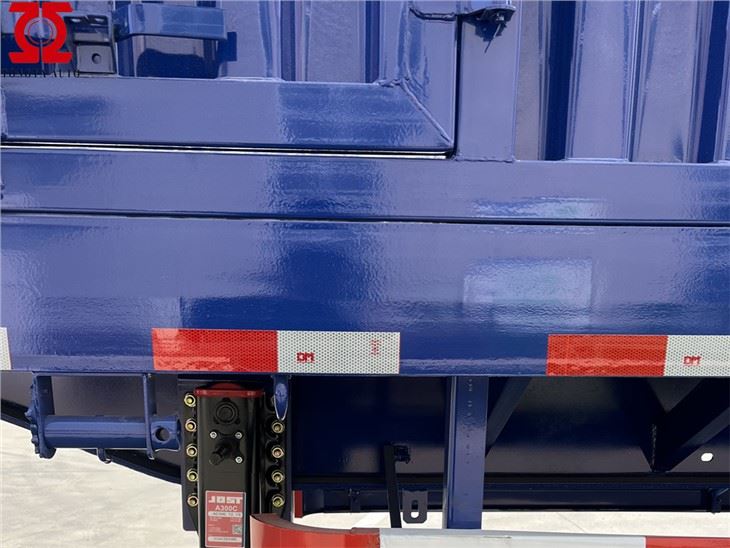

Kev tsaws iav	JOST hom, ob chav ceev
Tyre Hom thiab kom muaj nuj nqis	12R22.5
Log Rim	9.00-22.5
Traction Pin	2 "los yog 3.5"
Spare Wheel Bracket	2 qab
Tool Box	1 Txuj
Nres system	Dual Line braking system
Nres cua chamber	Rau ob chav chamber
Hluav taws xob qhov system	1. Voltage: 24v 2. Receptacle: 7 txoj kev (7 xaim hlua)

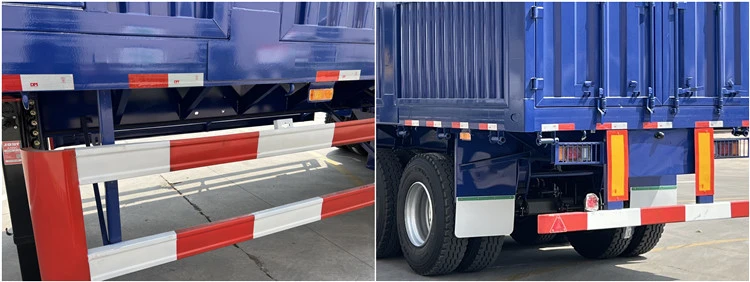

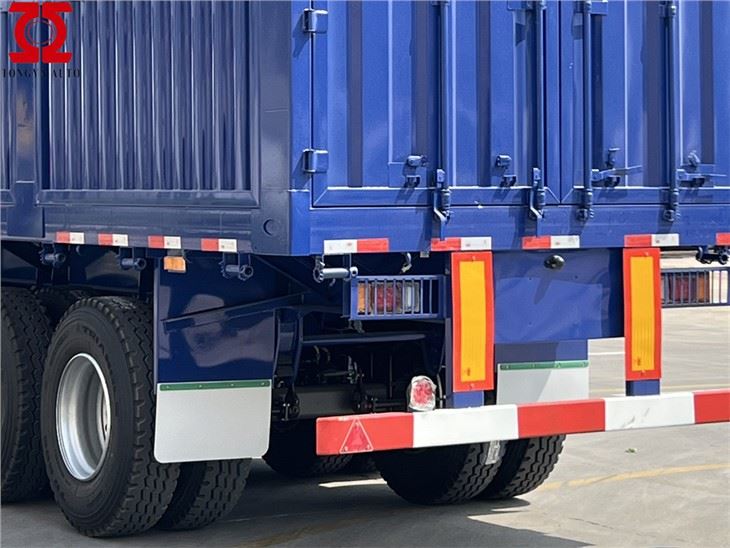

	Tail teeb nrog tig teeb liab, nres lub teeb & reflector, sab teeb thiab lwm yam.
	Ib txheej 6-core standard Cable.
Kev pleev xim	Xim raws li tus neeg yuav tsum tau muaj
Ntim	Ua kom tiav Chassis xuab zeb blasting los ntxuav xeb, 1 lub tsho tiv thaiv xeb prime, 2 lub tsho tiv no ntawm cov xim kawg
Txoj kev xa khoom	Hloov mus rau Qingdao / Tianjin Chaw nres nkoj, thiab nqa los ntawm ro-ro nkoj lossis bulk cargo nkoj, tus nqi thauj khoom nyob ntawm qhov ntim.

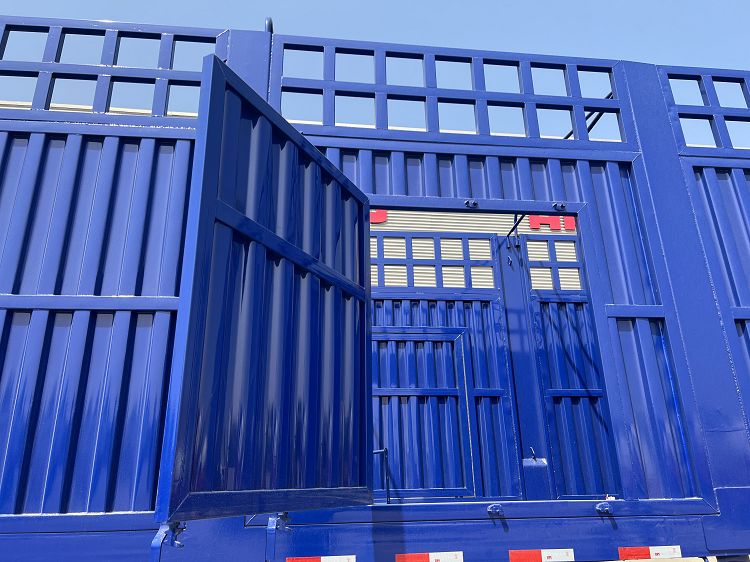

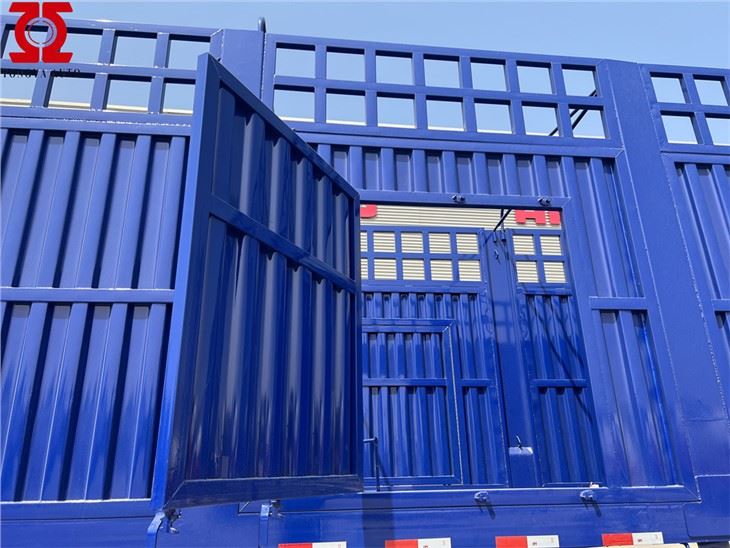

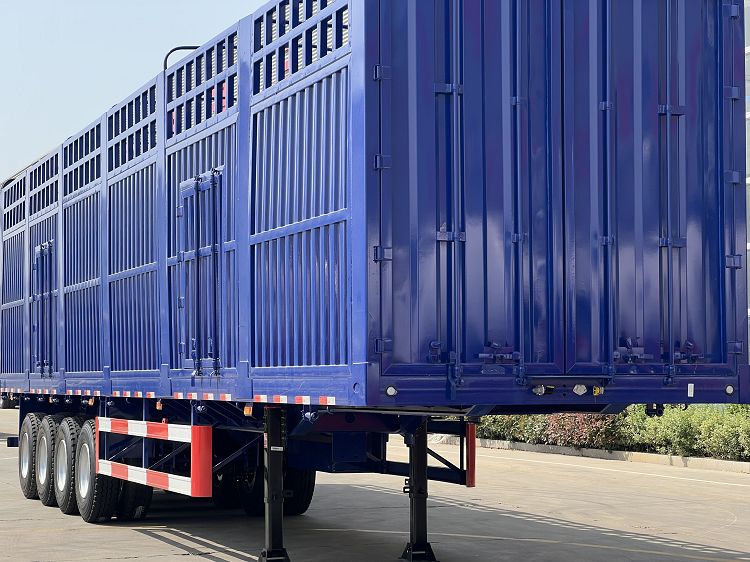

Lub 4 axles ceg txheem ntseeg semi trailer yog ntsia nrog laj kab ntawm lub platform ua haujlwm. Nrog kev siv dav, nws yog siv rau kev thauj mus los nruab nrab thiab ntev ntawm cov khoom nruab nrab thiab hnyav nrog rau cov khoom thauj ntau. Peb lub tuam txhab tseem tuaj yeem txhim kho cov thawv ntim khoom ntxiv lossis cov kab uas tuaj yeem tshem tau raws li cov neeg siv khoom tshwj xeeb, yog li nws tuaj yeem siv rau kev thauj mus los hauv lub thawv lossis cov ntoo. Nrog rau kev siv zog, nws yog thawj qhov kev xaiv rau kev thauj mus los hauv nruab nrab thiab ntev.
