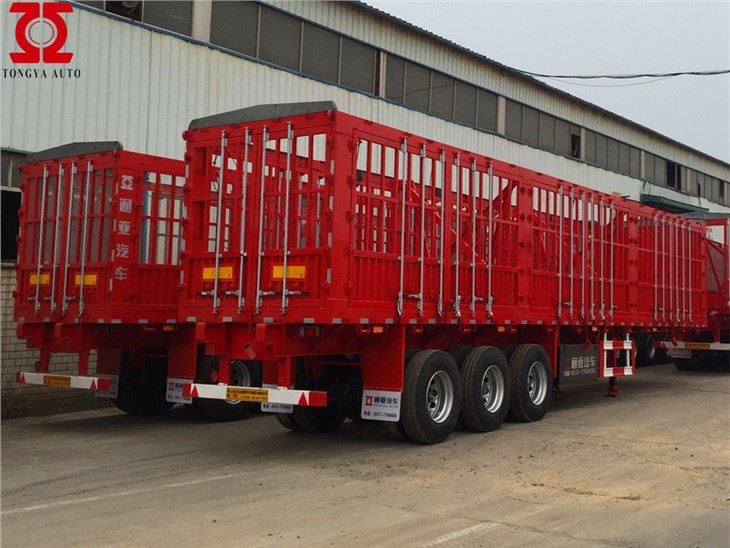

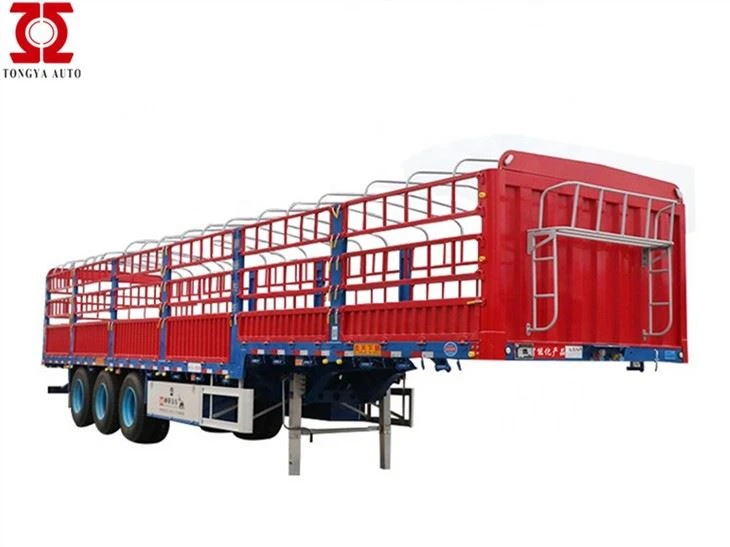

Cia Semi Trailer

1, Qhov tseeb tsim siv nyob rau hauv peb cia semi trailer tuaj yeem kho raws li cov neeg siv khoom xav tau
2, Cia semi trailer rau Ntau Economy thiab ntau Efficiency
3, Peb saib tag nrho cov distributor thiab tus neeg tsav tsheb qhov kev xav.lub cia semi trailer los daws lawv cov teeb meem kev thauj mus los thiab optimize peb cov kev pab nyob rau hauv ntxiv.

Xa kev nug

Khoom Taw qhia

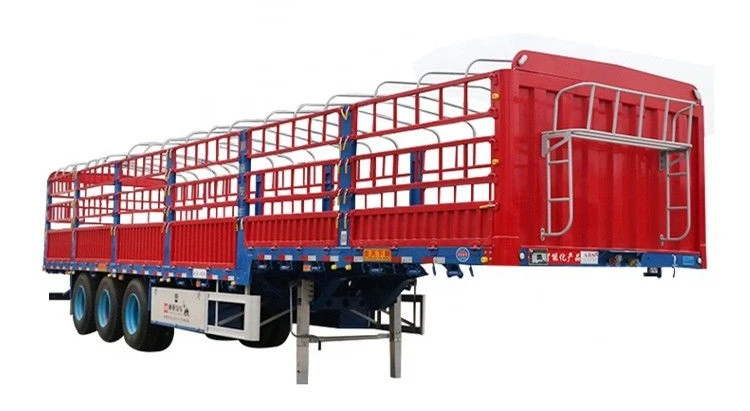

1(001)

Main Configuration
Qhov hnyav (KG)	Tare luj		7000
	Load hnyav		40000
	Qhov hnyav tag nrho		47000
Qhov Loj (LxWxH)	Daim ntawv Dimensions		13000x2500x2600 mm
	Box Dimensions		12850x2340x600 mm
Technical Parameter
Main Ncej
Main Beam Khoom	Q345B steel hlau	Main Beam Qhov siab		500 hli

Phaj Siab	14mm ib	Phaj qis		16 hli
Web Phaj	8mm ib	Platform		3mm pob zeb diamond phaj
Sab Beam Khoom	16 # channel steel	Sab Beam Qhov siab		200 hli
Khiav iav
Qag	3 * 13Ton Fuwa qag	Kev ncua		Nplooj caij nplooj ntoos hlav ncua

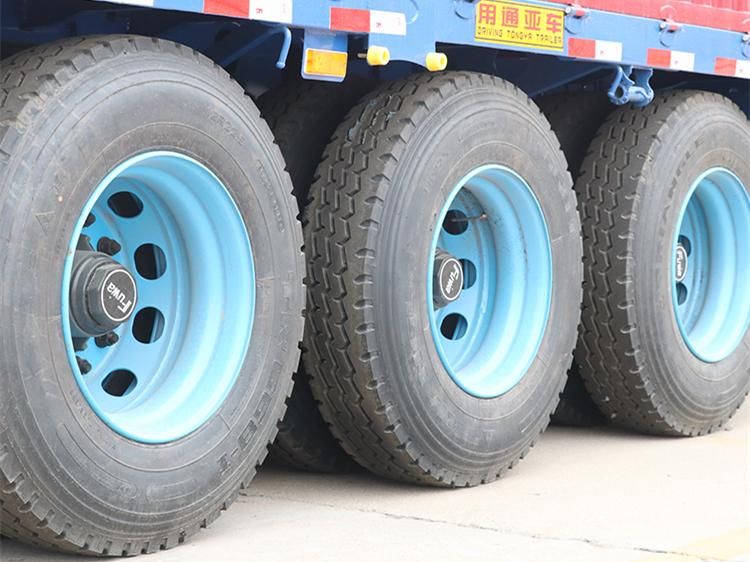

Lub log	12 * 1100R20 lossis 12R22.5	Rim		12 * 8.0-20 los yog 8

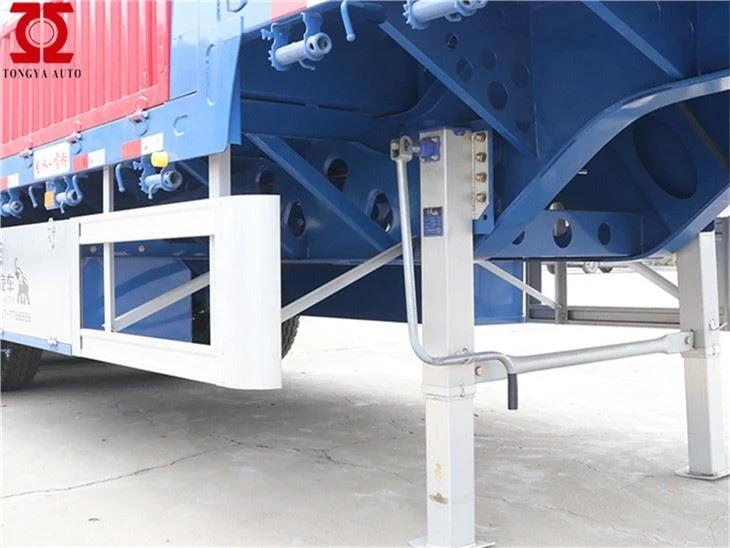

Kev tsaws iav	JOST hom	King Pin		2 "los yog 3.5" bolt-in los yog welded huab tais tus pin
Nres System
Hom	Pneumatic nres	Nres Chamber		Rau ob chav
Relay Valve	WABCO relay valve	ABS System		xaiv tau
Hluav taws xob System
Teeb	Tag nrho cov teeb ntawm LED teeb	Qhov hluav taws xob		24V
Txais	7 txoj
Cov khoom siv
Tool Box	Nruab ib lub teeb nrog cov cuab yeej yooj yim	Spare Wheel Carrier		Ib lossis ob
Sab Guard	2 units ntawm sab guards	Twist Lock		12 teev ntawm telescoping
				twist locks yog xaiv tau

Lub cia semi trailer muaj ntau yam nta xws li lub teeb tare yuag, hnyav loading hnyav thiab rational Tsheb Master lub teeb lub luag hauj lwm semitrailer adapts rau txawv teb chaws thiab domestic tsim lub tswv yim, siv W-shape los ntawm-going beam, txo tag nrho loj heev los ntawm kev siv FEA (finite element. tsom xam) nyob rau hauv lub precondition ntawm kev ua kom muaj zog structural. qhia tshwj xeeb kev khiav hauj lwm kom zoo dua thiab yog tshwj xeeb hauv kev txo cov log tsheb hnav thaum txo cov roj noj.

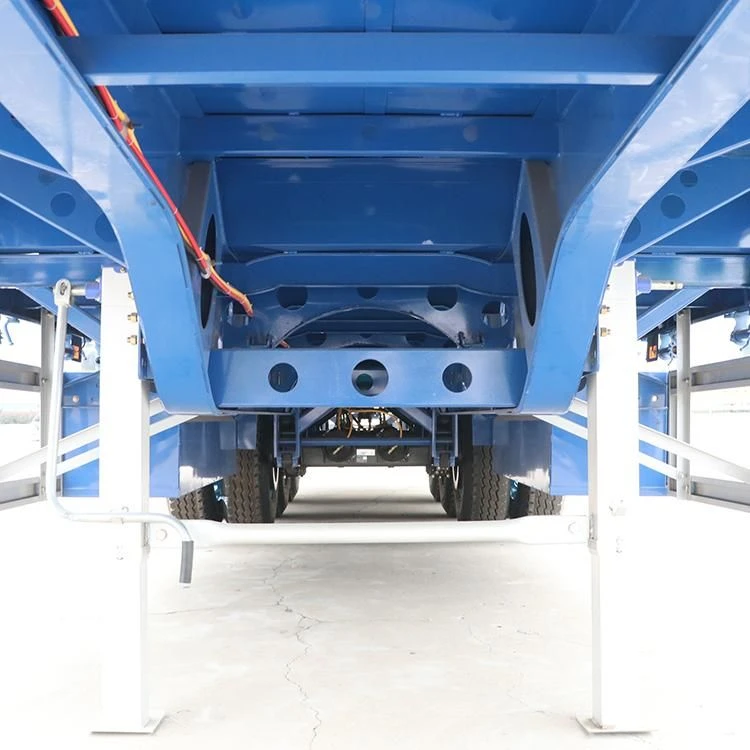

Main Beam

3 axles ceg txheem ntseeg semi trailer nrog Q345, siab zog carbon steel los ntawm cov tuam txhab hlau loj tshaj plaws hauv Suav teb

Vuam

3 axles ceg txheem ntseeg semi trailer nrog Submerged Act Vuam, tag nrho tsis siv neeg tshuab
