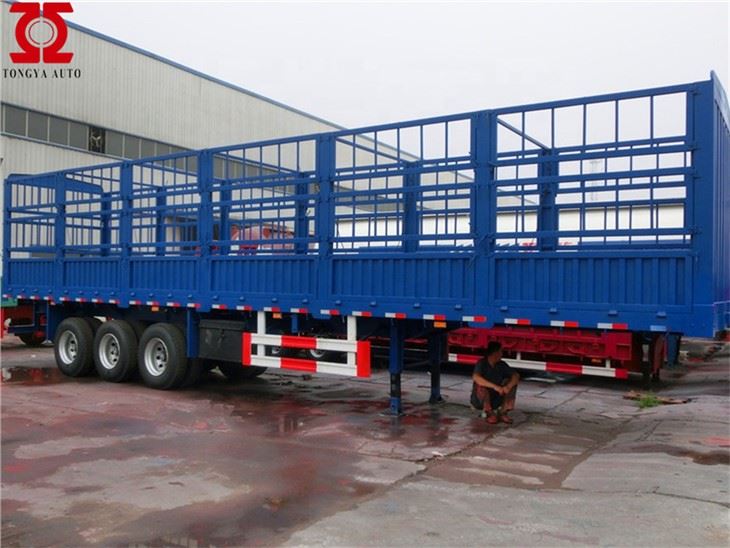

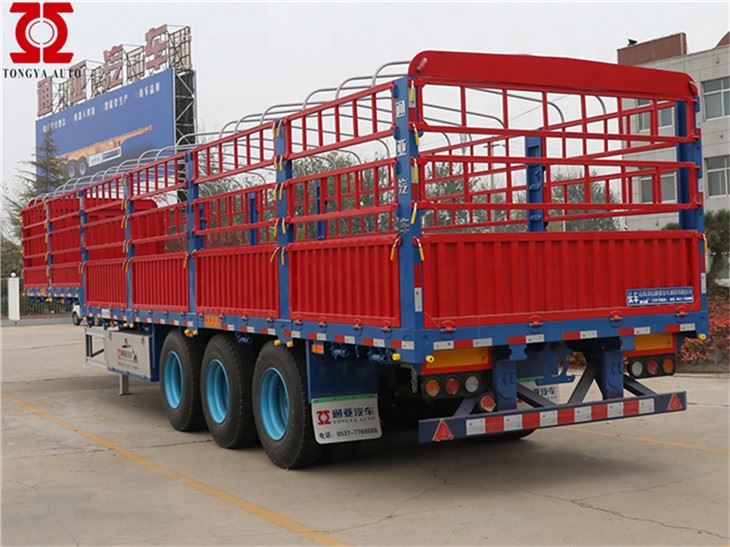

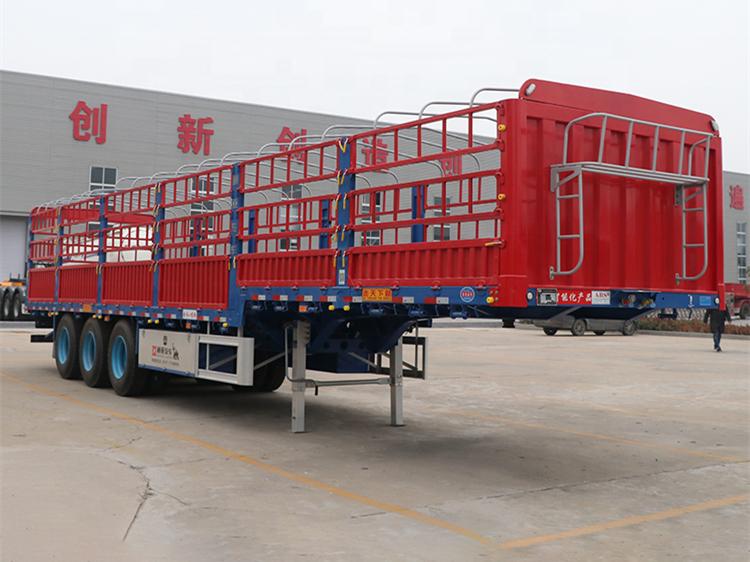

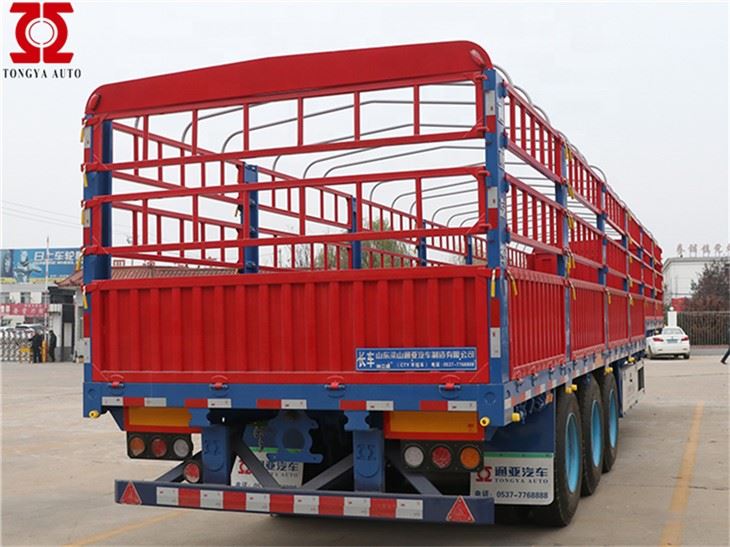

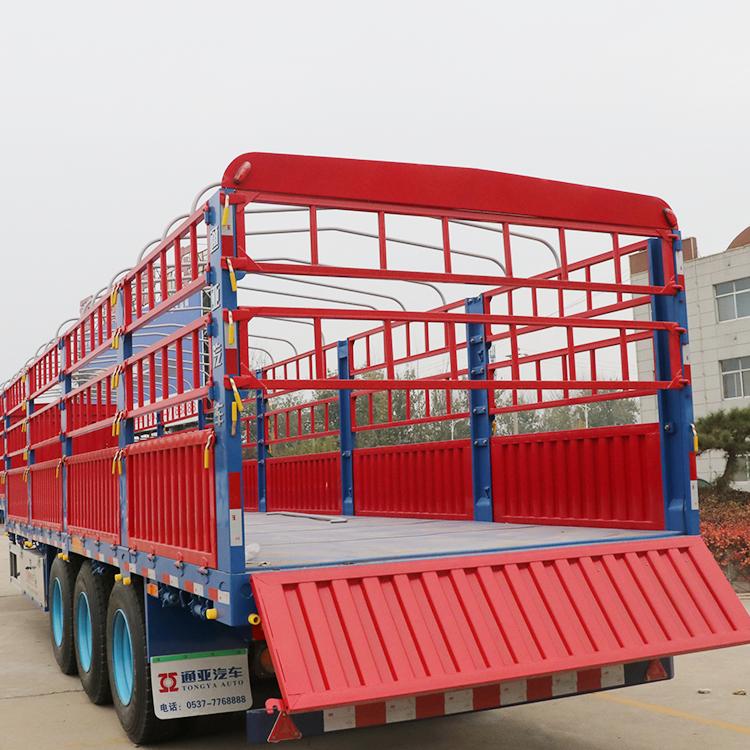

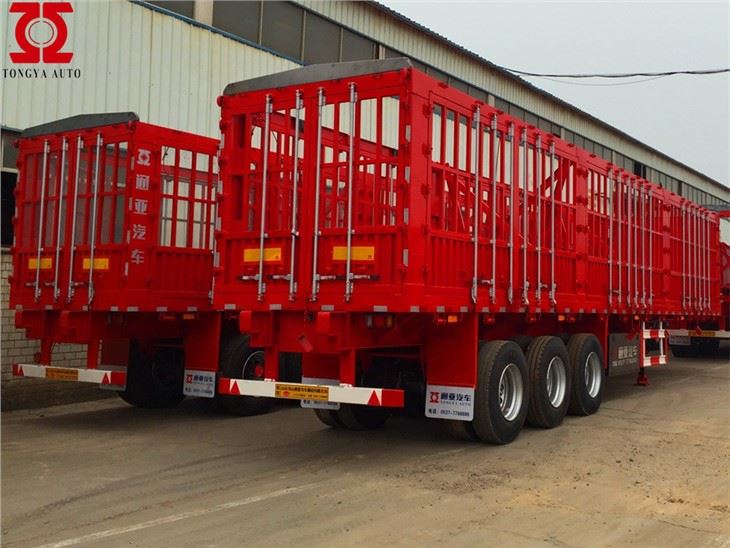

50tons Stake Semi Trailer

1. Cov qauv zoo heev steel nrog tensile thiab siab load peev xwm, 50 tuj loading peev.
2. Kom paub tseeb tias lub neej kev pab cuam ntawm lub laj kab semi trailer, tag nrho cov khoom seem peb txais yuav yog lub ntiaj teb nto moo hom.
3. Heavy duty type mechanical spring suspension rau siab loads yuav tsum tau.
4. High Quality sab phab ntsa, xyuas kom ruaj khov thiab kev nyab xeeb ntawm cov khoom thauj.

Xa kev nug

Khoom Taw qhia

Tare luj	7T
Dimension	8500mm * 2490mm * 2900mm (Qhov loj tuaj yeem xaiv tau dawb)
Loading peev (T)	50 T
Qag	13 T, FUWA Brand
Rim	9.00-22.5 8.5-20

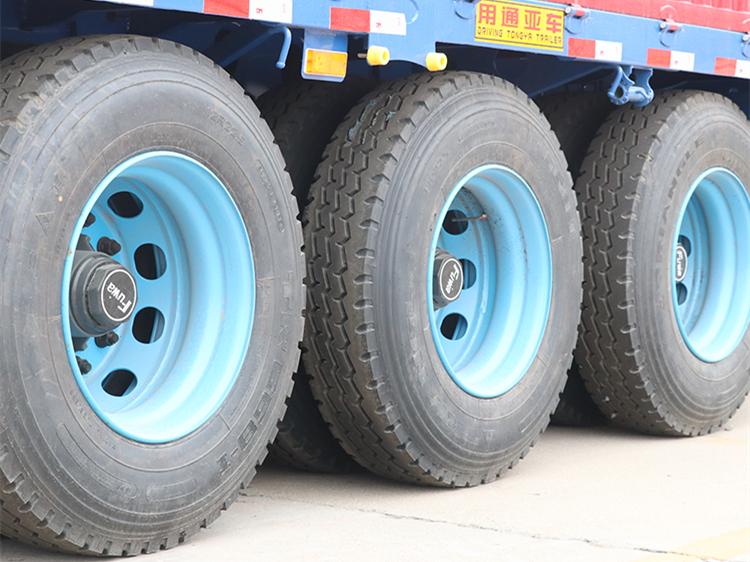

Lub log	12.00R22.5
Kev ncua	Mechanical suspension (Lub teb chaws Yelemees Hom lossis Asmeskas Hom)
Kev ncua	Los yog Cua ncua (Tuam Tshoj hom lossis BPW hom)
Nplooj nplooj	90 (W) hli * 13 (Thickness) hli * 10 Txheej los yog 100mm * 12mm * 12
King pin	JOST hom 2.0 lossis 3.5inch bolts hom lossis Vuam hom
Txhawb ceg	JOST hom
Main beam	Qhov siab: 500mm, phaj siab yog 14mm, nruab nrab phaj yog 8mm,
Main beam	down phaj yog 16mm; Khoom siv yog Q345B Steel.
Sab beam	16mm lossis 18mm channel steel (Cov khoom yog Q235steel).
Sab phab ntsa	600mm-1500mm, lossis tuaj yeem ua lub thawv hom, xaiv
Nres chamber	WABCO RE 6 relay valve; T30/30 ntxiv rau T30 Caij nplooj ntoos hlav nres chamber (TKL hom); Ob daim ntawm 45L cua tso tsheb hlau luam
ABS	xaiv tau
Twist Locks	Plaub, Yim los yog kaum ob daim (Lifting type lossis Twist Screw Type), xaiv tau
Valve	WABCO valve (tshwj xeeb rau kev lag luam xa tawm)
Teeb	LED teeb (tshwj xeeb rau kev lag luam xa tawm)
Qhov hluav taws xob	24V
Txais	7 txoj kev (7 hlau hlua)
Tool lub thawv	Ib thooj, 1m × 0.5m × 0.5m (Qhov Loj tuaj yeem xaiv tau dawb) (nrog 1 unit Tyre spanner, 1 unit gudgeon tes tsho thiab 1 unit cranking bar)
Kev pleev xim	Ua kom tiav Chassis xuab zeb blasting los ntxuav xeb, 1 lub tsho tiv no ntawm anticorrosive prime, 2 lub tsho tiv no ntawm cov xim kawg
Cov ntsiab lus shipping:	Los ntawm cov neeg nqa khoom loj, RORO lossis 40HQ thawv.

50tons ceg txheem ntseeg semi trailer rau nruab nrab thiab ntev kev thauj mus los ntawm cov khoom nruab nrab thiab hnyav thiab cov khoom loj, nrog rau kev ua haujlwm zoo

50tons ceg txheem ntseeg semi trailer yog nplua nuj nyob rau hauv cov duab, los ntawm ultra lub teeb mus rau ultra hnyav, los ntawm cov hlau zoo tib yam mus rau high-zog steel, muab cov neeg muas zaub nrog kev xaiv ntawm qhov chaw.

Qhov saum npoo hauv qab yog lub dav hlau bearing, thiab qhov sib txawv qhov siab laj kab boards tuaj yeem teeb tsa nyob ib puag ncig raws li qhov xav tau ntawm kev thauj khoom thiab kev siv tus cwj pwm ntawm cov neeg siv khoom. Kev paub hauv kev tsim, zoo heev, txhim khu kev qha thiab ruaj khov

Main Beam

3 axles ceg txheem ntseeg semi trailer nrog Q345, siab zog carbon steel los ntawm cov tuam txhab hlau loj tshaj plaws hauv Suav teb

Vuam

3 axles ceg txheem ntseeg semi trailer nrog Submerged Act Vuam, tag nrho tsis siv neeg tshuab
