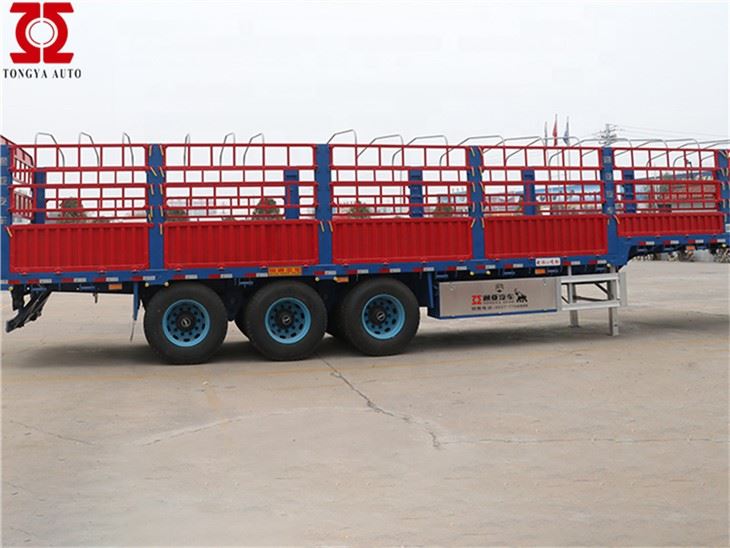

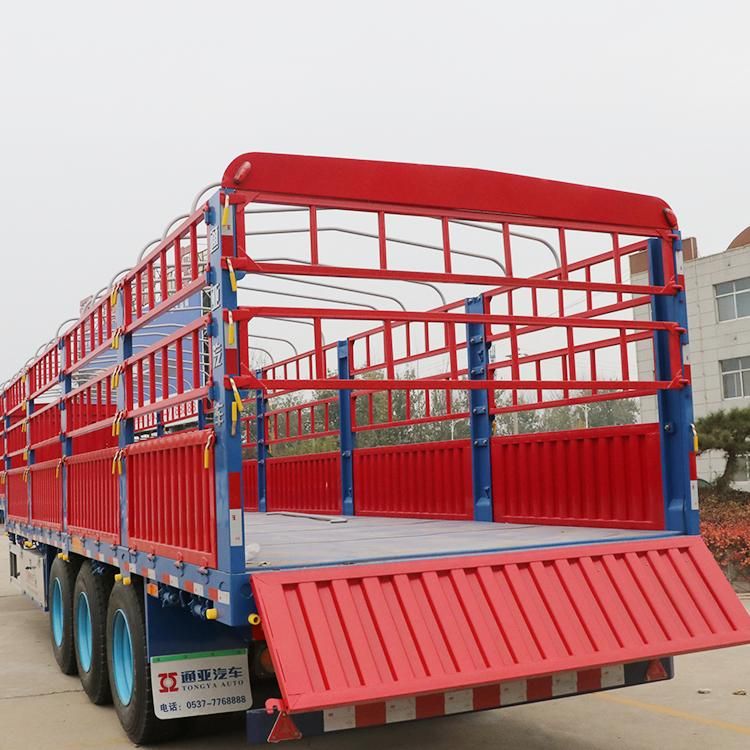

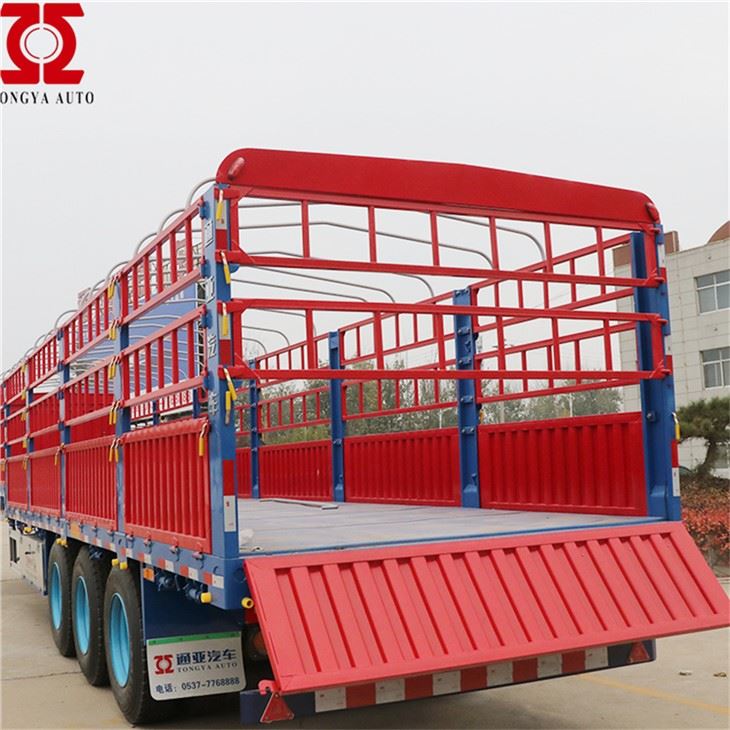

40ft laj kab Semi Trailer

1, Cov kab teeb ntawm peb 40ft laj kab semi trailer yog welded los ntawm robots, thiab cov precision yog nruj me ntsis tswj.
2, Peb lub tuam txhab muaj ntau tus kws paub txog kev paub txog kev ruaj ntseg ntawm 40ft laj kab semi trailer zoo
3, Peb 40ft laj kab semi trailer yog tsim los rau Africa thiab Southeast Asia kev lag luam.
4, Txhua qhov kev nthuav dav ntawm peb 40ft laj kab semi trailer qhia peb ceev faj thiab nrhiav kev zoo

Xa kev nug

Khoom Taw qhia

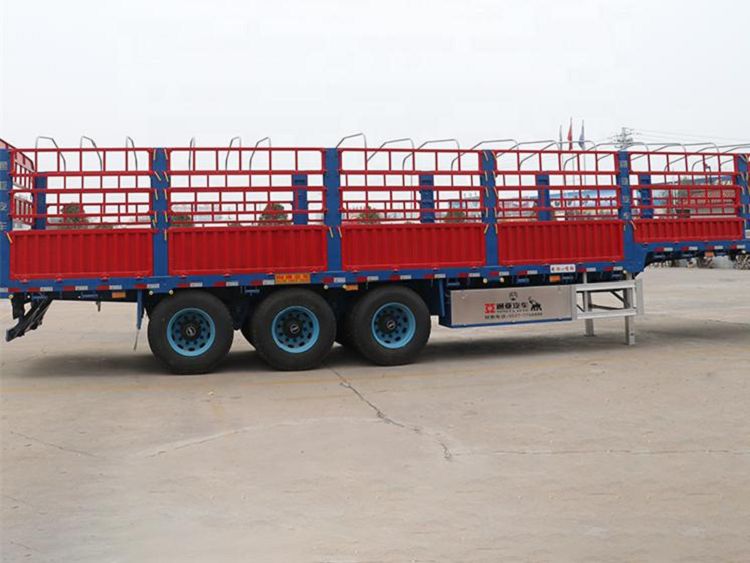

1(001)

Tare luj	Txog 8T
Dimension	13000mm * 2490mm * 2860mm (Sab nrauv)
Loading peev (T)	40 T
Qag	13 TSI FUWA Brand
Rim	9.00-22.5

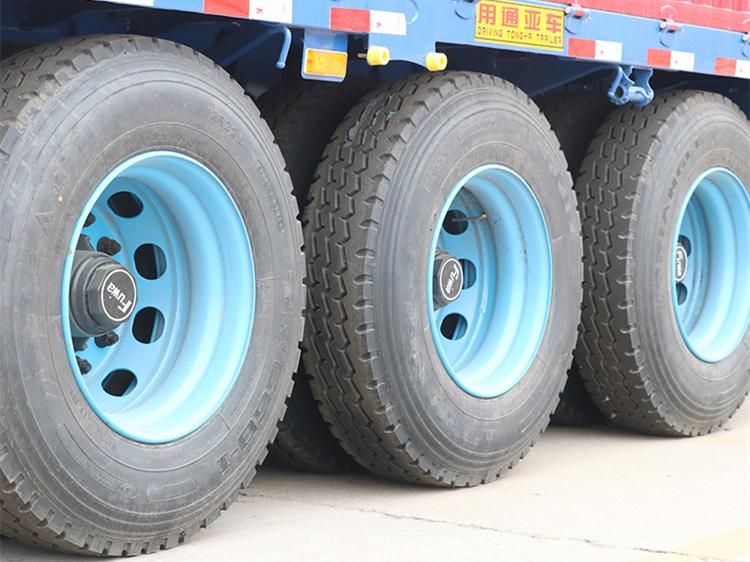

Lub log	12.00R22.5
Kev ncua	Mechanical suspension (Lub teb chaws Yelemees Hom lossis Asmeskas Hom)
Nplooj nplooj	90 (W) hli * 13 (Thickness) hli * 10 Txheej
King pin	JOST hom 2.0 lossis 3.5inch bolts hom lossis Vuam hom
Txhawb ceg	JOST hom
Main beam	Qhov siab: 500mm, phaj siab yog 14mm, nruab nrab phaj yog 8mm, Down phaj yog 16mm; Khoom siv yog Q345B Steel.
Sab beam	16mm lossis 18mm channel steel (Cov khoom yog Q235steel).
Sab phab ntsa	1500mm-1800mm, lub qhov rooj qhib tuaj yeem xaiv tau dawb. Nrog 300-500mm qhov siab square raj lossis round raj
Hauv qab Platform	3mm -5mm thickness (Raws li lub peev xwm uas koj thauj khoom rau)
Nres chamber	WABCO RE 6 relay valve; T30/30 ntxiv rau T30 Caij nplooj ntoos hlav nres chamber; Ib daim ntawm 45L cua tso tsheb hlau luam
ABS	xaiv tau
Valve	WABCO valve
Teeb	LED teeb
Qhov hluav taws xob	24V
Txais	7 txoj kev (7 hlau hlua)
Tool lub thawv	Ib thooj, 1m × 0.5m × 0.5m (Qhov Loj tuaj yeem xaiv tau dawb) (nrog 1 unit Tyre spanner, 1 unit gudgeon tes tsho thiab 1 unit cranking bar)
Kev pleev xim	Ua kom tiav Chassis xuab zeb blasting los ntxuav xeb, 1 lub tsho tiv no ntawm anticorrosive prime, 2 lub tsho tiv no ntawm cov xim kawg
Cov ntsiab lus shipping:	Los ntawm cov neeg nqa khoom loj, RORO lossis 40HQ thawv.

40ft laj kab semi trailer muaj ntau yam nta xws li lub teeb tare yuag, hnyav loading hnyav, siv W-puab los ntawm-mus beam, txo tag nrho cov loj heev los ntawm kev siv FEA (finite element tsom xam) nyob rau hauv lub precondition ntawm kom ntseeg tau lub zog zoo dua yog tshwj xeeb hauv kev txo. log tsheb hnav nam thaum txo cov roj noj.

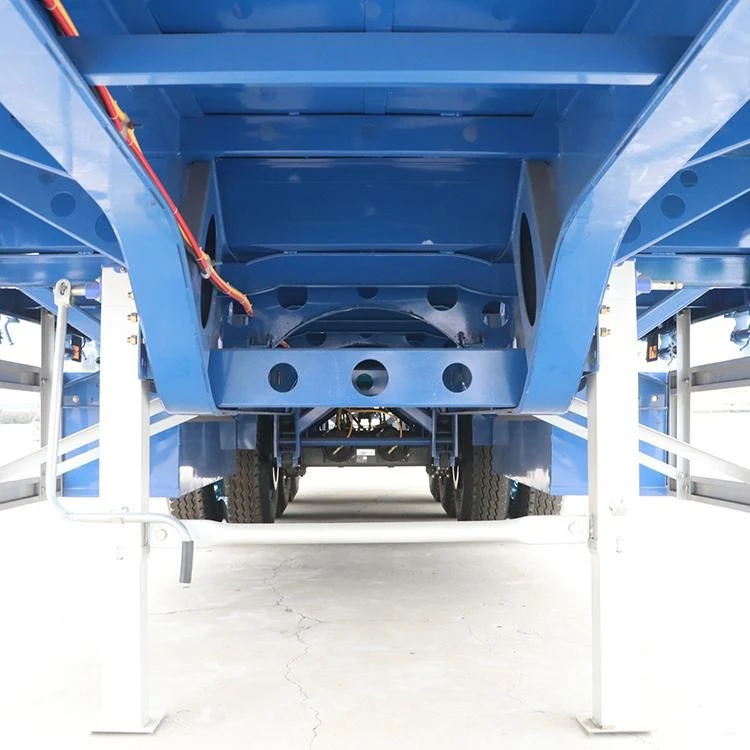

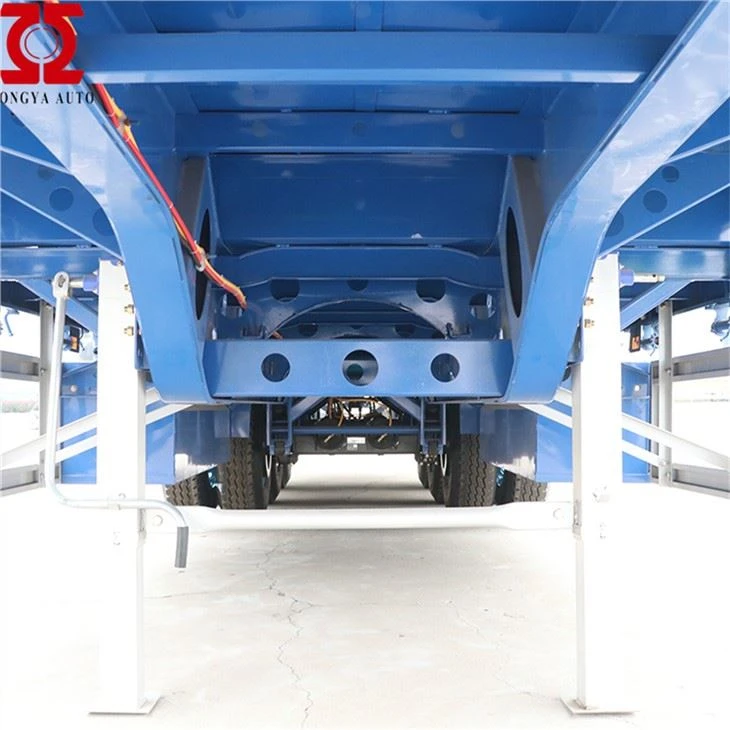

Main Beam

3 axles ceg txheem ntseeg semi trailer nrog Q345, siab zog carbon steel los ntawm cov tuam txhab hlau loj tshaj plaws hauv Suav teb

Vuam

3 axles ceg txheem ntseeg semi trailer nrog Submerged Act Vuam, tag nrho tsis siv neeg tshuab

2(001)
