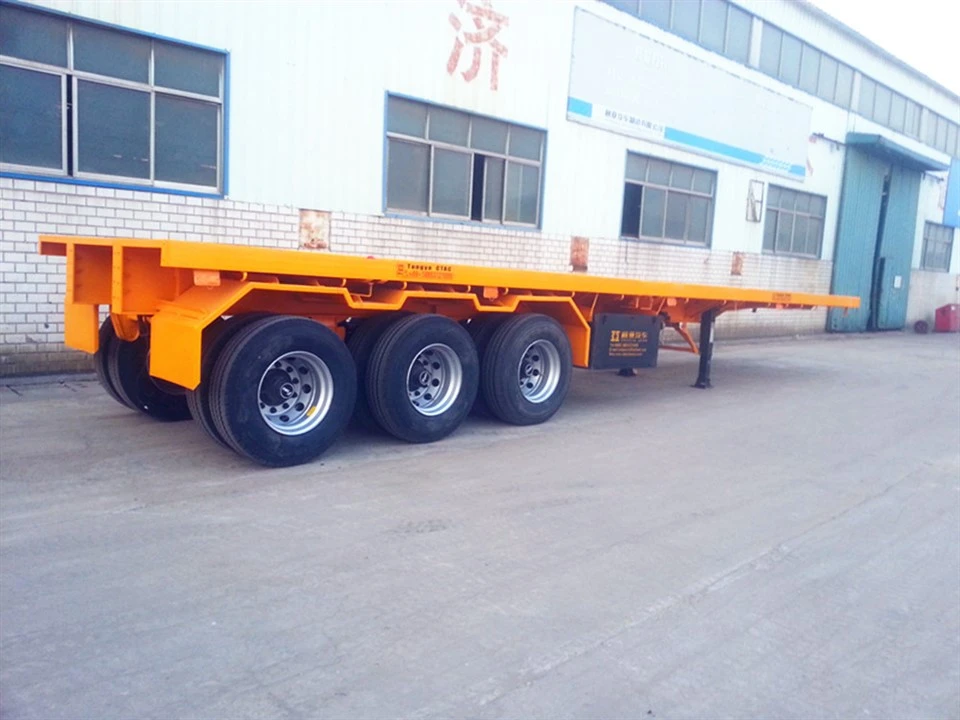

3 Axles Thawv Flatbed Semi Trailer
Nrog rau qhov zoo thiab lub koob npe nrov, peb tau tso cai ISO, CCC daim ntawv pov thawj. Peb muaj peb lub Hoobkas uas yog cov chaw tsim khoom nrog 500 tus neeg ua haujlwm. Peb cov khoom tau nrov nyob rau sab hnub tuaj Asia, Middle East, Africa thiab South America thiab Russia.
Khoom Taw qhia
Khoom taw qhia
3 axles thawv flatbed semi trailer yog siv los thauj cov thawv lossis cov khoom thauj qhuav.
Main beams welded los ntawm advanced loj-scale tshwj xeeb vuam tshuab txiav.
Tongyada hom thiab CCC / ISO9001 daim ntawv pov thawj pom zoo.
Peb txais yuav cov khoom lag luam nto moo rau peb cov trailer, ua kom cov cim zoo.
Peb yog cov chaw tsim khoom hauv Suav teb los ntawm 1982, koj tuaj yeem kho koj tus kheej cov tsheb thauj khoom, peb tsim thiab tsim khoom raws li koj qhov kev xav tau.
Khoom piav qhia
Peb 3 axles thawv flatbed semi trailer: Lub flatbed trailer yog tsim los thauj cov thawv sib txawv, xws li 20ft, 40ft, 45ft, 53ft thawv feem ntau. Tau kawg, gooseneck flatbed thawv semi trailer tseem thauj cov khoom thauj ntau thaum koj xav tau. Nws qag, ncua kev kawm ntawv, log tsheb, txawm lub ntsiab ncej tuaj yeem ua raws li cov neeg siv khoom xav tau. Peb muaj cov kws tshaj lij thev naus laus zis pab txhawb kev pabcuam tomqab muag. Lawv nyob hauv kev lag luam ntau tshaj 20 xyoo ntawm qhov nruab nrab. Peb mob siab rau kev pab cuam tom qab muag. Tongya automobile Co., Ltd. tshwj xeeb hauv kev tsim ntau yam trailers, xws li thawv trailers, qis txaj trailers thiab ntau yam tanker trailers, thiab lwm yam nrog cov cuab yeej siv siab heev thiab kev tswj xyuas zoo heev. Nrog rau qhov zoo thiab lub koob npe nrov, peb tau tso cai ISO, CCC daim ntawv pov thawj. Peb muaj peb lub Hoobkas uas yog cov chaw tsim khoom nrog 500 tus neeg ua haujlwm. Peb cov khoom tau nrov nyob rau sab hnub tuaj Asia, Middle East, Africa thiab South America thiab Russia.
KhoomSpecification
|
Qauv |
3 axles thawv flatbed semi trailer |
|
Zuag qhia tag nrho |
12,500mm * 2,500mm * 1,550mm |
|
Tare luj |
7, 200 Kg |
|
Them nyiaj |
45,000kgs, peb tuaj yeem tsim raws li koj xav tau |
|
Kuv Beam & Chassis |
Heavy luag hauj lwm thiab ntxiv durability tsim kuv beam; Kev xaiv rau siab tensile steel Q345B, welded los ntawm cov txheej txheem tsis siv neeg Submerged-Arc. Sab saum toj Flange 16mm, dav 140mm; Middle Flange 8mm, Qhov siab 500mm, Hauv qab Flange 16mm, dav 140mm |
|
Qag |
Tongya hom, 13T / qag |
|
Tus naj npawb ntawm axles |
3ax ua |
|
Kev ncua |
Heavy duty mechanical suspension |
|
Pem teb |
3mm pob zeb diamond steel phaj |
|
King Pin |
JOST hom 2" Bolt-hauv King Pin |
|
tsaws iav |
JOST hom Ob-ceev, phau ntawv khiav hauj lwm, hnyav tsaws iav |
|
Log Rim |
9. 0-22.5, 13 daim |
|
Lub log |
12 R22.5, 13 pcs |
|
Spare Tyre |
2 units |
|
Twist Lock |
12 units |
|
Braking System |
WABCO RE 6 relay valve; T30/30 ntxiv rau T30 Caij nplooj ntoos hlav braking chambers; ob daim ntawm 45L cua tso tsheb hlau luam |
|
Kev pleev xim |
Ua kom tiav Chassis xuab zeb blasting los ntxuav xeb, 1 lub tsho tiv no ntawm anticorrosive prime, 2 lub tsho tiv no ntawm cov xim kawg |
|
Tool lub thawv |
Ib lub thawv khoom txheem (Qhov Loj tuaj yeem xaiv tau dawb) (nrog 1 lub log tsheb spanner, 1 unit gudgeon lub tes tsho thiab 1 unit cranking bar) |
Cim npe nrov: 3 axles thawv flatbed semi trailer, Tuam Tshoj 3 axles thawv flatbed semi trailer manufacturers, lwm tus neeg
